LG 36,000 BTU LGRED 23.5 SEER2 Single Zone Slim Ceiling Cassette Mini Split Heat Pump System - R32 | 230V

Name: LG 36,000 BTU LGRED 23.5 SEER2 Single Zone Slim Ceiling Cassette Mini Split Heat Pump System - R32 | 230V
Brand: LG
SKU: KUSXA361A / KNSCB361A
Price: 6410 USD
Availability: InStock

SAVE $1,603.00

Required Fields *

Be the first to review this product

Ships in 3-5 Business Days

Free Shipping

LG

In stock

Model

KUSXA361A / KNSCB361A

235825

Was $8,013.00

Your Low Price $6,410.00

Customize LG 36,000 BTU LGRED 23.5 SEER2 Single Zone Slim Ceiling Cassette Mini Split Heat Pump System - R32 | 230V

See what is Included

3 Ton High Efficiency Single Zone Condenser

Heat Pump Condenser

Quantity

3 Ton High Efficiency Single Zone Condenser

3 Ton High Efficiency Single Zone Condenser + $4,159.00

Zone 1

Quantity

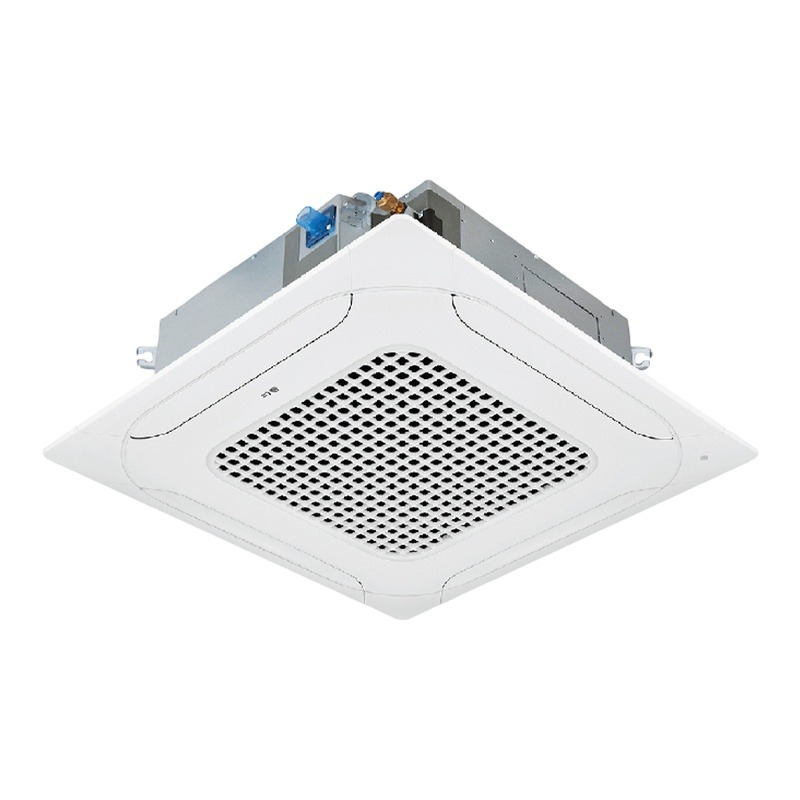

36k BTU Four-Way Ceiling Cassette

36k BTU Four-Way Ceiling Cassette + $2,251.00

Choose Your Accessories

Line Set + Control Wire

Quantity

Mounting Options

Quantity

Install Kit w/ Surge Protector

Quantity

Thermostat

Quantity

Qty

$6,410.00

Product Specs

More Information
LG 3 Ton 18.2 SEER2 High Efficiency Heat Pump Condenser \| Inverter \| LGRED Series - R32
Feature	Spec
SKU	KUSXA361A
Refrigerant Charge	106 oz (Pre-charged for 24.6 ft line set)
Weight (in lbs)	214.3
AHRI Certificate Number	217284909
Brand/Manufacturer	LG
UPC	195174085714
Cooling BTU	33,000 BTU
Heating BTU	40,000 BTU
Decibel Level (dBA)	54 dBA
Electric Heat	Heat Pump
Energy Star	Yes
Refrigerant	R32
HSPF2	9.6
SEER2 (Efficiency)	18.2
EER2	13
Condenser Stages	Variable Speed
Liquid Line	3/8"
Suction Line	5/8"
Liquid Valve Size	3/8"
Suction Valve Size	5/8"
Electrical	208-230V 1 Phase 60Hz
Max Breaker Size	35 Amps
Min. Breaker Size	32 Amps
Tonnage	3 Ton
Min/Max Outdoor Temp for Heating	-13°F - 64°F
Min/Max Outdoor Temp for Cooling	5°F - 118°F
Zone Compatibility	Single Zone
Ambient Temperature Range	-13 - 118°F
Height	54 11/32"
Width	37 13/32"
Depth	13"
Warranty	10 Years Compressor and 10 Years Parts with Online Registration
Resources	KUSXA361A / KNSLA361A Submittal KSSLA361A_Submittal_Sheet(Multi-Position Air Handling Unit KUSXA Installation Manual KUSXA / KNSL Engineering Manual LG R32 Residential System Warranty You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
LG 36,000 BTU Multi F Single Zone Ceiling Cassette Mini Split Air Handler - R32\| 230V
Feature	Spec
SKU	KNSCB361A
Weight (in lbs)	70.5
Brand/Manufacturer	LG
UPC	195174090367
Controller	Wireless Included
Cooling BTU	36,000 BTU
Heating BTU	40,000 BTU
Maximum CFM	971 Hi / 883 Med / 794 Lo CFM (Airflow)
Decibel Level (dBA)	41-44 dBA
Refrigerant	R32
Liquid Line	3/8"
Suction Line	5/8"
Electrical	208-230V \| 1Phase \| 60Hz
BTU/Tonnage	36,000 BTU/3 Ton
Mini Split Type	Ceiling Cassette
Zone Compatibility	Multi Zone
Height	14.17"
Width	36.1"
Depth	36.3"
Warranty	10 Year Compressor / 7 Years Parts Warranty with Online Registration
Resources	Submittal Engineering Manual Install Manual You will need AdobeA® AcrobatA® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
Feature	Spec
SKU	87762 / EL1838-3
Weight (in lbs)	25
Brand/Manufacturer	Online Supply
UPC	na
Height	3"
Width	18"
Depth	38"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Installation Kit for Condensers - Accessory Set
Feature	Spec
SKU	MSK001
Weight (in lbs)	15
Brand/Manufacturer	Online Supply
UPC	na
Resources	Surge Protector Install Guide You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
30" Wall Mount Bracket for Mini Split Systems
Feature	Spec
SKU	ACB-30
Weight (in lbs)	9.2
Brand/Manufacturer	Online Supply
Length	30"
Height	16"
Width	2"
Resources	Installation Manual Data Sheet You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 5/8" Line Ends & Control Wire - 15 feet
Feature	Spec
SKU	218863 / CW-144-15
Weight (in lbs)	15
Brand/Manufacturer	Online Supply
UPC	na
Length	15'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 5/8" Line Ends & Control Wire - 25 feet
Feature	Spec
SKU	366406 / CW-144-25
Weight (in lbs)	25
Brand/Manufacturer	Online Supply
UPC	na
Length	15'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 5/8" Line Ends & Control Wire - 30 feet
Feature	Spec
SKU	219066 / CW-144-30
Weight (in lbs)	30
Brand/Manufacturer	Online Supply
UPC	na
Length	30'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 5/8" Line Ends & Control Wire - 35 feet
Feature	Spec
SKU	366407 / CW-144-35
Weight (in lbs)	35
Brand/Manufacturer	Online Supply
UPC	na
Length	30'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 5/8" Line Ends & Control Wire - 50 feet
Feature	Spec
SKU	366408 / CW-144-50
Weight (in lbs)	45
Brand/Manufacturer	Online Supply
UPC	na
Length	50'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Cielo Breez Max Mini Split Thermostat with WiFi
Feature	Spec
SKU	BM101WA
Weight (in lbs)	1
Brand/Manufacturer	Cielo
UPC	na
Electrical	Micro USB with Standard Plug
Height	4.25"
Width	4.25"
Depth	1"
Warranty	1 Year Full Replacement
Resources	User Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.

Reviews

Accessories

FAQ's

Customer Questions

Why Choose LG?

LG is a globally recognized brand known for innovative HVAC technology, dependable performance, and modern comfort solutions. With a strong reputation in heating and cooling, LG mini split systems are designed to deliver efficient temperature control, quiet operation, and advanced features for residential and light commercial applications. Whether you are replacing an older system or upgrading to ductless comfort, LG offers reliable products built with quality, efficiency, and everyday convenience in mind.
