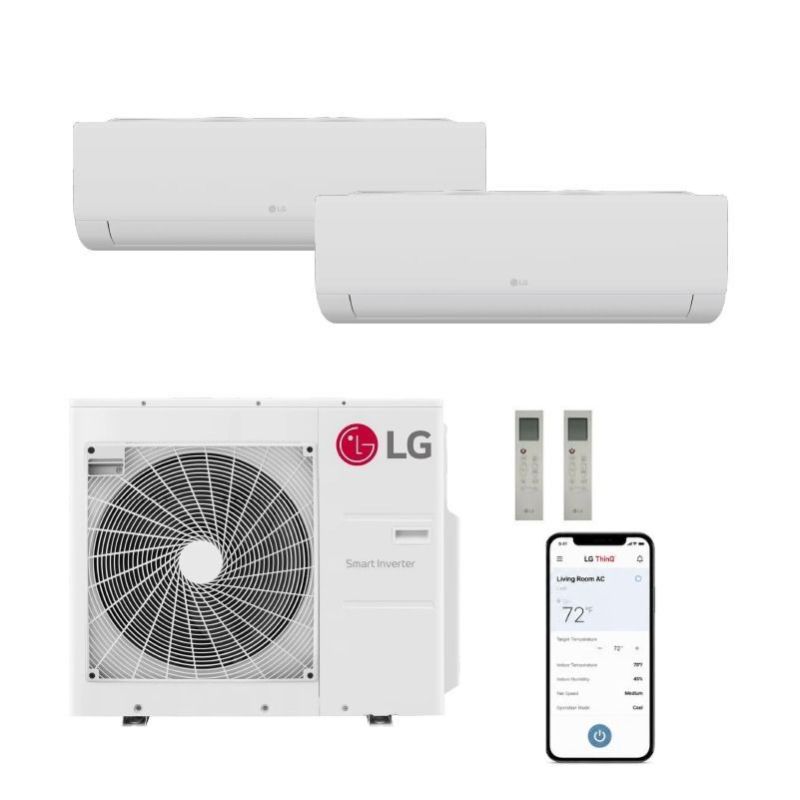

LG 36,000 BTU Multi F 21.5 SEER2 Dual Zone Wall Mount Mini Split Heat Pump System – R32 | 230V -24 + 9
This versatile dual-zone system provides customized climate control for approximately
1,250–1,900 sq ft, making it the perfect solution for homes with an expansive main living area
and a smaller adjacent room such as a nursery or home office. By combining a 24,000 BTU unit
with a 9,000 BTU unit, you get high-capacity cooling where you spend the most time while
maintaining independent temperature control and strong efficiency throughout your home.
Key Features
- Covers up to 1,900 sq ft across two independent zones
- 19 SEER2 efficiency rating
- Built in Wi-Fi Compatibility
- Advanced inverter technology for precise, steady-state climate control
- Independent zone management for targeted energy savings and personalized comfort
Feature Highlights
Efficiency (SEER2)
With a 19 SEER2 rating, this system is designed to significantly lower seasonal energy costs
compared to traditional central air systems. The inverter-driven compressor adjusts output
based on demand, helping prevent unnecessary energy use.
Quiet Operation
Both indoor air handlers feature specialized fan designs and low-vibration motors for quiet
performance. This is especially beneficial in the 9,000 BTU zone, making it ideal for sleeping
or focused work environments.
Right-Sized Power
The combination of a high-output 24,000 BTU unit for large open spaces and a 9,000 BTU unit for
smaller rooms ensures balanced conditioning without short-cycling while supporting consistent
humidity control and long-term reliability.
What’s Included
- Outdoor Multi-Zone Condenser — 36,000 BTU / 19 SEER2
- Indoor Air Handler 1 — 24,000 BTU high-capacity wall-mounted unit
- Indoor Air Handler 2 — 9,000 BTU compact wall-mounted unit
- Wireless remote controls — individual remotes for each indoor zone
- Installation and operation manuals
Recommended Accessories
- Refrigerant line sets (sized specifically for 24k and 9k units)
- Heavy-duty wall bracket or ground-level condenser pad
- Line set covers and condensate drain hose kit
Warranty
LG products include a 10-year warranty when installation is completed by a licensed contractor
and the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
36K BTU Multi Zone Condenser36,000 BTU LG Multi Zone Mini Split Heat Pump Condenser - R32 | 230V
This outdoor mini split condenser provides efficient heating and cooling performance for single-zone applications. When paired with a compatible indoor air handler, it supports comfort for spaces up to 1300-1600sq ft.
Key Features
- High-efficiency inverter-driven performance
- 36,000 BTU capacity for single-zone systems
- Compact outdoor design for flexible placement
- Engineered for quiet outdoor operation
- Pairs with compatible Carrier Infinity air handlers
Warranty
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
9k BTU High Efficiency Wall MountThe 9,000 BTU LG High Efficiency Single Zone Wall Mount Mini Split Air Handler is designed to condition rooms up to approximately 350 square feet with quiet, energy-efficient performance. Its compact, high-efficiency design makes it ideal for bedrooms, offices, and small living areas where powerful yet space-conscious comfort is needed.
Key Features
- 9,000 BTU Capacity: Provides reliable cooling and heating output for single-zone applications in smaller rooms.
- High-Efficiency Operation: Engineered for improved efficiency using R32 refrigerant, helping reduce energy use while maintaining strong comfort performance.
- Quiet Performance: Designed for low-noise operation, making it suitable for sound-sensitive spaces such as bedrooms and home offices.
- Jet Temperature Control: Delivers faster cooling or heating to help the room reach the desired temperature more quickly.
- 4-Way Air Swing: Helps distribute conditioned air more evenly across the room for improved comfort balance.
- Self-Cleaning Indoor Coil: The self-cleaning coil design helps reduce moisture and debris buildup, supporting cleaner airflow and easier maintenance.
- 3M Micro Dust Filter: Captures fine dust and airborne particles to help improve indoor air quality.
- Sleep Mode and 24-Hour Timer: Supports sleep mode and 24-hour on/off timing for simpler daily operation and better comfort control.
- Built-In Wi-Fi Ready: Compatible with Wi-Fi-enabled controls for remote monitoring and adjustments when paired with a supported system configuration.
- R32 Leak Detection Sensor: Includes an R32-specific leak-detection sensor to help support safer refrigerant monitoring on properly wired installations.
Compatibility
This indoor air handler is compatible with LG single-zone outdoor systems designed for R32 refrigerant and matching high-efficiency indoor-outdoor pairings. It must be installed with a compatible outdoor unit to operate properly.
24k BTU High Efficiency Wall Mount LG 24,000 BTU Single Zone Wall Mount High Efficiency Mini Split Air Handler - R32 | 230V
This wall-mount mini split air handler delivers quiet, efficient comfort for larger bedrooms, offices, and living areas up to 850–1,100 sq ft with 24,000 BTU cooling when paired with a compatible outdoor condenser.
Key Features
- Quiet indoor operation from 34 dB, perfect for noise-sensitive areas like bedrooms and home offices
- 24,000 BTU cooling capacity for reliable year-round comfort in a single zone indoor space
- Sleek wall-mounted Multi F unit with R32 refrigerant for high-efficiency performance in a slim cabinet
- Jet Cool and Jet Heat modes for rapid temperature changes when you need fast comfort
- Compact chassis with 3/8" liquid and 5/8" gas lines to streamline installation and routing
Warranty
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
15 feet - 1/4" and 1/2" Line Set & Control Wire Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 15-foot refrigerant line set with 1/4" liquid line and 1/2" suction line featuring durable flared ends for secure connections, along with a matching 15-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 15 ft. insulated refrigerant line set
- 15 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 1/2" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
15 feet - 1/4" and 3/8" Line Set & Control WireComplete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 15-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 15-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 15 ft. insulated refrigerant line set
- 15 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 3/8" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
25 feet - 1/4" and 1/2" Line Set & Control Wire Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 25-foot refrigerant line set with 1/4" liquid line and 1/2" suction line featuring durable flared ends for secure connections, along with a matching 15-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 25 ft. insulated refrigerant line set
- 25 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 1/2" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
25 feet - 1/4" and 3/8" Line Set & Control WireComplete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 25-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 25-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 25 ft. insulated refrigerant line set
- 25 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 3/8" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
30 feet - 1/4" and 1/2" Line Set & Control Wire Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 30-foot refrigerant line set with 1/4" liquid line and 1/2" suction line featuring durable flared ends for secure connections, along with a matching 30-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 30 ft. insulated refrigerant line set
- 30 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 1/2" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
30 feet - 1/4" and 3/8" Line Set & Control WireComplete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 30-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 30-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 30 ft. insulated refrigerant line set
- 30 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 3/8" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
35 feet - 1/4" and 1/2" Line Set & Control Wire Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 35-foot refrigerant line set with 1/4" liquid line and 1/2" suction line featuring durable flared ends for secure connections, along with a matching 35-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 35 ft. insulated refrigerant line set
- 35 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 1/2" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
50 feet - 1/4" and 1/2" Line Set & Control Wire Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 50-foot refrigerant line set with 1/4" liquid line and 1/2" suction line featuring durable flared ends for secure connections, along with a matching 50-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 50 ft. insulated refrigerant line set
- 50 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 1/2" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
50 feet - 1/4" and 3/8" Line Set & Control WireComplete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 50-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 50-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 50 ft. insulated refrigerant line set
- 50 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 3/8" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
