LG 36,000 BTU Multi F RED 22 SEER2 Three Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 15 + 15 + 9
This high-performance three-zone system is an ideal climate solution for homes featuring two large communal areas and one standard bedroom or office, covering approximately 1,450 to 2,400 sq ft. By pairing two powerful 15,000 BTU units with a compact 9,000 BTU unit—all anchored by a robust 36,000 BTU outdoor condenser—you gain a significant performance reservoir. The primary benefit is the system's ability to maintain total comfort across varied room sizes simultaneously, ensuring your largest spaces stay cool during peak heat without over-conditioning smaller rooms.
Key Features
- Covers up to 2,400 sq ft across three independent zones
- 22 SEER2 efficiency rating
- Built in Wi-Fi Compatibility
- Advanced Inverter technology for steady-state performance and energy savings
- High-output 15k BTU air handlers for powerful airflow in primary living areas
Feature Highlights
Efficiency (SEER2)
The 22 SEER2 rating ensures that this high-capacity system manages your home's climate with professional-grade efficiency. The inverter-driven compressor scales its energy consumption to meet the exact thermal load of the active zones, preventing the expensive power spikes common in traditional HVAC units and lowering your overall utility costs.
Quiet Operation
Each indoor air handler in this configuration is engineered with specialized fan blades and vibration-dampening materials to ensure whisper-quiet performance. This allows you to maintain a peaceful environment, whether you are hosting guests in a large living room or sleeping in a bedroom, without the intrusive mechanical noise of a standard central air system.
Right-Sized Power
This combination of 15k and 9k BTU units is "right-sized" to eliminate hot or cold spots in varied room dimensions. The 15,000 BTU units provide the necessary "throw" to condition expansive open spaces, while the 9,000 BTU unit offers the perfect capacity for a standard room, ensuring superior dehumidification and consistent comfort throughout the day.

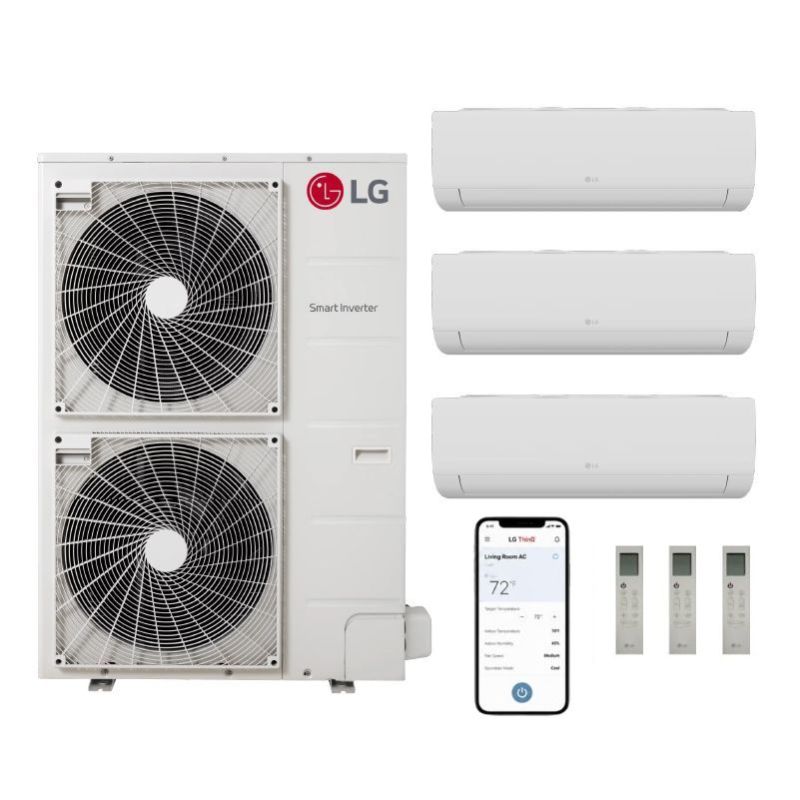

What’s Included
- Outdoor Multi-Zone Condenser — 36,000 BTU / 22 SEER2
- Indoor Air Handler 1 & 2 — 15,000 BTU high-output wall-mounted units
- Indoor Air Handler 3 — 9,000 BTU wall-mounted unit
- Three Wireless Remote Controls — Individual management for every zone
- Installation and Operation Manuals
Recommended Accessories
- Three refrigerant line sets (sized specifically for 15k and 9k requirements)
- Heavy-duty ground condenser pad or reinforced steel wall bracket
- Decorative line set covers and high-capacity condensate drain kit
Warranty
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
36k BTU Multi Zone Condenser w/ Cold Climate Technology36,000 BTU LG LGRED° Multi Zone Mini Split Heat Pump Condenser - R32 | 230V
This outdoor mini split condenser provides efficient heating and cooling performance for single-zone applications. When paired with a compatible indoor air handler, it supports comfort for spaces up to 1300-1600sq ft.
Key Features
- High-efficiency inverter-driven performance
- 36,000 BTU capacity for single-zone systems
- Compact outdoor design for flexible placement
- Engineered for quiet outdoor operation
- Pairs with compatible Carrier Infinity air handlers
Warranty
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
9k BTU High Efficiency Wall MountThe 9,000 BTU LG High Efficiency Single Zone Wall Mount Mini Split Air Handler is designed to condition rooms up to approximately 350 square feet with quiet, energy-efficient performance. Its compact, high-efficiency design makes it ideal for bedrooms, offices, and small living areas where powerful yet space-conscious comfort is needed.
Key Features
- 9,000 BTU Capacity: Provides reliable cooling and heating output for single-zone applications in smaller rooms.
- High-Efficiency Operation: Engineered for improved efficiency using R32 refrigerant, helping reduce energy use while maintaining strong comfort performance.
- Quiet Performance: Designed for low-noise operation, making it suitable for sound-sensitive spaces such as bedrooms and home offices.
- Jet Temperature Control: Delivers faster cooling or heating to help the room reach the desired temperature more quickly.
- 4-Way Air Swing: Helps distribute conditioned air more evenly across the room for improved comfort balance.
- Self-Cleaning Indoor Coil: The self-cleaning coil design helps reduce moisture and debris buildup, supporting cleaner airflow and easier maintenance.
- 3M Micro Dust Filter: Captures fine dust and airborne particles to help improve indoor air quality.
- Sleep Mode and 24-Hour Timer: Supports sleep mode and 24-hour on/off timing for simpler daily operation and better comfort control.
- Built-In Wi-Fi Ready: Compatible with Wi-Fi-enabled controls for remote monitoring and adjustments when paired with a supported system configuration.
- R32 Leak Detection Sensor: Includes an R32-specific leak-detection sensor to help support safer refrigerant monitoring on properly wired installations.
Compatibility
This indoor air handler is compatible with LG single-zone outdoor systems designed for R32 refrigerant and matching high-efficiency indoor-outdoor pairings. It must be installed with a compatible outdoor unit to operate properly.
15 feet - 1/4" and 3/8" Line SetRefrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends,
length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
25 feet - 1/4" and 3/8" Line SetRefrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
15K BTU High Efficiency Wall MountLG 15,000 BTU Multi Zone Wall Mount High Efficiency Mini Split Air Handler - R32 | 230V
This wall-mount mini split air handler delivers quiet, efficient comfort for bedrooms, offices, and living areas up to 600–1,000 sq ft with 15,000 BTU cooling when paired with a compatible outdoor condenser.
Key Features
- Quiet indoor operation from 30 dB, perfect for noise-sensitive areas like bedrooms and home offices
- 15,000 BTU cooling capacity for reliable year-round comfort in a single zone indoor space
- Sleek wall-mounted Multi F unit with R32 refrigerant for high-efficiency performance in a slim cabinet
- Jet Cool and Jet Heat modes for rapid temperature changes when you need fast comfort
- Compact chassis with 1/4"" liquid and 1/2"" gas lines to streamline installation and routing
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
LG Distribution Box 3 Ports For 3 Zone SystemsThis 3-port branch distribution box is designed for select LG Multi F MAX and Multi F MAX with LGRED outdoor units in 48,000 BTU systems and above. It helps distribute refrigerant from the outdoor condenser to compatible indoor units in multi-zone applications, allowing for more flexible and efficient system design. With support for connected indoor unit capacities from 7,000 to 24,000 BTU/h and a maximum combined nominal capacity of 72,000 BTU/h, it is built for reliable multi-zone performance in residential and light commercial installations. Designed for indoor installation, it is compatible with A2L systems.
30 feet - 1/4" and 3/8" Line SetRefrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends,
length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
50 feet - 1/4" and 3/8" Line SetRefrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends,
length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
