Today's Hours 8am - 11pm estLG 60,000 BTU Multi F Max 20.5 SEER2 4 ZoneWall Mounted Mini Split Heat Pump System - R32 | 230V - 7 + 7 + 7 + 7
Required Fields *
By
LG
In stock
Model
KUMXB601A / 4-KNMAB071A
ID
234293
Was $8,991.00
Your Low Price $7,191.00

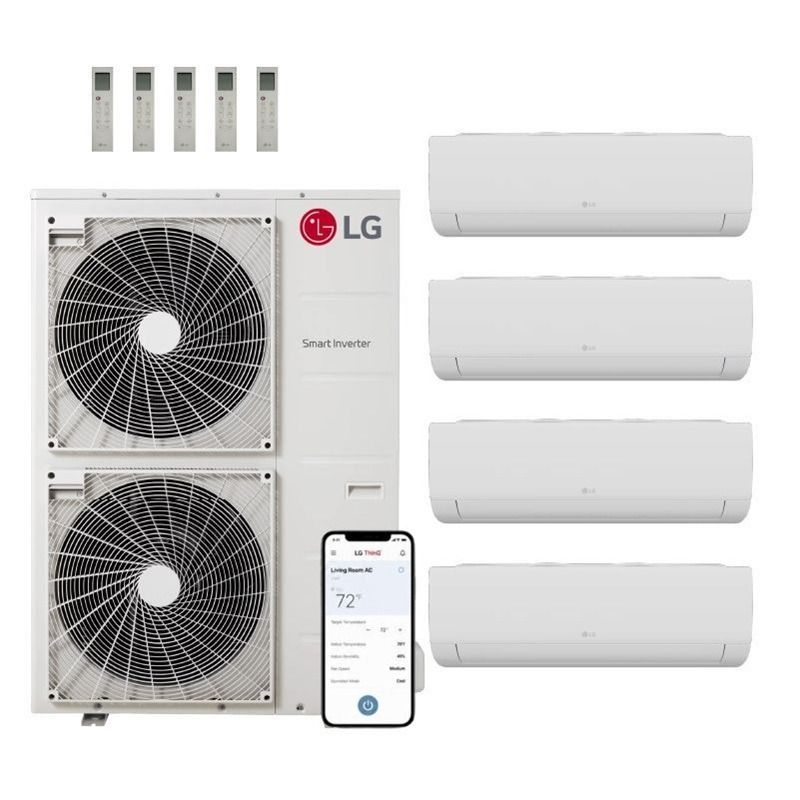

LG 60,000 BTU Multi F Max 20.5 SEER2 4-Zone Wall‑Mounted Mini Split Heat Pump System – R32 | 230V – 7 + 7 + 7 + 7
Covering up to approximately 1,800–2,400 sq ft depending on layout and climate, this LG Multi F Max 4-Zone wall‑mounted mini‑split heat pump delivers year‑round heating and cooling for multi‑room homes, small offices, or open‑concept living spaces. Its 20.5 SEER2 efficiency and inverter‑driven compressor reduce energy use while maintaining precise comfort in each zone.
Key Features
- Covers up to 1,800–2,400 sq ft across five connected zones
- 20.5 SEER2 efficiency for significant energy savings versus standard split systems
- Built in Wi-fi Compatibility
- Ultra‑quiet indoor operation with inverter‑driven compressor and low‑sound fan profiles
- Strong output and cold‑climate performance down to about –4°F for reliable heating in harsh winters
Feature Highlights
Efficiency (SEER2)
With a top‑tier 20.5 SEER2 rating, this Multi F Max system uses inverter technology and a variable‑speed compressor to match cooling and heating output to the exact demand of each zone, minimizing on‑off cycling and reducing runtime energy consumption. The high SEER2 also means lower monthly bills and a smaller environmental footprint while still delivering fast temperature recovery and consistent comfort in living spaces.
Quiet Operation
LG’s wall‑mounted indoor units are designed for exceptionally low sound levels, especially in low‑fan and sleep modes, so cooling and heating blend into the background of bedrooms, offices, and living rooms. The combination of inverter‑driven compressor and optimized airflow reduces mechanical noise outdoors, creating a quieter overall environment for families, remote workers, and light‑sleepers.
Right‑Sized Power
The 60,000 BTU outdoor condenser is engineered to support up to five indoor units (for example, 7k + 7k + 7k + 7k configurations), making it ideal for medium‑sized homes or multi‑room renovations where each room needs its own thermostat control. This zoning capability avoids the discomfort and waste of oversized single‑zone systems, letting you heat or cool only occupied areas and maintain stable temperatures without overcooling or short‑cycling.
What’s Included
- Outdoor condenser — KUMXB601A 60,000 BTU cooling / 64,000 BTU heating, 20.5 SEER2, R32 refrigerant, 230V
- Indoor air handler — Wall‑mounted mini‑split units totaling 7k + 7k + 7k + 7k BTU, each optimized for quiet operation and flexible room‑by‑room control
- Wireless remote control — One per indoor unit for independent temperature, fan speed, and mode selection in each zone
- Installation manual — Manufacturer‑provided guide for line‑set sizing, electrical requirements, and system commissioning
Recommended Accessories
- Refrigerant line set — Properly sized and insulated R32 line sets to connect each indoor unit to the outdoor condenser
- Wall bracket or condenser pad — Secure mounting hardware and outdoor base to protect the condenser and improve airflow
- Drain hose and insulation kit — Condensate drain tubing and insulation for the refrigerant lines to support efficient operation and prevent condensation issues
Warranty
LG products include a 10‑year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
60k BTU Multi Zone Condenser
60,000 BTU LG Multi Zone Mini Split Heat Pump Condenser - R32 | 230V
This outdoor mini split condenser provides efficient heating and cooling performance for single-zone applications. When paired with a compatible indoor air handler, it supports comfort for spaces up to 2100-2600sq ft.
Key Features
- High-efficiency inverter-driven performance
- 60,000 BTU capacity for single-zone systems
- Compact outdoor design for flexible placement
- Engineered for quiet outdoor operation
- Pairs with compatible Carrier Infinity air handlers
Warranty
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
7k BTU High Efficiency Wall Mount
LG 7,000 BTU Single Zone Wall Mount High Efficiency Mini Split Air Handler - R32 | 230V
This wall-mount mini split air handler is designed to deliver quiet, efficient airflow for bedrooms, offices, and small living spaces. It supports comfort for rooms up to 200-300 sq ft when paired with a compatible outdoor condenser.
Key Features
- Ultra-quiet indoor operation with sound levels down to 26-35 dB, ideal for noise-sensitive areas like bedrooms and home offices
- 7,000 BTU cooling for dependable year-round comfort in a single zone indoor space
- Wall-mounted Multi F indoor unit using R32 refrigerant for high efficiency performance in a slim, modern cabinet
- Jet Cool and Jet Heat modes for rapid temperature pull-down or warm-up when you need fast comfort
- Compact, lightweight indoor chassis with 1/4" liquid and 3/8" gas line connections to simplify installation and routing
Warranty
When installed and registered according to LG requirements, LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
15 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
LG Distribution Box 4 Ports For 4 Zone Systems
This 4-port branch distribution box is designed for select LG Multi F MAX and Multi F MAX with LGRED outdoor units in 48,000 BTU systems and above. It helps distribute refrigerant from the outdoor condenser to compatible indoor units in multi-zone applications, allowing for more flexible and efficient system design. With support for connected indoor unit capacities from 7,000 to 24,000 BTU/h and a maximum combined nominal capacity of 72,000 BTU/h, it is built for reliable multi-zone performance in residential and light commercial installations. Designed for indoor installation, it is compatible with A2L systems.
25 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Equipment Pad
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
30 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
35 feet - 1/4" and 3/8" Line Set
This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.
Features:
- Insulated
- Flared Line Ends
- Heavy Duty Refrigerant Lines
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
50 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
