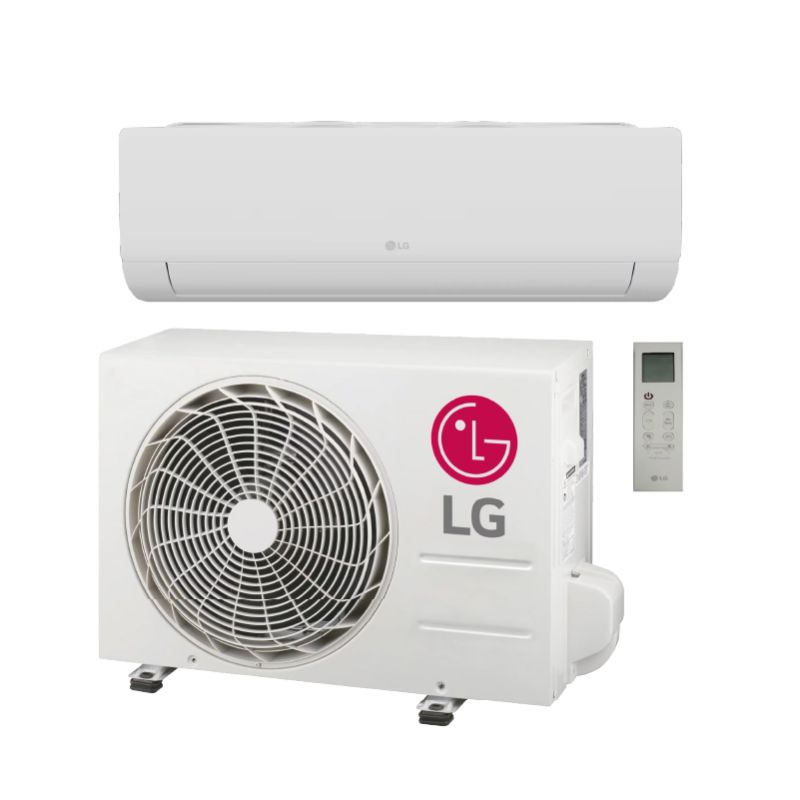

LG 9,000 BTU Standard 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R32 | 230V

SAVE $222.00

Required Fields *

In Stock - 37 Ready to Ship
Free Shipping
By

LG

In stock

Model

KSSAE091A

ID

226347

Was $1,121.00
Your Low Price $899.00

Product Features
  • Included Remote Control
  • Perfect for Up to 400 SQ FT
  • High Efficiency SEER2
  • Built in Wi-Fi Compatibility
  • Reliable Year-Round Comfort
  • 10 Year Warranty. Restrictions Apply.
Customize LG 9,000 BTU Standard 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R32 | 230V
LG 9,000 BTU Single Zone Condenser - R32
LG 9,000 BTU Single Zone Condenser - R32   + $599.00
LG 9,000 BTU Single Zone Air Handler - R32
LG 9,000 BTU Single Zone Air Handler - R32   + $300.00
15 feet - 1/4" and 3/8" Line Set & Control Wire
Equipment Pad and Risers Kit
Installation Kit for Condensers
Cielo Breez Max Mini Split Thermostat with WiFi

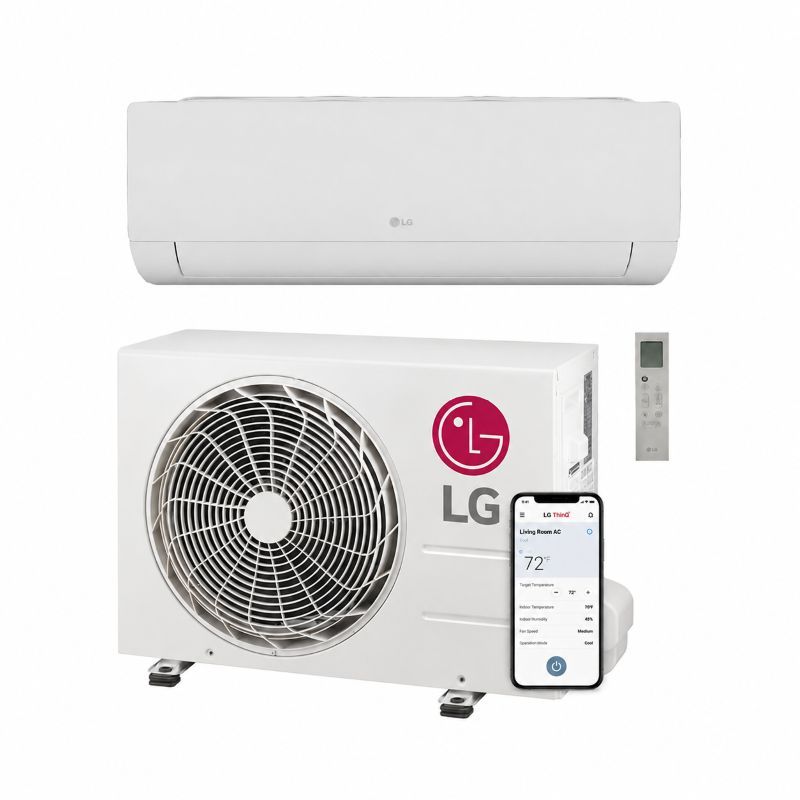

LG 9000 BTU 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System R32 | 230V

$899.00

LG 9,000 BTU 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R32 | 230V

Designed for rooms up to approximately 400 sq ft, this LG 9,000 BTU mini split delivers efficient heating and cooling with energy‑saving SEER2 performance and quiet, year‑round comfort in living rooms, bedrooms, or home offices. The inverter‑driven system with R32 refrigerant offers dependable performance with modern smart features and flexible ductless installation.

Key Features

  • Covers up to 400 sq ft
  • 18 SEER2 efficiency
  • Quiet, inverter‑driven operation for consistent comfort
  • Flexible wall‑mount installation for ductless setups

Feature Highlights

Efficiency (SEER2)
With an 18 SEER2 rating and R32 refrigerant, this system is optimized to reduce energy use during cooling and heating cycles, helping lower monthly utility costs without sacrificing indoor comfort. High seasonal efficiency means reliable performance across varying outdoor conditions.

Quiet Operation
The inverter (variable speed) compressor and advanced airflow design promote ultra‑quiet operation, minimizing disruption in bedrooms, living spaces, and work areas. Quieter cooling and heating make everyday comfort more enjoyable and less intrusive.

Right-Sized Power
With a 9,000 BTU capacity, this unit is well‑suited for small to medium rooms up to roughly 400 sq ft, delivering balanced temperature control without unnecessary oversizing. Proper sizing enhances efficiency and extends system life.

What’s Included

  • Outdoor condenser — 9,000 BTU / 18 SEER2
  • Indoor wall‑mounted air handler — quiet, efficient comfort delivery
  • Wireless remote control
  • Installation manual

Recommended Accessories

  • Refrigerant line set
  • Wall bracket or condenser pad
  • Wi‑Fi adapter for smart control
  • Drain hose and insulation kit

Warranty

LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.

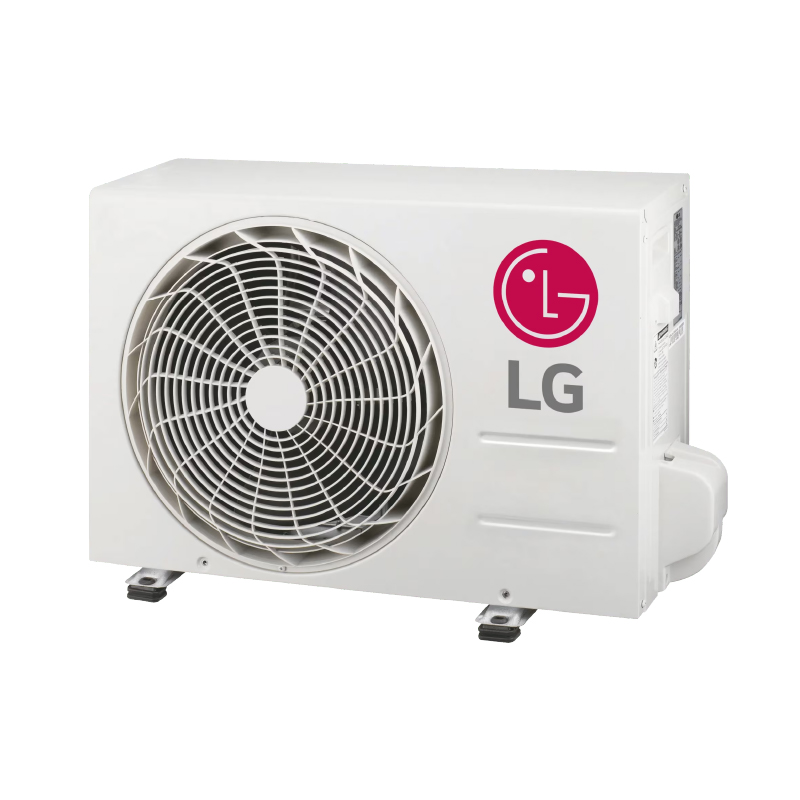

LG 9,000 BTU Single Zone Condenser - R32

LG 9,000 BTU Single Zone Mini Split Heat Pump Condenser - R32 | 230V

Efficient 9,000 BTU single zone heat pump designed for small residential spaces, providing reliable heating and cooling with inverter-driven performance and Wi-Fi smart control.

Key Features

  • 18 SEER2 efficiency rating for energy-saving performance
  • 9,000 BTU capacity ideal for small rooms or apartments
  • Outdoor condenser design compatible with wall mount indoor units for ductless installation
  • Ultra-quiet operation ensures comfortable living and sleeping environments
  • Designed to pair with compatible mini split components

Warranty

LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.

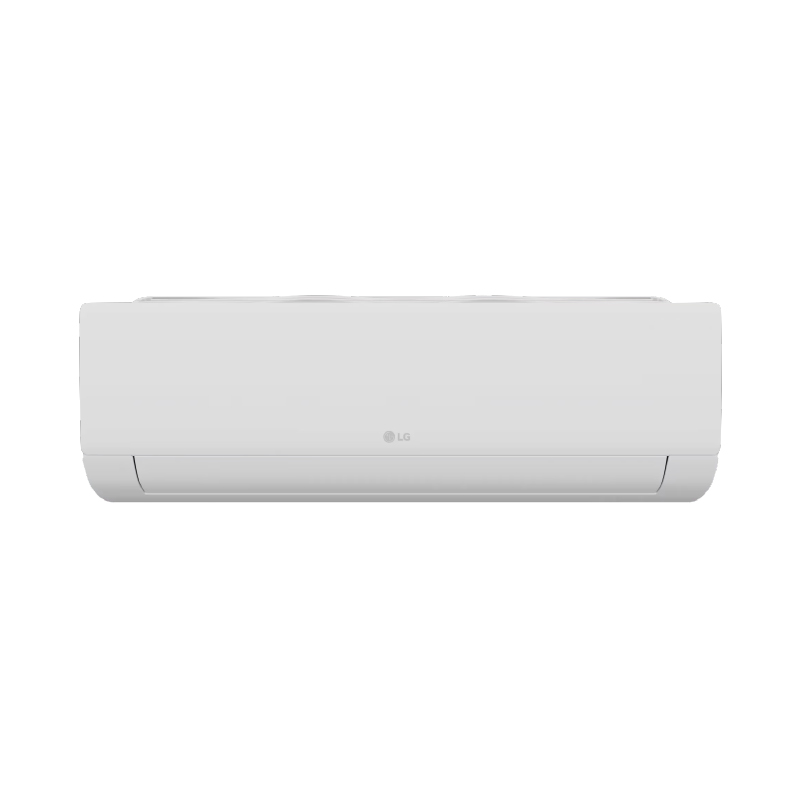

LG 9,000 BTU Single Zone Air Handler - R32

LG 9,000 BTU Standard Single Zone Wall Mount Mini Split Air Handler - R32 | 230V

Efficient 9,000 BTU mini split air handler designed for small residential spaces, delivering reliable heating and cooling with inverter-driven performance and quiet operation.

Key Features

  • 18 SEER2 efficiency rating for energy-saving performance
  • 9,000 BTU capacity ideal for small rooms or apartments
  • Wall-mounted design allows ductless, space-saving installation
  • Ultra-quiet operation ensures comfort in living areas and bedrooms
  • Designed to pair with compatible mini split components
Installation Kit for Condensers

4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

Key Features:

All-in-One Kit: Includes key accessories for a professional-grade installation.
Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
HVAC Professional Recommended: Ideal for new installations and system replacements.

What’s Included:

  • 3/4" x 6' Electrical Whip – SKU: 84138
  • 60A Non-Fused Disconnect – SKU: 83335
  • Surge Protector – SKU: ICM517
  • CPS Charging Adapter – SKU: 87-AD87
  • Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

Cielo Breez Max Mini Split Thermostat with WiFi

Introducing Cielo Breez Max, the ultimate smart thermostat for your mini-splits, designed to elevate your comfort with intelligent climate control. Transform your air conditioner into a smart powerhouse and manage your cooling or heating from anywhere using your phone. This award-winning device, available in black and white, prevents overheating or overcooling with AI-powered Comfy Max, while seamlessly detecting any mini-split brand for hassle-free setup.


Features:

  • Energy Savings
  • WiFi Connectivity
  • Weekly Schedule
  • Geofencing
  • Temperature Range Lock
  • Real-Time Notifications
  • HVAC Zoning

Weekly Schedule lets you set on and off periods throughout the week based on your needs.

Geofencing uses your smartphone's location to trigger actions in your system, such as turning the air conditioner on or off based on your proximity to home.

Temperature Range Lock ensures your air conditioner operates within a set temperature range for optimal comfort and efficiency.

Real-Time Notifications keep you informed with important updates, helping you manage your air conditioner better.

HVAC Zoning allows you to create customized temperature control zones by grouping multiple mini-split units.

The Cielo Breez Max offers innovative features and extraordinary performance, making it a perfect fit for any room air conditioner. Enjoy maximum energy savings and simplified home comfort with this advanced smart thermostat.

15 feet - 1/4" and 3/8" Line Set & Control Wire

Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 15-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 15-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.

The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.

What's Included

  • 15 ft. insulated refrigerant line set
  • 15 ft. 14/4 mini-split control wire
  • 1/4" liquid line with flared ends
  • 3/8" suction line with flared ends

Features

  • 1/2" thick insulation for improved efficiency
  • Heavy-duty refrigerant line construction
  • Stranded copper wire for reliable conductivity
  • Flexible and durable installation materials
  • Compatible with most mini-split systems
  • Ideal for HVAC installations and replacements
25 feet - 1/4" and 3/8" Line Set & Control Wire

Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 25-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 25-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.

The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.

What's Included

  • 25 ft. insulated refrigerant line set
  • 25 ft. 14/4 mini-split control wire
  • 1/4" liquid line with flared ends
  • 3/8" suction line with flared ends

Features

  • 1/2" thick insulation for improved efficiency
  • Heavy-duty refrigerant line construction
  • Stranded copper wire for reliable conductivity
  • Flexible and durable installation materials
  • Compatible with most mini-split systems
  • Ideal for HVAC installations and replacements
30 feet - 1/4" and 3/8" Line Set & Control Wire

Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 30-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 30-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.

The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.

What's Included

  • 30 ft. insulated refrigerant line set
  • 30 ft. 14/4 mini-split control wire
  • 1/4" liquid line with flared ends
  • 3/8" suction line with flared ends

Features

  • 1/2" thick insulation for improved efficiency
  • Heavy-duty refrigerant line construction
  • Stranded copper wire for reliable conductivity
  • Flexible and durable installation materials
  • Compatible with most mini-split systems
  • Ideal for HVAC installations and replacements
Equipment Pad and Risers Kit

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

  • Reliable Support: Abundance of ridges for stable ground support.
  • Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
  • Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
  • Simple Appearance: Gray color with size labels.
  • Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

  • Weather Resistance: Made from tough PVC for long-lasting performance.
  • Secure Setup: The track securely holds bolts in place.
  • Bolts Included: Each set comes with two bolts.
  • Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

35 feet - 1/4" and 3/8" Line Set & Control Wire

Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 35-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 35-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.

The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.

What's Included

  • 35 ft. insulated refrigerant line set
  • 35 ft. 14/4 mini-split control wire
  • 1/4" liquid line with flared ends
  • 3/8" suction line with flared ends

Features

  • 1/2" thick insulation for improved efficiency
  • Heavy-duty refrigerant line construction
  • Stranded copper wire for reliable conductivity
  • Flexible and durable installation materials
  • Compatible with most mini-split systems
  • Ideal for HVAC installations and replacements
17" Wall Mount Bracket for Mini Split Systems

This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.

Features:
  • 17” Arm Length
  • Weight capacity of 220 lbs per arm
  • Bolts and anti-vibration washers included

No Return Policy

All sales of this product are final and are non-refundable.

50 feet - 1/4" and 3/8" Line Set & Control Wire

Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 50-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 50-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.

The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.

What's Included

  • 50 ft. insulated refrigerant line set
  • 50 ft. 14/4 mini-split control wire
  • 1/4" liquid line with flared ends
  • 3/8" suction line with flared ends

Features

  • 1/2" thick insulation for improved efficiency
  • Heavy-duty refrigerant line construction
  • Stranded copper wire for reliable conductivity
  • Flexible and durable installation materials
  • Compatible with most mini-split systems
  • Ideal for HVAC installations and replacements
More Information
LG 9,000 BTU Standard Single Zone Mini Split Heat Pump Condenser - R32 | 230V
FeatureSpec
SKUKUSAE091A
Refrigerant Charge1.54 lbs (Pre-charged for 24.6 ft line set)
Weight (in lbs)55.300000
AHRI Certificate Number214931165
Brand/ManufacturerLG
Cooling BTU9,000 BTU
Heating BTU10,900 BTU
Decibel Level (dBA)50 dBA
Energy StarYes
RefrigerantR32
HSPF28.7
SEER2 (Efficiency)18
EER212
Liquid Line1/4"
Suction Line3/8"
Electrical208-230V | 1 Phase | 60Hz
Max Breaker Size15 Amps
Min. Breaker Size10 Amps
BTU/Tonnage9,000 BTU/0.75 Ton
Min/Max Outdoor Temp for Heating5°F - 65°F
Min/Max Outdoor Temp for Cooling14°F - 118°F
Zone CompatibilitySingle Zone
Height19.5"
Width28.22"
Depth9.1"
Warranty10-year warranty. Restrictions apply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
LG 9,000 BTU Standard Single Zone Wall Mount Mini Split Air Handler - R32 | 230V
FeatureSpec
SKUKNSAE091A
Weight (in lbs)19.200000
Brand/ManufacturerLG
ControllerWireless Included
Cooling BTU9,000 BTU
Heating BTU10,900 BTU
Maximum CFM459 Turbo / 353 Hi / 264 Med / 148 Lo CFM (Airflow)
Decibel Level (dBA)21 - 42 dBA
RefrigerantR32
Liquid Line1/4"
Suction Line3/8"
Electrical208-230V | 1 Phase | 60Hz
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Height12.13"
Width32.94"
Depth7.44"
Warranty10 Year Compressor / 7 Years Parts Warranty with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
FeatureSpec
SKUMSK001
Weight (in lbs)15.000000
Brand/ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
FeatureSpec
SKU87762 / EL1838-3
Weight (in lbs)25.000000
Brand/ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
17" Wall Mount Bracket for Mini Split Systems
FeatureSpec
SKUHW-600
Weight (in lbs)9.200000
Brand/ManufacturerOnline Supply
Length17"
Height20"
Width6"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Cielo Breez Max Mini Split Thermostat with WiFi
FeatureSpec
SKUBM101WA
Weight (in lbs)1.000000
Brand/ManufacturerCielo
ElectricalMicro USB with Standard Plug
Height4.25"
Width4.25"
Depth1"
Warranty1 Year Full Replacement
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 15 feet
FeatureSpec
SKU201813 / CW-144-15
Weight (in lbs)15.000000
Brand/ManufacturerOnline Supply
Liquid Line1/4"
Suction Line3/8"
Length15'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet
FeatureSpec
SKU366390 / CW-144-25
Weight (in lbs)25.000000
Brand/ManufacturerOnline Supply
Length25'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 30 feet
FeatureSpec
SKU216740 / CW-144-30
Weight (in lbs)30.000000
Brand/ManufacturerOnline Supply
Length30'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 35 feet
FeatureSpec
SKU366395 / CW-144-35
Weight (in lbs)35.000000
Brand/ManufacturerOnline Supply
Length35'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 50 feet
FeatureSpec
SKU366396 / CW-144-50
Weight (in lbs)45.000000
Brand/ManufacturerOnline Supply
Length50'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:LG 9,000 BTU Standard 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R32 | 230V
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
blockboard tech
