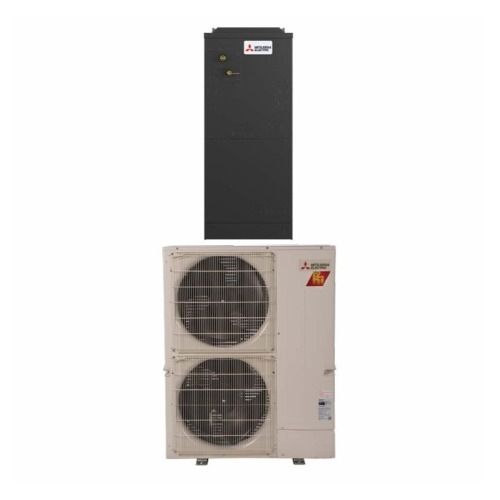

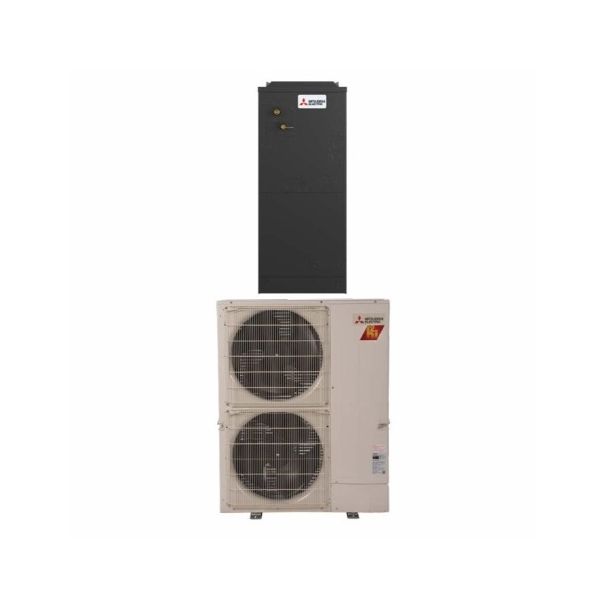

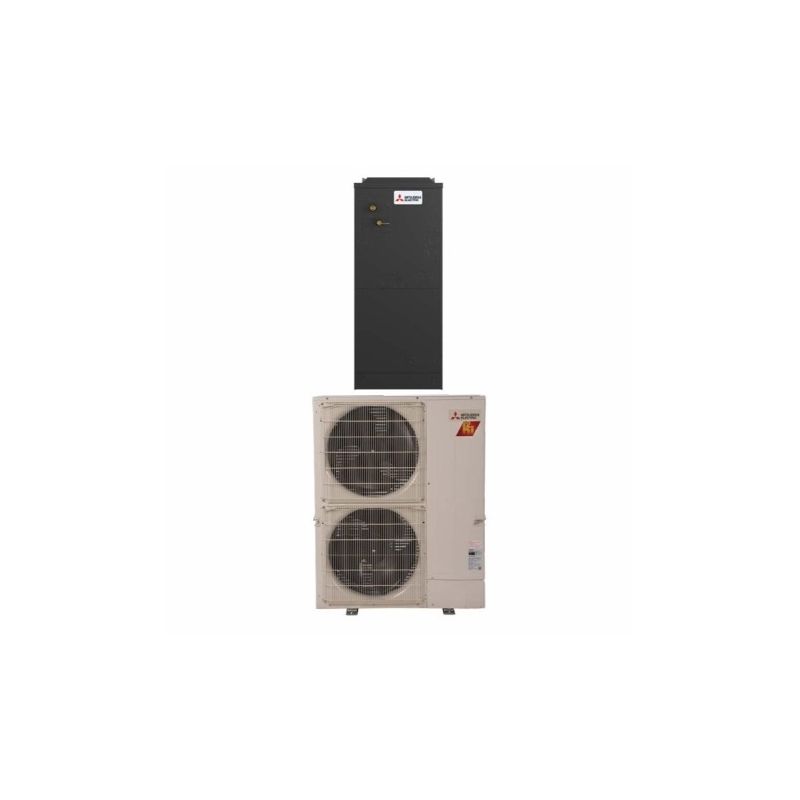

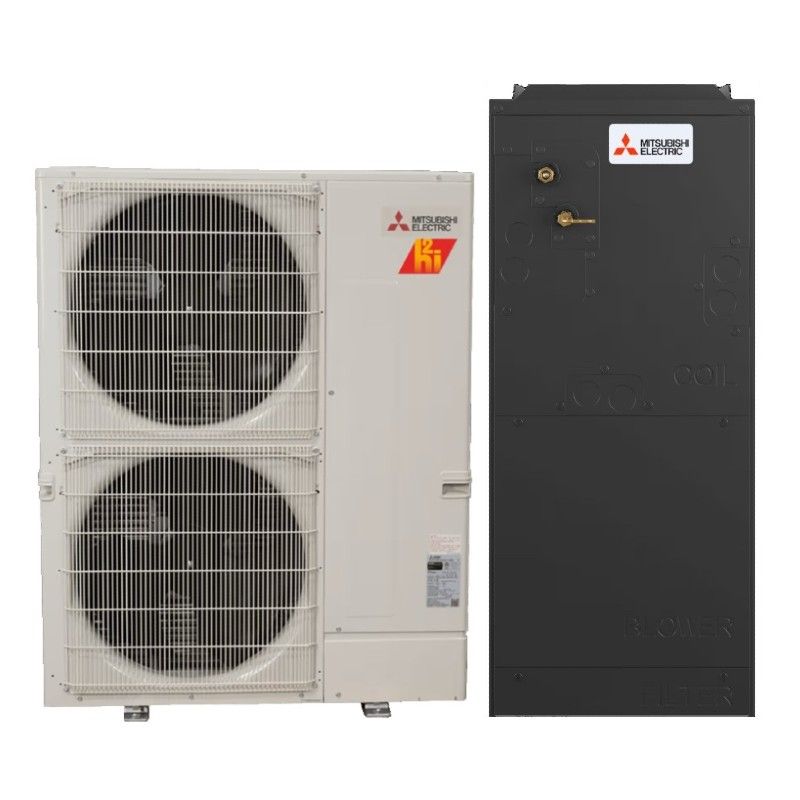

Mitsubishi 2.5 Ton 17.1 SEER2 Ducted Central Air Inverter H2i Heat Pump Split System | R454B

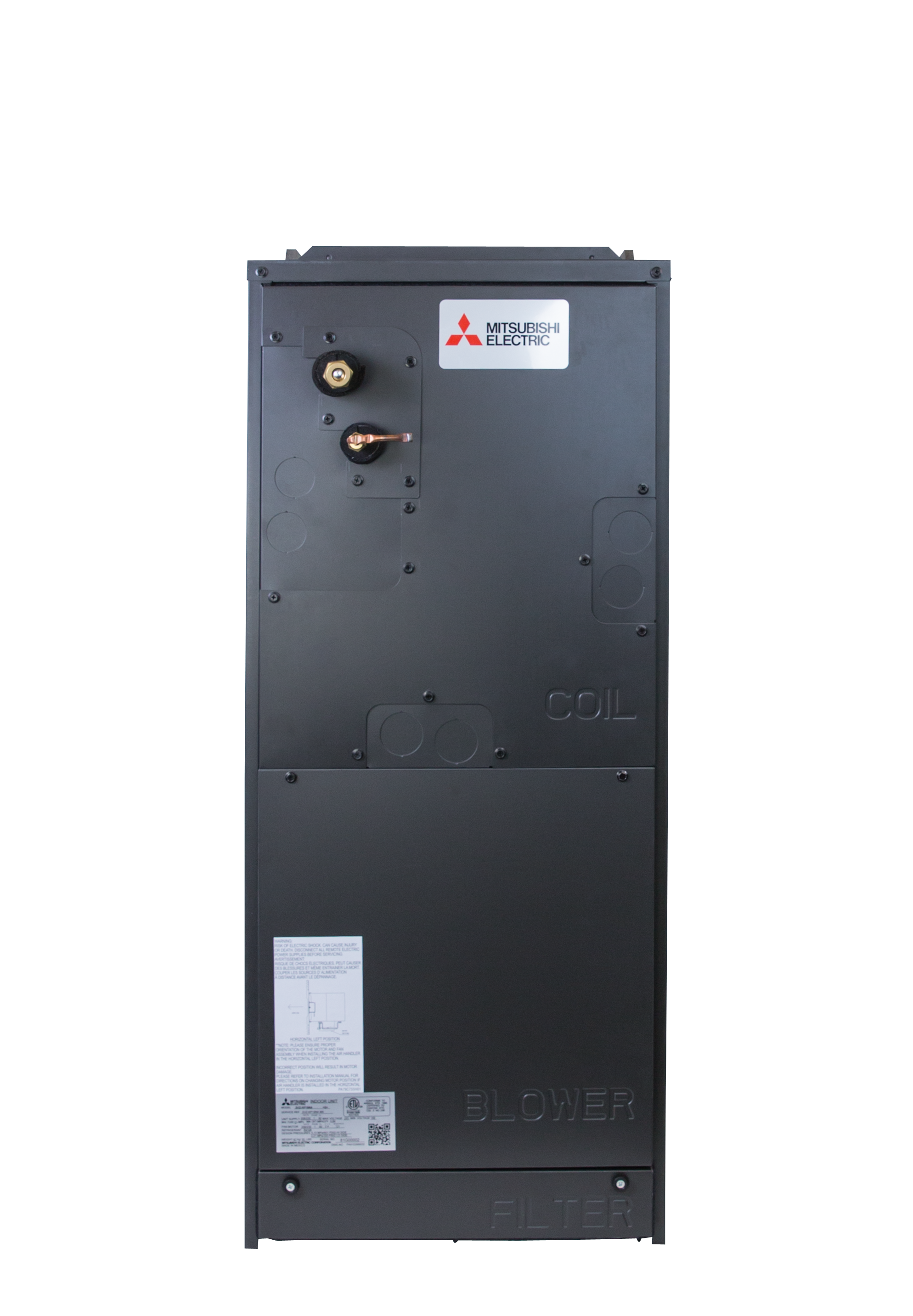

Mitsubishi SVZ Series 2.5 Ton Air Handler | R454B

The Mitsubishi SVZ Series 2.5 Ton Air Handler, when paired with the SUZ outdoor unit, is a high-performance, ducted HVAC solution engineered for larger residential homes and light commercial applications. Designed with Mitsubishi Electric's advanced inverter-driven technology and utilizing the low-GWP R454B refrigerant, this system delivers powerful, efficient, and eco-conscious heating and cooling performance.

Key Features

• Inverter Technology: Continuously adjusts compressor speed for precise temperature control and energy efficiency.
• R454B Refrigerant: A next-generation refrigerant with a lower global warming potential, aligning with current environmental standards.
• Low Sound Levels: Quiet operation for undisturbed comfort in living and working spaces.
• Flexible Installation: Suitable for horizontal and vertical setups, providing adaptability for various applications.
• High Static Pressure Capable: Ideal for homes or buildings with extended or complex duct systems.
• Multi-Speed Fan Control: Adjustable fan speeds ensure optimized airflow and customizable comfort zones.

Technical Specifications

• Indoor Unit Model: SVZ-KP30NA
• Outdoor Unit Model: SUZ-KA30NA2
• Capacity: 30,000 BTU/h (2.5 Ton)
• Refrigerant: R454B
• Power Supply: 208/230V, 1 Phase, 60 Hz
• Airflow Options: Multiple static pressure settings with fan speed adjustability
• Sound Pressure Level: Operates at low decibel levels, enhancing comfort

Benefits

• Optimal Indoor Comfort: Provides consistent heating and cooling across larger floorplans with minimal noise.
• Efficient Operation: Inverter-driven performance helps reduce energy consumption and monthly utility costs.
• Environmentally Friendly: R454B refrigerant offers excellent performance with a reduced environmental footprint.
• Versatile Placement: Compact design and flexible ducting make it easy to install in attics, basements, or closets.
• Reliable Performance: Backed by Mitsubishi Electric's reputation for quality, dependability, and innovative engineering.

The Mitsubishi SVZ Series 2.5 Ton Air Handler with R454B refrigerant is a premium ducted system built for modern comfort and environmental responsibility. Whether for a large home or light commercial setting, this system delivers efficient, quiet, and long-lasting performance year-round.

SUZ-AK30NLHZ - 30,000 BTU/H Hyper Heat Pump Outdoor Unit

The SUZ-AK30NLHZ is an advanced outdoor unit designed to provide superior performance in both cooling and heating applications. This unit incorporates innovative technology to offer high energy efficiency and reliable operation, even in extreme temperatures.

Outdoor Unit Features (SUZ-AK30NLHZ):

• Blue Fin Coating: Anti-corrosion treatment applied to the heat exchanger's aluminum fins to protect against environmental contaminants, making it ideal for coastal and industrial areas.
• Built-In Base Pan Heater: Helps prevent ice formation during colder months, ensuring reliable operation in freezing conditions.
• Hot-Start Technology: The fan only activates once the heat exchanger is warm, eliminating the release of cold air during start-up.
• Hyper-Heating INVERTER® (H2i®): Provides 100% heating capacity down to 5°F with guaranteed operation at temperatures as low as -13°F.
• Joint Lap DC Motor: High-efficiency motor designed to improve reliability and performance, ensuring long-lasting operation.
• Outdoor Unit Directed Power: The outdoor unit powers the indoor unit, with automatic restart functionality when power is restored after an outage.
• Pulse Amplitude Modulation Technology: Optimizes compressor performance, adjusting power supply for precise capacity control and reduced energy consumption.
• Quiet Operation: Designed to operate at sound levels similar to a normal conversation, providing minimal disruption to the surrounding environment.

Specifications:

• Cooling Capacity: 30,000 BTU/h rated, with a maximum of 30,800 BTU/h and a minimum of 12,200 BTU/h at 95°F outdoor temperature.
• Heating Capacity: 34,000 BTU/h at 47°F, 32,000 BTU/h at 17°F, and 21,300 BTU/h at -13°F.
• Power Input: 2,420W rated power input during cooling, with 2,768W in heating mode at 47°F.
• SEER2: 19.5 for high energy efficiency in cooling mode.
• HSPF2: 8.5 for optimal heating performance.
• Refrigerant: Uses R454B refrigerant, pre-charged with 9 lbs 14 oz, and supports up to 25 feet of piping length.
• Dimensions: 41-11/32 x 14 x 52-43/64 inches for the unit, with a weight of 231 lbs.
• Sound Pressure Level: 52 dB(A) during cooling and 53 dB(A) during heating for quieter operation.

The SUZ-AK30NLHZ offers exceptional performance, energy savings, and comfort, making it a reliable choice for both residential and commercial applications, even in the harshest conditions.

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends
