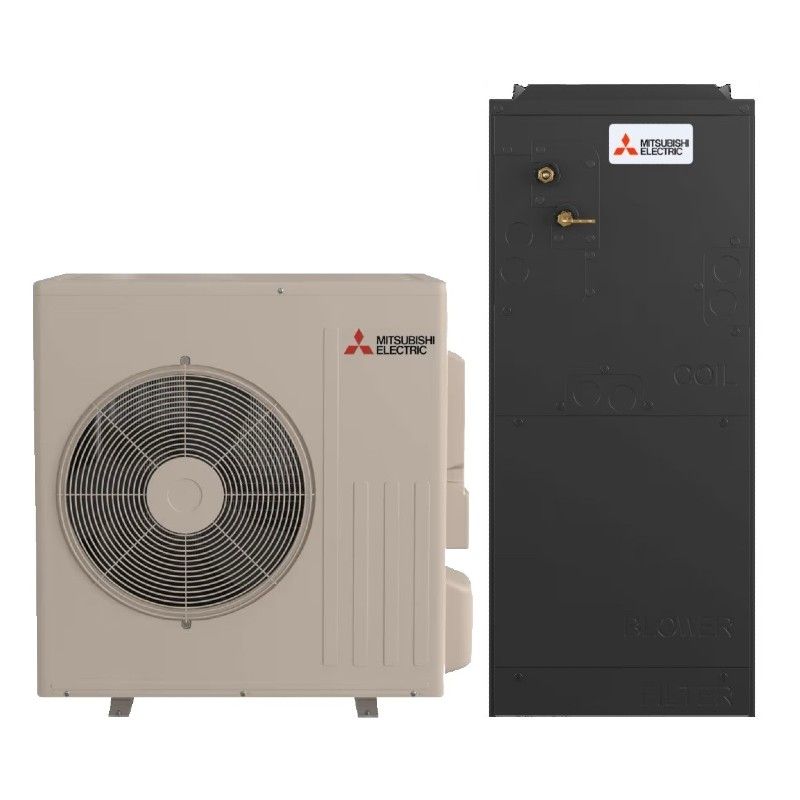

Mitsubishi 30,000 BTU 17.8 SEER2 Single Zone Ducted Central Air Inverter Mini Split Heat Pump System – R454B | 230V
Required Fields *
By
Mitsubishi
In stock
Model
SUZ-AA30NL / SVZ-AP30NL
ID
198632
Was $11,620.13
Your Low Price $9,609.75
ONLY 2 LEFT!
Product Features
- Complete all-electric inverter heating and cooling system
- Can be installed in upflow, downflow, or horizontal applications
- Certified for use with R454B refrigerant
- Well-suited for small to medium homes in various climates
Save up to $5,500 off Local HVAC Prices
Free Shipping

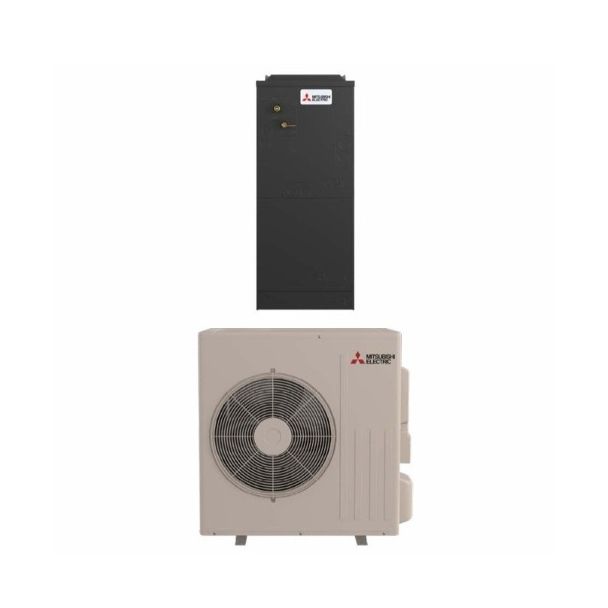

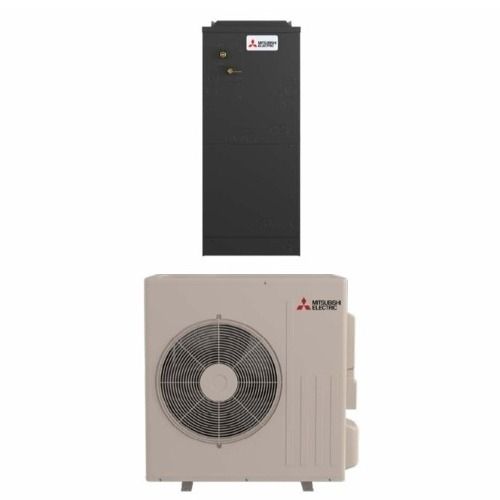

Mitsubishi 2.5 Ton 17.8 SEER2 Ducted Central Air Inverter Heat Pump Split System | R454B

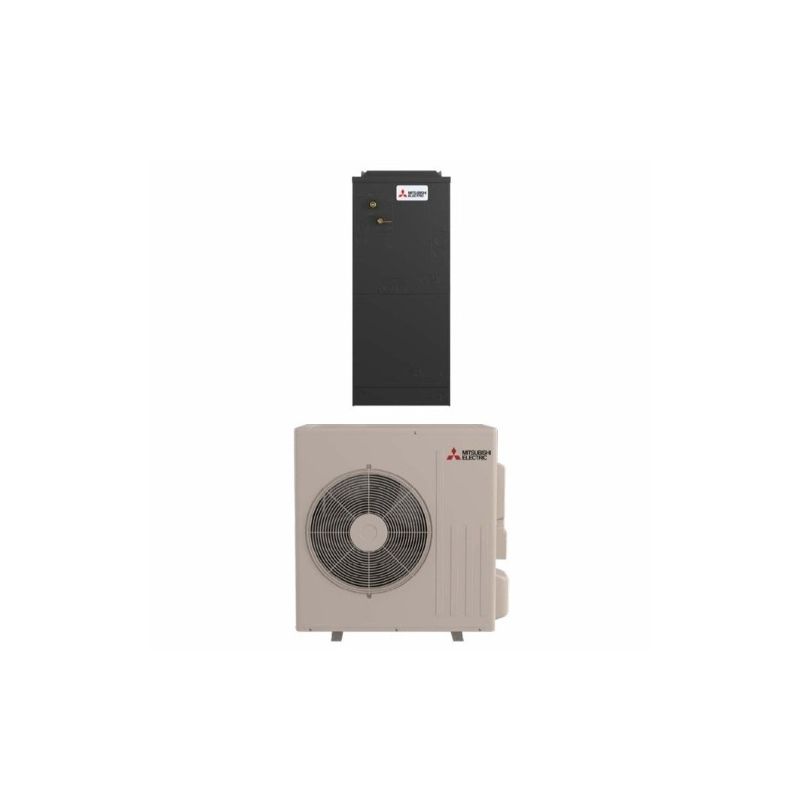

Model Numbers: SUZ-AA30NL (Outdoor Unit) / SVZ-AP30NL (Indoor Unit)
The Mitsubishi 2.5 Ton 17.8 SEER2 Ducted Central Air Inverter Heat Pump Split System is designed to provide efficient and dependable year-round climate control for residential and light commercial applications. With advanced inverter-driven technology and environmentally responsible R454B refrigerant, this system delivers quiet, energy-efficient comfort with flexible installation options.
Key Features
- Energy Efficiency: Offers up to 17.8 SEER2 and 8.4 HSPF2 for reduced energy consumption and lower utility bills.
- Inverter Compressor: Variable-speed technology adjusts performance to match demand, ensuring consistent temperature and comfort.
- Eco-Friendly Refrigerant: R454B is a low GWP refrigerant that minimizes environmental impact without sacrificing performance.
- Quiet Operation: Engineered for minimal noise levels to maintain comfort in any indoor space.
- Compact Air Handler: Slim-profile indoor unit is ideal for installation in tight or concealed areas such as attics and closets.
- Durability and Reliability: Mitsubishi's quality design ensures long-lasting and reliable operation in a range of environments.
Performance Specifications
- Cooling Capacity: 30,000 BTU/h
- Heating Capacity: 32,000 BTU/h
- Voltage: 208/230V, Single Phase, 60 Hz
- Refrigerant Type: R454B
- SEER2: Up to 17.8
- HSPF2: Up to 8.4
- Operating Temperature Range: Cooling: 14°F - 115°F / Heating: 5°F - 75°F
Applications
This Mitsubishi ducted inverter system is ideal for:
- Residential homes and apartments
- Light commercial offices and buildings
- Retrofit and new construction projects
- Spaces requiring quiet and efficient operation
Benefits
- Year-Round Comfort: Efficient heating and cooling performance tailored to seasonal demands.
- Reduced Operating Costs: High SEER2 and HSPF2 ratings help cut energy bills over time.
- Flexible Installation: Compact design allows for diverse installation environments.
- Environmentally Friendly: Uses advanced refrigerant with lower global warming potential.
The Mitsubishi SUZ-AA30NL / SVZ-AP30NL Ducted Inverter Heat Pump System provides an ideal blend of performance, energy efficiency, and environmentally conscious operation. With reliable inverter technology and a versatile design, it's a smart solution for any modern comfort application.
30,000 BTU Mitsubishi Single Zone Condenser - R454B
*Please Note* This product is currently estimated to ship sometime in January 2026

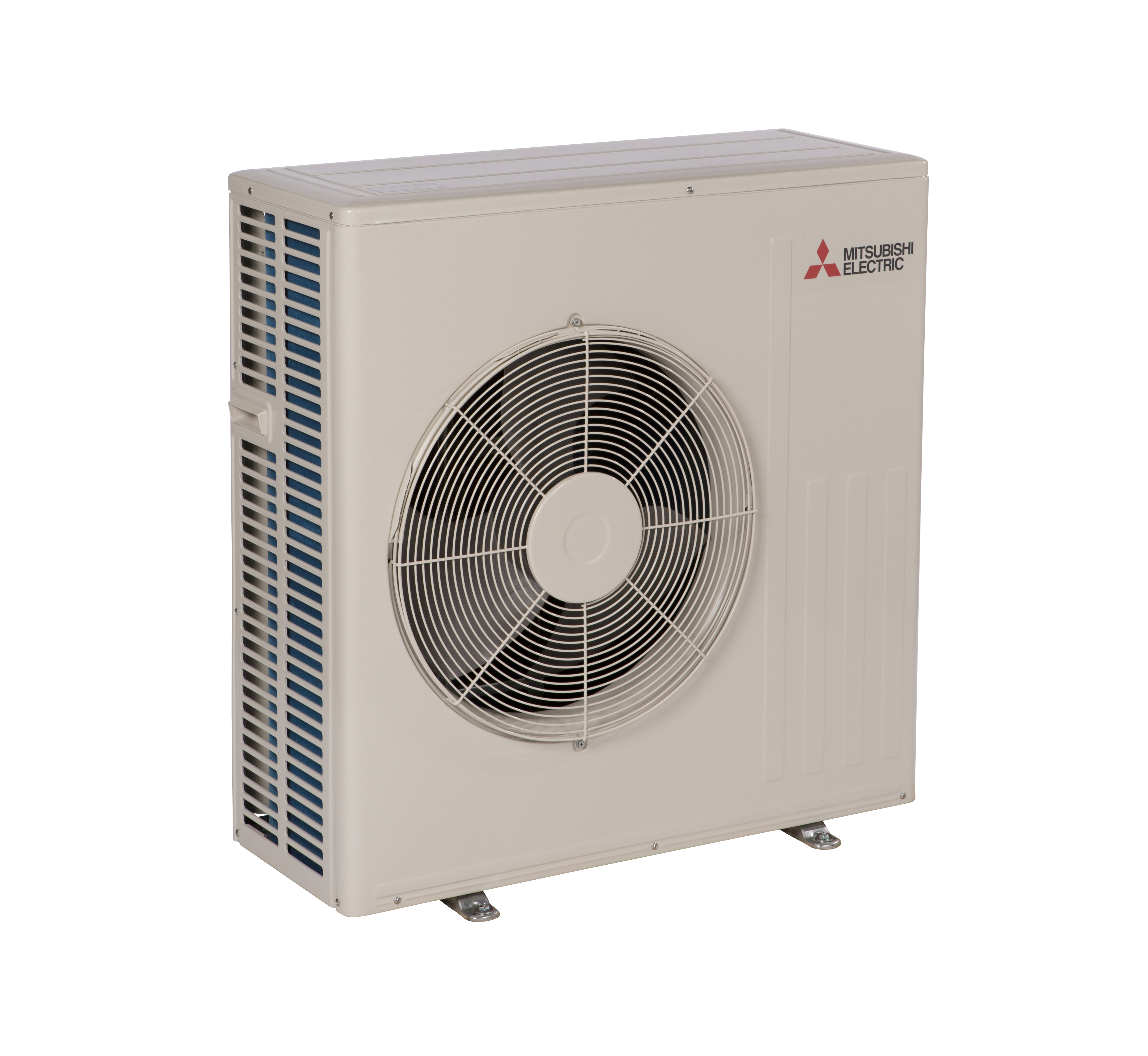

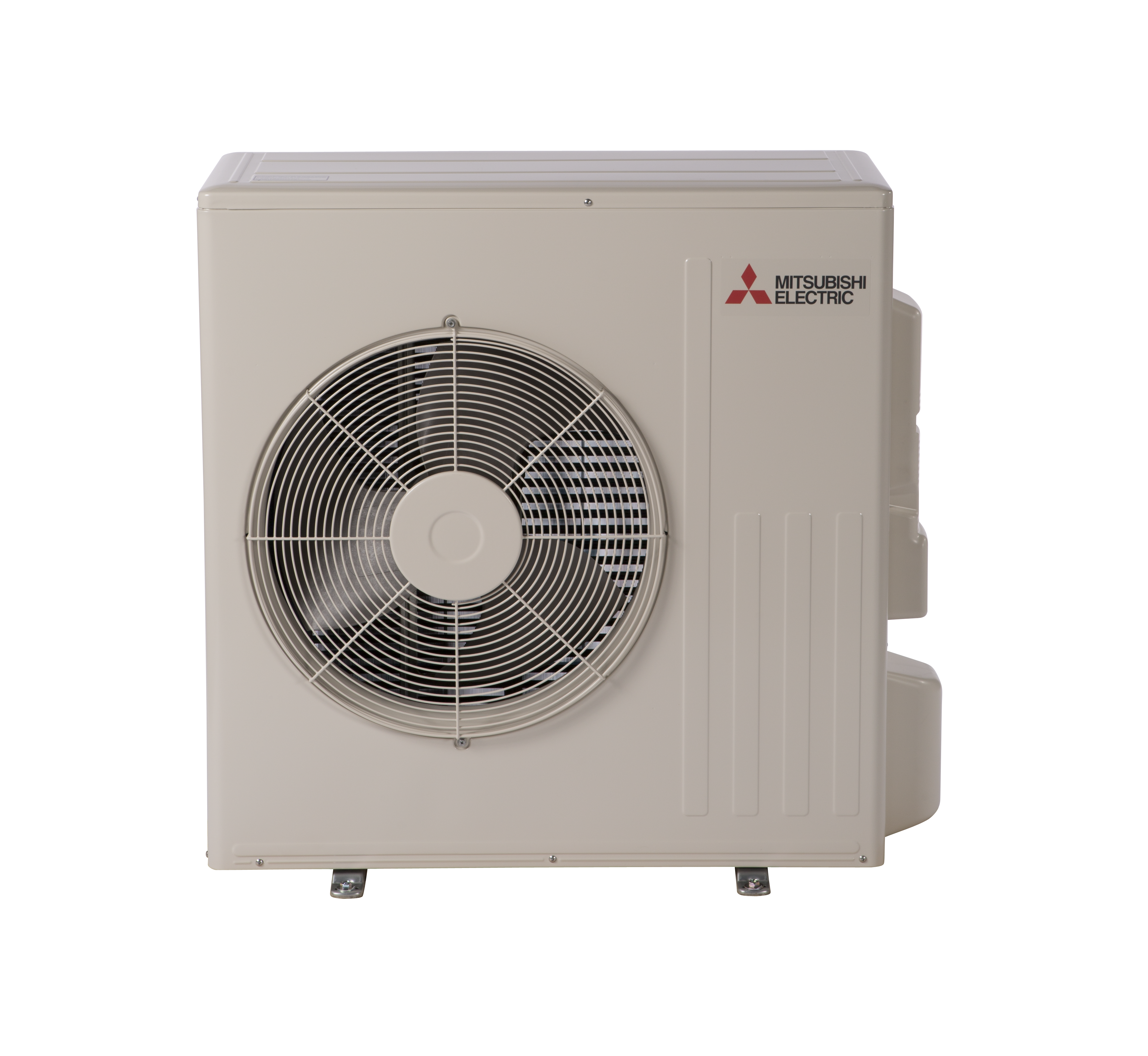

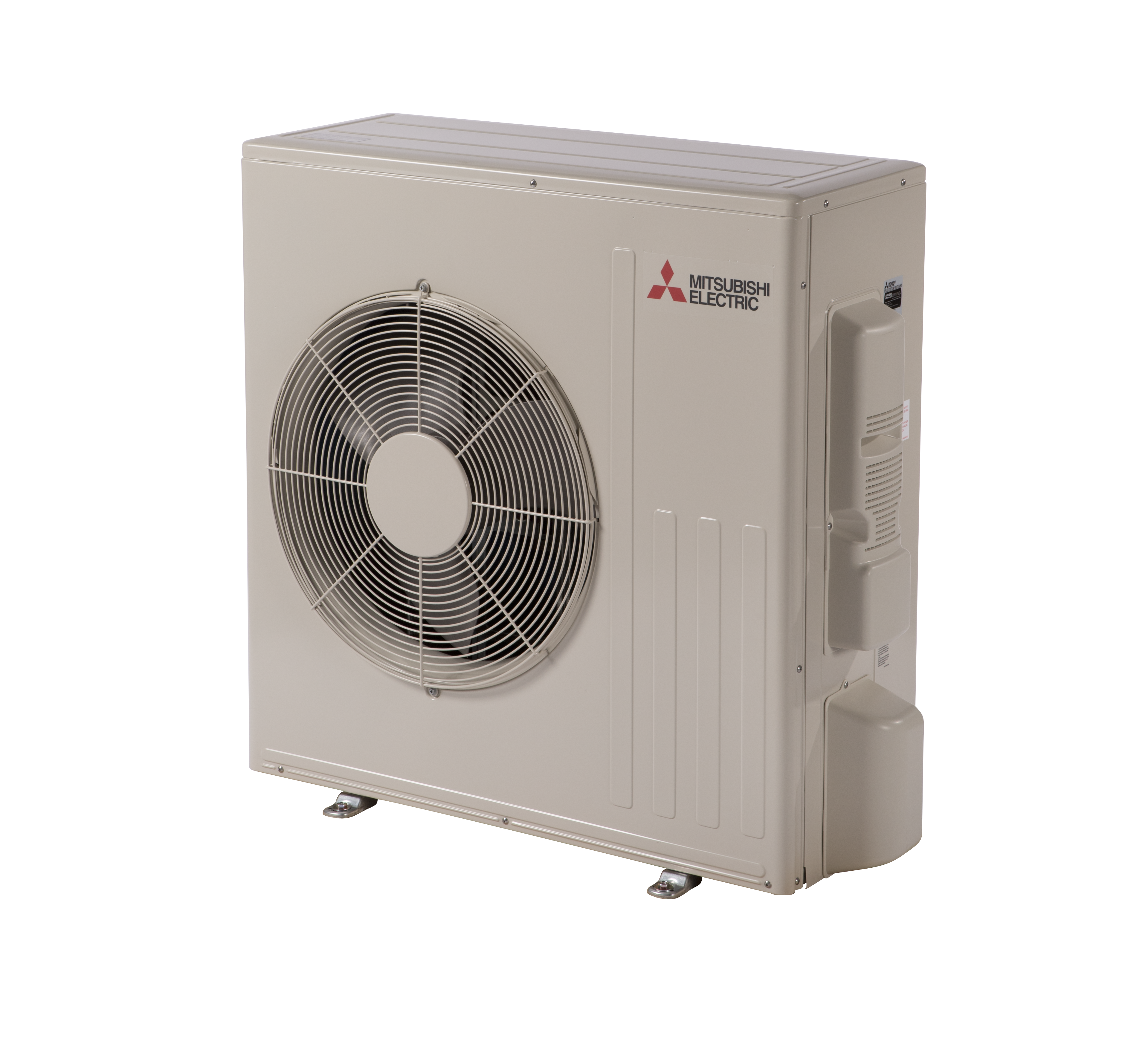

SUZ-AA30NL - 30,000 BTU/H Heat Pump Outdoor Unit
The SUZ-AA30NL is an advanced outdoor unit designed for high-performance heating and cooling. This heat pump unit integrates innovative features for energy-efficient operation and quiet, reliable performance in a wide range of applications, including residential and light commercial environments.
Outdoor Unit Features (SUZ-AA30NL):
- Quiet Operation: Designed to operate quietly with noise levels comparable to a normal conversation, ensuring minimal disruption.
- Inverter-Driven Compressor: Provides precise capacity control, ensuring efficient and effective temperature regulation.
- Pulse Amplitude Modulation Technology: Enhances energy efficiency by optimizing compressor performance to reduce energy consumption.
- Hot-Start Technology: Prevents cold air blasts during start-up by ensuring the fan only activates once the heat exchanger is sufficiently warm.
- High-Performance Grooved Piping: Increases heat exchange efficiency for improved overall performance.
- Blue Fin Coating: Protects the heat exchanger against corrosion from salt, sulfur, and airborne contaminants, making it ideal for coastal and industrial environments.
- Outdoor Unit Directed Power: Powers the indoor unit and includes an automatic restart feature in the event of a power outage.
- Joint Lap DC Motor: Ensures high efficiency and reliability with a durable motor design.
Specifications:
- Cooling Capacity: 30,000 BTU/h rated, with a maximum capacity of 27,000 BTU/h and a minimum of 9,500 BTU/h at 95°F outdoor temperature.
- Heating Capacity: 31,400 BTU/h at 47°F, with capacities of 18,700 BTU/h at 17°F, 17,000 BTU/h at 5°F, and 13,700 BTU/h at -4°F outdoor temperature.
- Energy Efficiency: SEER2 rating of 20.3, EER2 of 11.7, and HSPF2 of 9.5 for optimal energy performance.
- Refrigerant: Uses R454B refrigerant, pre-charged with 3.25 lbs of refrigerant and a maximum piping length of 65 feet.
- Noise Levels: Sound pressure level of 55 dB(A) during both cooling and heating modes.
- Unit Dimensions: 33-1/16 x 13 x 34-11/16 inches, with a unit weight of 117 lbs.
The SUZ-AA30NL is engineered to deliver reliable performance in a wide range of climates and applications, providing excellent comfort and energy savings while maintaining a compact design for easy installation.
Installation Kit for Condensers
4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
30" Wall Mount Bracket
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
Cielo Breez Max Mini Split Thermostat with WiFi
Introducing Cielo Breez Max, the ultimate smart thermostat for your mini-splits, designed to elevate your comfort with intelligent climate control. Transform your air conditioner into a smart powerhouse and manage your cooling or heating from anywhere using your phone. This award-winning device, available in black and white, prevents overheating or overcooling with AI-powered Comfy Max, while seamlessly detecting any mini-split brand for hassle-free setup.
Features:
- Energy Savings
- WiFi Connectivity
- Weekly Schedule
- Geofencing
- Temperature Range Lock
- Real-Time Notifications
- HVAC Zoning
Weekly Schedule lets you set on and off periods throughout the week based on your needs.
Geofencing uses your smartphone's location to trigger actions in your system, such as turning the air conditioner on or off based on your proximity to home.
Temperature Range Lock ensures your air conditioner operates within a set temperature range for optimal comfort and efficiency.
Real-Time Notifications keep you informed with important updates, helping you manage your air conditioner better.
HVAC Zoning allows you to create customized temperature control zones by grouping multiple mini-split units.
The Cielo Breez Max offers innovative features and extraordinary performance, making it a perfect fit for any room air conditioner. Enjoy maximum energy savings and simplified home comfort with this advanced smart thermostat.
Equipment Pad
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends

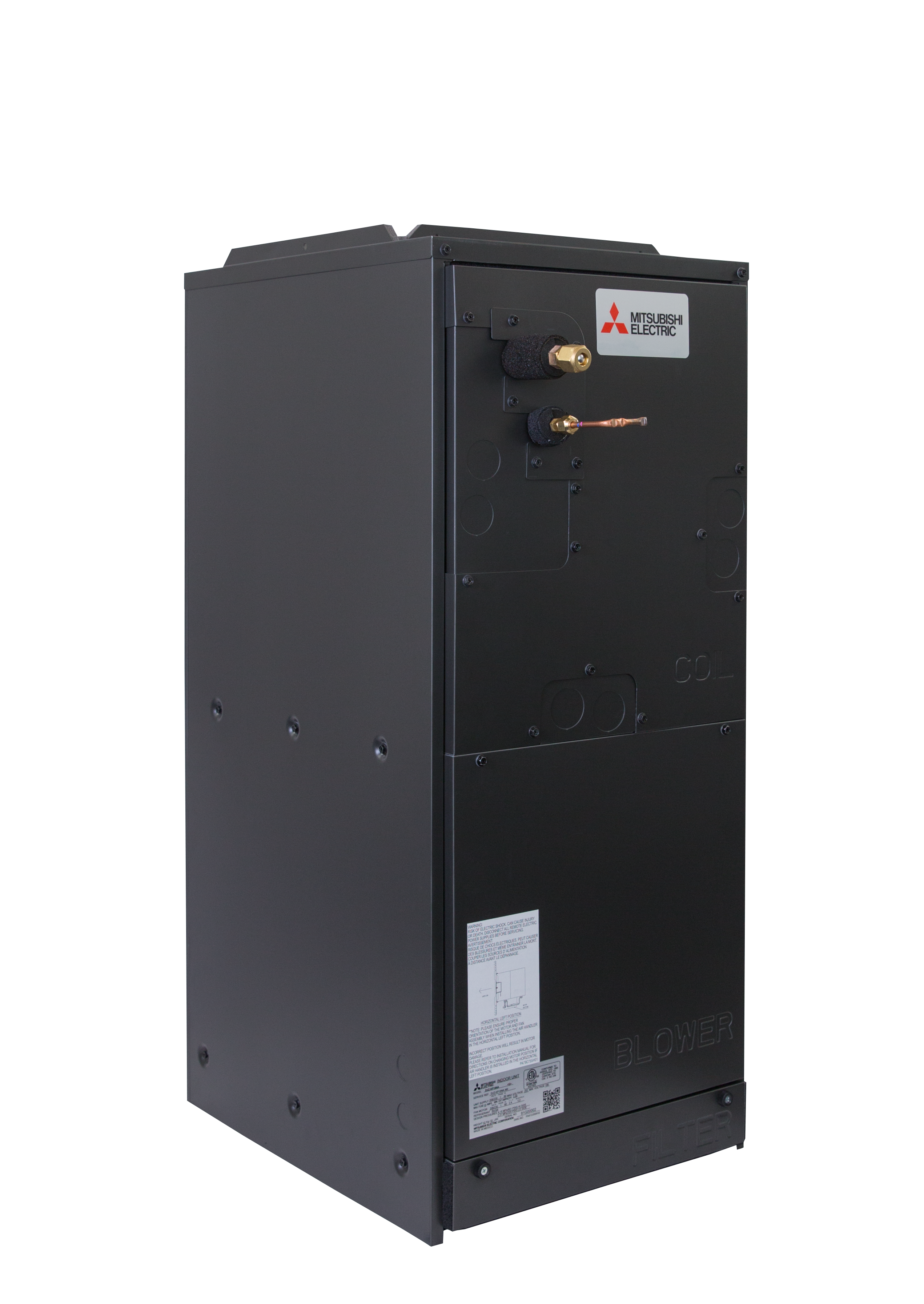

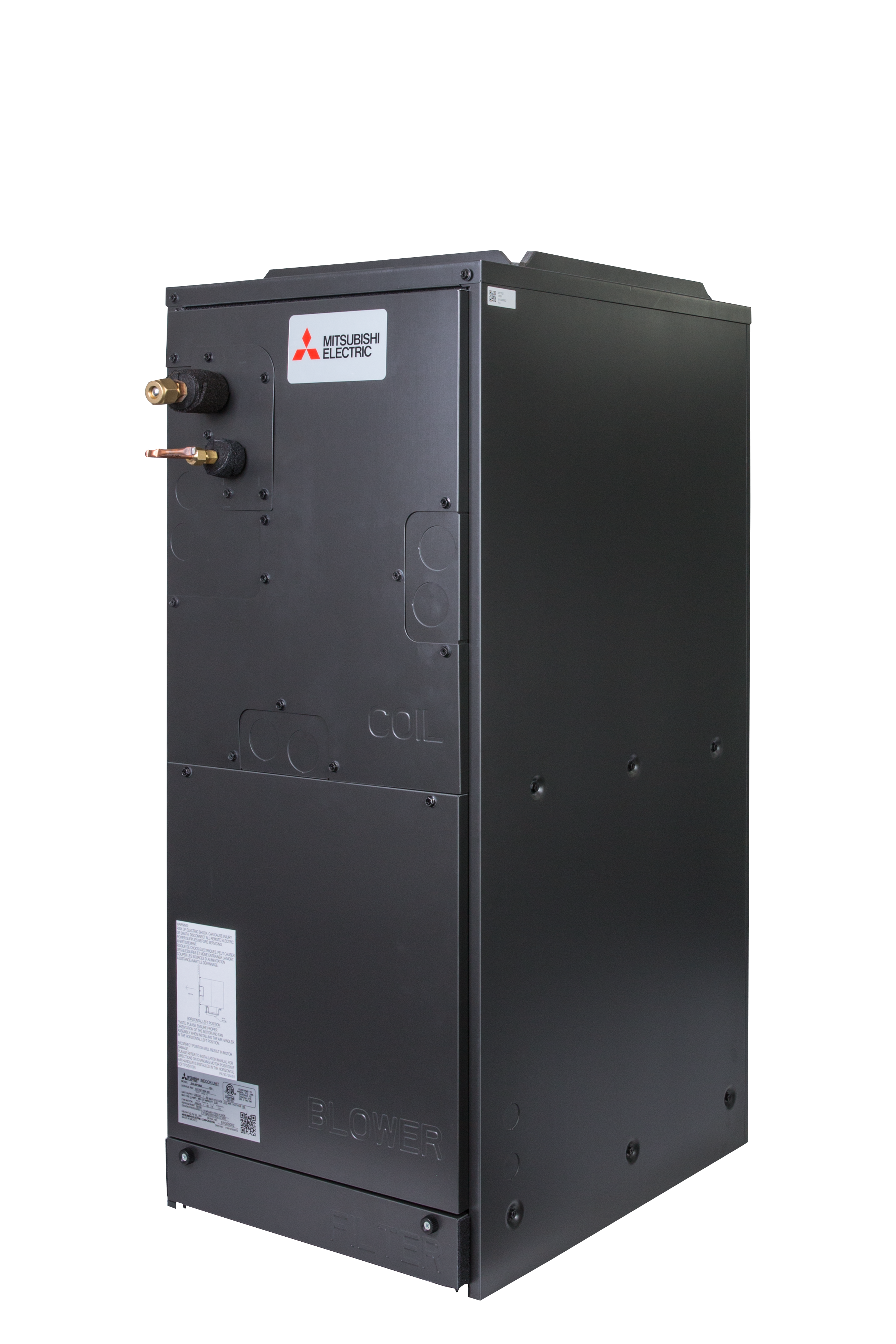

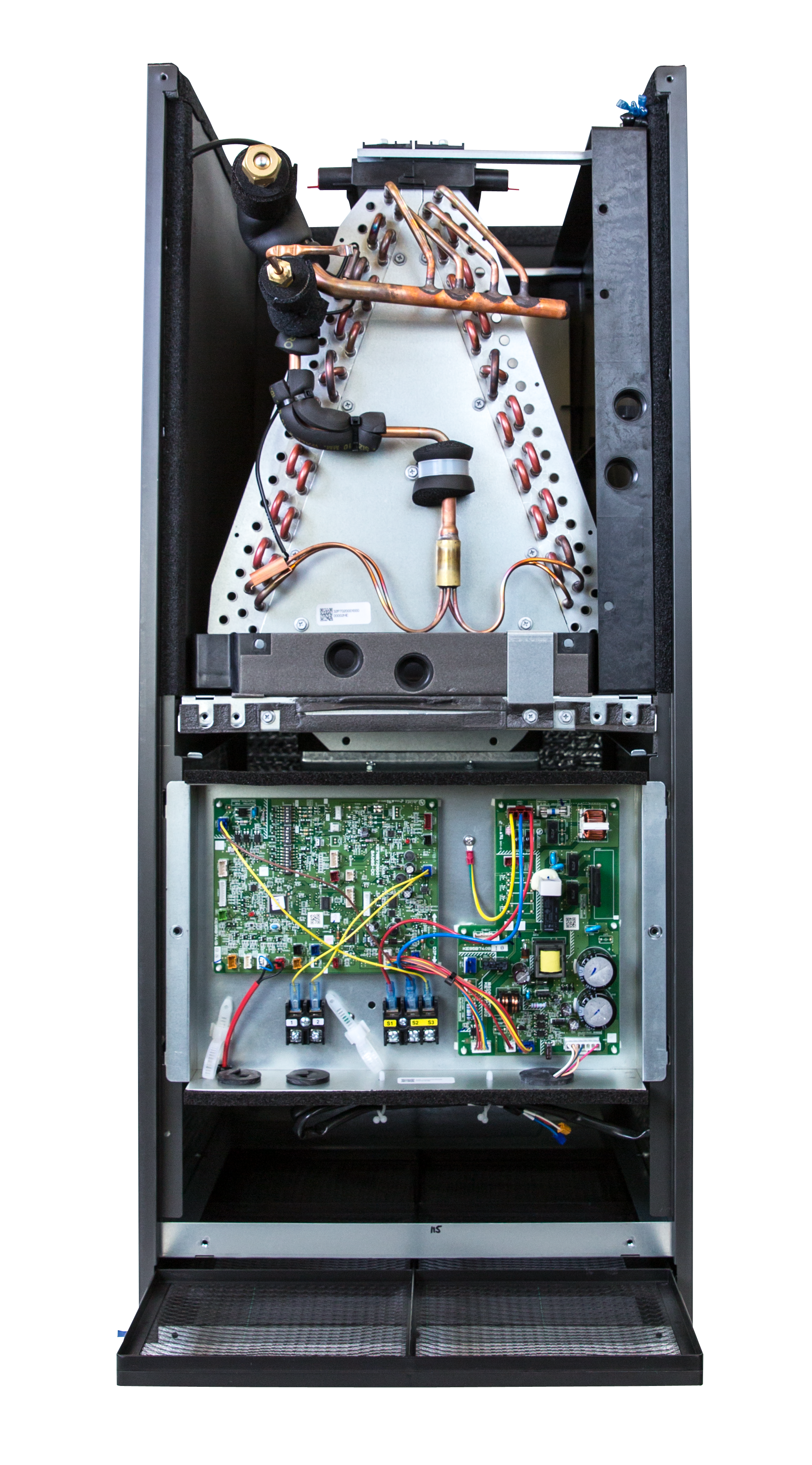

30,000 BTU Mitsubishi SVZ Series Air Handler - R454B
Mitsubishi SVZ Series 2.5 Ton Air Handler | R454B
The Mitsubishi SVZ Series 2.5 Ton Air Handler, when paired with the SUZ outdoor unit, is a high-performance, ducted HVAC solution engineered for larger residential homes and light commercial applications. Designed with Mitsubishi Electric's advanced inverter-driven technology and utilizing the low-GWP R454B refrigerant, this system delivers powerful, efficient, and eco-conscious heating and cooling performance.
Key Features
- Inverter Technology: Continuously adjusts compressor speed for precise temperature control and energy efficiency.
- R454B Refrigerant: A next-generation refrigerant with a lower global warming potential, aligning with current environmental standards.
- Low Sound Levels: Quiet operation for undisturbed comfort in living and working spaces.
- Flexible Installation: Suitable for horizontal and vertical setups, providing adaptability for various applications.
- High Static Pressure Capable: Ideal for homes or buildings with extended or complex duct systems.
- Multi-Speed Fan Control: Adjustable fan speeds ensure optimized airflow and customizable comfort zones.
Technical Specifications
- Indoor Unit Model: SVZ-KP30NA
- Outdoor Unit Model: SUZ-KA30NA2
- Capacity: 30,000 BTU/h (2.5 Ton)
- Refrigerant: R454B
- Power Supply: 208/230V, 1 Phase, 60 Hz
- Airflow Options: Multiple static pressure settings with fan speed adjustability
- Sound Pressure Level: Operates at low decibel levels, enhancing comfort
Benefits
- Optimal Indoor Comfort: Provides consistent heating and cooling across larger floorplans with minimal noise.
- Efficient Operation: Inverter-driven performance helps reduce energy consumption and monthly utility costs.
- Environmentally Friendly: R454B refrigerant offers excellent performance with a reduced environmental footprint.
- Versatile Placement: Compact design and flexible ducting make it easy to install in attics, basements, or closets.
- Reliable Performance: Backed by Mitsubishi Electric's reputation for quality, dependability, and innovative engineering.
The Mitsubishi SVZ Series 2.5 Ton Air Handler with R454B refrigerant is a premium ducted system built for modern comfort and environmental responsibility. Whether for a large home or light commercial setting, this system delivers efficient, quiet, and long-lasting performance year-round.
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 35 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
