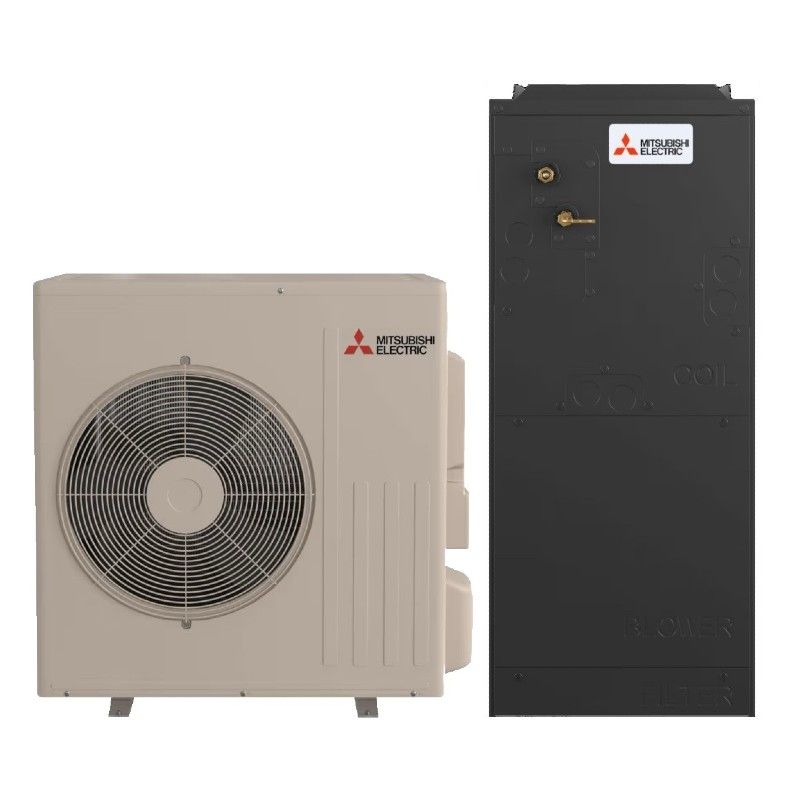

Mitsubishi 36,000 BTU 15.8 SEER2 Single Zone Ducted Central Air Inverter Mini Split Heat Pump System – R454B | 230V
Required Fields *
By
Mitsubishi
In stock
Model
SUZ-AA36NL / SVZ-AP36NL
ID
198645
In Stock - Ready to Ship
Was $7,930.50
Your Low Price $6,672.00
Free Shipping
Product Features
- Complete all-electric inverter heating and cooling system
- Can be installed in upflow, downflow, or horizontal applications
- Certified for use with R454B refrigerant
- Well-suited for medium homes in various climates

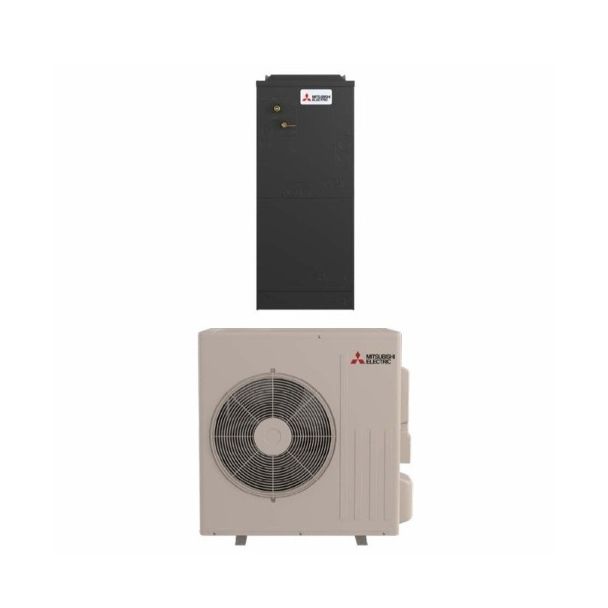

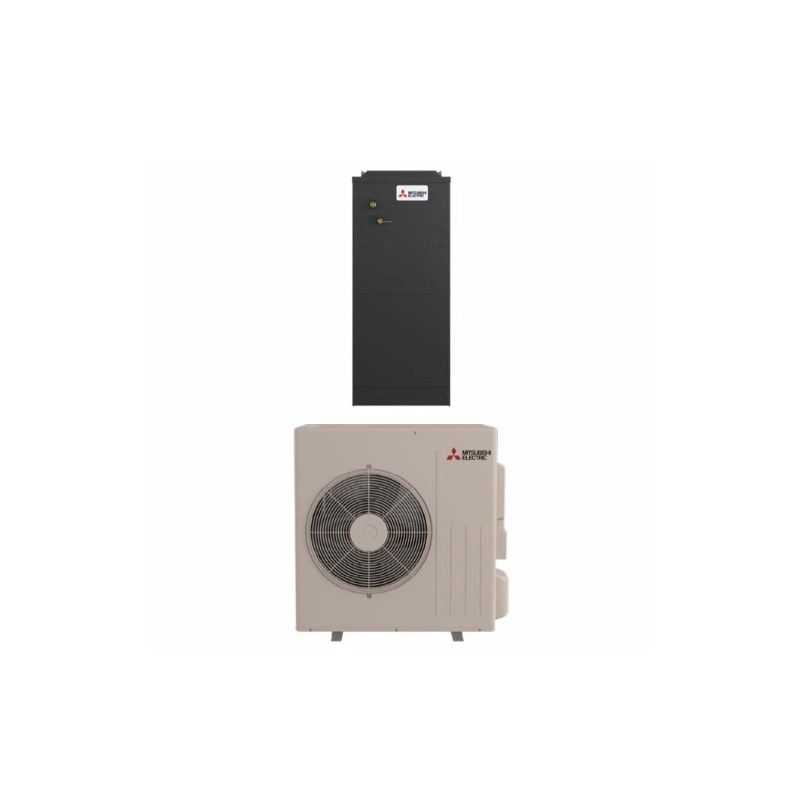

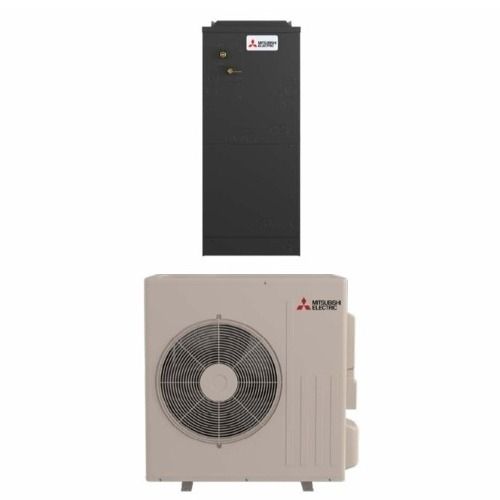

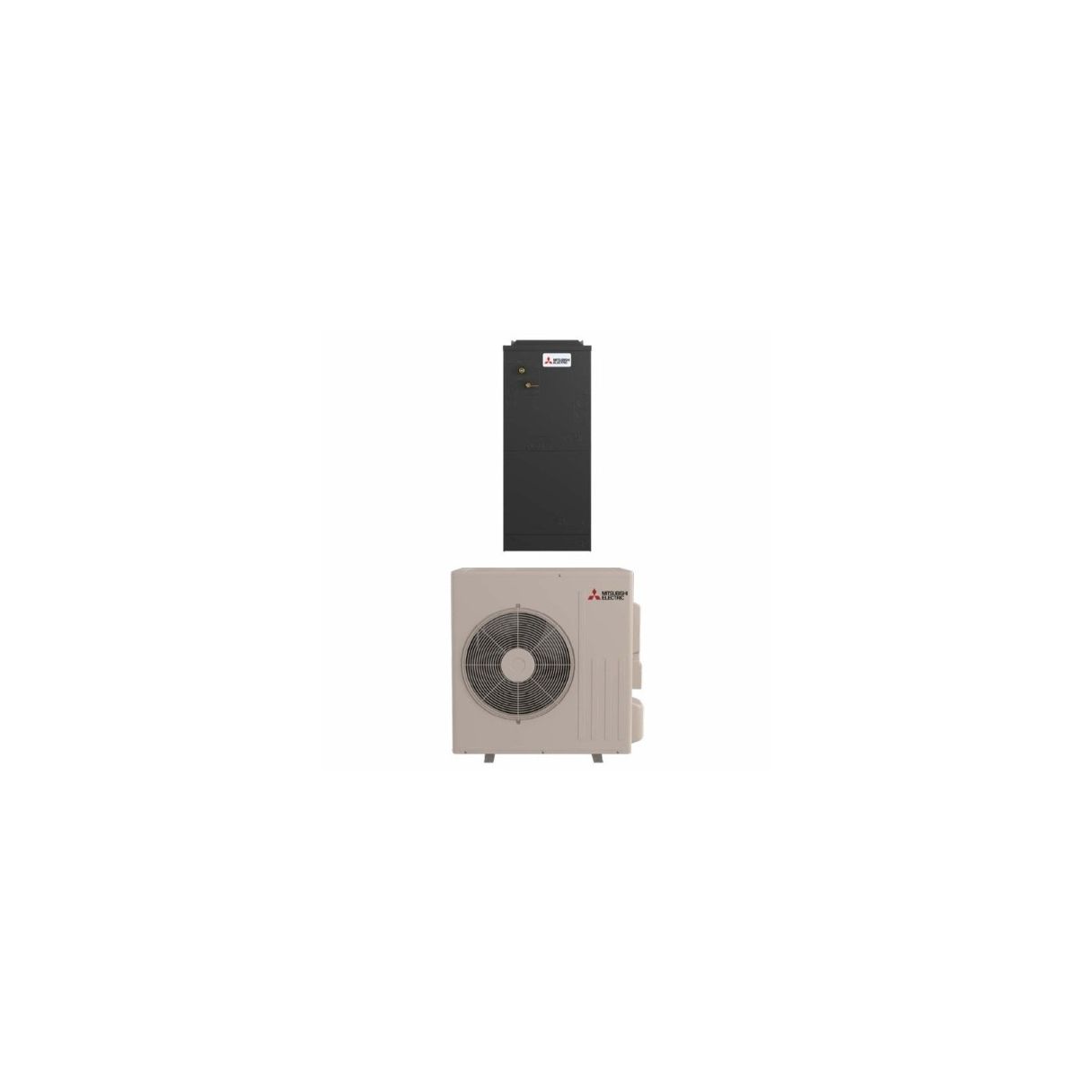

Mitsubishi 3 Ton 15.8 SEER2 Ducted Central Air Inverter Heat Pump Split System | R454B SUZ-AA36NL / SVZ-AP36NL
The Mitsubishi Electric SUZ-AA36NL outdoor unit paired with the SVZ-AP36NL indoor unit is a highly efficient ducted inverter heat pump system engineered for powerful, reliable, and flexible performance. With a SEER2 rating of 15.8 and cutting-edge inverter technology, this system offers superior comfort, energy efficiency, and environmental compatibility using the low-GWP refrigerant R454B.
Key Features
- Capacity: 36,000 BTU (3 Ton)
- SEER2 Efficiency Rating: 15.8 - ensuring energy savings and reduced operational costs
- Inverter Technology: Advanced variable-speed compressor delivers precise temperature control and optimal efficiency
- Refrigerant: Utilizes R454B, a next-generation, low-GWP refrigerant that supports environmental sustainability
- Quiet Operation: Engineered for ultra-low sound levels, making it ideal for residential use
- Compact Design: Both indoor and outdoor units feature space-saving designs suitable for various installation applications

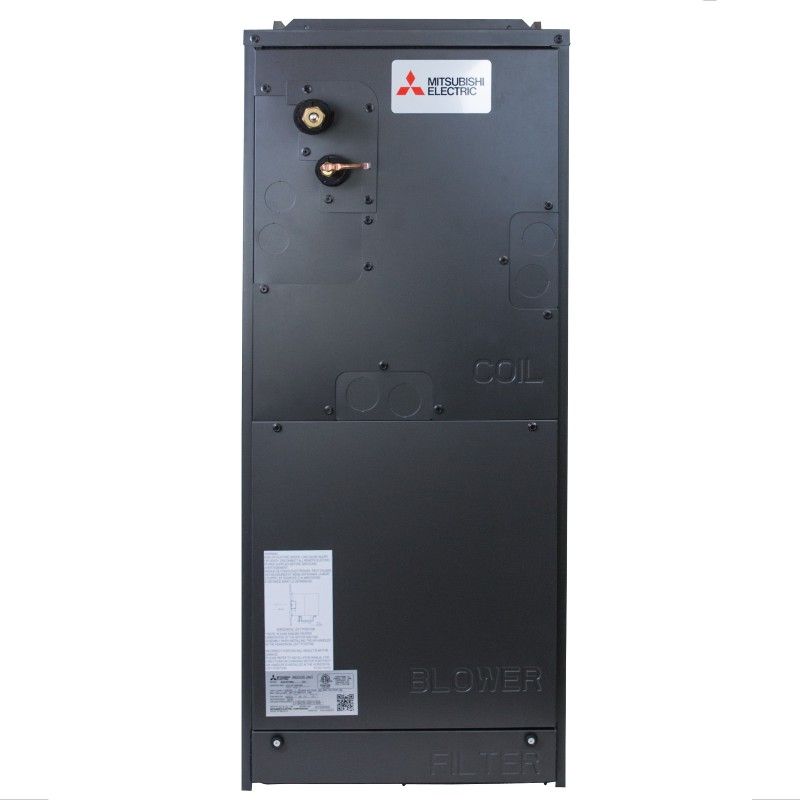

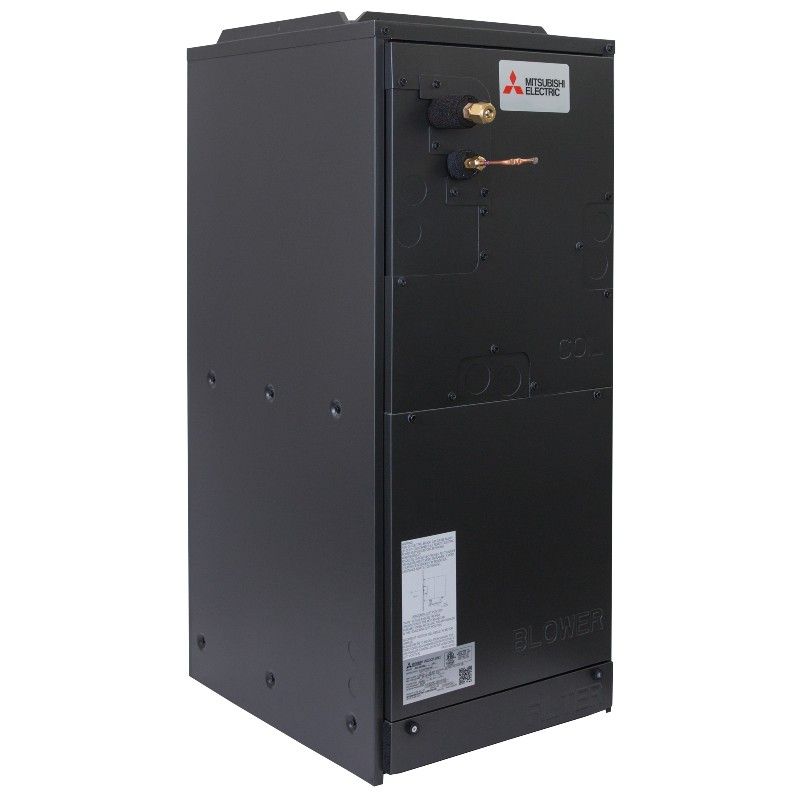

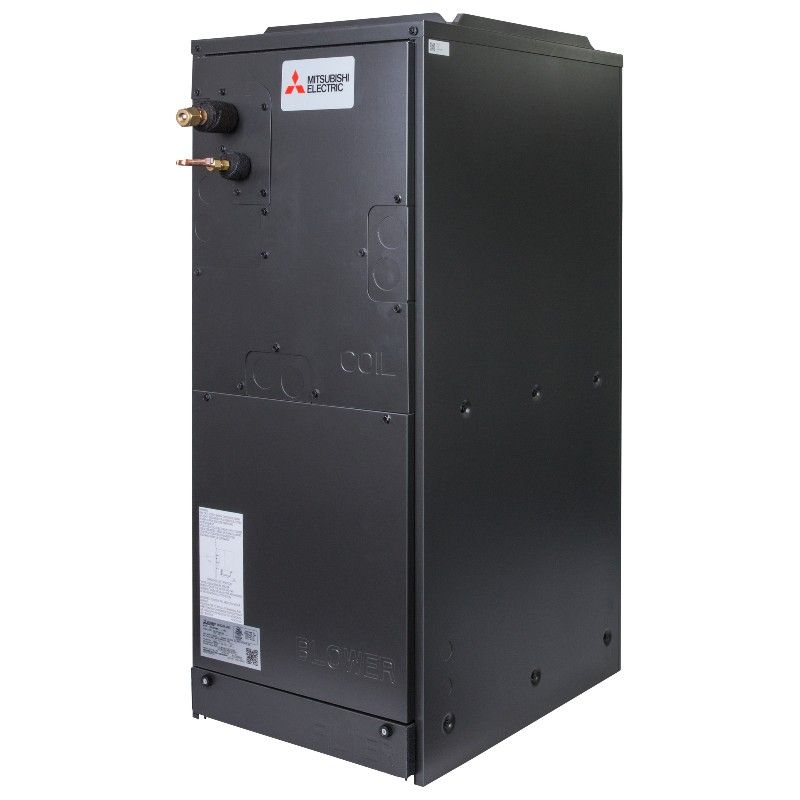

Indoor Unit - SVZ-AP36NL Highlights
- High Static Pressure Capabilities: Supports extended ductwork runs and multiple zones
- Multiple Airflow Configurations: Flexible installation options including horizontal and vertical positioning
- Field-Adjustable Static Pressure: Offers control over airflow delivery to meet specific needs
- Built-in Condensate Pump: Facilitates proper drainage in challenging installations
- Enhanced Filtration: Integrated filter system improves indoor air quality
Outdoor Unit - SUZ-AA36NL Highlights
- Durable Construction: Weather-resistant casing and components ensure long-lasting performance
- Blue Fin Anti-Corrosion Treatment: Prolongs coil life in coastal and humid environments
- Wide Operating Range: Effective heating and cooling in extreme outdoor temperatures
- Intelligent Defrost Logic: Minimizes unnecessary defrost cycles to maintain efficiency
System Benefits
- Energy Savings: Inverter technology reduces power consumption and lowers utility bills
- Environmental Responsibility: Use of R454B refrigerant supports green building standards
- Whole-Home Comfort: Ideal for full-home ducted applications, providing even and consistent temperatures
- Flexible Installation: Compatible with a wide range of ductwork and zoning configurations
This Mitsubishi ducted heat pump system is an excellent choice for homeowners and contractors seeking a high-performance, energy-efficient HVAC solution that is built to last and designed to meet the needs of modern comfort and sustainability.

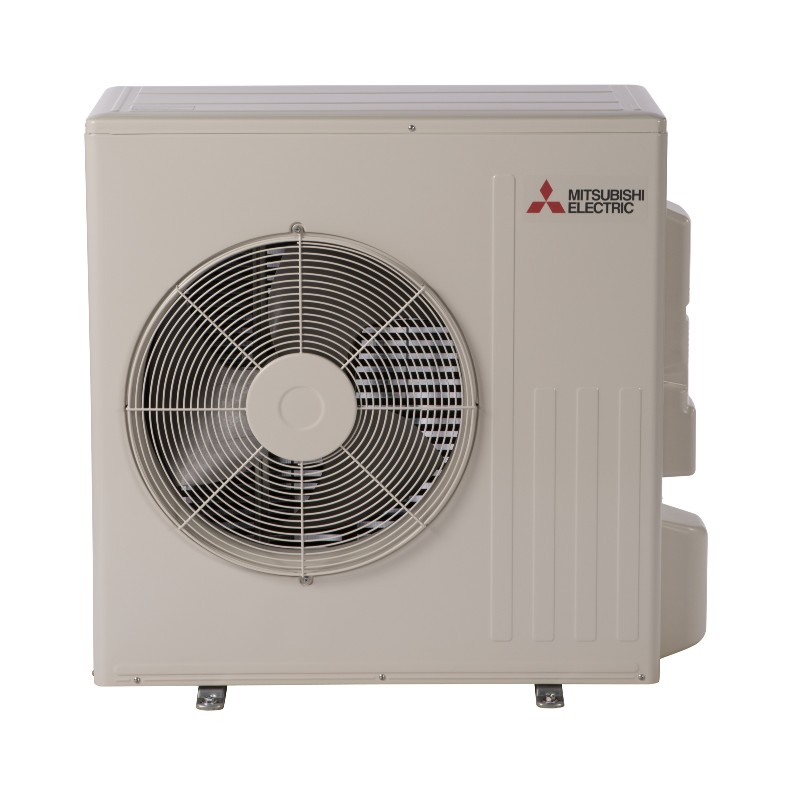

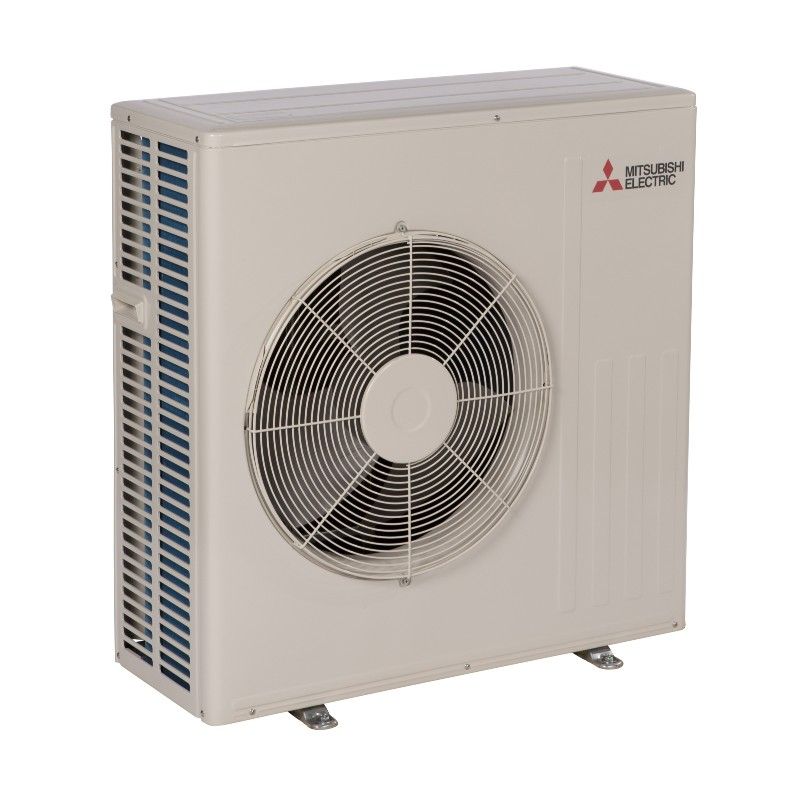

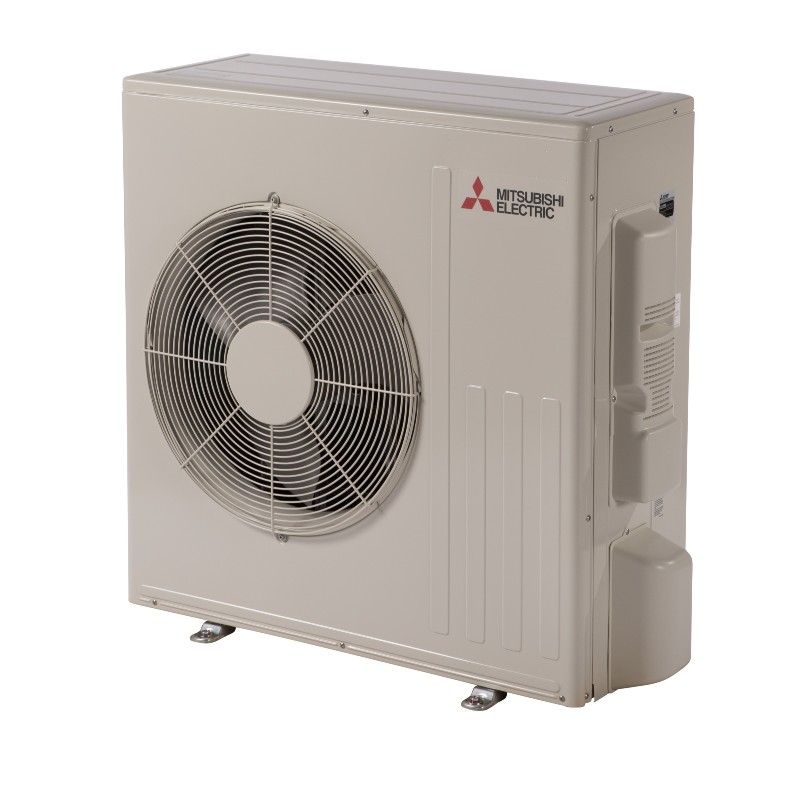

36,000 BTU Mitsubishi Single Zone Condenser - R454B
SUZ-AA36NL - 33,000 BTU/H Heat Pump Outdoor Unit
The SUZ-AA36NL is a high-performance outdoor unit designed to provide efficient cooling and heating for both residential and commercial applications. Featuring advanced technologies like Pulse Amplitude Modulation (PAM) and an inverter-driven compressor, this unit offers reliable operation and energy-efficient performance, even in extreme weather conditions.
Outdoor Unit Features (SUZ-AA36NL):
- Blue Fin Coating: Anti-corrosion coating on heat exchanger fins to protect against salt, sulfur, and other airborne contaminants, making it suitable for coastal and industrial environments.
- Inverter-Driven Compressor: Ensures precise capacity control for better temperature regulation and energy efficiency.
- Pulse Amplitude Modulation Technology: Enhances energy efficiency by optimizing compressor power, leading to reduced energy consumption.
- Quiet Operation: Operates quietly with noise levels similar to a normal conversation, ensuring minimal disruption.
- Hot-Start Technology: Prevents cold air blasts during start-up by ensuring the fan activates only once the heat exchanger is warm.
- High-Performance Grooved Piping: Improves heat exchange efficiency for better overall performance.
- Outdoor Unit Directed Power: The outdoor unit powers the indoor unit, with automatic restart functionality in case of power outage.
- Joint Lap DC Motor: Offers high efficiency and reliability for long-lasting operation.
Specifications:
- Cooling Capacity: 33,000 BTU/h rated at 95°F outdoor temperature with a maximum capacity of 33,000 BTU/h and a minimum of 9,900 BTU/h.
- Heating Capacity: 36,000 BTU/h at 47°F, 34,000 BTU/h at 17°F, 21,000 BTU/h at 5°F, and 15,300 BTU/h at -4°F outdoor temperature.
- Power Input: 3,070W rated power input during cooling, and 2,880W rated power input during heating at 47°F.
- Energy Efficiency: SEER2 rating of 19.4, EER2 of 10.7, and HSPF2 of 9.3 for superior energy performance.
- Refrigerant: Uses R454B refrigerant, pre-charged with 3 lbs of refrigerant, and a maximum piping length of 65 feet.
- Sound Pressure Level: 55 dB(A) during both cooling and heating operation for a quiet environment.
- Unit Dimensions: 33-1/16 x 13 x 34-11/16 inches, with a unit weight of 117 lbs.
The SUZ-AA36NL is designed to provide efficient, reliable heating and cooling for a wide range of applications, offering comfort even in challenging climates. With advanced technologies like Hyper-Heating INVERTER® (H2i®) and Pulse Amplitude Modulation, it ensures optimal performance while reducing energy consumption.
Installation Kit for Condensers
4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Wall Mount Bracket for Condensers 30"
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
Cielo Breez Max Mini Split Thermostat with WiFi
Introducing Cielo Breez Max, the ultimate smart thermostat for your mini-splits, designed to elevate your comfort with intelligent climate control. Transform your air conditioner into a smart powerhouse and manage your cooling or heating from anywhere using your phone. This award-winning device, available in black and white, prevents overheating or overcooling with AI-powered Comfy Max, while seamlessly detecting any mini-split brand for hassle-free setup.
Features:
- Energy Savings
- WiFi Connectivity
- Weekly Schedule
- Geofencing
- Temperature Range Lock
- Real-Time Notifications
- HVAC Zoning
Weekly Schedule lets you set on and off periods throughout the week based on your needs.
Geofencing uses your smartphone's location to trigger actions in your system, such as turning the air conditioner on or off based on your proximity to home.
Temperature Range Lock ensures your air conditioner operates within a set temperature range for optimal comfort and efficiency.
Real-Time Notifications keep you informed with important updates, helping you manage your air conditioner better.
HVAC Zoning allows you to create customized temperature control zones by grouping multiple mini-split units.
The Cielo Breez Max offers innovative features and extraordinary performance, making it a perfect fit for any room air conditioner. Enjoy maximum energy savings and simplified home comfort with this advanced smart thermostat.
Equipment Pad
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
36,000 BTU Mitsubishi SVZ Series Air Handler - R454B
Mitsubishi SVZ Series 3 Ton Air Handler | R454B
The Mitsubishi SVZ Series 3 Ton Air Handler, matched with the SUZ outdoor unit, is a robust and efficient ducted HVAC system built to meet the demands of larger residential spaces and light commercial environments. With cutting-edge inverter compressor technology and environmentally responsible R454B refrigerant, this unit delivers powerful performance, year-round comfort, and long-term reliability.
Key Features
- Inverter-Driven Performance: Delivers variable-speed operation for precise temperature control and reduced energy consumption.
- Eco-Friendly Refrigerant: Utilizes R454B refrigerant, which offers a lower global warming potential (GWP) compared to legacy refrigerants.
- Quiet Operation: Built with noise-reduction engineering for smooth and quiet indoor performance.
- Flexible Installation: Supports both vertical and horizontal installations, ideal for a wide range of floor plans and mechanical spaces.
- High Static Pressure Capability: Effectively manages airflow in systems with longer duct runs or multiple zones.
- Multi-Speed Fan: Allows customizable airflow levels for optimal comfort and system balance.
Technical Specifications
- Indoor Unit Model: SVZ-KP36NA
- Outdoor Unit Model: SUZ-KA36NA2
- Capacity: 36,000 BTU/h (3 Ton)
- Refrigerant: R454B
- Power Supply: 208/230V, 1 Phase, 60 Hz
- Fan Configuration: Multi-speed fan with adjustable static pressure settings
- Sound Pressure Levels: Engineered for low-noise operation for improved indoor comfort
Benefits
- Powerful Coverage: Effectively heats and cools larger homes and commercial spaces with ease.
- Energy Efficiency: Inverter-driven operation reduces on/off cycling and optimizes energy usage.
- Sustainable Technology: R454B helps meet modern environmental standards without compromising performance.
- Flexible Layout Compatibility: Adapts to various architectural configurations with multiple installation orientations.
- Trusted Quality: Backed by Mitsubishi Electric's commitment to innovation, reliability, and long-lasting durability.
The Mitsubishi SVZ Series 3 Ton Air Handler with R454B refrigerant is an excellent choice for those seeking high-capacity, energy-efficient, and eco-conscious HVAC performance. Whether for new construction or upgrading an existing system, this unit delivers the comfort and control you expect from a Mitsubishi Electric solution.
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 35 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Write Your Own Review
Customer Questions
Why Choose Mitsubishi Mini Splits?
Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
