Today's Hours 8am - 11pm estMitsubishi 36,000 BTU GX Series 19.2 SEER2 3 Zone Wall Mounted Mini Split Heat Pump System R454B | 230V 9 + 12 + 12
Required Fields *
By
Mitsubishi
In stock
Model
MXZ-5D36NL / MSZ-GX09NL / 2-MSZ-GX12NL
ID
223387
Was $8,751.56
Your Low Price $7,701.38
Product Features
- Tri Zone/Room Compatible
- Heating & Cooling Capabilities
- Ductless Solution for one 250-400 & two 400-600 sq ft Rooms/Zones
- R454B Refrigerant
- 10 Year Warranty with Online Registration
- AHRI Certified

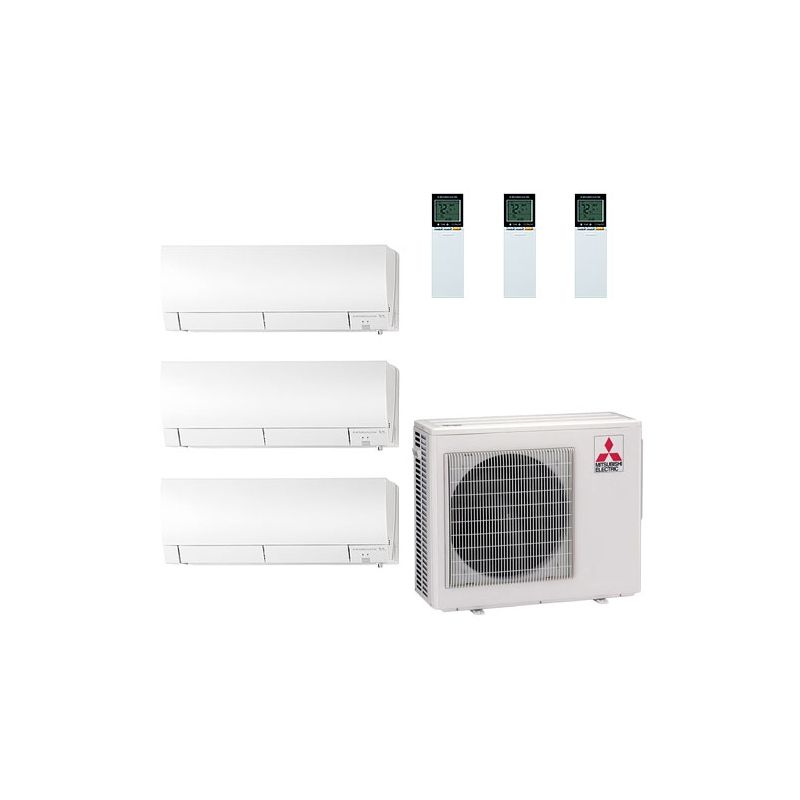

Mitsubishi 36,000 BTU GX Series 19.2 SEER2 Tri Zone Wall Mounted Mini Split Heat Pump System – R454B | 230V 9 + 12 + 12
The Mitsubishi GX Series 36,000 BTU Tri Zone Wall Mounted Mini Split Heat Pump System is engineered to deliver versatile and efficient climate control for three separate spaces. This advanced system pairs a robust outdoor condenser with three wall-mounted indoor air handlers — 9,000 BTU, 12,000 BTU, and 12,000 BTU — making it an ideal solution for homes and offices where room sizes and load requirements vary. The combination of a 19.2 SEER2 efficiency rating and eco-friendly R454B refrigerant ensures reliable comfort with minimal energy consumption and environmental impact.
Tri Zone 9 + 12 + 12 Configuration
- Three Independent Zones: Features three wall-mounted units for precise temperature control in multiple areas. The 9k unit is perfect for a smaller bedroom or study, while each 12k unit suits medium-sized rooms like living spaces or offices.
- Flexible Comfort Management: Each zone operates independently with its own thermostat and fan controls, maximizing comfort while optimizing energy use according to occupancy.
- Balanced Performance: The outdoor condenser dynamically manages BTU output to ensure each zone receives the required cooling or heating, even as individual demand changes throughout the day.
High Efficiency and Eco-Conscious Refrigerant
- 19.2 SEER2 Efficiency: Provides strong energy savings compared to traditional central HVAC or older ductless systems, helping lower operating costs throughout the year.
- R454B Refrigerant: Utilizes R454B, which has a significantly lower global warming potential (GWP) than previous refrigerant formulations, supporting your sustainability goals and future regulatory alignment.
- Inverter Technology: The variable-speed compressor modulates output to minimize power usage, reduce temperature swings, and ensure quiet operation.
System Components and Indoor Unit Features
- Outdoor Condenser: Heavy-duty, variable-speed unit built for lasting durability and quiet operation, even in varying weather conditions.
- 9,000 BTU Air Handler: Sized for smaller rooms, providing efficient and targeted comfort without oversizing.
- 12,000 BTU Air Handlers (x2): Ideal for medium rooms, these units feature multiple fan settings and dual barrier coatings that reduce allergen and contaminant accumulation, making maintenance easier and promoting cleaner airflow.
- Advanced Controls: Every indoor unit includes a wireless remote controller for individual zone programming, and is compatible with smart home and wall panel accessories for expanded control options.
Comfort, Air Quality, and Quiet Operation
- Ultra-Quiet Performance: Indoor units operate at whisper-low sound levels, enhancing comfort in bedrooms, living rooms, and offices.
- Dual Barrier Coating: Patented coating on the coil and interior surfaces minimizes buildup of dust, fibers, and oil, supporting optimal airflow and lowering required maintenance.
- Precise Air Distribution: Adjustable louvers and customizable fan speeds let users direct airflow exactly where it's needed, improving the comfort and temperature uniformity in all zones.
Installation and Electrical Specifications
- 230V Power: Compatible with standard residential and light-commercial 208/230V service, supporting reliable system operation and efficient load management.
- Matched Line Sets: Proper piping sizes and refrigerant charging are critical for Tri Zone performance and longevity; professional installation is recommended.
- Freeze Protection and Safety: Each unit includes safety features like freeze-prevention, overcurrent detection, and high-pressure protection for robust, year-round operation.
Ideal Applications
- Multi-Room Coverage: Perfect for homes, apartments, and offices with varied room sizes or specific comfort needs in three distinct areas.
- Renovation Projects: Excellent for retrofits where running new ductwork isn't feasible, giving modern zoning and efficiency without major construction.
- Energy Savings Strategy: Provides cooling and heating only where needed, allowing users to turn off zones in unoccupied spaces and further reduce utility costs.
Why Choose Mitsubishi GX Series?
- Industry-Leading Reliability: Mitsubishi is recognized for proven mini split performance and durability, backed by comprehensive warranties.
- Advanced Zoning Flexibility: Tri Zone configuration supports customized comfort for different rooms or usage patterns.
- Future-Oriented: R454B refrigerant, high-efficiency operation, and smart controls make this system a smart investment for years to come.
36,000 BTU Mitsubishi Multi Zone Condenser - R454B
Create efficient, year-round comfort with a compact multi-zone outdoor condenser designed to simplify home climate upgrades and pair seamlessly with compatible indoor air handlers.
Upgrade your comfort with the Mitsubishi MXZ-5D36NL Outdoor Multi-Zone Heat Pump Condenser—an inverter-driven outdoor unit designed to deliver efficient heating and cooling for up to five connected indoor spaces. Built for homeowners who want flexible comfort, quiet operation, and easier installation, this condenser pairs effortlessly with compatible Mitsubishi indoor units for reliable, year-round performance.
Key Features
- Multi-Zone Comfort — Supports up to five indoor units for independent temperature control in separate rooms.
- Inverter-Driven Performance — Helps maintain consistent temperatures while optimizing energy use.
- Quiet Outdoor Operation — Engineered for low-noise performance to help preserve a comfortable home environment.
- Built for Durability — Features a corrosion-resistant outdoor coil coating for added protection in challenging environments.
Warranty
Mitsubishi offers a limited warranty of 10-Year Compressor / 10-Year Parts Warranty when installed according to manufacturer guidelines and registered properly.
9,000 BTU Mitsubishi GX-Series Wall Mount Mini Split Air Handler - R454B
Enjoy efficient, quiet comfort with the Mitsubishi Electric MSZ-GX09NL wall-mounted indoor unit.
Transform the comfort of your space with the Mitsubishi Electric MSZ-GX09NL Wall-Mounted Mini Split Indoor Unit. Designed to deliver reliable heating and cooling for smaller rooms, this indoor unit combines a sleek wall-mounted design with quiet performance for bedrooms, home offices, and other compact living spaces.
Key Features
- Efficient Year-Round Comfort — When paired with a compatible Mitsubishi condenser, it helps provide dependable heating and cooling while supporting efficient energy use.
- Right-Sized Comfort for Smaller Spaces — The 9,000 BTU capacity is well suited for compact rooms and targeted comfort.
- Ultra-Quiet Operation — Helps maintain a peaceful environment with low-noise performance.
- Advanced Filtration — Helps reduce airborne particles and odors for cleaner indoor air.
Warranty
10-year limited parts warranty with online registration.
12,000 BTU Mitsubishi GX-Series Wall Mount Mini Split Air Handler - R454B
Enjoy efficient, quiet comfort with the Mitsubishi Electric MSZ-GX12NL wall-mounted indoor unit.
Transform the comfort of your space with the Mitsubishi Electric MSZ-GX12NL Wall-Mounted Mini Split Indoor Unit. Designed to deliver reliable heating and cooling for moderately sized rooms, this indoor unit combines a sleek wall-mounted design with quiet performance for bedrooms, living areas, home offices, and other everyday spaces.
Key Features
- Efficient Year-Round Comfort — When paired with a compatible Mitsubishi condenser, it helps provide dependable heating and cooling while supporting efficient energy use.
- Right-Sized Comfort for Everyday Spaces — The 12,000 BTU capacity is well suited for larger bedrooms, living rooms, and other residential areas.
- Ultra-Quiet Operation — Helps create a comfortable environment with low-noise performance.
- Advanced Filtration — Helps reduce airborne particles and odors for cleaner indoor air.
Warranty
10-year limited parts warranty with online registration.
Installation Kit for Condensers
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Mitsubishi MHK2 Wireless Remote Controller
The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.
The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!
The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.
Features:
- Includes MRCH2 thermostat, MIFH2 wireless receiver, and MRC2 cable
- Backlit display
- Can sense temperature at indoor unit (default) or at controller
- Fahrenheit °F / Celsius °C
- No batteries required
- Single zone compatible
- Multi zone compatible
- English, French, Spanish
Compatible Indoor Units:
Wall Mounted
- GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
- FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
- EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
- JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
- WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
- D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
- P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7
Ducted
- KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
- P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7
Ceiling Cassette
- KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
- KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
- P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7
Floor Mounted
- MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1
Multi Position Air Handler
- KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
- P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7
Ceiling Suspended
- P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7
15 feet - 1/4" and 3/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 15-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 15-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 15 ft. insulated refrigerant line set
- 15 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 3/8" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
25 feet - 1/4" and 3/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 25-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 25-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 25 ft. insulated refrigerant line set
- 25 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 3/8" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
30 feet - 1/4" and 3/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 30-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 30-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 30 ft. insulated refrigerant line set
- 30 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 3/8" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
30" Wall Mount Bracket
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
35 feet - 1/4" and 3/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 35-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 35-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 35 ft. insulated refrigerant line set
- 35 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 3/8" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
50 feet - 1/4" and 3/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 50-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 50-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 50 ft. insulated refrigerant line set
- 50 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 3/8" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
Write Your Own Review
Customer Questions
Why Choose Mitsubishi Mini Splits?
Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
