Today's Hours 8am - 11pm estMitsubishi 36,000 BTU GX Series 19.2 SEER2 3 Zone Wall Mounted Mini Split Heat Pump System R454B | 230V 9 + 9 + 12
Required Fields *
By
Mitsubishi
In stock
Model
MXZ-5D36NL / 2-MSZ-GX09NL / MSZ-GX12NL
ID
223417
Was $8,570.62
Your Low Price $7,542.16
Product Features
- Tri Zone/Room Compatible
- Heating & Cooling Capabilities
- Ductless Solution for two 250-400 & one 600-1,000 sq ft Rooms/Zones
- R454B Refrigerant
- 10 Year Warranty with Online Registration
- AHRI Certified

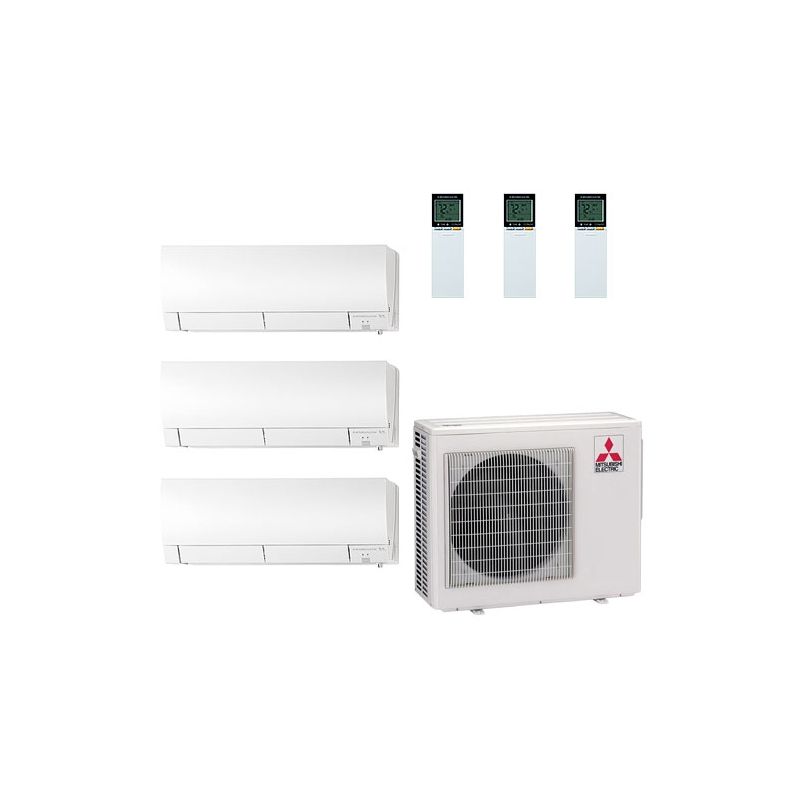

Mitsubishi 36,000 BTU GX Series 19.2 SEER2 Tri Zone Wall Mounted Mini Split Heat Pump System – R454B | 230V 9 + 9 + 12
The Mitsubishi GX Series 36,000 BTU Tri Zone Wall Mounted Mini Split Heat Pump System delivers efficient and customizable climate control across three indoor zones. Featuring two 9,000 BTU wall-mounted units and one 12,000 BTU unit, this system suits a variety of room sizes, from small bedrooms and offices to medium-sized living or work areas. Operating on a 230V outdoor condenser with eco-friendly R454B refrigerant, it achieves a 19.2 SEER2 rating for superior energy savings and consistent year-round comfort.
Tri Zone System Configuration
- Three Indoor Units: Two 9,000 BTU units provide comfort in smaller zones, while the 12,000 BTU unit conditions a medium zone for balanced climate control.
- Independent Zone Controls: Each unit is equipped with its own thermostat and fan controls, allowing precise temperature adjustment and energy efficiency.
- Adaptive Outdoor Unit Operation: The outdoor condenser's inverter compressor dynamically modulates output to meet the combined heating and cooling demands efficiently.
Energy Efficiency and Refrigerant Details
- 19.2 SEER2 Rating: Ensures high-level seasonal efficiency, reducing electricity costs without sacrificing performance.
- R454B Refrigerant: Low global warming potential refrigerant aligned with current environmental standards and regulations.
- Inverter Compressor Technology: Provides quiet, precise, and energy-efficient compressor modulation based on real-time load.
Indoor Unit Features
- Quiet Wall-Mounted Design: Includes adjustable louvers and multiple fan speeds for optimal airflow and occupant comfort.
- Dual Barrier Coating: Minimizes dust and allergen buildup on coils to enhance indoor air quality and reduce maintenance.
- 3D i-see Sensor® Technology: Senses room occupancy and temperature variations to optimize airflow and system efficiency.
- Wireless Remote Controls: Provide easy individual control over comfort settings for each zone.
Installation and Electrical Considerations
- 230V Power Compatibility: Designed to operate with common residential and light commercial electrical services.
- Professional Installation Recommended: Ensures proper refrigerant charging, electrical connections, and pipe sizing for maximum reliability and warranty coverage.
- Durable Outdoor Unit Design: Weather-resistant casing and Blue Fin anti-corrosion coil treatment extend operational life and reduce noise.
Applications and Benefits
- Multi-Zone Climate Control: Suitable for homes, offices, or commercial spaces with diverse room sizes requiring independent comfort management.
- Energy-Efficient Zoning: Reduces energy consumption by conditioning only occupied spaces.
- Space-Saving Wall-Mounted Installation: Provides flexible placement options in various room layouts and building types.
- Mitsubishi Quality and Warranty: Supported by Mitsubishi’s reputation for innovative HVAC technology, durability, and customer support.
36,000 BTU Mitsubishi Multi Zone Condenser - R454B
Create efficient, year-round comfort with a compact multi-zone outdoor condenser designed to simplify home climate upgrades and pair seamlessly with compatible indoor air handlers.
Upgrade your comfort with the Mitsubishi MXZ-5D36NL Outdoor Multi-Zone Heat Pump Condenser—an inverter-driven outdoor unit designed to deliver efficient heating and cooling for up to five connected indoor spaces. Built for homeowners who want flexible comfort, quiet operation, and easier installation, this condenser pairs effortlessly with compatible Mitsubishi indoor units for reliable, year-round performance.
Key Features
- Multi-Zone Comfort — Supports up to five indoor units for independent temperature control in separate rooms.
- Inverter-Driven Performance — Helps maintain consistent temperatures while optimizing energy use.
- Quiet Outdoor Operation — Engineered for low-noise performance to help preserve a comfortable home environment.
- Built for Durability — Features a corrosion-resistant outdoor coil coating for added protection in challenging environments.
Warranty
Mitsubishi offers a limited warranty of 10-Year Compressor / 10-Year Parts Warranty when installed according to manufacturer guidelines and registered properly.
9,000 BTU Mitsubishi GX-Series Wall Mount Mini Split Air Handler - R454B
Enjoy efficient, quiet comfort with the Mitsubishi Electric MSZ-GX09NL wall-mounted indoor unit.
Transform the comfort of your space with the Mitsubishi Electric MSZ-GX09NL Wall-Mounted Mini Split Indoor Unit. Designed to deliver reliable heating and cooling for smaller rooms, this indoor unit combines a sleek wall-mounted design with quiet performance for bedrooms, home offices, and other compact living spaces.
Key Features
- Efficient Year-Round Comfort — When paired with a compatible Mitsubishi condenser, it helps provide dependable heating and cooling while supporting efficient energy use.
- Right-Sized Comfort for Smaller Spaces — The 9,000 BTU capacity is well suited for compact rooms and targeted comfort.
- Ultra-Quiet Operation — Helps maintain a peaceful environment with low-noise performance.
- Advanced Filtration — Helps reduce airborne particles and odors for cleaner indoor air.
Warranty
10-year limited parts warranty with online registration.
12,000 BTU Mitsubishi GX-Series Wall Mount Mini Split Air Handler - R454B
Enjoy efficient, quiet comfort with the Mitsubishi Electric MSZ-GX12NL wall-mounted indoor unit.
Transform the comfort of your space with the Mitsubishi Electric MSZ-GX12NL Wall-Mounted Mini Split Indoor Unit. Designed to deliver reliable heating and cooling for moderately sized rooms, this indoor unit combines a sleek wall-mounted design with quiet performance for bedrooms, living areas, home offices, and other everyday spaces.
Key Features
- Efficient Year-Round Comfort — When paired with a compatible Mitsubishi condenser, it helps provide dependable heating and cooling while supporting efficient energy use.
- Right-Sized Comfort for Everyday Spaces — The 12,000 BTU capacity is well suited for larger bedrooms, living rooms, and other residential areas.
- Ultra-Quiet Operation — Helps create a comfortable environment with low-noise performance.
- Advanced Filtration — Helps reduce airborne particles and odors for cleaner indoor air.
Warranty
10-year limited parts warranty with online registration.
30" Wall Mount Bracket
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Mitsubishi MHK2 Wireless Remote Controller
The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.
The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!
The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.
Features:
- Includes MRCH2 thermostat, MIFH2 wireless receiver, and MRC2 cable
- Backlit display
- Can sense temperature at indoor unit (default) or at controller
- Fahrenheit °F / Celsius °C
- No batteries required
- Single zone compatible
- Multi zone compatible
- English, French, Spanish
Compatible Indoor Units:
Wall Mounted
- GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
- FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
- EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
- JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
- WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
- D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
- P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7
Ducted
- KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
- P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7
Ceiling Cassette
- KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
- KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
- P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7
Floor Mounted
- MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1
Multi Position Air Handler
- KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
- P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7
Ceiling Suspended
- P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7
15 feet - 1/4" and 3/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 15-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 15-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 15 ft. insulated refrigerant line set
- 15 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 3/8" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
25 feet - 1/4" and 3/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 25-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 25-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 25 ft. insulated refrigerant line set
- 25 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 3/8" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
30 feet - 1/4" and 3/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 30-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 30-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 30 ft. insulated refrigerant line set
- 30 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 3/8" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
35 feet - 1/4" and 3/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 35-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 35-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 35 ft. insulated refrigerant line set
- 35 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 3/8" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
50 feet - 1/4" and 3/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 50-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 50-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 50 ft. insulated refrigerant line set
- 50 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 3/8" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
