AHRI Number:202392024

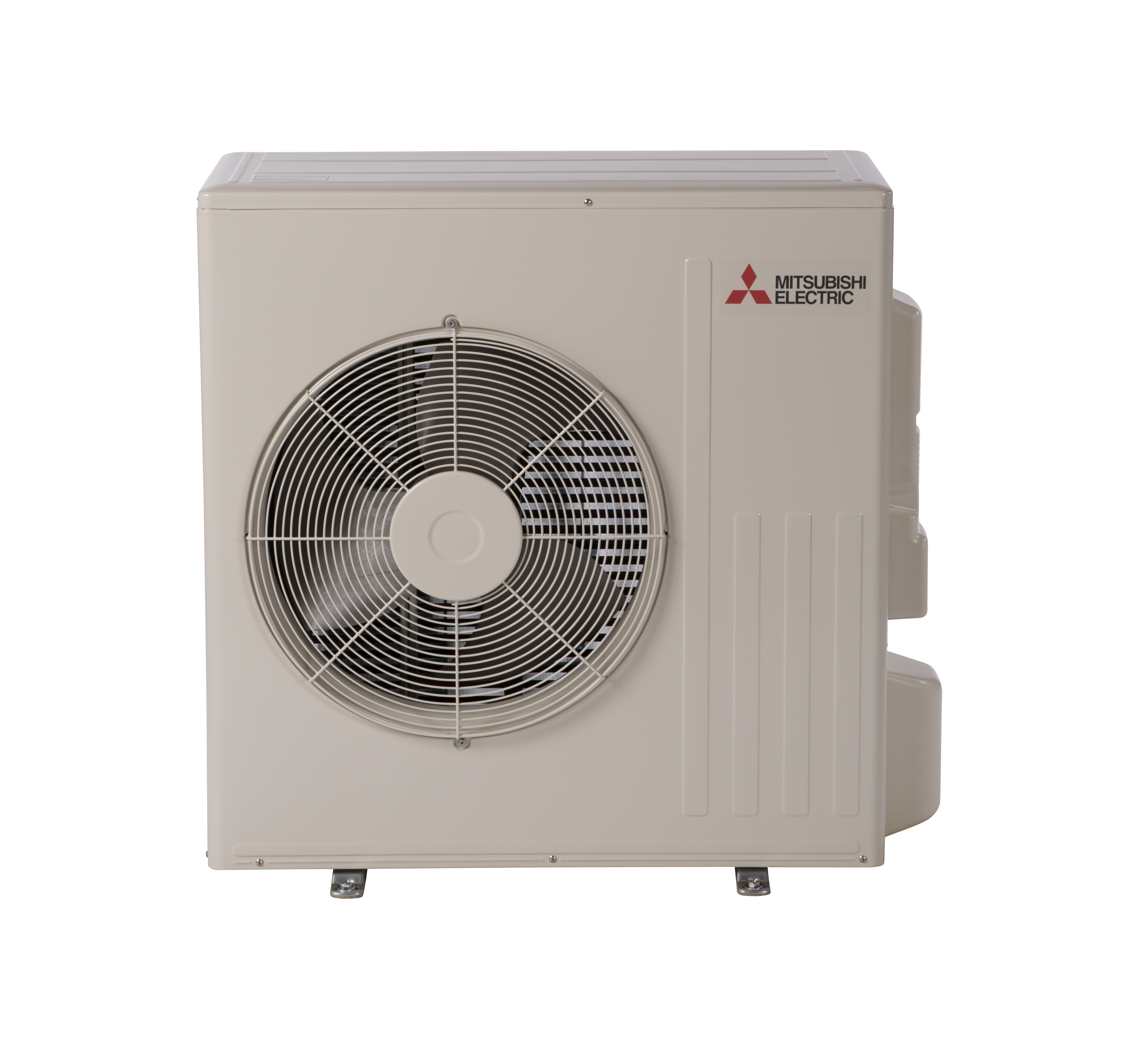

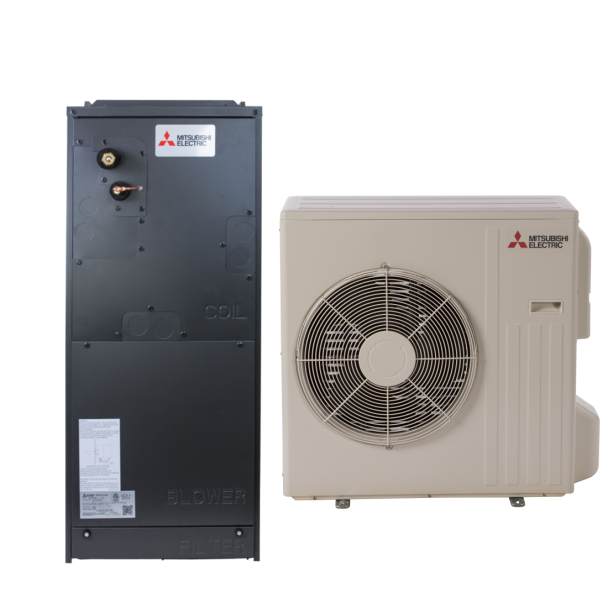

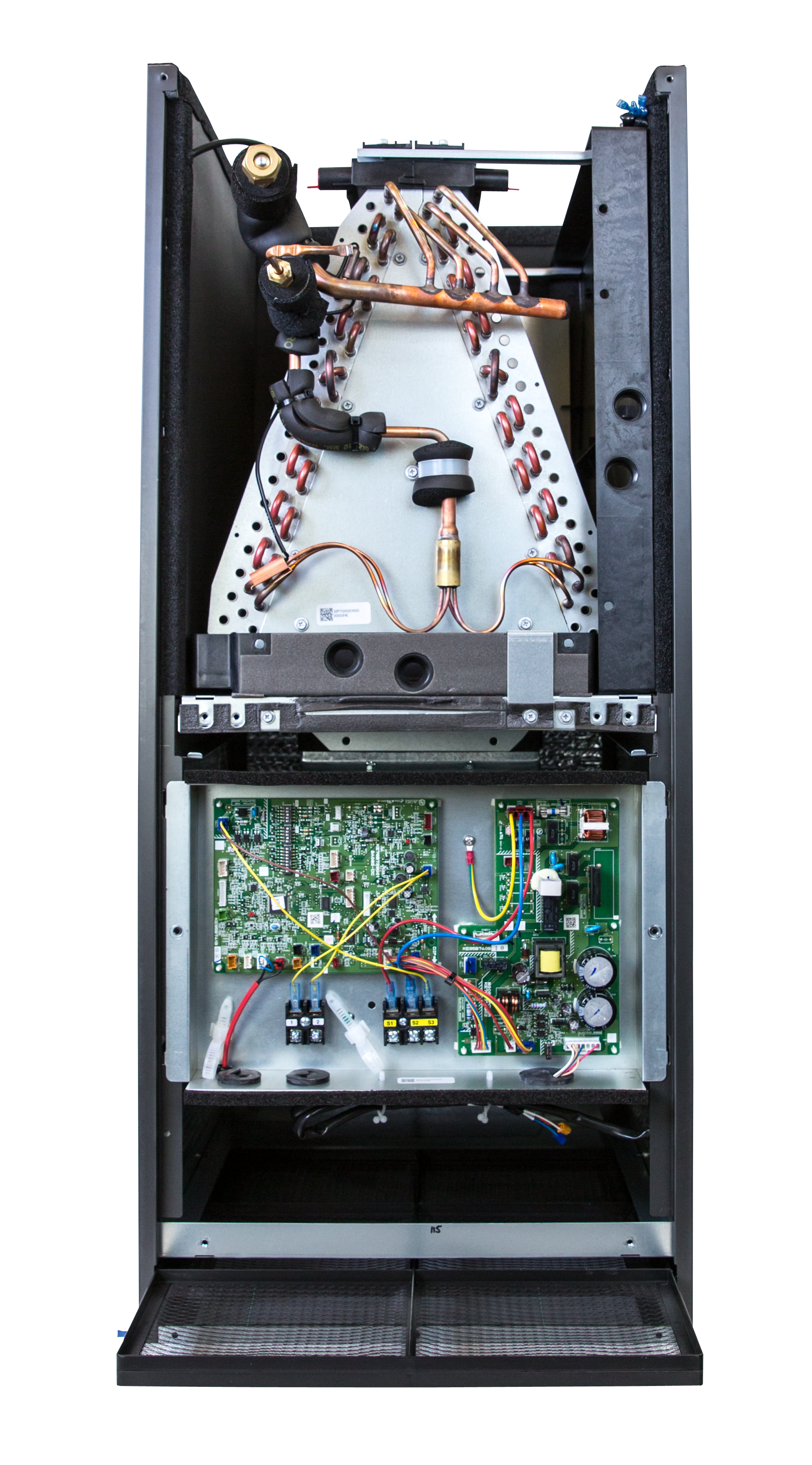

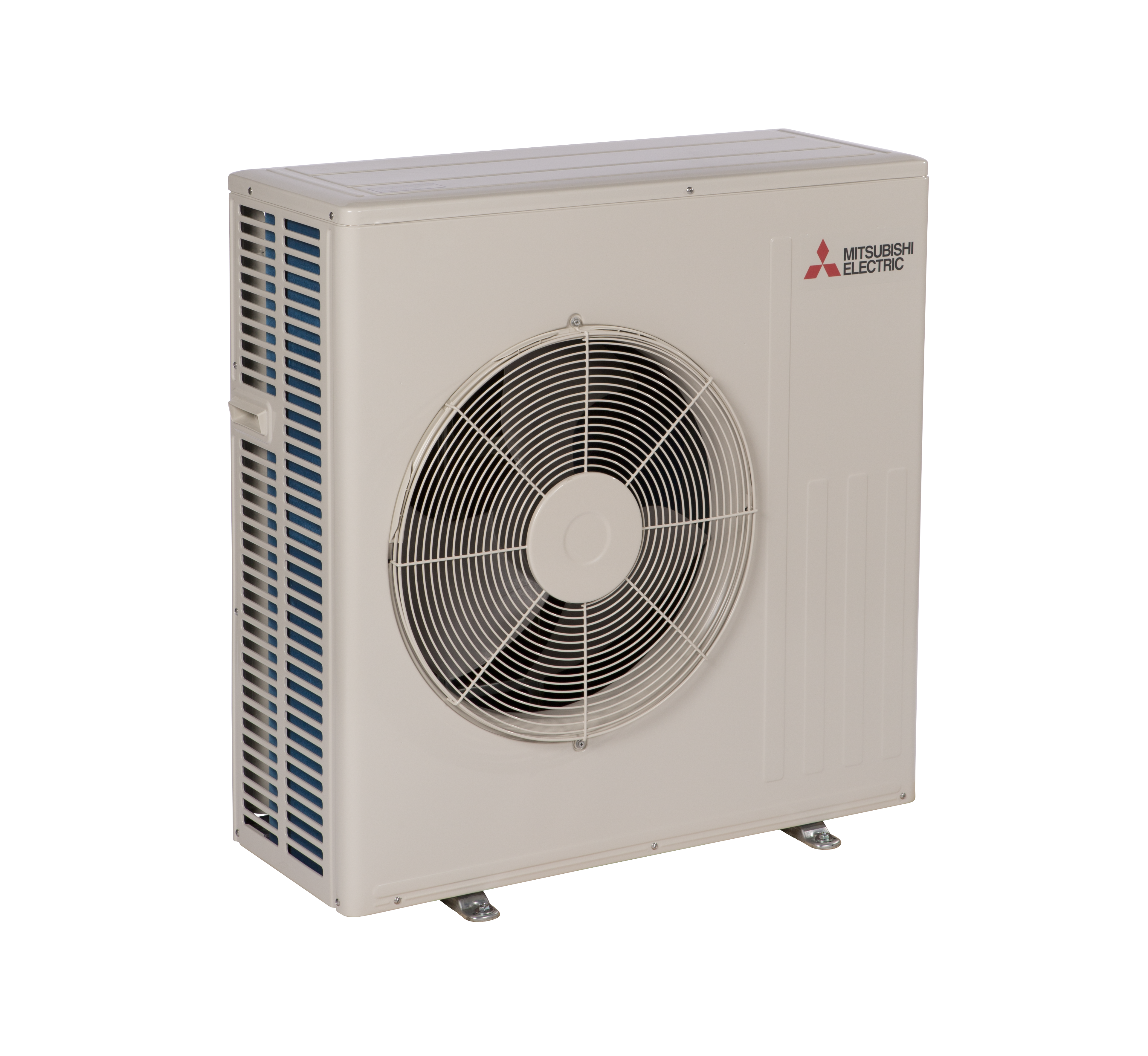

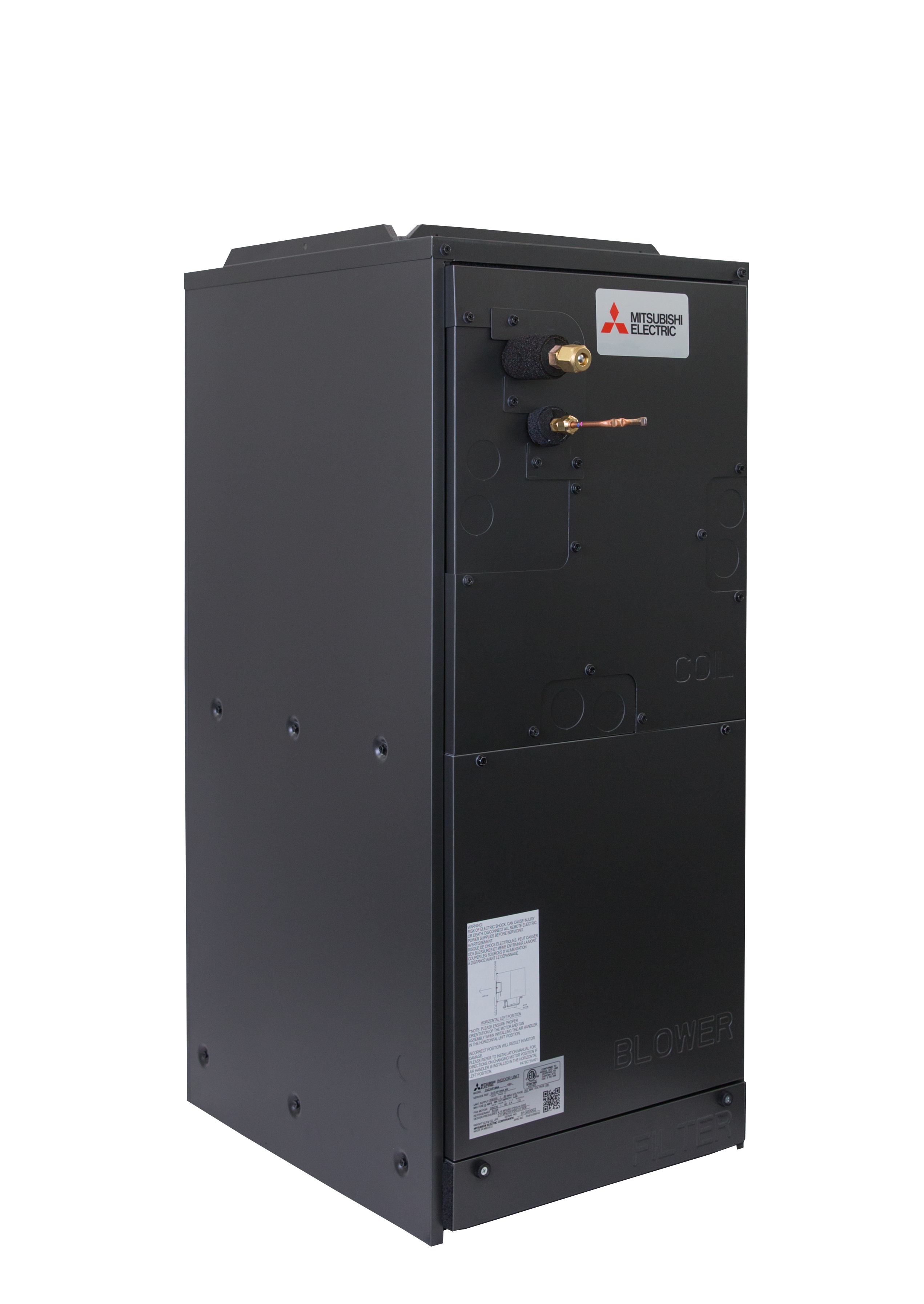

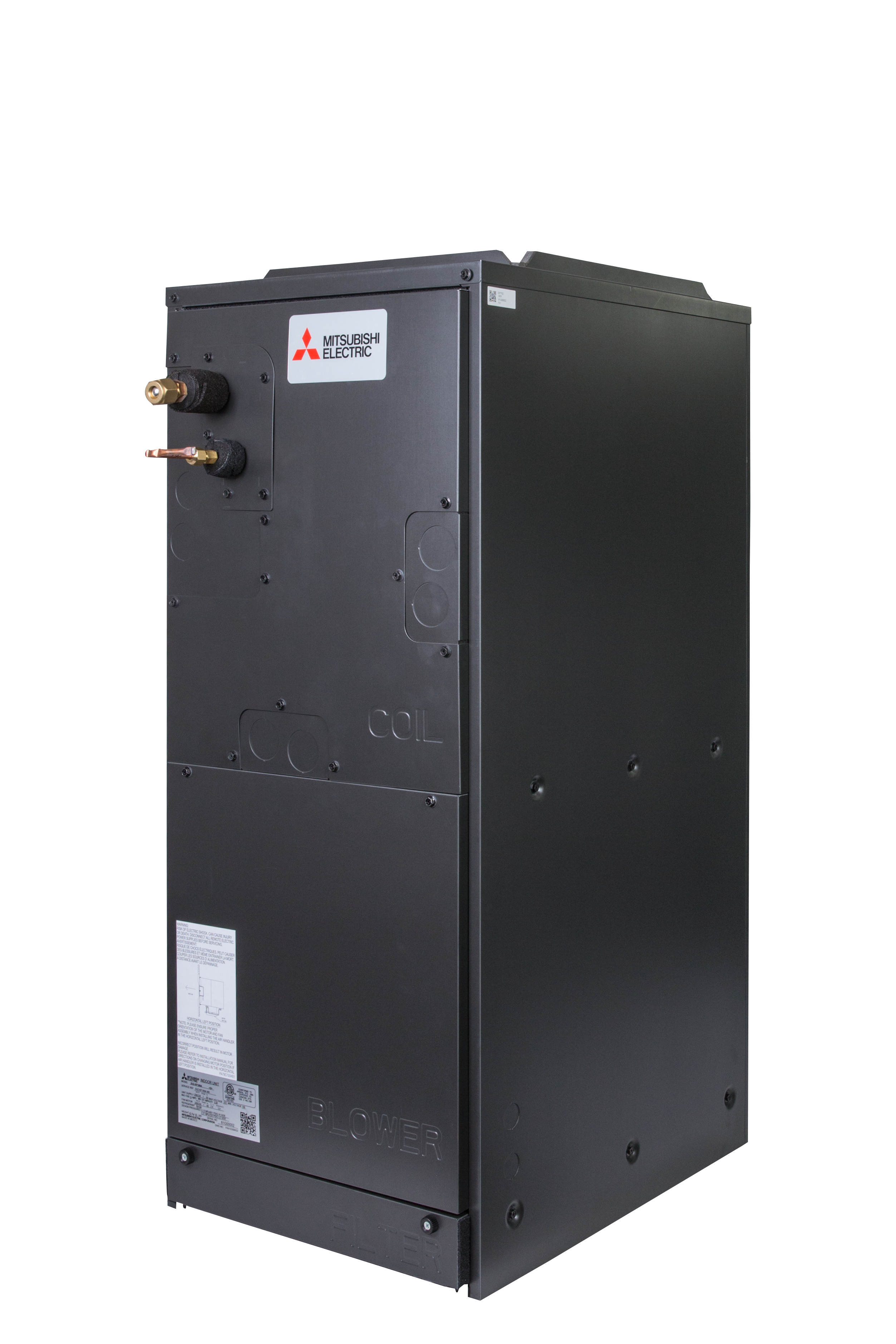

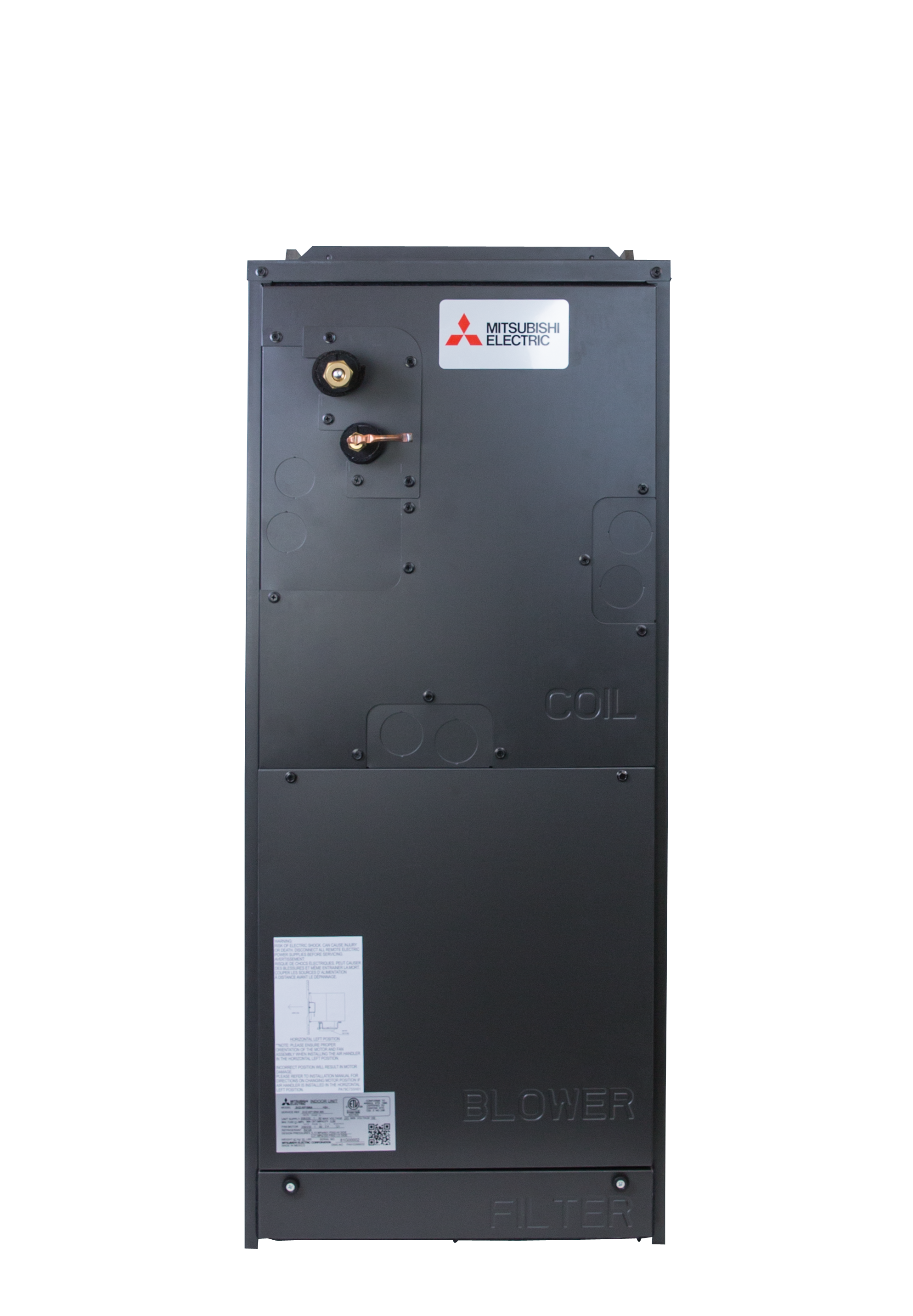

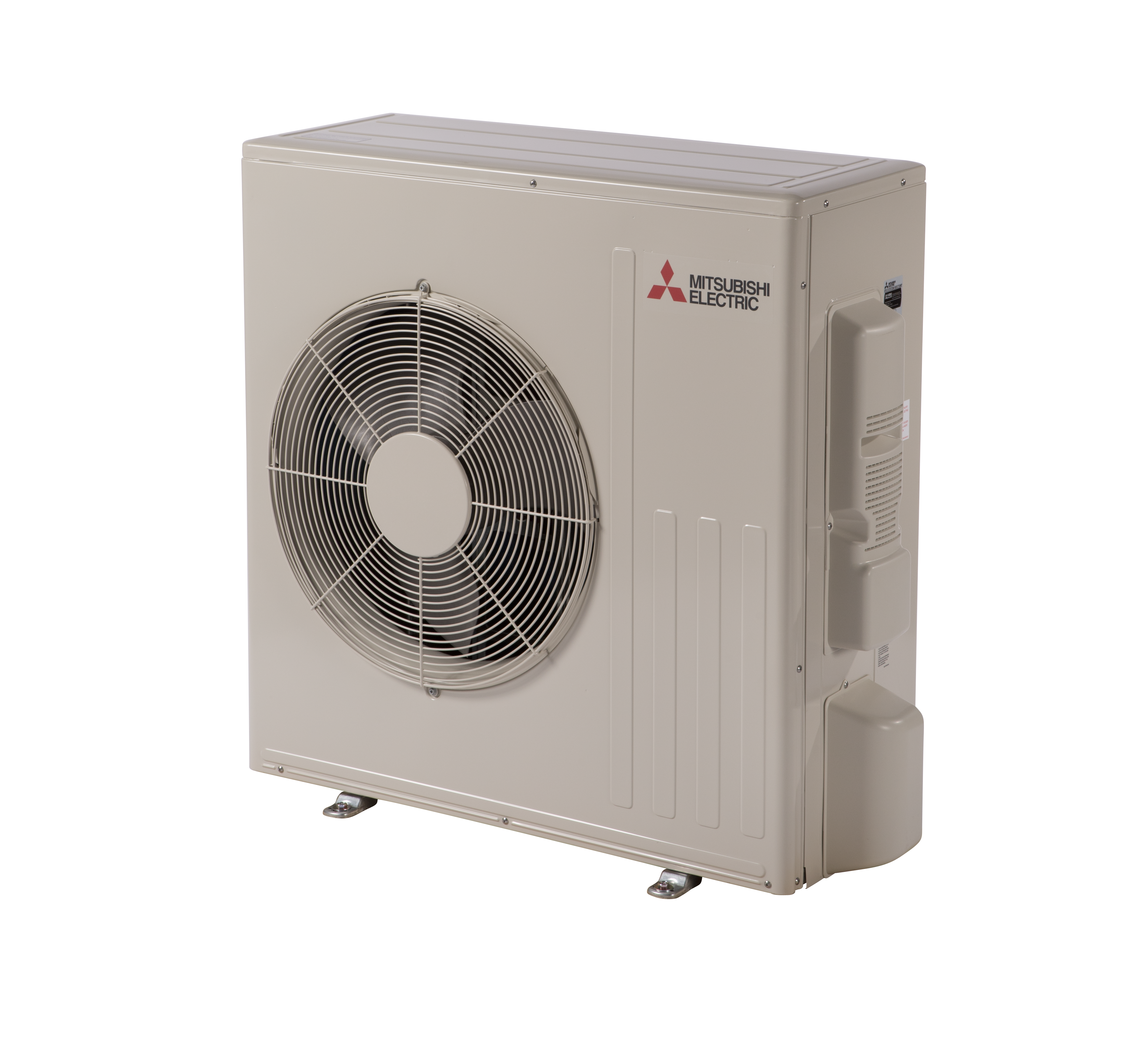

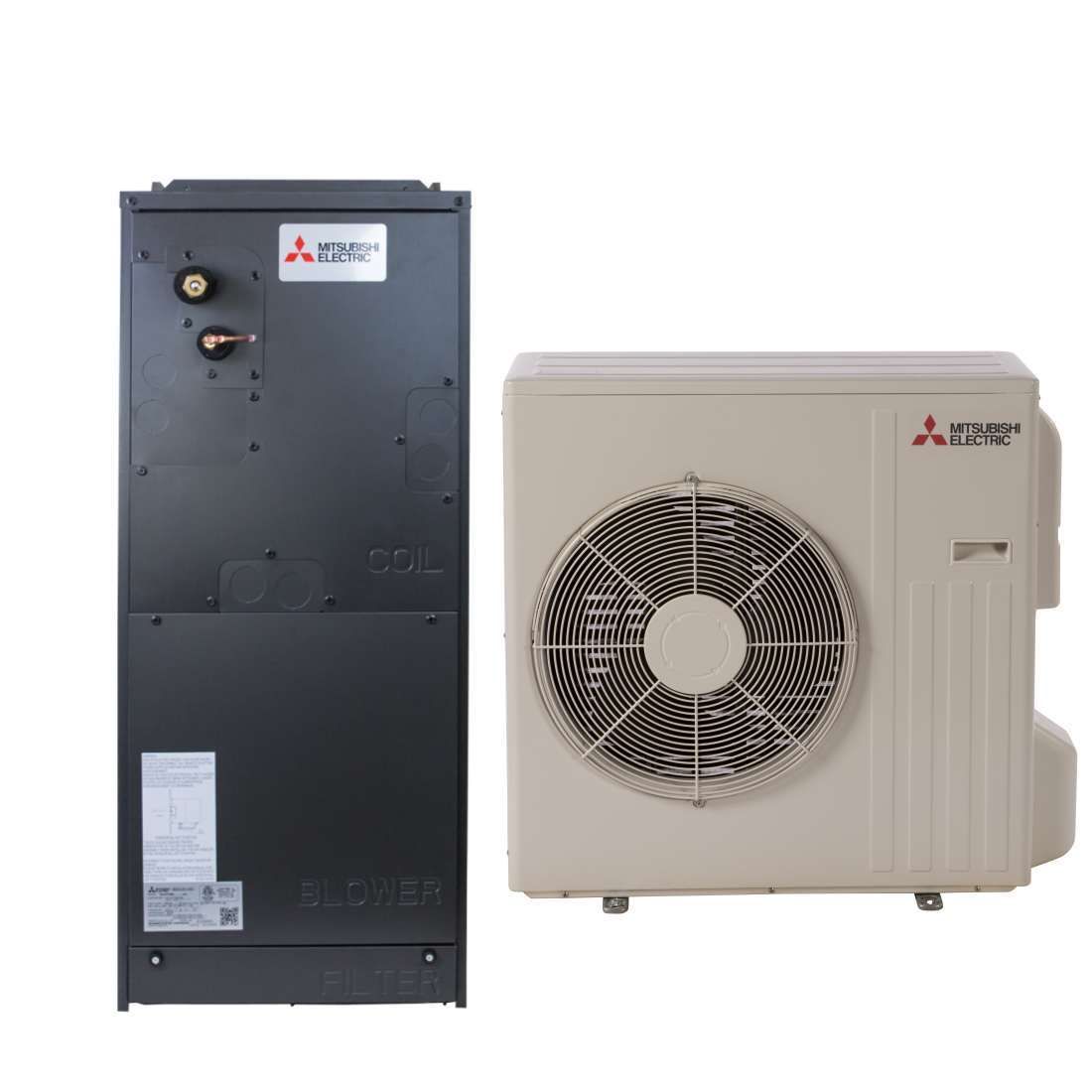

The Mitsubishi SVZ-KP24NA / SUZ-KA24NA2 is a unitary mini split system with an output of 24,000 BTU and an efficiency rating of 18 SEER. The system is designed to fit in your existing ductwork for ease of installation and a slimmer condenser makes it ready for a wider range of applications.
With an output of 24,000 BTU, the Mitsubishi SVZ-KP24NA / SUZ-KA24NA2 is suitable up to a small house in an average climate. The unit also has a 18 SEER rating, making it able to efficiently heat and cool your home with ease.
Mitsubishi provides a 5 year parts and 7 year compressor warranty from the factory. When the unit is installed following your state and local codes and is registered online through the manufacturer, the warranty is upgraded to a 10 year parts and compressor warranty.
The Mitsubishi SVZ-KP24NA / SUZ-KA24NA2 is designed with intelligent controls that make small adjustments to keep the room’s temperature stable and bringing more comfort to your home. With an optional WiFi accessory, such as the Mitsubishi Kumo Cloud Adapter found here, this unit can be controlled from anywhere that you have Internet access—from across town at work to across the world on vacation—bringing ease of control to Mitsubishi’s superior comfort.
| 2 Ton 18 SEER Multi-Positional Mitsubishi Mini-Split Single Zone Heat Pump - SVZ-KA24NA2 | |
|---|---|
| SKU | SVZ-KP24NA / SUZ-KA24NA2 |
| Refrigerant Charge | Pre-Charged For: 25' |
| Weight (in lbs) | 222.000000 |
| AHRI Certificate Number | 202392024 |
| Brand/Manufacturer | Mitsubishi |
| Controller | Not Included |
| Additional Information | Heat Pump |
| Additional Information | Maximum Line Set Length: 100' |
| Additional Information | Drain: 3/4" |
| HSPF | 10.4 |
| Cooling BTU | 24,000 BTU |
| Heating BTU | 25,000 BTU |
| Maximum CFM | 515-735 CFM |
| Decibel Level (dBA) | Indoor Unit: 30-38 | Outdoor Unit: 55 |
| Energy Star | Yes |
| Refrigerant | R410A |
| Capacity | Dehumidification Rate: 0.51 gal/hr |
| SEER (Efficiency) | 18-20 |
| EER | 12.5 |
| Condenser Stages | Variable Speed |
| Compressor Type | Rotary |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Phase | Single Phase |
| Max Breaker Size | 31 |
| Min. Breaker Size | 17 |
| Tonnage | 2 Ton |
| System Tonnage | 2 Ton |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Min/Max Outdoor Temp for Heating | 14°-75° |
| Min/Max Outdoor Temp for Cooling | 14°-115° |
| Zone Compatibility | Single Zone |
| Operating Mode | Cooling, Heating |
| Height | Indoor Unit: 39-13/16" | Outdoor Unit: 33-1/16" |
| Width | Indoor Unit: 17" | Outdoor Unit: 34-5/8" |
| Depth | Indoor Unit: 21-5/8" | Outdoor Unit: 13" |
| Additional Info | Indoor Unit Weight: 93 lbs | Outdoor Unit Weight: 129 lbs |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
