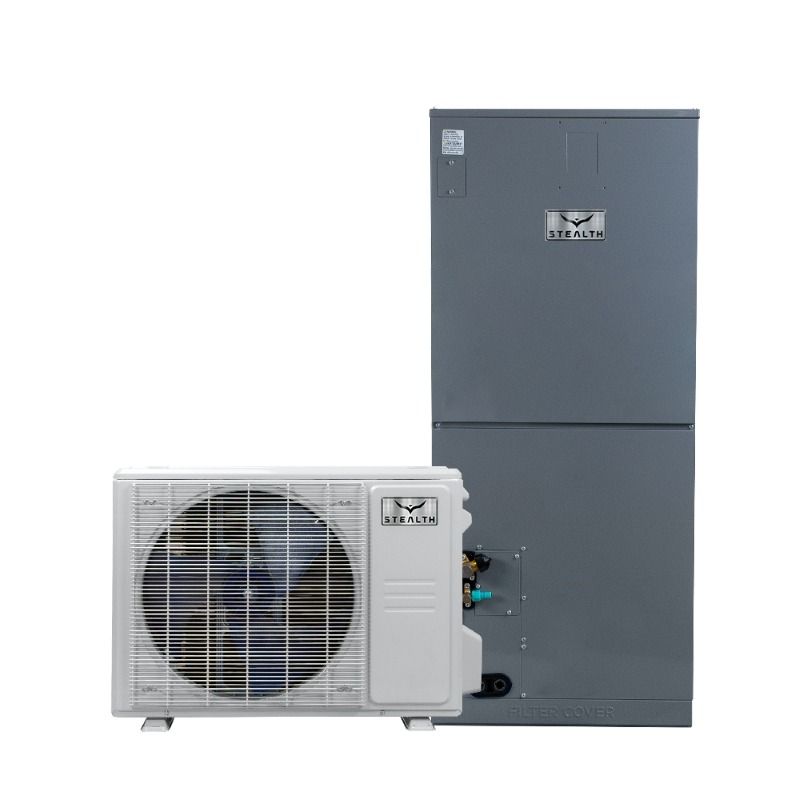

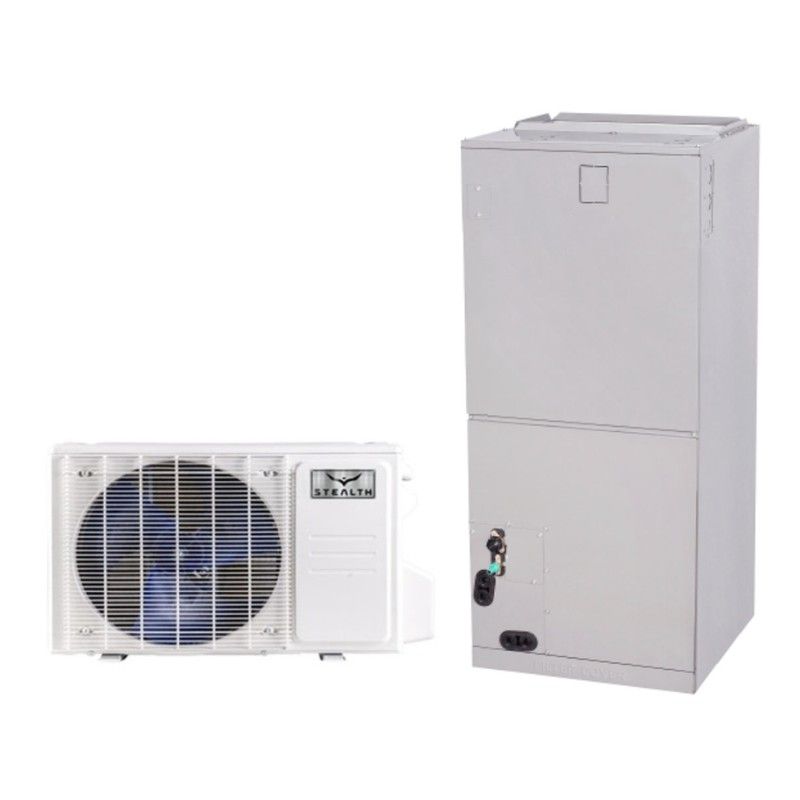

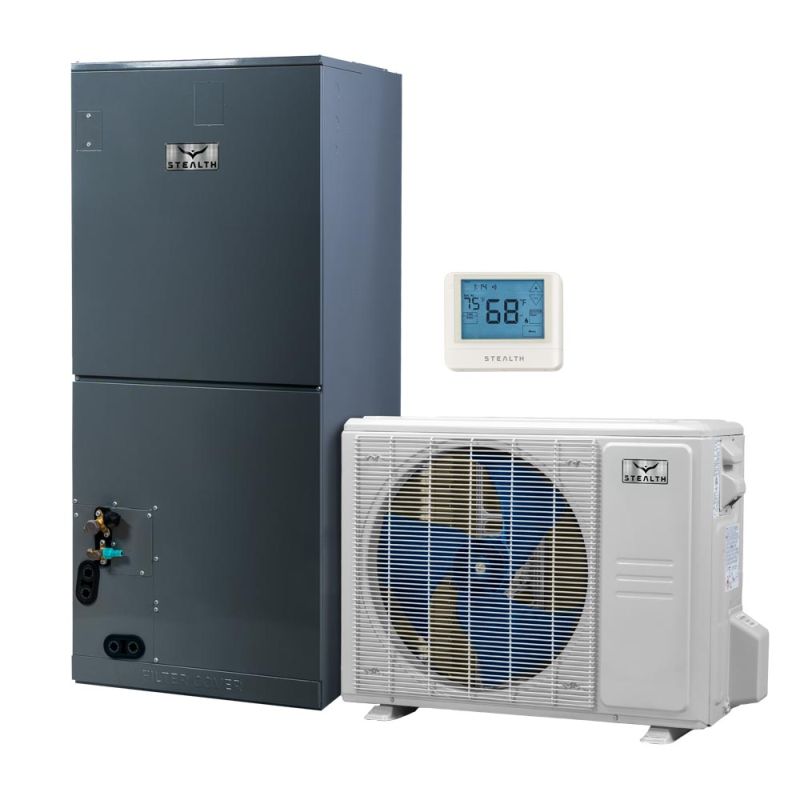

Stealth 2 Ton 18.1 SEER2 High Efficiency Heat Pump Split System - R454B Inverter - Multi-Positional

SAVE $971.00

Required Fields *

By

Stealth

In stock

Model

EZ-24-EHPB / EZ-24-AHB

ID

227699

Ships in 5-7 Business Days
Was $3,235.00
Your Low Price $2,264.00

Free Shipping
Product Features
  • All Electric Ducted Heating & Cooling Solution
  • High Efficiency Inverter Heat Pump
  • Great for Small Homes in Various Climates
  • Pre-Charged with R454B Refrigerant
  • Great Warranty with Online Registration
Customize Stealth 2 Ton 18.1 SEER2 High Efficiency Heat Pump Split System - R454B Inverter - Multi-Positional
Stealth 2 Ton 18.1 SEER2 High Efficiency Central Heat Pump Condenser | Inverter - R454B
Stealth 2 Ton 18.1 SEER2 High Efficiency Central Heat Pump Condenser | Inverter - R454B   + $1,189.00
Stealth 2 Ton 17.5" Width Multi-Positional Central Ducted Air Handler - R454B
Stealth 2 Ton 17.5" Width Multi-Positional Central Ducted Air Handler - R454B   + $1,075.00
EZ Connect Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 15 Feet - R454B
Installation Kit for Condensers - Accessory Set
Wall Mount Bracket for Condensers 30"
Stealth 5 Kilowatt 16,200 BTU Electric Heat Kit
ACiQ TL04-1 Smart Thermostat – 24V & HA/HB Compatible
Santa Fe Ultra70 Whole House Dehumidifier - 110/120V - R454B (SKU 4044100)
Stealth 2 Ton 18.1 SEER2 High Efficiency Heat Pump Split System - R454B Hyper Heat Inverter - Multi-Positional - EZ-24-EHPB / EZ-24-AHB

$2,264.00

OVERVIEW

The Stealth high-efficiency heat pump split-system is designed for year-round heating and cooling. This system features inverter technology for superior performance and a multi-positional air handler for flexible installation in various orientations.

QUICK FACTS

  • 2 Ton, 18.1 SEER2, 9.7 HSPF2 heat pump split system
  • Can heat and cool a small home in average conditions
  • Multi-positional air handler
  • Factory-charged with R454B refrigerant
  • 10 year parts and compressor warranty with online registration
  • AHRI certified

EZ Connect

One of the standout features of this system is the EZ Connect linesets, which significantly simplify the installation process. These pre-charged, no-flare linesets eliminate the need for specialized tools and brazing, reducing installation time and costs. This feature also minimizes the risk of refrigerant leaks, ensuring a clean and secure connection for lasting system performance. Perfect for both new installations and replacements, the EZ Connect linesets streamline your HVAC setup, making it faster and more efficient than traditional linesets.

Why Stealth?

Stealth is built around a simple concept: empowering homeowners with a single-source home improvement solution. Specializing in simple, stylish, and affordable options to enhance your home, we enable you to take charge of your home's comfort and aesthetics without the need for professional assistance.

With reliable performance, innovative design, and energy-saving benefits, this system is the ideal choice for anyone looking to upgrade their home’s HVAC system.


High Efficient FurnaceHigh Efficient Furnace

EZ Connect, EZ Installation

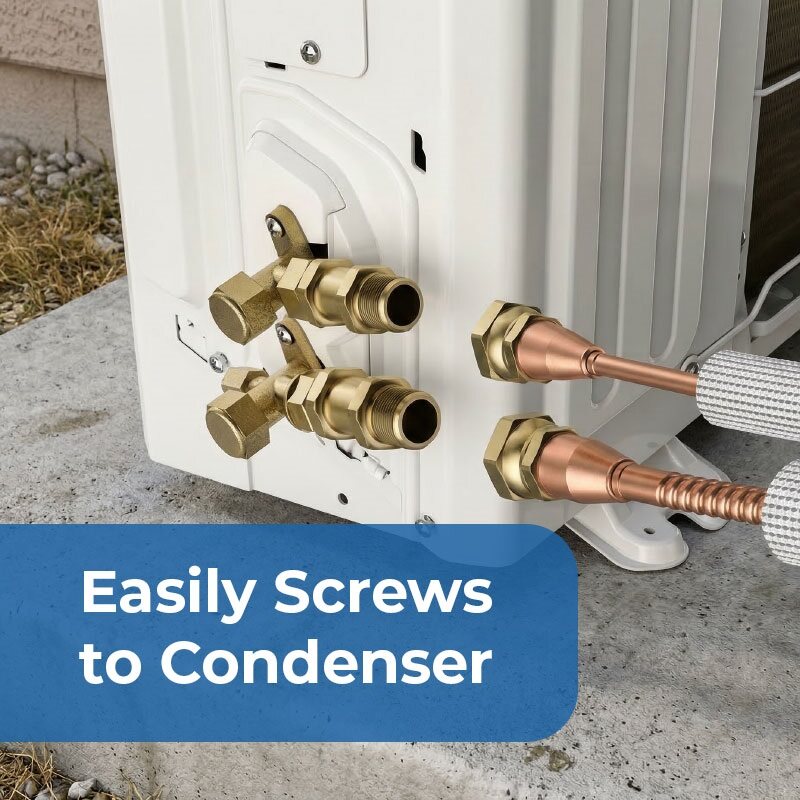

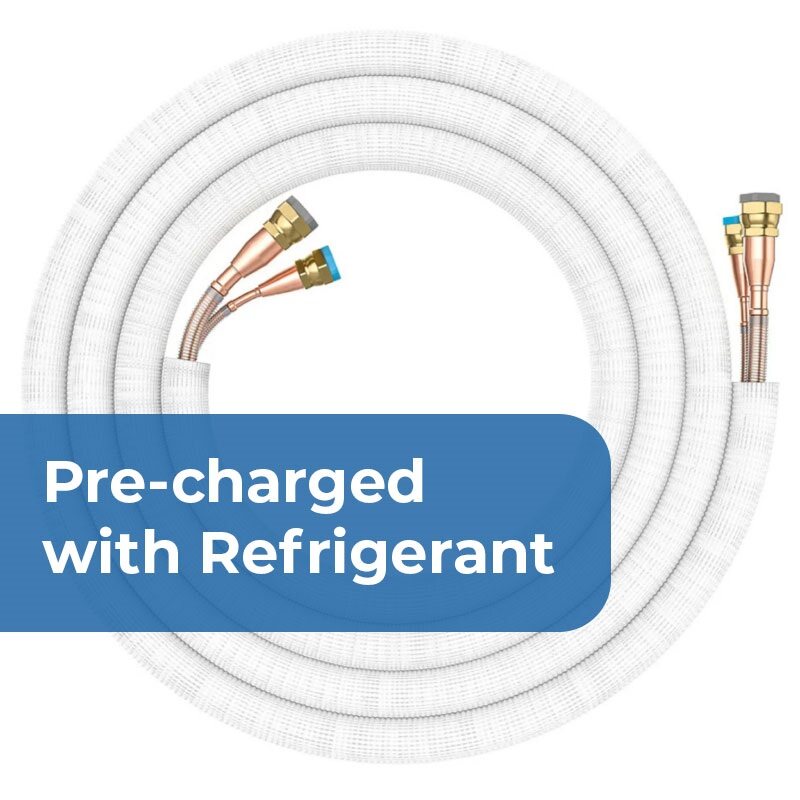

Stealth makes the heat pump installation process a breeze with its pre-charged EZ Connect line sets. Each line set comes pre-charged from the factory with R454B refrigerant, eliminating the need for vacuuming or handling additional refrigerant. Their quick-connect fittings screw onto Stealth heat pump condensers with simplicity, all while maintaining a secure, leak-resistant connection. With no additional refrigerant-handling tools needed, DIY and professional installers have never had an easier time installing HVAC equipment.

More Information

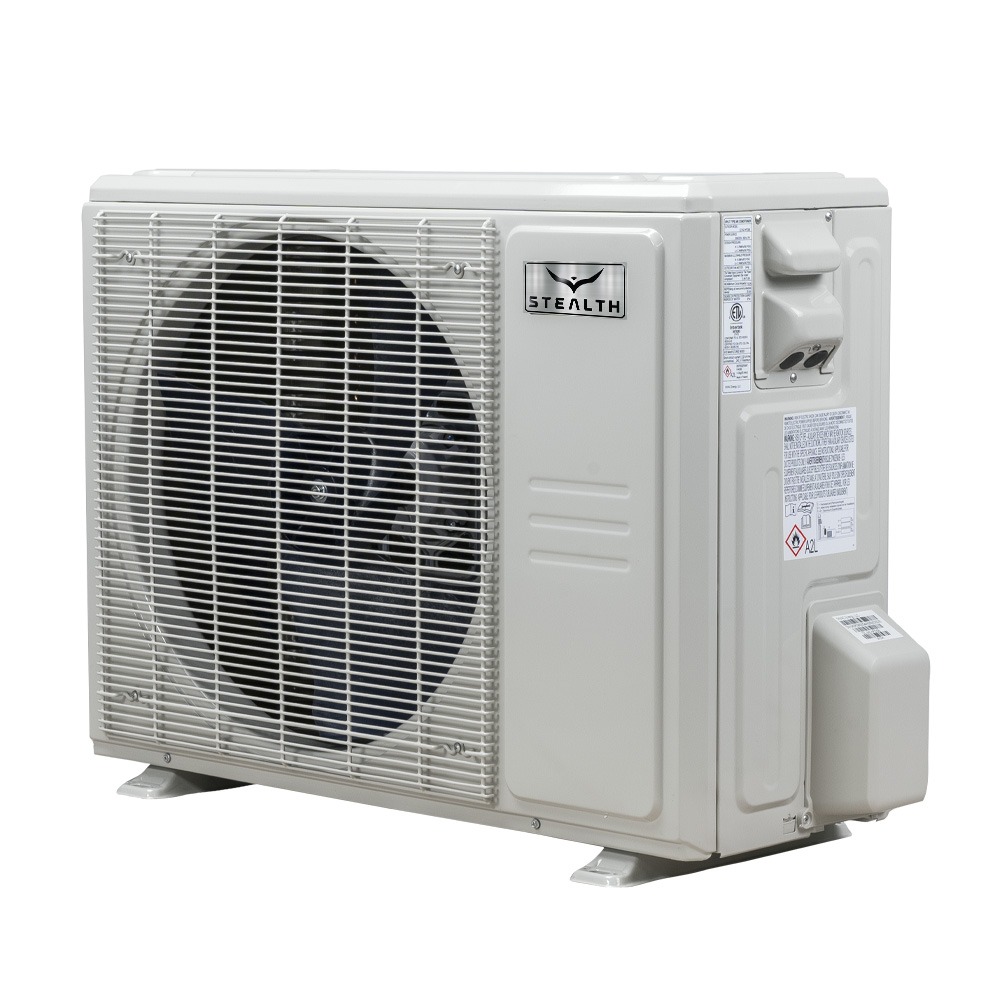

Stealth 2 Ton 18.1 SEER2 High Efficiency Central Heat Pump Condenser | Inverter - R454B
FeatureSpec
SKUEZ-24-EHPB
Weight105.600000
ManufacturerStealth
HSPF29.7
Cooling BTU24,000 BTU
Heating BTU26,000 BTU
Decibel Level (dBA)60 Decibels
RefrigerantR454B
SEER218.1
Liquid Line3/8"
Suction Line3/4"
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size20 Amps
Min. Breaker Size19 Amps
Tonnage2 Ton
Height26.50"
Width35.04"
Depth13.46"
Warranty10 Years Parts and Compressor with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Stealth 2 Ton 17.5" Width Multi-Positional Central Ducted Air Handler - R454B
FeatureSpec
SKUEZ-24-AHB
Weight105.600000
ManufacturerStealth
Cooling BTU24,000 BTU
Maximum CFM3000 CFM
ConfigurationMulti-Positional
RefrigerantR454B
Liquid Line3/8"
Suction Line3/4"
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size15 Amps
Min. Breaker Size4 Amps
Tonnage2 Ton
Height45.00"
Width21.02"
Depth17.52"
Warranty10 Years Parts and Compressor with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Stealth 10 Kilowatt 34,100 BTU Electric Keat Kit
FeatureSpec
SKUEAH-10B-IL
Weight8.000000
ManufacturerStealth
Heating BTU34,100
Electric Heat10 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
Electric Phase FilterSingle Phase
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
FeatureSpec
SKU87762
Weight5.000000
ManufacturerOnline Supply
E Lite Equipment Pad 18" x 38" x 3"
FeatureSpec
SKUEL1838-3
Weight16.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Santa Fe Ultra70 Whole House Dehumidifier - 110/120V - R454B (SKU 4044100)
FeatureSpec
SKUUL3684
Weight55.000000
ManufacturerSanta Fe
Additional InformationResidential Use: Whole House
Additional InformationManufacturer-Suggested Room Size: 1800 sq. ft
Additional InformationCertifications: CSA, UL
Maximum CFM150 CFM
Decibel Level (dBA)55.3 dB
Square Footage Filter1,500-1,999
Energy StarNo
RefrigerantR454B
Capacity70 pints
Wattage580 W
Max Breaker Size5.1 Amps
Height12"
Width28"
Depth12"
Pint Capacity0-99
UsageDucted, Restaurants, Whole House
Additional InfoDrain Hose Diameter: 0.75"
Warranty5-Year Complete Warranty | 6-Year Component Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ Non-Programmable 2H/1C Thermostat
FeatureSpec
SKUSTN1320
Weight1.000000
ManufacturerACiQ
Product FeaturesHeat Pump Capable, Non Programmable, 2 Heat, 1 Cool
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ TL04-1 Smart Thermostat – 24V & HA/HB Compatible
FeatureSpec
SKUTL04-1
Weight0.700000
ManufacturerACiQ
Product FeaturesHeat Pump Capable, 2 Heat, 1 Cool, Programmable, WiFi, 1 Heat, 3 Heat, 2 Cool
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ WiFi Programmable 3H/2C Heat Pump 2H/2C Conventional Touchscreen Thermostat
FeatureSpec
SKUSTN855W
Weight1.000000
ManufacturerACiQ
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Ecobee Smart WiFi Thermostat with Alexa
FeatureSpec
SKUEB-STATE6P-01
Weight0.500000
Manufacturerecobee
Product FeaturesProgrammable, WiFi, Heat Pump Capable, 3 Heat, 2 Cool
Energy StarYes
Warranty3 years
Resources
Safety InformationPROPOSITION 65 WARNING
Stealth 15 Kilowatt 51,150 BTU Electric Heat Kit
FeatureSpec
SKUEAH-15B-IL
Weight10.000000
ManufacturerStealth
Heating BTU51,150
Electric Heat15 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
Electric Phase FilterSingle Phase
Safety InformationPROPOSITION 65 WARNING
Stealth 8 Kilowatt 26,000 BTU Electric Heat Kit
FeatureSpec
SKUEAH-08B-IL
Weight8.000000
ManufacturerStealth
Heating BTU26,000
Electric Heat8 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
Electric Phase FilterSingle Phase
Safety InformationPROPOSITION 65 WARNING
Stealth 5 Kilowatt 16,200 BTU Electric Heat Kit
FeatureSpec
SKUEAH-05B-IL
Weight8.000000
ManufacturerStealth
Heating BTU16,200
Electric Heat5 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
Electric Phase FilterSingle Phase
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
FeatureSpec
SKU87762 / EL1838-3
Weight25.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Condensers 30"
FeatureSpec
SKUACB-30
Weight9.200000
ManufacturerOnline Supply
Length30"
Height16"
Width2"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
FeatureSpec
SKUMSK001
Weight15.000000
ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
EZ Connect Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 50 Feet - R454B
FeatureSpec
SKUEZ-50-3834-U
Refrigerant Charge19.44 oz
Weight54.000000
ManufacturerStealth
RefrigerantR454B
Liquid Line3/8"
Suction Line3/4"
Valve TypeQuick-Connect
Length50'
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
EZ Connect Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 35 Feet - R454B
FeatureSpec
SKUEZ-35-3834-U
Refrigerant Charge9.77 oz
Weight20.000000
ManufacturerStealth
RefrigerantR454B
Liquid Line3/8"
Suction Line3/4"
Valve TypeQuick-Connect
Length35'
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
EZ Connect Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 25 Feet - R454B
FeatureSpec
SKUEZ-25-3834-U
Refrigerant Charge3.17 oz
Weight15.000000
ManufacturerStealth
RefrigerantR454B
Liquid Line3/8"
Suction Line3/4"
Valve TypeQuick-Connect
Length25'
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
EZ Connect Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 15 Feet - R454B
FeatureSpec
SKUEZ-16-3834-U
Refrigerant Charge1.94 oz
Weight10.000000
ManufacturerStealth
RefrigerantR454B
Liquid Line3/8"
Suction Line3/4"
Valve TypeQuick-Connect
Length15'
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
