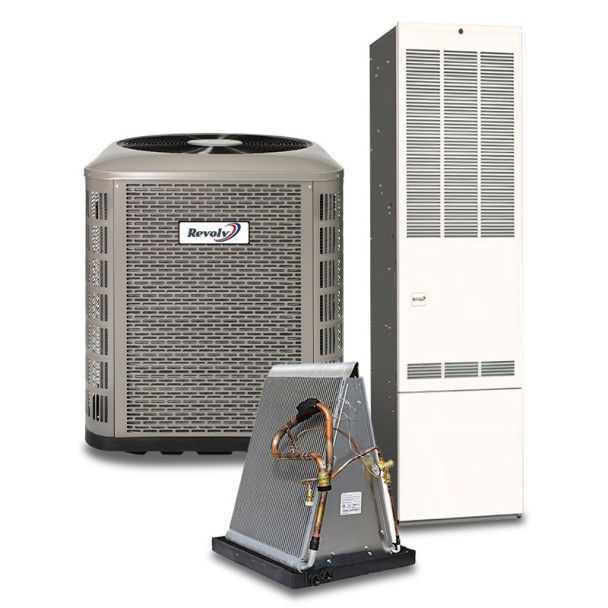

The Style Crest-Revolv mobile home air conditioner and gas furnace system is the next generation of HVAC products designed specifically for mobile homes.
Style Crest-Revolv 3 Ton 13.4 SEER2 Mobile Home Air Conditioner Sweat-Fit Condenser - R454B
Note: This product requires professional installation in order to receive the manufacturer's warranty.
OVERVIEW
The Style Crest-Revolve HSA Sweat Fit Series Mobile Home Air Conditioner offers exceptional performance. The unit, when combined with our engineered coils or air handlers, offers a full line of quality, split system cooling equipment.
QUICK FACTS
3 ton, 13.4 SEER2 Air Conditioner condenser
36,000 BTU
Sweat Fit
MD Models Offer Full Service Valves: These brass valves are easily accessible and simplify servicing of the refrigeration system. Charged with refrigerant for 20 feet of lineset
High Pressure Switch: Protects against abnormally high system pressures. Auto-reset feature prevents nuisance service visits.
Liquid Line Filter Drier: Included with unit, factory installed on QD and field installed on MD models
Warranty
Style Crest-Revolv condensers come with 5 year parts warranty when registered online through the manufacturer and with an installation that follows your state and local codes.

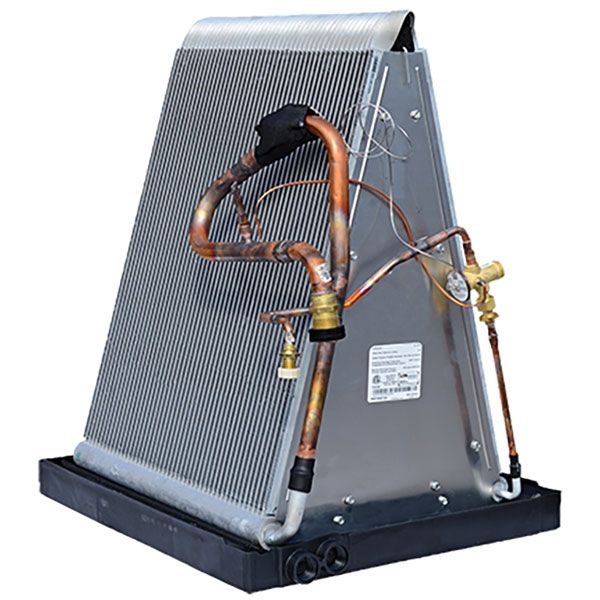

2.5-3 Ton Style Crest-Revolv Mobile Home Coil Sweat-Fit - R454B
The Style Crest-Revolv mobile home coil is the next generation of HVAC products designed specifically for mobile homes. This mobile home coil is built with Sweat-Fit connections.
Standard Features
Coil has built in strainer for coil protection
UL listed and leak test to 500 psi
Dry type pan does not maintain standing water
Kit contains drain hose, fittings, and furnace cover plates for gas/oil furnace
Style Crest-Revolv MG1E 80% 70,000 BTU Mobile Home Gas Furnace with Coil Cabinet - R454B Compatible
OVERVIEW
The Style Crest-Revolv MG1E-B070F1ABM1 is a good solution for many manufactured or mobile home gas furnace applications. With its easy installation procedures, low maintenance, and included LP conversion kit, the MG1E-B070F1ABM1 will save you money both up front and over time.
QUICK FACTS
70,000 BTU, 80% natural gas furnace
Can generally heat a small to medium mobile home in ideal applications
Compatible with R410A and R454B refrigerant
Natural gas out of the box, but comes with an LP kit for field installation if needed
Low maintenance requirements
AC coil cabinet included with purchase (condenser and coil sold separately)
Efficient ECM blower motor
70,000 BTU, 80% AFUE
With a system input of 70,000 BTU, The Style Crest-Revolv MG1E-B070F1ABM1 furnace can generally heat small to medium mobile homes in ideal applications. With a basic efficiency rating of 80% AFUE, this input equates to an output of 56,000 BTU, and 80% of the fuel going into the unit is contributed to heating your home and the remaining 20% of the fuel is lost out of the flue venting and is used up in normal furnace operations. If you are coming from our site’s sizing calculator, please note that it is a good idea to upsize any calculation to compensate for limited insulation and other factors that cause a mobile home to differ from traditional home sizing. If you have any questions, please contact us. Please note that this furnace is intended to only be used in mobile and manufactured homes and requires a straight flue pipe without any elbows.
Warranty
Revolv gas furnaces come with 2 year parts, and 10 year heat exchanger warranty when registered online through the manufacturer and with an installation that follows your state and local codes.
Installation and Maintenance
The Style Crest-Revolv MG1E-B070F1ABM1 furnace is designed to be easily installed for a faster process, lowering labor costs. While this furnace is natural gas out of the box, a propane conversion kit is included in this package to be field-installed if needed with no additional material cost, saving you money. With its sealed motor bearings, reliable burner controls, modern hot surface ignitor, and sealed combustion, this furnace has low maintenance requirements, providing the peace of mind that your unit will reliably heat your home even in the coldest winter months.
50 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set
Ensure optimal refrigerant flow and HVAC efficiency with this 50-foot insulated line set. Designed for a seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set provides durability, flexibility, and superior thermal insulation for reliable system performance.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 7/8" suction line (SL) for efficient refrigerant transfer. ✔ Pre-Insulated for Efficiency:3/8" thick insulation minimizes energy loss and condensation buildup. ✔ Versatile Application: Ideal for heat pumps and conventional split systems. ✔ Easy Installation:Flexible and durable copper tubing allows for smooth routing and secure connections. ✔ Extended 50-Foot Length: Perfect for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, designed for long-lasting performance and energy efficiency.
30 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set
Ensure optimal refrigerant flow and HVAC system efficiency with this 30-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set provides durability, flexibility, and thermal protection for reliable performance.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 7/8" suction line (SL) ensure efficient refrigerant transfer. ✔ Pre-Insulated for Efficiency:3/8" thick insulation reduces energy loss and condensation buildup. ✔ Versatile Application: Compatible with heat pumps and conventional split systems. ✔ Easy Installation:Flexible and durable copper tubing allows for smooth routing and connection. ✔ Standard 30-Foot Length: Ideal for a variety of residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, designed for long-lasting performance and efficiency.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
2.5-3 Ton Style Crest-Revolv Mobile Home Coil Sweat-Fit - R454B
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Style Crest-Revolv MG1E 80% 70,000 BTU Mobile Home Gas Furnace with Coil Cabinet - R454B Compatible
You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.
