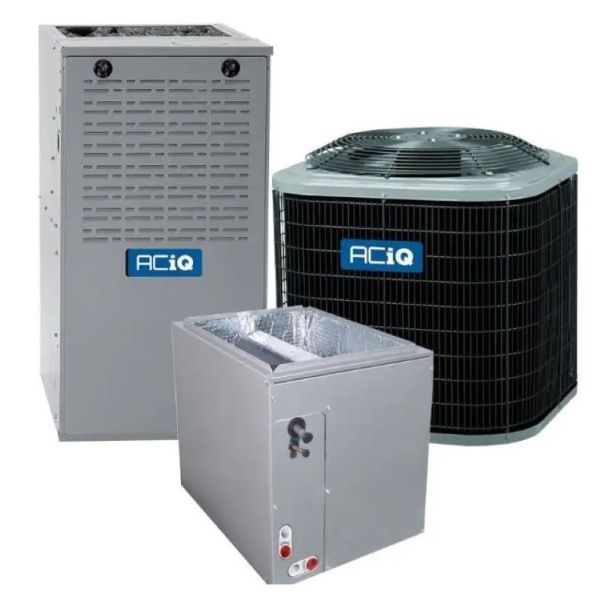

An ACiQ combination system is a great choice to keep your home comfortable all season long. With tons of features and a great price, an ACiQ dual fuel system is a perfect choice for all of your heating and cooling needs.
ACiQ 80% 80,000 BTU Single Stage Gas Furnace - 17.5" Width - Multi-Positional
OVERVIEW
The ACiQ N80MSN0901714A is an inexpensive model of furnace to provide reasonable comfort to your home. At a basic efficiency, this furnace will heat your home adequately with the right output, providing comfort to your home even in the coldest parts of the year.
QUICK FACTS
88,000 BTU, 80% AFUE natural gas furnace
Generally suitable for up to a medium-sized house in ideal applications
Multi-positional design - can be installed in the upflow, downflow, or horizontal orientations
Single stage burner with a multi-speed blower
Field-convertible to propane with an optional LP kit
On board self-diagnostics
88,000 BTU, 80% AFUE
The ACiQ N80MSN0901714A has an input of 88,000 BTU. With an efficiency of 80%, this means that the furnace has an output of 70,400 BTU. The 80% AFUE also means that for the gas going into the furnace, 80% of it is used to heat your home while the remaining 20% is lost out the flue piping and lost to normal furnace operations. All 80% furnaces require metal flue venting, and if you need it to be plastic/PVC venting a furnace with an efficiency of 90% or above is required. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost. Please note that this furnace is not Low NOx or Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.
Warranty
ACiQ offers 10 year parts and 20 year heat exchanger limited warranties. Please note that in order for the heat exchanger and parts warranties to be upheld, the unit must be registered through the manufacturer within 90 days of installation. The installation must also follow your state and local codes.
Installation and Durability
With its ability to be installed in any configuration (upflow, downflow, or horizontal) the ACiQ N80MSN0901714A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not intended for mobile home installation on its own.
Quiet Comfort
Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.
High Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.
Longer life, longer warranty
Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.

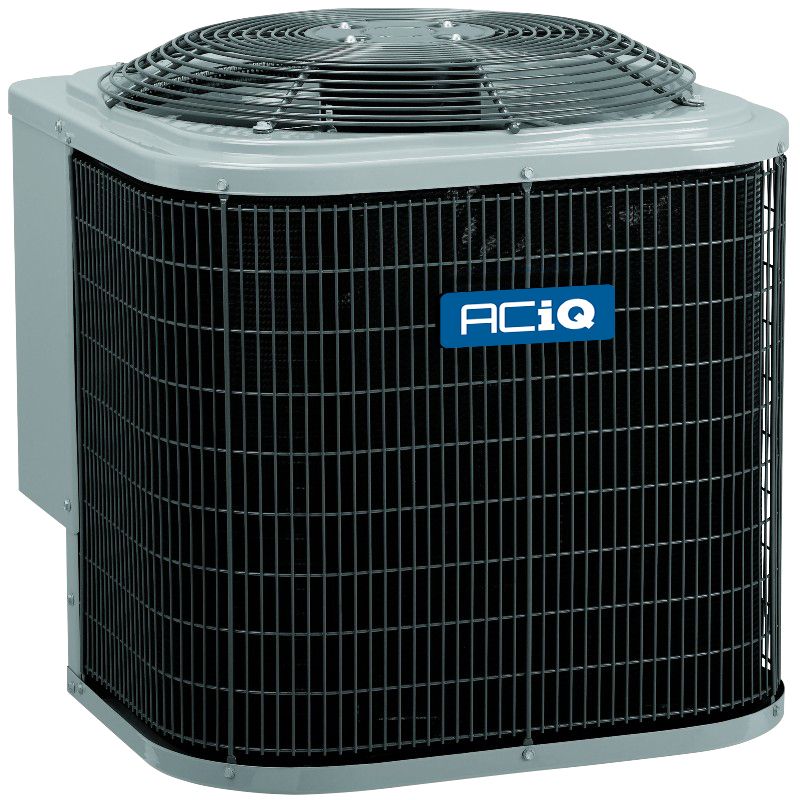

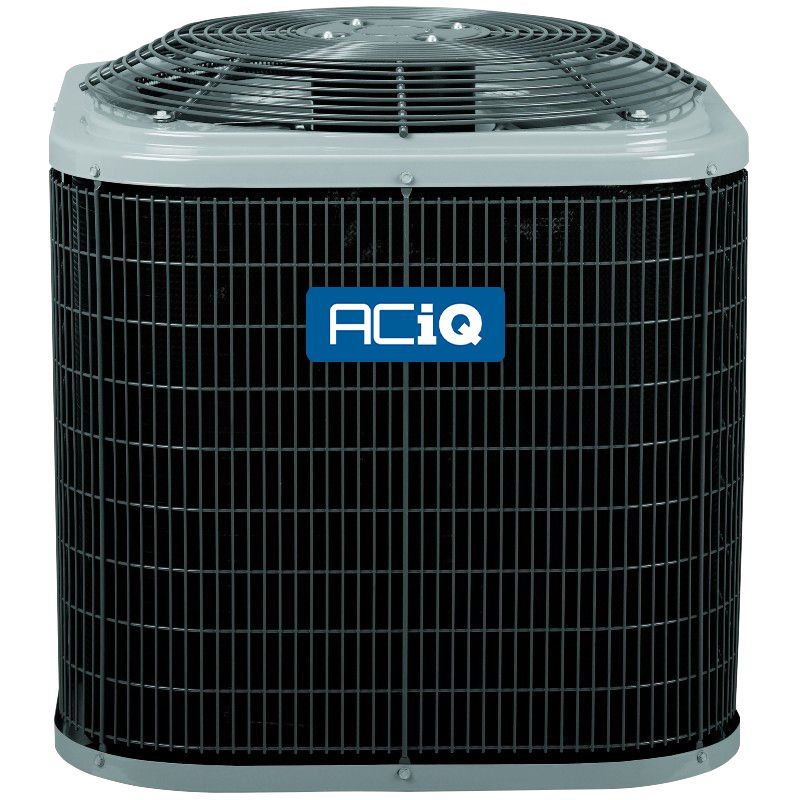

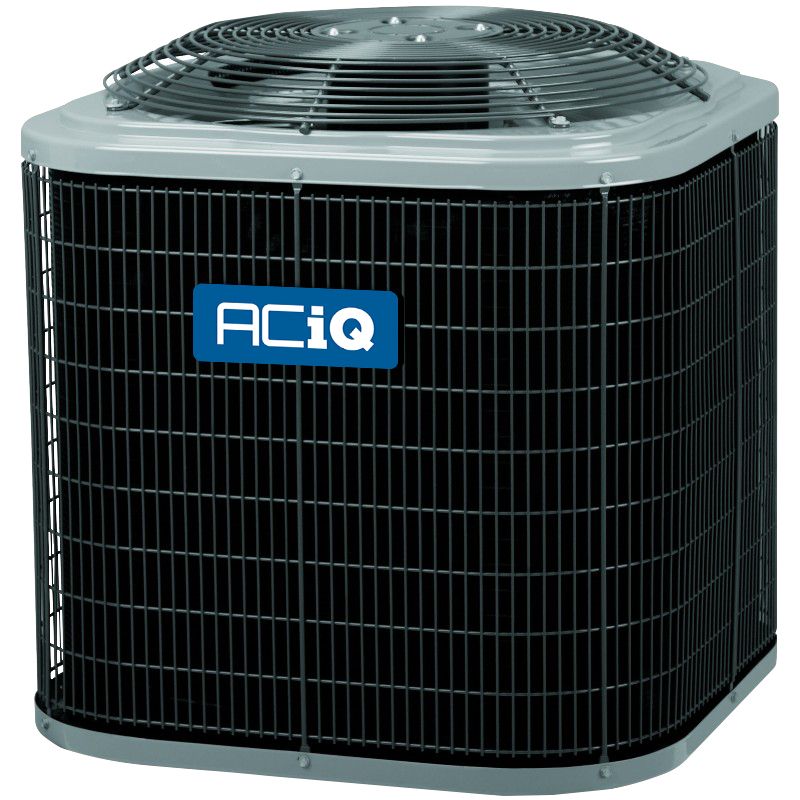

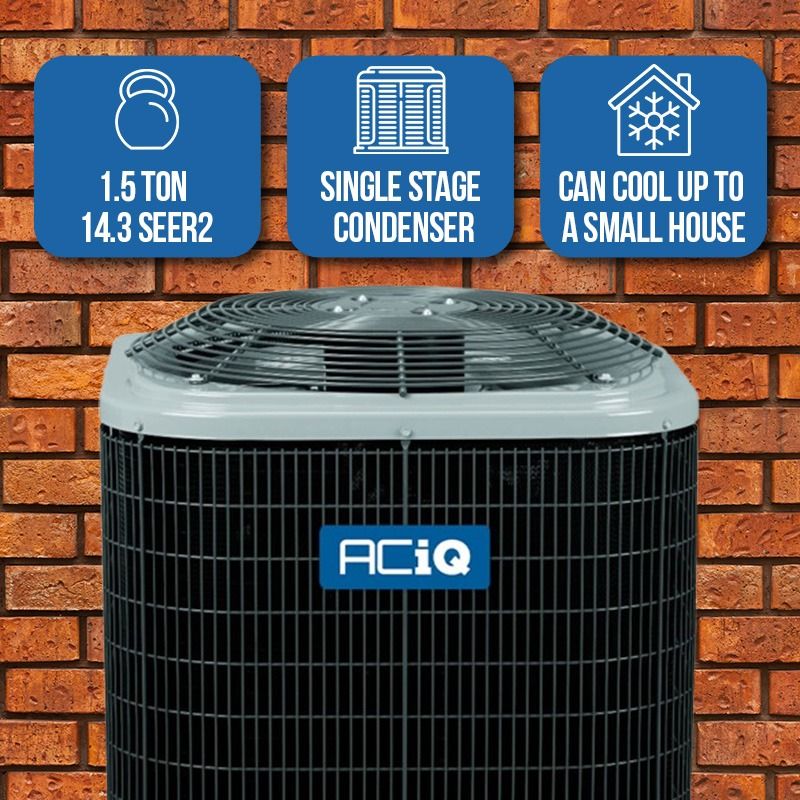

ACiQ 1.5 Ton 14.3 SEER2 Heat Pump Condenser - R454B Single Stage
OVERVIEW
The ACiQ R5H5S18AKAAA is a standard heat pump condenser. Designed with comfort in mind and an inexpensive option for nearly any application, this condenser is considered a good all-around option for almost any application.
QUICK FACTS
Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
1.5 ton, 14.3 SEER2 heat pump condenser
Can heat and cool up to a small house in average conditions
Single stage compressor
Pre-charged with R454B refrigerant
Filter drier included to be field-installed
1.5 Tons
The ACiQ R5H5S18AKAAA heat pump condenser has an output of 1.5 tons, generally enough to heat and cool up to a small house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work. This unit will also only heat down to around 35°F, and if you need heat any lower than this, a backup heat strip will be needed to act as straight electric heating in a compatible air handler.
14.3 SEER2
The ACiQ R5H5S18AKAAA air conditioner condenser is rated at 14.3 SEER2, making it between 5-7% more efficient than standard 13.4 SEER2 units, saving you money in electric bills over the entire lifetime of your unit. In general, heat pumps will heat more efficiently than straight electric furnaces.
Disclaimer: This condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-557-9206 if you have any questions.
All ACiQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.
Quiet Comfort
Leave fossil fuels behind with an ACiQ heat pump system. Every ACiQ heat pump condenser uses a scroll compressor to give exceptional cooling performance and highly efficient, all-electric heat. WiFi-capable communicating condensers are also available.
High Efficiency
ACiQ heat pumps come in a range of efficiency options to fit your budget's needs and your local weather conditions. Save up to 63% on energy costs with a newer model.
Longer life, longer warranty
ACiQ heat pump condensers are 100% run-tested at the factory. Protective coatings on the fins and baked-on galvanized finishes mean long life even in harsh conditions. ACiQ’s extended warranty with online registration provides 10 year protection.

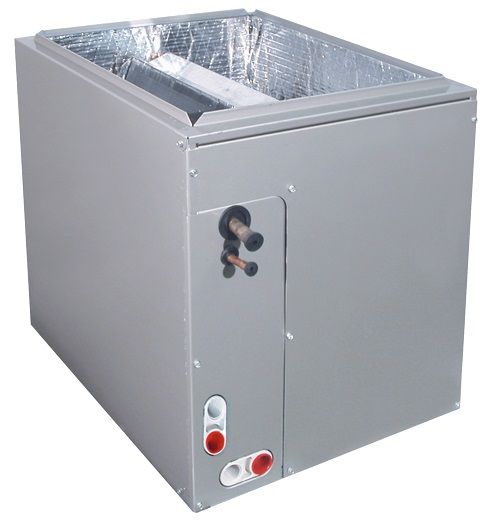

ACiQ takes pride in its ability to provide a high-quality system, including all system components. Leaving no exception, the EAM5X24M17A horizontal coil is a superior option for almost any application while maintaining the entire unit's efficiency with a factory-integrated TXV kit for enhanced energy optimization. With its unique performance features along with its ability to be applied in any orientation, this coil is a superior option for your home's comfort.
QUICK FACTS
2 ton multi-positional evaporator coil
Works in almost any upflow, downflow, or horizontal system setup
Compatible with both AC-only and heat pump condensers
Factory-installed TXV kit for enhanced energy optimization
Sturdy and compact design
2 Tons
The ACiQ EAM5X24M17A is rated for up to 2 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.
Warranty
ACiQ offers a 10 year parts warranty on their coils when they are installed following your state and local codes, as well as the system is paired with a certified system matchup. Please note that in order to obtain the entire length of this warranty, the entire unit must be registered through the manufacturer.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ 80% 80,000 BTU Single Stage Gas Furnace - 17.5" Width - Multi-Positional
SKU
N80MSN0901714A
Weight (in lbs)
131.000000
AHRI Certificate Number
213146139
Exhaust Flue Requirement
Metal
Brand/Manufacturer
ACiQ
Equivalent
Carrier Equivalent: 58SB0A090E17--14
Tempstar Equivalent: TN80ESN0901714A
Bryant Equivalent: 810SA42090E17
Product Features
New Refrigerant Compliant
Furnace Efficiency / AFUE
80%
Heating BTU
88,000
Blower Motor
Multi-Speed ECM
Maximum CFM
1210
Configuration
Upflow/Downflow/Horizontal
Electrical
115v 1 Phase 60 Hz
Max Breaker Size
15 Amps
Burner Stages
Single
Ignition Type
Direct Ignition with Silicon Nitride Hot Surface Ignitor
Fuel Type
Propane, Natural Gas
Height
33 1/3"
Width
17 1/2"
Depth
29"
Warranty
20 Year Heat Exchanger and 10 Year Parts with Online Registration
You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.
