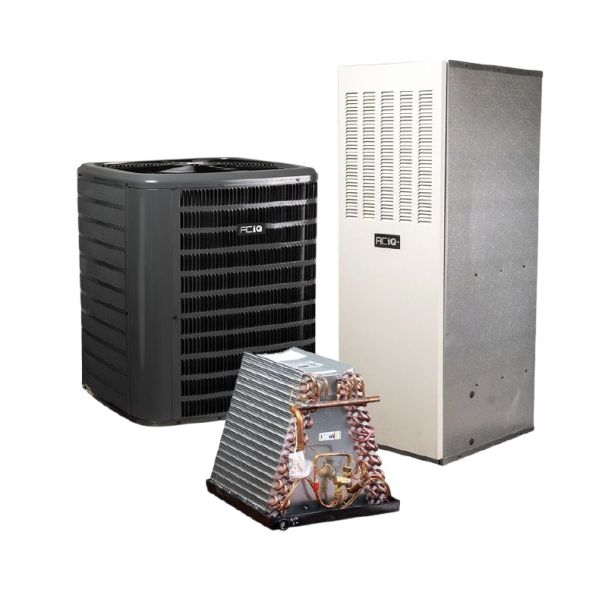

The ACiQ mobile home air conditioner, electric furnace, and coil is the next generation of HVAC products designed specifically for mobile homes. This mobile home air conditioner will provide comfort to your home in all-electric system setups.
ACiQ Standard Mitigation Refrigerant Detection System (RDS) Kit - R32 & R454B
ACiQ RDS Kit Features
Kit includes all components needed for RDS installation
Sensor wire length of 8 feet, and mitigation board power wire length 3 feet
Flexible installation location, ideal for installs on existing equipment
System designed to last the useful life of the evaporator coil
Optional relay for controlling additional components
ACIQ 2 Ton Uncased Downflow Mobile Home Coil | Copper - R32
OVERVIEW
The ACIQ-MH24CU3VYEC coil is designed to be a perfect fit for many mobile and manufactured home HVAC split system applications. Designed with sweat fit/braze fittings and a sturdy, compact design, this downflow evaporator coil allows for a quick and easy installation process with compatible equipment.
QUICK FACTS
2 ton downflow evaporator coil
Designed for mobile and manufactured home use only
Compatible with both AC-only and heat pump condensers
Sturdy and compact design
Rifled copper tubing, enhanced aluminum fins
Left-hand refrigerant and plumbing connections
Heavy duty polypropylene drain pans
AHRI certifiable with all brands of A/C and heat pump systems
Downflow plate kit included
2 TON
The ACIQ-MH24CU3VYEC evaporator coil is rated to be compatible with condensers with up to 2 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser.
Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290℉ +/-5℉. Specify metal drain pans for these applications.
ACiQ 2 Ton 13.4 SEER2 Mobile Home Air Conditioner Condenser - R32 Single Stage
Efficient Cooling for Small Mobile Homes
Keep your mobile home cool and comfortable all summer long with the ACiQ central air conditioner condenser. Designed for reliable split-system cooling, this budget-friendly outdoor unit is a great choice whether you're replacing an older AC condenser or completing a new cooling system with a compatible indoor coil or air handler. Built for dependable performance, quiet operation, and lasting durability, it delivers efficient cooling you can count on while keeping installation simple for small mobile homes.
Key Benefits
Sized for Small Mobile Homes – 2 ton cooling capacity is generally suitable for mobile homes approximately 900–1,200 sq. ft., depending on climate, insulation, windows, ceiling height, air leakage, mobile home layout, and a professional sizing review.
Budget-Friendly Efficiency – 13.4 SEER2 performance provides dependable cooling at an economical efficiency level for approved installation regions.
Cooling-Only Performance – Designed for central air conditioning applications when paired with a compatible indoor evaporator coil or air handler.
Low Operating Sound – Includes sound-reducing features and has a rated sound level of approximately 74 dBA.
Factory-Charged for Installation – Comes factory charged for up to 15' of line set to support a cleaner installation process.
Factory-Installed Filter Drier – Protects the refrigeration system by reducing moisture and contaminants.
Cooling Capacity for Small Mobile Homes
With 2 tons of cooling capacity, this condenser is commonly used for mobile homes approximately 900–1,200 sq. ft. in various climates. It is a cooling-only outdoor unit and must be paired with a compatible indoor evaporator coil or air handler to operate.
Actual sizing depends on your local climate, insulation, windows, ceiling height, air leakage, mobile home layout, and a professional sizing review.
Budget-Friendly 13.4 SEER2 Efficiency
A 13.4 SEER2 efficiency rating provides dependable cooling while keeping equipment costs affordable for eligible installation locations.
Installation Restrictions
Due to efficiency requirements, this unit cannot be installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia.
Warranty
This condenser includes a 10-Year Limited Parts Warranty with online registration. Installation must comply with state and local codes, and warranty coverage may be void if the unit is not installed by a qualified professional.
What’s Included
ACiQ Central Air Conditioner Condenser – Outdoor cooling unit for a compatible split-system installation.
Factory-Installed Filter Drier – Protects the refrigeration system by reducing moisture and contaminants.
Recommended Accessories
Line Set – Connects the outdoor condenser to compatible indoor equipment for refrigerant flow; select the 30' or 50' option that matches the installation.
Condenser Installation Kit – Provides key installation materials for a cleaner condenser setup.
Requirements & Considerations
Compatible Indoor Equipment Required – This cooling-only condenser must be paired with a compatible indoor evaporator coil or air handler.
Electrical Requirements – Requires a 208 / 230 V. 1 Phase 60 Hz electrical supply.
Line Set Connections – Uses a 3/8" liquid line and a 3/4" suction line.
Professional Installation Recommended – Proper installation, system matching, and refrigerant handling are important for safe operation and warranty coverage.
R32 Refrigerant Compatibility Notice
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-912-1827 if you have any questions.
30 Feet of 3/8" x 3/4"
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.
50 Feet of 3/8" x 3/4"
Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer. ✔ Pre-Insulated for Efficiency:3/8" thick insulation minimizes energy loss and condensation buildup. ✔ Versatile Application: Compatible with heat pumps and conventional split systems. ✔ Easy Installation:Flexible and durable copper tubing allows for smooth routing and connection. ✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.
ACiQ 10kW Mobile Home Electric Downflow Furnace - R454B/R32 Compatible
OVERVIEW
The ACiQ-EFS1020FD-MH electric furnace is a reliable heat source for almost any mobile home application. With its easy installation and maintenance, this unit will provide comfort to your home in all-electric system setups.
QUICK FACTS
10 kW electric furnace
R454B and R32 refrigerant compatible
Can generally heat a small mobile home in ideal applications
Low maintenance requirements
Efficient multi-speed ECM blower motor
Effective air filter to improve air quality
Built-in circuit breakers for safety and dependability
Sturdy, galvanized steel cabinet
AC coil cabinet included with purchase (condenser and coil sold separately)
Modular Electric Heat Kit
The ACiQ-EFS1020FD-MH is generally able to heat up to a small mobile home in average installations. Models with electric heat include sequencers and temperature limit switches for safe, efficient operation. Modules are easily installed in the field using molex plugs or can be ordered factory-installed. Controls are accessible from the front for easy service. Disconnect does not protrude through the wall panel.
Warranty
Hassle-free five-year limited parts warranty.
Installation and Maintenance
The ACiQ-EFS1020FD-MH electric furnace is designed to be easily installed for a faster process, lowering labor costs. The filter is also easy to wash or replace, lowering maintenance costs.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACIQ 2 Ton Uncased Downflow Mobile Home Coil | Copper - R32
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ 10kW Mobile Home Electric Downflow Furnace - R454B/R32 Compatible
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ 2 Ton 13.4 SEER2 Mobile Home Air Conditioner Condenser - R32 Single Stage
Feature
Spec
SKU
AQ-GLXS3BN2410-MH
Weight (in lbs)
130
Brand/Manufacturer
Private Brand
Replaces
GSX130241 and GSXN3N2410
Cooling BTU
24,000
Decibel Level (dBA)
74
Horsepower
1/8 HP
Refrigerant
R32
SEER2 (Efficiency)
13.4
Condenser Stages
Single Stage
Compressor Type
Rotary
Liquid Line
3/8"
Suction Line
3/4"
Liquid Valve Size
3/8"
Suction Valve Size
3/4"
Electrical
208 / 230 V. 1 Phase 60 Hz
Max Breaker Size
15 Amps
Min. Breaker Size
10.9 Amps
Tonnage
2 Ton
Connection
Sweat
Height
27.5"
Width
26"
Depth
26"
Warranty
10 Years Parts Limited Warranty with Online Registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
Feature
Spec
SKU
LS38343830
Weight (in lbs)
35
Brand/Manufacturer
Online Supply
UPC
na
Liquid Line
3/8"
Suction Line
3/4"
Suction Line Insulation Thickness
3/4"
Color
Black
Length
30 feet
50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
