Today's Hours 8am - 11pm est2 Ton 16.5 SEER 97% AFUE 80,000 BTU Goodman Furnace and Air Conditioner System - Downflow
Required Fields *
Customer reviews
Out of stock
By
Goodman
Out of stock
Model
GSXC160241 / CAPF3743C6 / GCVM970804CN / TX2N4A
ID
14587

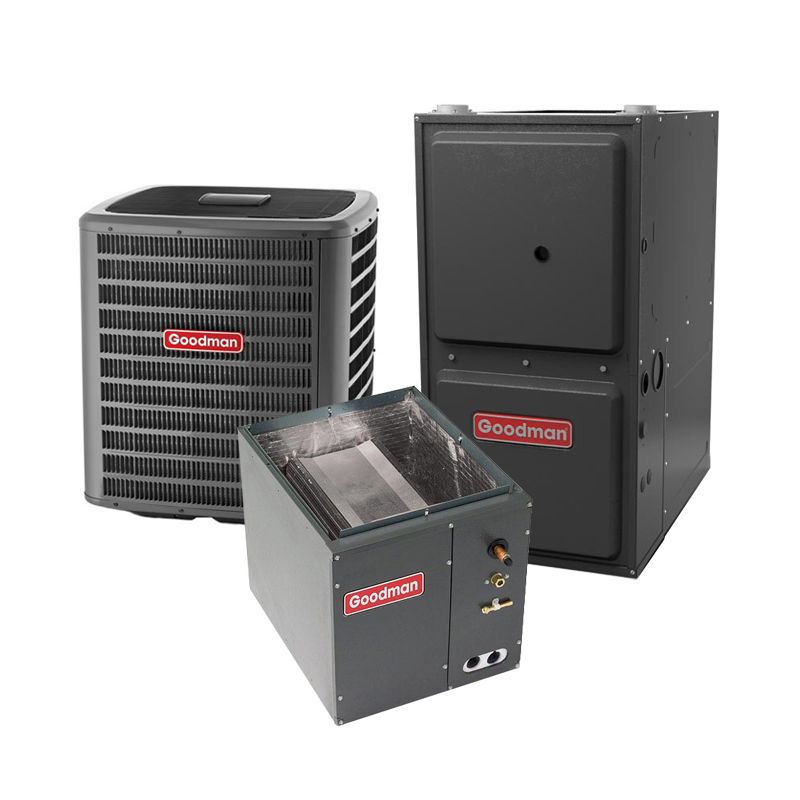

The Goodman GSXC160241 and GCVM970804CN are perfect matches to ensure that your home is both heated and cooled comfortably throughout the year. With a high SEER rating you will also save money in your cooling bills.
The Goodman GCVM970804CN furnace is a high-efficient gas furnace that features a modulating gas valve and a variable-speed circulating blower provides efficient and economical performance.Unlike single stage gas furnaces that operate either all on or all off, a Goodman modulating gas furnace typically runs at the lowest possible speed to precisely maintain a constant, steady temperature in your house. This furnace is designed to be installed in either a downflow or horizontal configuration. Not intended for mobile homes.
The Goodman GCVM970804CN furnace has a 97% AFUE rating which means that for every every $1.00 you spend, 97 cents goes towards heating your home.
Furnace Features
- Heavy-duty aluminized-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- ComfortNet Communicating System compatible
- Uses ComfortNet communicating, two-stage or single-stage thermostats
- Self-calibrating modulating gas valve auto-configured for each installation
- Quiet variable-speed induced draft blower or cooling demand
- Self-diagnostic control board with constant memory fault code history output to a dual 7-segment display
- Durable 110-volt Silicon Nitride Igniter
- Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
- Efficient and quiet variable-speed airflow system gently ramps up or down according to heating or cooling demand
- Multiple continuous fan speed options offer quiet air circulation
- Electronic control board with self-diagnostics and provisions for air cleaner and humidifier
- Auto-comfort mode for enhanced dehumidification
- Cabinet air leakage (QLeak) = <2%
- All models comply with California Low NOx emissions standards
Goodman AC Units - The Goodman GSXC160241 16 SEER Central Air Conditioner uses the environmentally friendly refrigerant R-410A and features energy efficiencies and operating sound levels that are among the best in the heating and air conditioning industry. R-410A is chlorine-free to help prevent damage to the ozone layer. The GSXC160241 features the two-stage, high-efficiency Copeland UltraTech scroll compressor, which provides improved temperature and humidity control. This unit is designed for the consumer who desires superior comfort, quiet operation, and environmentally friendly air conditioning performance.
In order to achieve the 16 SEER efficiency this central air conditioner must be installed with the manufacturer recommended evaporator coil, a Goodman variable speed furnace, variable speed air handler, or variable speed modular blower and thermostatic expansion valve (TXV). A 16 SEER system will reduce your electric bill approximately 7% - 8% more than a 15 SEER system.
Standard Features of this Central Air Conditioner
- Two-Stage Copeland UltraTech scroll compressor
- R-410A environmentally friendly refrigerant
- Copeland ComfortAlert diagnostics
- ComfortNet Communications System compatible
- Two-Speed condenser fan motor
- High-quality foam compressor sound blanket
- Loss of charge switch
- High-pressure switch
- Factory-installed filter dryer
- Copper tubing / enhanced aluminum fin coil
- Sweat connection service valves with easy access to gauge ports
- ARI Certified; ETL Listed
Cabinet Features
- Wire fan discharge grille
- Steel louver coil guard
- Baked-on powder paint finish
- Rust-resistant coated screws
- Compact footprint
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
- When central air conditioner is properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds
3 to 3.5 Ton 21" Width Goodman Vertical Evaporator Cased CoilInstallation and Durability
Enhanced Comfort
OVERVIEW
With the CAPF3743C6 evaporator coil, Goodman provides an enhanced comfort to your home. With its ability to work with AC-only systems or with heat pumps and its ability to be installed in both the upflow or downflow orientations, the CAPF3743C6 is designed to be versatile in design and to provide an efficient comfort at a low cost.
QUICK FACTS
- 3 to 3.5 ton evaporator coil
- Installable in the upflow or downflow configurations
- Usable with either a heat pump or an AC-only condenser
- Low air leakage
- Check flowrater expansion device for use in any application
3 to 3.5 Tons
The Goodman CAPF3743C6 evaporator coil is rated for a 3 to 3.5 ton output. In many system configurations, this coil may be larger in tonnage than its paired condenser. This is intentional, to maintain the overall efficiency of the entire system.Please note that in order for this coil to function, a furnace or blower and a condenser is required, all sold separately.
Warranty
The CAPF3743C6 coil is covered under Goodman’s standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible condenser, and the entire system is registered online through the manufacturer.
The Goodman CAPF3743C6 evaporator coil is able to be installed in upflow and downflow applications. With its rust-resistant, thermoplastic drain plan, water retention rate is significantly lower than previous models. For even more enhanced durability, the cabinet is made of a strong galvanized-steel with a leather-grain finish. If you ever need to perform maintenance on your coil, there is a split-seam on the front of the casing for easy internal access. Please note that this coil will not work as a replacement for any single-piece air handler coils.
The CAPF3743C6 evaporator coil’s foil-faced insulation lowers air leakage, increasing the amount of air flow going into your ductwork, keeping you more comfortable while decreasing the unit’s run time. With compatible equipment, the CAPF3743C6 evaporator coil lives up to Goodman’s enhanced comfort and efficiency standards at a reasonable price.
