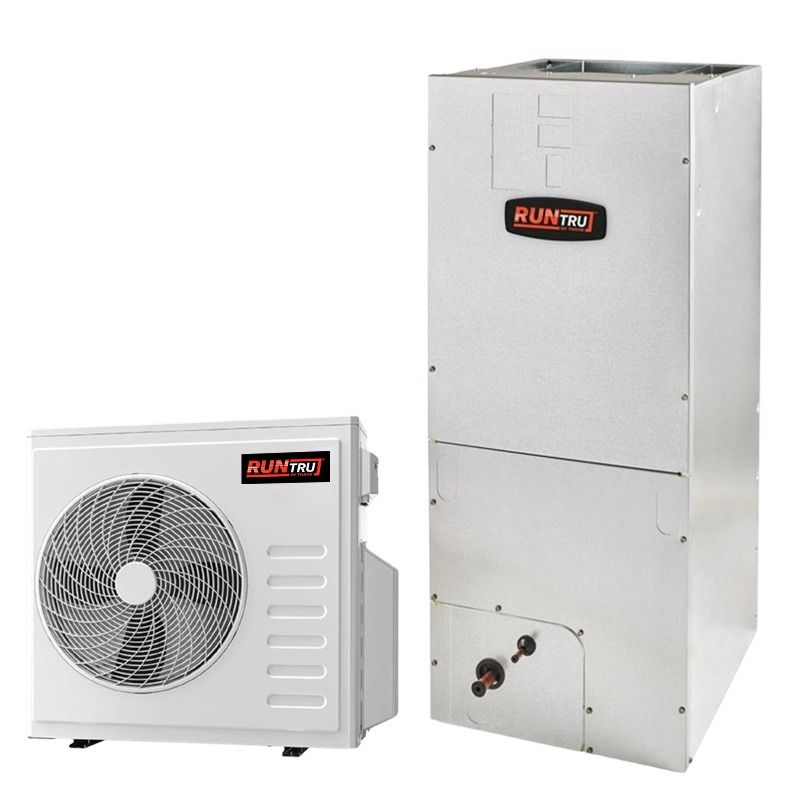

The RunTru by Trane combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, the RunTru by Trane combination system is a perfect choice for all of your heating and cooling needs.
Experience efficient and quiet heating and cooling with the advanced features and compact design of RunTru by Trane's A5HL5024A1000A heat pump. Designed with comfort in mind and an inexpensive option for nearly any application, this inverter condenser is considered a good all-around option for almost any application.

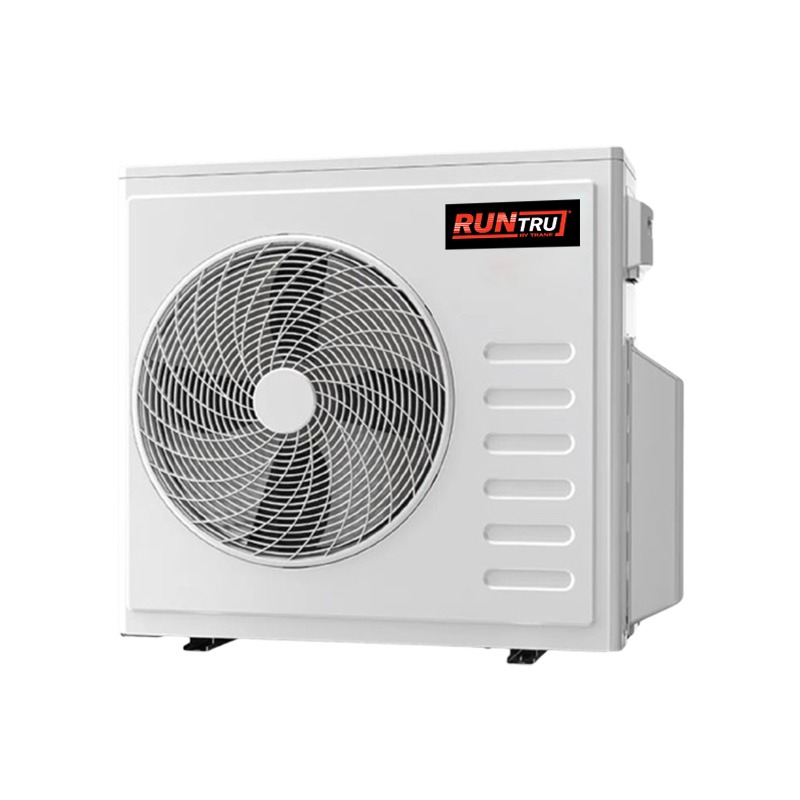

The RunTru by Trane A5HL5024A1000A inverter heat pump condenser has an output of 2 tons, generally enough to heat and cool up to a small house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit.
The RunTru by Trane A5HL5024A1000A heat pump condenser is rated at 15.2 SEER2, making it between 5-7% more efficient than standard 14.3 SEER2 units, saving you money in electric bills over the entire lifetime of your unit. In general, heat pumps will heat more efficiently than straight electric furnaces.
The A5HL5024A1000A inverter technology changes AC power to DC, giving the compressor the ability to speed up and slow down at will. This allows the system to adjust BTU output based on demand, giving you ultra-precise control over the temperature of your home.
Disclaimer: This condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-557-9206 if you have any questions.

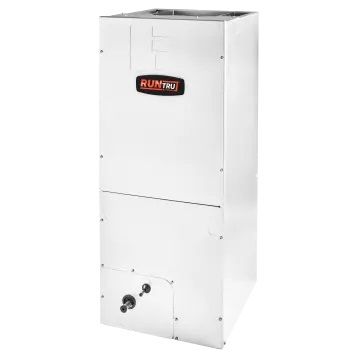

With its efficient variable speed blower motor and factory-installed TXV kit, the RunTru by Trane A5AHV002A1B3 is a convenient and efficient air handler to provide comfort to your home. If you want superior quality and enhanced comfort, look no further than this model.
The Runtru by Trane A5AHV002A1B3 air handler is rated for an output of 2 tons. In many cases, this air handler will be larger in tonnage than the condenser it is paired with to maintain the unit's overall efficiency. Please note that for this unit to provide cooling, an outdoor condenser is required for it to function. The unit can support electric heating as a straight electric furnace or as a backup for a heat pump, offered at an additional cost to be field installed.
RunTru by Trane offers a 10 year indoor coil and parts warranty on this unit. For these warranties to be upheld, the unit must be installed following your state and local codes and the entire system must be registered online through the manufacturer. After your purchase, a representative will reach out to you to retrieve installation information so we can register the product for you.
To make a more versatile unit, RunTru by Trane designed the A5AHV002A1B3 to easily be installed in an upflow, downflow, or horizontal position. A TXV kit is already installed on the unit so your installer does not have to install one, decreasing installation costs. For durability, the A5AHV002A1B3 air handler is designed with an extremely strong, one-piece outer casing to protect the unit, and the coil is designed with corrosion-resistant aluminum.
The A5AHV002A1B3 air handler has an efficient variable speed blower motor, providing stable temperatures in your home and making you more comfortable. The control board will automatically communicate with your thermostat to adjust the output of the blower to suit your needs.
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.
Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.
This electric heat kit pairs with your RunTru by Trane air handler to provide extra heat and help your system keep you comfortable. With this option, you won't need an additional circuit.
This 4 kW 13,100 BTU Electric Heat Kit includes a circuit breaker, and the control and power wiring use a single polarized plug to connect the heater and air handler. This electric heat kit is designed to work with Trane RunTru air handlers and can be used in a wide variety of configurations.
This electric heat kit pairs with your air handler to provide extra heat and help your system keep you comfortable. With this option, you won't need an additional circuit.
This 5 kW 16,400 BTU Electric Heat Kit includes a circuit breaker, and the control and power wiring use a single polarized plug to connect the heater and air handler. This electric heat kit is designed to work with RunTru by Trane air handlers and can be used in a wide variety of configurations.
This electric heat kit pairs with your air handler to provide extra heat and help your system keep you comfortable. With this option, you won't need an additional circuit.
This 8 kW Electric Heat Kit includes a circuit breaker, and the control and power wiring use a single polarized plug to connect the heater and air handler. This electric heat kit is designed to work with RunTru by Trane air handlers and can be used in a wide variety of configurations.
This electric heat kit pairs with your air handler to provide extra heat and help your system keep you comfortable. With this option, you won't need an additional circuit.
This 10 kW Electric Heat Kit includes a circuit breaker, and the control and power wiring use a single polarized plug to connect the heater and air handler. This electric heat kit is designed to work with RunTru by Trane air handlers and can be used in a wide variety of configurations.
This electric heat kit pairs with your air handler to provide extra heat and help your system keep you comfortable. With this option, you won't need an additional circuit.
This 15 kW Electric Heat Kit includes a circuit breaker, and the control and power wiring use a single polarized plug to connect the heater and air handler. This electric heat kit is designed to work with RunTru by Trane air handlers and can be used in a wide variety of configurations.
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.
With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.
Adjust temperature and comfort settings easily from the ecobee mobile app on your Android and iOS devices, including Apple Watch.
Convenient Wi-Fi capabilities offer a secure and reliable connection.
Vacationing and forgot to let your ecobee know? Make a vacation event using the ecobee mobile app. If something’s wrong with your equipment, we can send you service alerts and reminders.
If it's getting a little loud for your taste, you can use the app to adjust the volume.
ecobee thermostats are hardwired, which means your thermostat isn’t relying on a battery or your HVAC equipment to charge itself.
The ACiQ STN701 Single-Stage Dual Powered Non-Programmable Thermostat is a cost effective solution to temperature control! Designed with a bright blue backlight and large easy to read characters, ACiQ thermostats are easy to operate for all consumers.
The ACiQ TL04-1 Smart Thermostat is engineered to bring precise, intelligent control to your home’s HVAC system. Compatible with both standard 24V wiring and HA & HB communication protocols, it delivers flexibility for new builds or system upgrades.
Â| Trane 2 Ton 15.2 SEER2 High Efficiency Heat Pump Condenser - R454B Inverter - RunTru by Trane | |
|---|---|
| SKU | A5HL5024A1000A |
| Weight (in lbs) | 104.000000 |
| Brand/Manufacturer | Trane |
| Product Features | New Refrigerant Compliant, Variable Speed Condenser |
| HSPF2 | 8.5 |
| Cooling BTU | 24,000 |
| Heating BTU | 24,000 |
| Maximum CFM | 2700 |
| Motor RPM | 850 |
| Refrigerant | R454B |
| SEER2 (Efficiency) | 15.2 |
| Condenser Stages | Variable Speed |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208/230v 1 Phase 60Hz |
| Max Breaker Size | 35 Amps |
| Min. Breaker Size | 21.5 Amps |
| Tonnage | 2 Ton |
| Connection | Brazed or Flared |
| Height | 31.6" |
| Width | 35.8" |
| Depth | 14.1" |
| Warranty | 10 Year Compressor, Outdoor Coil, and Parts with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 2 Ton Multi-Positional Variable Speed Trane Air Handler - RT Series | |
| SKU | A5AHV002A1B3 |
| Weight (in lbs) | 126.000000 |
| Brand/Manufacturer | Trane |
| Blower Motor | Variable Speed ECM Motor |
| Motor RPM | 1050 |
| Horsepower | 1/3 HP |
| Refrigerant | R454B |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Electrical | 208/230v 1 Phase 60Hz |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 3 Amps |
| Tonnage | 2 Ton |
| Height | 47" |
| Width | 19" |
| Depth | 21" |
| Warranty | 10 Year Indoor Coil and Parts with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set | |
| SKU | LS38343830 |
| Weight (in lbs) | 35.000000 |
| Brand/Manufacturer | Online Supply |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Suction Line Insulation Thickness | 3/4" |
| Length | 30 feet |
| 50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set | |
| SKU | LS38343850 |
| Weight (in lbs) | 22.000000 |
| Brand/Manufacturer | Online Supply |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Suction Line Insulation Thickness | 3/4" |
| Length | 50 feet |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Trane 4 kW 13,100 BTU Electric Heat Kit | |
| SKU | BAYHTR1504BRKC |
| Weight (in lbs) | 7.100000 |
| Brand/Manufacturer | Trane |
| Heating BTU | 13,100 |
| Electric Heat | 4 Kilowatts |
| Electrical | 208 / 240 Volts 1 Phase 60Hz |
| Phase | Single Phase |
| Warranty | 10 Year Parts with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Trane 5 kW 16,400 BTU Electric Heat Kit | |
| SKU | BAYHTR1505BRKC |
| Weight (in lbs) | 7.100000 |
| Brand/Manufacturer | Trane |
| Heating BTU | 16,400 |
| Electric Heat | 5 Kilowatts |
| Electrical | 208 / 240 Volts / 1 Phase 60Hz |
| Phase | Single Phase |
| Warranty | 10 Year Parts with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Trane 8 kW 26,200 BTU Electric Heat Kit | |
| SKU | BAYHTR1508BRKC |
| Weight (in lbs) | 7.400000 |
| Brand/Manufacturer | Trane |
| Heating BTU | 26,200 |
| Electric Heat | 8 Kilowatts |
| Electrical | 208/240v 1 Phase 60Hz |
| Phase | Single Phase |
| Warranty | 10 Year Parts with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Trane 10 kW 32,800 BTU Electric Heat Kit | |
| SKU | BAYHTR1510BRKC |
| Weight (in lbs) | 7.700000 |
| Brand/Manufacturer | Trane |
| Heating BTU | 32,800 |
| Electric Heat | 10 Kilowatts |
| Electrical | 208/240v 1 Phase 60Hz |
| Phase | Single Phase |
| Warranty | 10 Year Parts with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Trane 15 kW 49,200 BTU Electric Heat Kit | |
| SKU | BAYHTR1517BRKA |
| Weight (in lbs) | 10.500000 |
| Brand/Manufacturer | Trane |
| Heating BTU | 49,200 |
| Electric Heat | 15 Kilowatts |
| Electrical | 208/240v 1 Phase 60Hz |
| Phase | Single Phase |
| Warranty | 10 Year Parts with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Installation Kit for Condensers - Accessory Set | |
| SKU | MSK001 |
| Weight (in lbs) | 15.000000 |
| Brand/Manufacturer | Online Supply |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Ecobee Smart WiFi Thermostat with Alexa | |
| SKU | EB-STATE6P-01 |
| Weight (in lbs) | 0.500000 |
| Brand/Manufacturer | ecobee |
| Product Features | Programmable, WiFi, Heat Pump Capable, 3 Heat, 2 Cool |
| Energy Star | Yes |
| Warranty | 3 years |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| ACiQ Single-Stage Dual Powered Non-Programmable Thermostat | |
| SKU | STN701 |
| Weight (in lbs) | 1.000000 |
| Brand/Manufacturer | ACiQ |
| Product Features | Heat Pump Capable, Non Programmable, 1 Heat, 1 Cool |
| Resources | Braeburn Brochure
Braeburn User Guide |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| ACiQ 7-Day Programmable Thermostat with WiFi | |
| SKU | STN855W |
| Weight (in lbs) | 1.000000 |
| Brand/Manufacturer | ACiQ |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| ACiQ TL04-1 Smart Thermostat – 24V & HA/HB Compatible | |
| SKU | TL04-1 |
| Weight (in lbs) | 0.700000 |
| Brand/Manufacturer | ACiQ |
| Product Features | Heat Pump Capable, Programmable, WiFi, 1 Heat, 2 Heat, 3 Heat, 1 Cool, 2 Cool |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
For years, Trane has been committed to delivering reliable, high-quality, and affordable heating and cooling solutions. Backed by Trane’s legacy of engineering excellence, RunTru products are designed and built to provide dependable indoor comfort for homeowners. With a focus on durability and performance, Trane has earned the trust of HVAC professionals across North America, offering practical and cost-effective solutions without compromising on quality. Shop all Trane products.
