ACIQ 3 Ton 15.2 SEER2 96% 80,000 BTU Furnace & AC System - R454B Upflow / Downflow

OVERVIEW

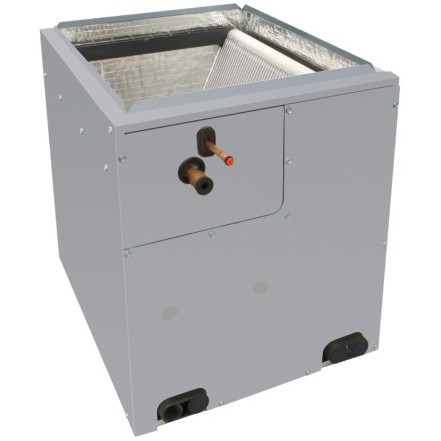

ACIQ takes pride in its ability to provide a high-quality system, including all system components. Leaving no exception, the EVD5X36M17A vertical coil is a superior option for any air conditioning application while maintaining the entire unit's efficiency with a factory-integrated TXV kit for enhanced energy optimization.

QUICK FACTS

• 3 ton vertical coil
• Works in both upflow and downflow applications
• Fully insulated, cased V-coil design for efficient heat transfer in a compact size
• Factory-installed TXV kit for enhanced energy optimization
• Corrosion-resistant drain pan designed with a Polybutylene Terephthalate (PBT) material for unsurpassed strength

3 Tons

The ACIQ EVD5X36M17A is rated for up to 3 tons of cooling. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.

Warranty

ACIQ offers a 10 year parts warranty on their coils when they are installed following your state and local codes, as well as the system is paired with a certified system matchup. Please note that in order to obtain the entire length of this warranty, the entire unit must be registered through the manufacturer.

OVERVIEW

Designed to be a high-efficiency furnace, the ACiQ N96MSN0801716A is a money saving unit to provide heating throughout even the coldest months of the year. With its multi-positional design, this unit is a good all-around choice for nearly any application.

QUICK FACTS

• 80,000 BTU, 96% AFUE natural gas furnace
• Generally suitable for up to a medium house in ideal applications
• Multi-positional design can be installed in the upflow, downflow, or horizontal orientations
• Single stage burner with a multi-speed blower
• Field-convertible to propane with an optional LP kit
• On board self-diagnostics
• Energy Star certified

80,000 BTU, 96% AFUE

The ACiQ N96MSN0801716A has an input of 80,000 BTU. With an efficiency of 96%, this means that the furnace has an output of 76,800 BTU. The 96% AFUE also means that for the gas going into the furnace, 96% of it is used to heat your home while only 4% is lost out of the flue piping and lost to normal furnace operations. All furnaces at this efficiency (90% and above) requires plastic/PVC flue venting, and if metal flue venting is required for your installation, an 80% efficient furnace would be needed instead. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost. Please note that this furnace is not Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.

Warranty

ACiQ offers 10 year parts warranty and lifetime (20 year) heat exchanger limited warranty. Please note that in order for these warranties to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.

Installation and Durability

With its ability to be installed in any configuration, upflow, downflow, or horizontal, the ACiQ N96MSN0801716A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not intended for use in a mobile home.

---

Quiet Comfort

Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.

---

High Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.

---

Longer life, longer warranty

Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.

The Santa Fe Ultra70 Whole House Dehumidifier (SKU: UL3684 / Model 4044100) is a high-efficiency moisture control system designed for residential, multi-family, and light commercial applications. It helps maintain balanced indoor humidity levels to reduce mold growth, condensation, and musty odors in enclosed living spaces.

With a capacity of up to 70 pints per day, the Ultra70 is ideal for smaller homes, basements, and sealed crawl spaces that require consistent humidity control. It operates on standard 110–120V power and uses R454B refrigerant for efficient and environmentally improved performance.

This unit is designed for continuous operation and can be installed as part of a ducted HVAC system or used as a standalone solution. Its compact horizontal configuration allows flexible placement in tight mechanical spaces while maintaining reliable dehumidification performance.

Product Features:

• 70 PPD Moisture Removal Capacity: Efficient dehumidification for small to medium residential spaces.
• 110–120V Operation: Standard household voltage for easy installation.
• R454B Refrigerant System: Environmentally improved refrigerant for efficient operation.
• Compact Horizontal Design: Space-saving layout ideal for basements and crawl spaces.
• High-Efficiency Performance: Designed for continuous humidity control with low energy consumption.
• Continuous Drain Operation: Gravity drainage system eliminates the need for manual water removal.
• HVAC Integration Ready: Compatible with ducted systems for whole-house humidity control.

Warranty

The Santa Fe Ultra70 typically includes a 5-year manufacturer warranty, depending on distributor and installation conditions. Refer to official Santa Fe documentation or an authorized dealer for complete warranty details.
