Customer Reviews

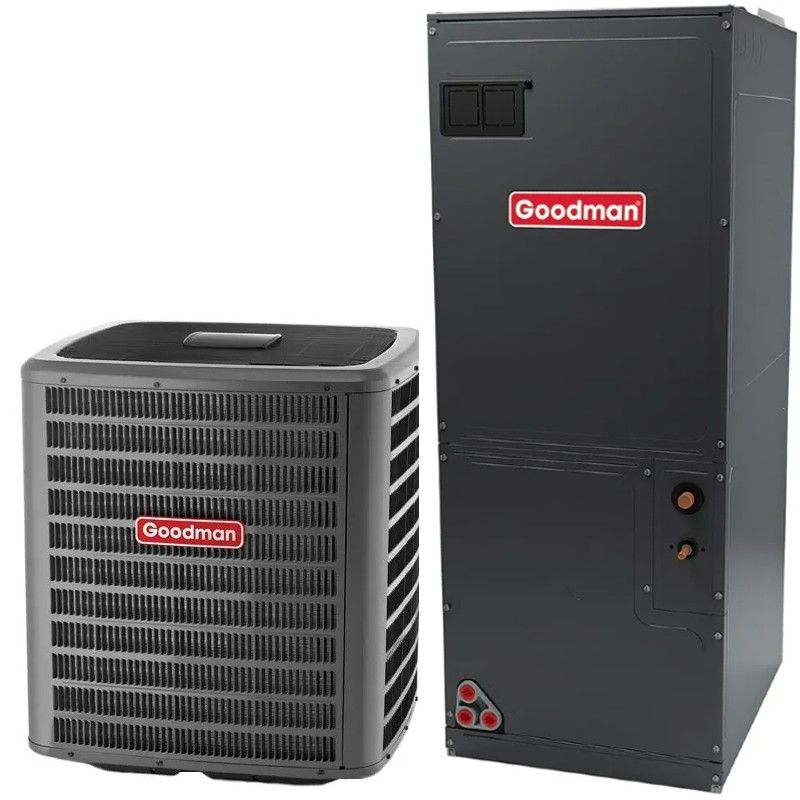

5 Ton 15.2 SEER2 Two Stage Goodman Heat Pump Air Conditioner System - Upflow/Horizontal

By

Goodman

Out of stock

Model

GSZC706010 / AVPTC61D14

ID

143787

Rating:
87% of 100
Availability: Ships in 5-7 Business Days
Goodman

Authorized Goodman Dealer

AHRI Certified

AHRI Number:212524778

People that viewed this product purchased this instead:
12 Year Warranty
ACiQ 5 Ton 16.4 SEER2 High Efficiency Central Heat Pump System | Inverter | Extreme Heat
SAVE $1,113.00
SAVE $2,266.00
SAVE $2,219.00

Description

Upgrade your home's climate control with the Goodman Heat Pump Air Conditioner System, offering a perfect balance between heating and cooling efficiency, and reliable performance. Enjoy the benefits of a well-designed system that keeps your space comfortable while maximizing energy savings.

The Goodman Heat Pump Air Conditioner System effortlessly manages the exchange of heat between indoor and outdoor spaces, ensuring both heating and cooling functions work seamlessly. Its heat pump installation not only adds convenience but also proves to be a cost-effective choice, making it an ideal solution for those seeking an energy-efficient and hassle-free approach to their home's heating and cooling needs. Elevate your home's climate control with the superior performance of the Goodman Heat Pump Air Conditioner System.

Why Buy at HVACDirect.com

HVACDirect.com is a leading provider of high-quality heat pump air conditioning systems. Our heat pump systems recognized for their energy efficiency, deliver not only substantial initial cost savings but also ensure enduring economic benefits through reduced energy consumption. Our commitment to providing efficient and effective solutions solidifies our standing as the preferred choice for customers seeking heat pump air conditioning systems.

5 Ton Multi-Positional Variable Speed Goodman Air Handler

OVERVIEW

The Goodman AVPTC61D14 air handler is a variable speed, energy efficient unit compatible with ComfortNet communicating technology. If you want the best of the best air handler for your home, the AVPTC61D14 is the best option for you.

QUICK FACTS

  • 5 ton air handler
  • Electric heat compatible
  • Efficient multi-speed blower
  • Multi-positional (upflow, downflow, or horizontal)
5 Tons

The AVPTC61D14 air handler is rated for an output of 5 tons. In many cases, this tonnage will be larger than the condenser it is paired with, which increases the overall efficiency of the unit. Please note that this air handler needs a condenser to heat or cool. For straight heating or when backup heat is necessary in a heat pump application, the air handler is able to accommodate heat strips, available at an additional cost to be field-installed.

Warranty

Goodman offers a 10 year parts warranty with online registration and when the unit is matched with a covered condenser. Please note that installation that follows your state and local codes is required, normally requiring an EPA-certified installer for most of the work.

Installation and Maintenance

The Goodman AVPTC61D14 comes with a factory-installed TXV kit, preventing the need to install one to increase the unit’s efficiency. The unit is also able to be installed in any orientation—upflow, downflow, or horizontal—which allows it to be extremely versatile in application. For easy maintenance, there are two access panels on the unit, and there is a CFM indicator and a front-panel sight glass. There is also a built-in control board function that helps you diagnose the unit should the need arise.

Enhanced Comfort

The Goodman AVPTC61D14 is ComfortNet compatible, allowing it to communicate with compatible condensers. The variable speed motor provides the most precise temperature control possible. Both of these features keep you as comfortable as possible, no matter what temperature you like to keep the thermostat set on.

Product Specifications

More Information
5 Ton 17 SEER2 Two Stage Goodman Heat Pump
SKUGSZC706010
Weight315.000000
ManufacturerGoodman
ReplacesGSZC160601, GSZC180601
HSPF8.2
Cooling BTU60,000
Heating BTU60,000
Decibel Level (dBA)78
Horsepower.33
Energy StarYes
RefrigerantR410A
SEER217
Condenser StagesTwo Stage
Compressor TypeScroll
Liquid Line3/8"
Suction Line1 1/8"
Liquid Valve Size3/8"
Suction Valve Size7/8"
Electrical208/230 V 1 Phase 60 Hz
Max Breaker Size50
Amperage Requirement32.4
Tonnage5 Ton
Height41 5/8"
Width35 1/2"
Depth35 1/2"
WarrantyLifetime compressor, 10 year unit replacement, and 10 year parts limited warranties
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
5 Ton Multi-Positional Variable Speed Goodman Air Handler
SKUAVPTC61D14
Weight167.000000
ManufacturerGoodman
Blower MotorVariable Speed - ECM
Maximum CFM2,040
Electric Backup Heat Capabilities (Optional)5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts
RefrigerantR410A
Filter Size23" x 20"
Liquid Line3/8"
Suction Line7/8"
Electrical208/240 V, 1 Phase, 60 Hz
Max Breaker Size15 amps
Min. Breaker Size8.6 amps
Tonnage5 Ton
Fuel TypeElectric
Height58"
Width24.5"
Depth21"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Read More +

Reviews 1

Write Your Own Review
You're reviewing:5 Ton 15.2 SEER2 Two Stage Goodman Heat Pump Air Conditioner System - Upflow/Horizontal
Your Rating

Questions and Answers

Customer Questions
No Questions
Did you find what you were looking for?
Why Choose a Goodman Product?
Why Choose Goodman?

For over three decades Goodman has concentrated on something more important than simple brand recognition consumer advertising. They focus on the design, engineering, and manufacturing of dependable products that have helped millions and millions of homeowners achieve reliable, high-quality, and affordable indoor comfort. In addition, Goodman has earned the loyalty and respect from thousands of local independent heating and cooling professionals across North America.
