ACiQ's Extreme+ heat pump systems provide a level of comfort that is rivaled by none - a high-performance, self-adjusting, mini-split-style inverter condenser matched to a communicating air handler that will attach seamlessly to your existing ductwork for easy installation.
How is it different from other heat pumps?
Traditional heat pumps rely on expensive heat strips below 30°F
ACiQ Extreme+ heat pumps save up to 75% in temps below 30°F
Extreme+ heat pump systems provide the best possible performance regardless of climate
Variable BTU inverter ramps up and down to match demand
Smart system with soft startups to maximize efficiency
OK to size for heat - will not short cycle during cooling
Extreme Heat technology keeps you warm to -22°F and beyond
Slim-fit air handler provides more flexibility in installation

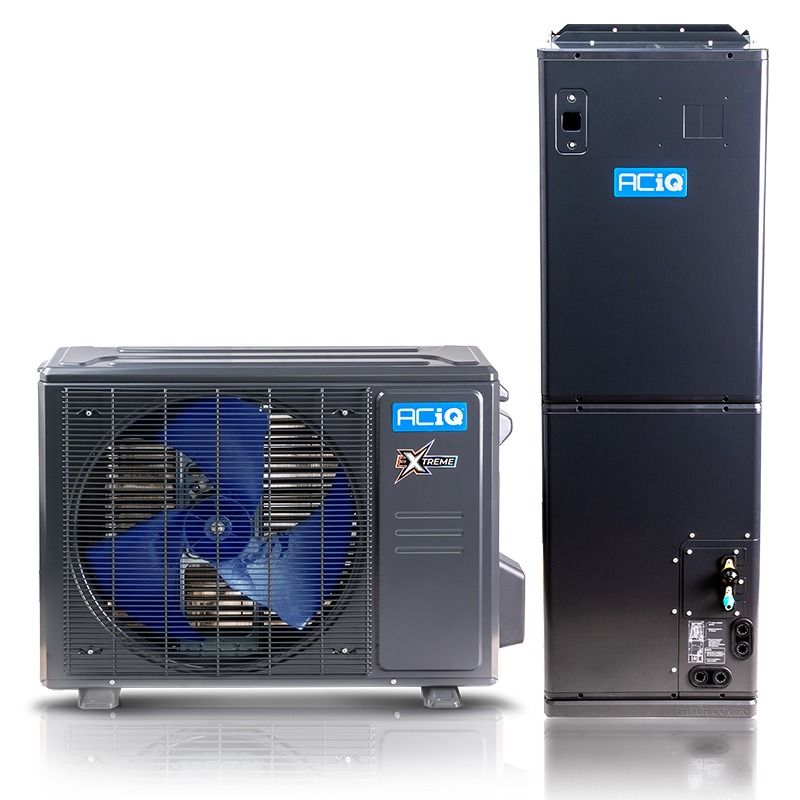

ACiQ 1.5 Ton 19 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series - R454B
OVERVIEW

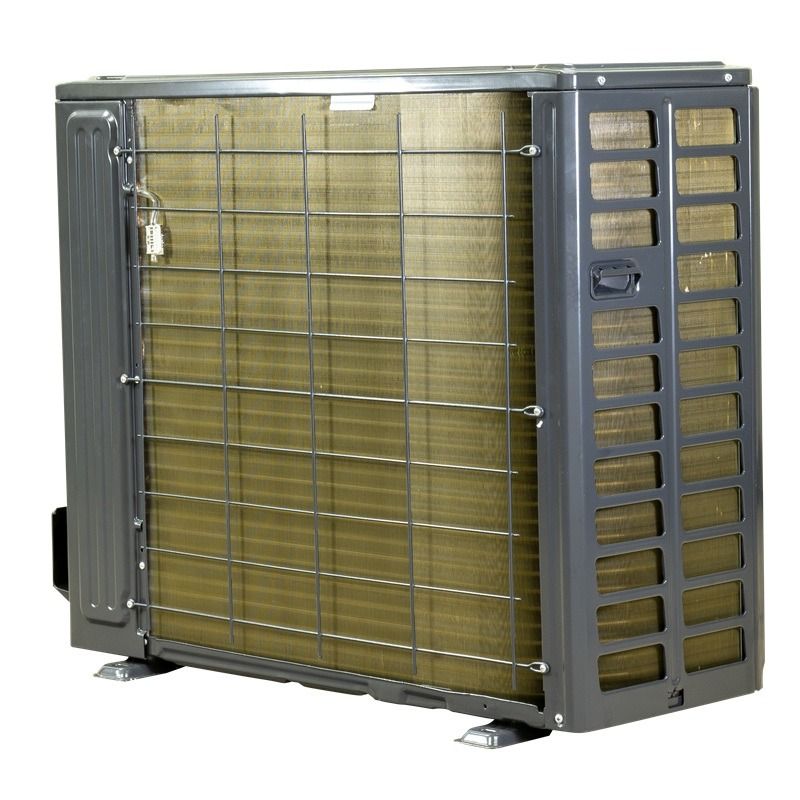

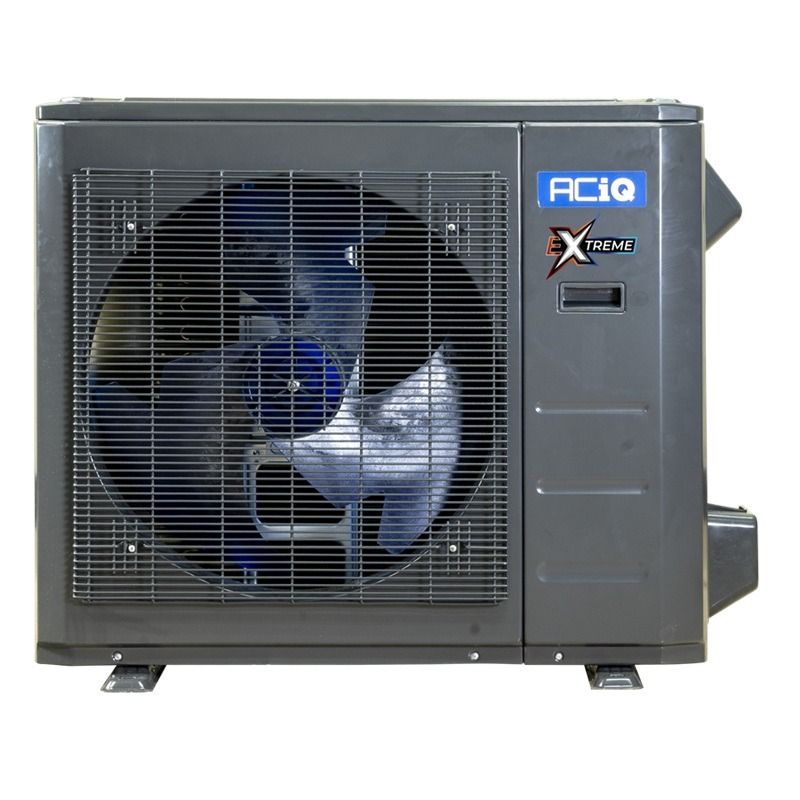

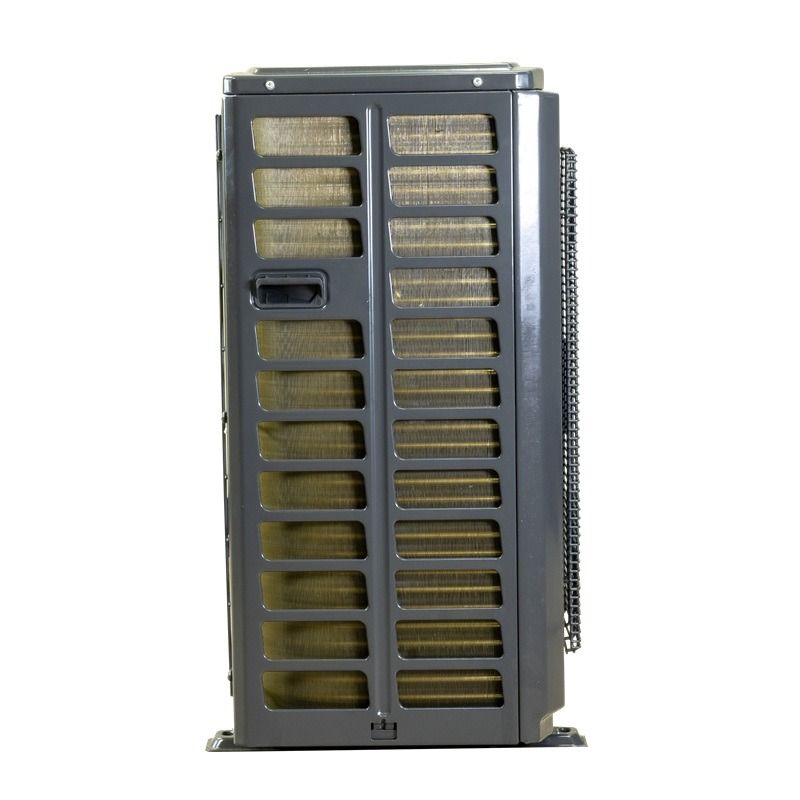

Inverter - The ACiQ-18-HPD 1.5 ton Extreme series central inverter heat pump utilizes inverter technology to convert AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.
Learning Condenser - Equipped with advanced sensors, this condenser monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall performance. During the initial startup, it enters a learning mode that optimizes future operations for maximum efficiency by collecting and storing data.
Adaptive Sizing - With its self-adjusting inverter design, the ACiQ-18-HPD can be sized based on your heating needs. Standard heat pumps may cause discomfort during summer when sized for heat, but this unit automatically adjusts to function like a smaller unit, ensuring ideal cooling performance without excess humidity.
Extreme Heat Technology - "Extreme Heat" means extended temperature range heating all the way down to -22°F. Traditional heat pumps cannot produce significant heat below about 30°F outside temperature. Below that threshold, they rely on expensive backup electric heat. The ACiQ-18-HPD uses the inverter to vary the refrigerant flow, allowing for maximum heat extraction during extreme cold temperatures. The backup electric heat supplements the heat pump, and only takes over below -22°F. The heat pump gives 100% at 0°F, and still gives 80% at -22°F, saving you up to 75% on cold weather heating bills.
QUICK FACTS
Variable BTU output based on demand: 12,000-18,000 BTU for cooling, 12,000-19,000 for heating
R454B refrigerant
Inverter heat pump system for ducted applications
Efficient cooling from -22°F to 122°F outdoor temperatures
Efficient heating from -22°F to 75°F outdoor temperatures
Durable gold fin condenser coil coating for longevity
Quiet operation, even under high workloads
1.5 Ton, 19 SEER2
Boasting an efficiency rating of 19 SEER2, the ACiQ-18-HPD provides versatile comfort across a range of climates by providing reliable comfort with a variable output that eliminates short cycling for lasting efficiency. Use our sizing calculator (found HERE) to determine the demand for your home.
Extreme Heat Base Pan Heater Technology
Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

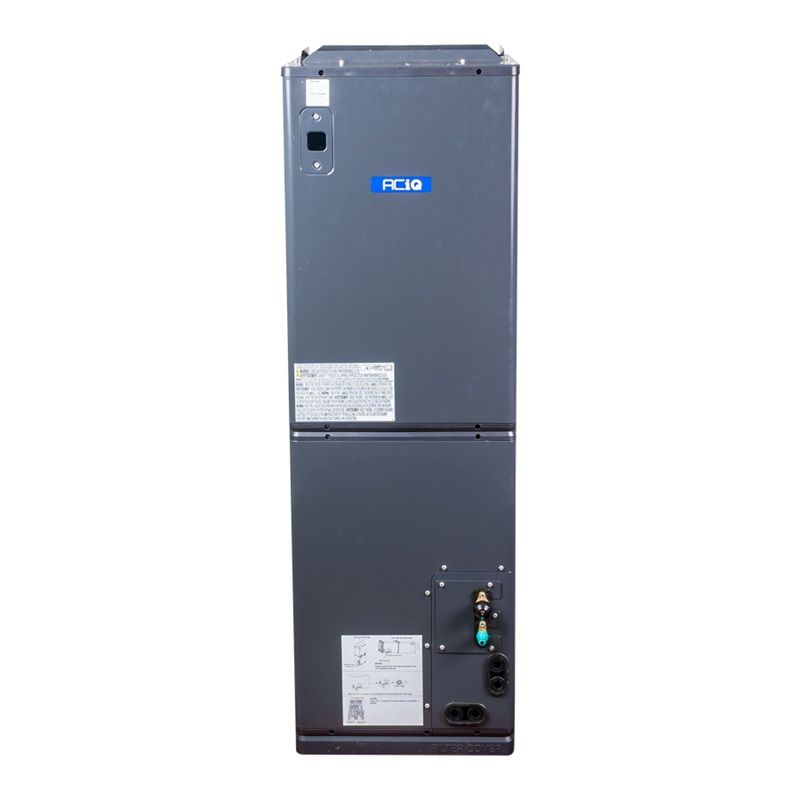

ACiQ 1.5 Ton Extreme+ Ducted Air Handler - R454B
Redefining Comfort with Extreme+ Efficiency
The ACIQ-18-PAH Extreme+ ducted air handler is one of the best multi-positional air handlers on the market today. Featuring a variable speed DC blower, communicating technology, and the best possible performance in any climate, comfort and efficiency levels hit extreme peaks well above the standard maximums from other typical air handlers. Your thermostat communicates with the inverter condenser outside and this air handler inside, telling the system when to self-adjust its BTU output in order to maximize efficiency while providing your desired level of comfort.
1.5 ton high efficiency central ducted air handler
Compatible with any 24v thermostat
Variable speed DC blower
Multi-positional - Can be installed in upflow, downflow, or horizontal left/right orientations
Slim-fit cabinet size for easier installation
Higher-performance capabilities leading to better tax credit and rebate eligibility
Compatible with R454B refrigerant
Installation and Maintenance
Installation is very similar to installing any replacement air handler. Your technician will make electrical, refrigerant, thermostat, and communication connections as well as connect the air handler to your return and supply ductwork. The ACiQ Extreme+ central ducted air handler is multi-positional (upflow, downflow or horizontal) and utilizes a narrower cabinet than other air handlers, making it a very versatile, easy-to-install air handler. Any 24v thermostat with 2 stages of heating can control the system. Supplemental electric heat kits are available as a backup heat source for the coldest days of the year. If any maintenance is required, the intelligent control board in the air handler displays fault codes in case any part of the system experiences issues.
Please note - in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle. To use straight electric heating, an electric heat kit is necessary and is also available at an additional cost.
30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.
50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer. ✔ Pre-Insulated for Efficiency:3/8" thick insulation minimizes energy loss and condensation buildup. ✔ Versatile Application: Compatible with heat pumps and conventional split systems. ✔ Easy Installation:Flexible and durable copper tubing allows for smooth routing and connection. ✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.

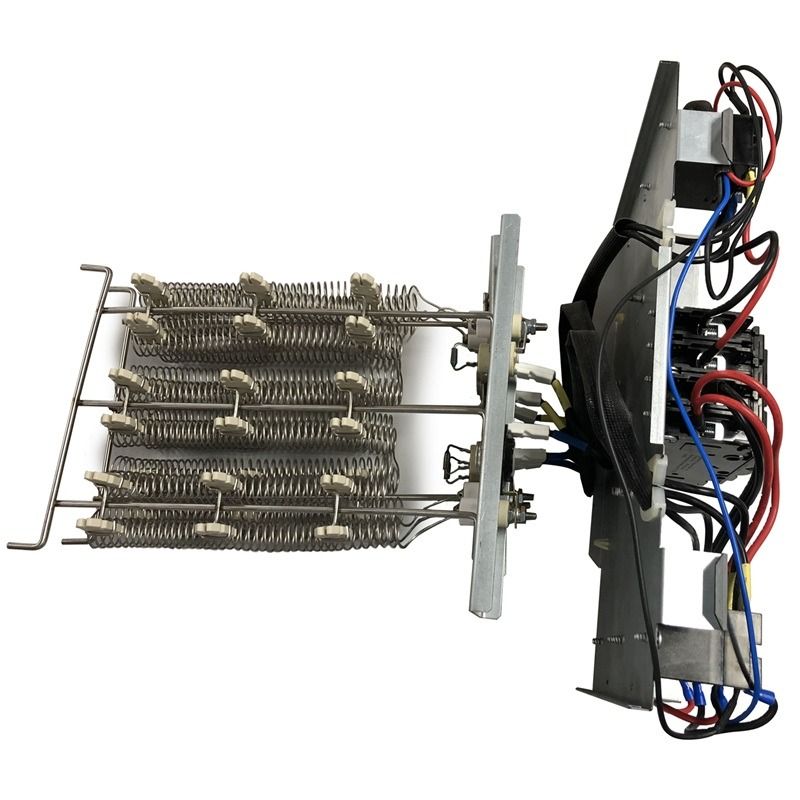

ACiQ 5 Kilowatt 16,200 BTU Heater Coil
The PEAH-05C(UL) is a 5kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 16,200 BTU, this heater coil can generally cover a small house in ideal climates.
Please note that this heater coil requires one 30 amp breaker to function.
Compatible Air Handlers
ACiQ-18-PAH
ACiQ-24-PAH
ACiQ-30-PAH
ACiQ-36-PAH
ACiQ 8 kilowatt 26,000 BTU Heater Coil
The PEAH-08C(UL) is a 8kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 16,200 BTU, this heater coil can generally cover a small house in ideal climates.
Please note that this heater coil requires one 30 amp breaker to function.
Compatible Air Handlers
ACiQ-18-PAH
ACiQ-24-PAH
ACiQ-30-PAH
ACiQ-36-PAH
ACIQ 10 Kilowatt 34,100 BTU Heater Coil
The PEAH-10C(UL) is a 10kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 16,200 BTU, this heater coil can generally cover a small house in ideal climates.
Please note that this heater coil requires one 30 amp breaker to function.
Compatible Air Handlers
ACiQ-12-PAH
ACiQ-18-PAH
ACiQ-24-PAH
ACiQ-30-PAH
ACiQ-36-PAH
ACiQ-48-PAH
ACiQ-60-PAH
ACiQ 15 Kilowatt 51,150 BTU Heater Coil
The PEAH-15C(UL) is a 15kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 16,200 BTU, this heater coil can generally cover a small house in ideal climates.
Please note that this heater coil requires one 30 amp breaker to function.
Compatible Air Handlers
ACiQ-18-PAH
ACiQ-24-PAH
ACiQ-30-PAH
ACiQ-36-PAH
ACiQ-48-PAH
ACiQ-60-PAH
Ecobee Smart WiFi Thermostat with Alexa
The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.
With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.
Features
Not at your thermostat? No problem.
Adjust temperature and comfort settings easily from the ecobee mobile app on your Android and iOS devices, including Apple Watch.
Connects to your existing home network
Convenient Wi-Fi capabilities offer a secure and reliable connection.
Knows you have a life
Vacationing and forgot to let your ecobee know? Make a vacation event using the ecobee mobile app. If something’s wrong with your equipment, we can send you service alerts and reminders.
Control the volume
If it's getting a little loud for your taste, you can use the app to adjust the volume.
Built to last
ecobee thermostats are hardwired, which means your thermostat isn’t relying on a battery or your HVAC equipment to charge itself.
The ACiQ TL04-1 Smart Thermostat is engineered to bring precise, intelligent control to your home’s HVAC system. Compatible with both standard 24V wiring and HA & HB communication protocols, it delivers flexibility for new builds or system upgrades.
QUICK FACTS
Dual Compatibility: Supports 24V systems and HA/HB non-polarity communication systems
Control Options: Works with single and two-stage heating, cooling, and heat pump systems with auxiliary/emergency heat
Modern Touchscreen: Auto-wake screen with responsive touch interface
Clean Installation: Includes M-base, trim plate, wire labels, screws, and anchors
Smart Safety: Built-in installation tips, safety reminders, and FCC/IC compliance
Perfect for homeowners looking to upgrade their comfort with modern, intelligent technology
The ACiQ STN701 Single-Stage Dual Powered Non-Programmable Thermostat is a cost effective solution to temperature control! Designed with a bright blue backlight and large easy to read characters, ACiQ thermostats are easy to operate for all consumers.
1 Heat / 1 Cool Non-Programmable Thermostat
Operable with AAA batteries or 24v power
Large, easy to ready clear LCD display with different backlight color options
Configurable with Electric or Gas Systems
Separate B & O terminals
Handles heating and cooling temperature swing adjustments separately
Toggleable 5 minute compressor delay protection
Temperature Range: 32°F-99°F (1°C-40°C)
Temperature Accuracy: ±1.8°F (±1°C)
ACiQ 7-Day Programmable Thermostat with WiFi
The STN855W is a versatile WiFi thermostat offering 7-day, 5/1/1 programmable, or non-programmable options. It features a temperature range of 32°F-99°F (1°C-40°C) and precise control from 44°F-90°F (7°C-32°C) with an accuracy of ±1°C. Powered by 24V, it comes in a compact design with dimensions of 120 x 98 x 28 mm, making it ideal for efficient and customizable temperature management.
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation. ✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety. ✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply. ✔ Secure Wall Penetration:Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines. ✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
1/2" x 6' Electrical Whip – SKU: 84136
60A Non-Fused Disconnect – SKU: 83335
Surge Protector – SKU: ICM517
CPS Charging Adapter – SKU: 87-AD87
Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Wall Mount Bracket for Condensers 30"
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
Steel: 10 GA
Powder-coated grey Finish
Load rating: 600 lbs per pair
Holes will accommodate anchors for installation
Warranty: 1 year
ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
Reliable Support: Abundance of ridges for stable ground support.
Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
Simple Appearance: Gray color with size labels.
Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
Weather Resistance: Made from tough PVC for long-lasting performance.
Secure Setup: The track securely holds bolts in place.
Bolts Included: Each set comes with two bolts.
Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ 1.5 Ton Extreme+ Ducted Air Handler - R454B
SKU
ACIQ-18-PAH
Weight
123.020000
Manufacturer
ACiQ
Cooling BTU
18,000 BTU
Maximum CFM
618
Decibel Level (dBA)
Up to 42.5 Decibels
Electric Backup Heat Capabilities (Optional)
5 Kilowatts, 8 Kilowatts, 10 Kilowatts
Configuration
Multi-Positional
Refrigerant
R454B
Liquid Line
3/8"
Suction Line
3/4"
Electrical
208/230V 1 Phase 60 Hz
Max Breaker Size
15 Amps
Min. Breaker Size
5.5 Amps / 3.5 Amps
Tonnage
1.5 Ton
BTU/Tonnage
18,000 BTU/1.5 Ton
Mini Split Type
Multi-Positional
Zone Compatibility
Single Zone
Connection
Flared
Height
49.7"
Width
17.5"
Depth
21.5"
Warranty
12 Years Compressor and 7 Years Parts with Online Registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
SKU
LS38343830
Weight
35.000000
Manufacturer
Online Supply
Liquid Line
3/8"
Suction Line
3/4"
Suction Line Insulation Thickness
3/4"
Length
30 feet
50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ 3 Kilowatt 16,200 BTU Heater Coil
SKU
PEAH-03C(UL)
Weight
8.000000
Manufacturer
ACiQ
Heating BTU
16,200
Electric Heat
3 Kilowatts
Electrical
208 / 230 / 240 Volts / 1 Phase
Electric Phase Filter
Single Phase
Warranty
12 year compressor, 7 year parts with online registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ 5 Kilowatt 16,200 BTU Heater Coil
SKU
PEAH-05C(UL)
Weight
8.000000
Manufacturer
ACiQ
Heating BTU
16,200
Electric Heat
5 Kilowatts
Electrical
208 / 230 / 240 Volts / 1 Phase
Electric Phase Filter
Single Phase
Warranty
12 year compressor, 7 year parts with online registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACIQ 10 Kilowatt 34,100 BTU Heater Coil
SKU
PEAH-10C(UL)
Weight
8.000000
Manufacturer
ACiQ
Heating BTU
34,100
Electric Heat
10 Kilowatts
Electrical
208 / 230 / 240 Volts / 1 Phase
Electric Phase Filter
Single Phase
Warranty
12 year compressor, 7 year parts with online registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ 15 Kilowatt 51,150 BTU Heater Coil
SKU
PEAH-15C(UL)
Weight
10.000000
Manufacturer
ACiQ
Heating BTU
51,150
Electric Heat
15 Kilowatts
Electrical
208 / 230 / 240 Volts / 1 Phase
Electric Phase Filter
Single Phase
Warranty
12 year compressor, 7 year parts with online registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
