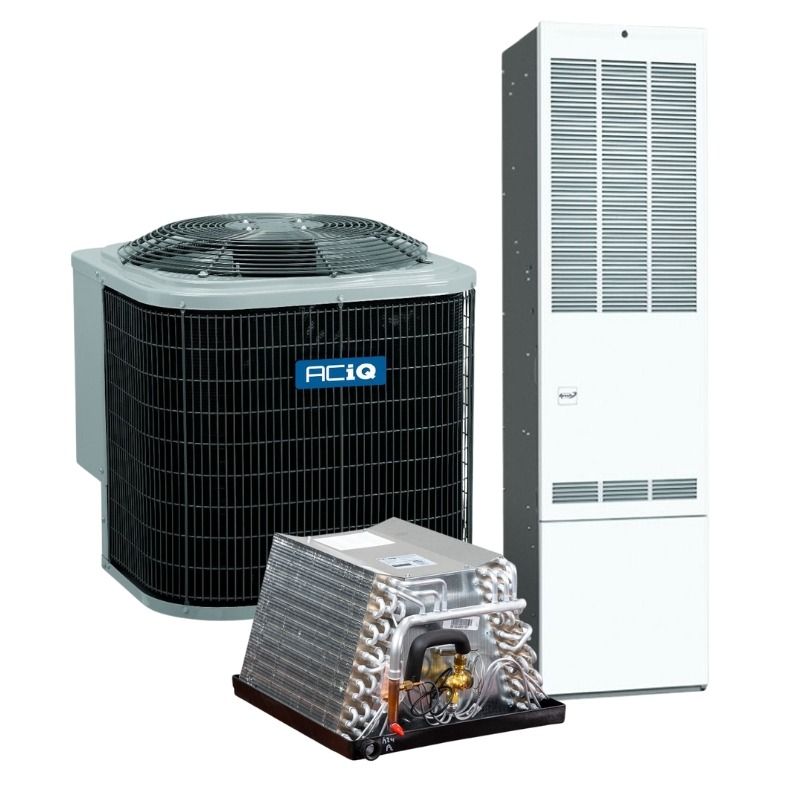

ACIQ 2.5 Ton 14.3 SEER2 80% AFUE 77,000 BTU Mobile Home Heat Pump and Gas Furnace System| R454B

Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.

OVERVIEW

The ACIQ R5H5S30AKAAA is a standard heat pump condenser. Designed with comfort in mind and an inexpensive option for nearly any application, this condenser is considered a good all-around option for almost any application.

QUICK FACTS

• Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
• 2.5 ton, 14.3 SEER2 heat pump condenser
• Can heat and cool a small to medium size house in average conditions
• Single stage compressor
• Pre-charged with R454B refrigerant
• Filter drier included to be field-installed

2.5 Tons

The ACIQ R5H5S30AKAAA heat pump condenser has an output of 2.5 tons, generally enough to heat and cool a small to medium size house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work. This unit will also only heat down to around 35°F, and if you need heat any lower than this, a backup heat strip will be needed to act as straight electric heating in a compatible air handler.

14.3 SEER2

The ACIQ R5H5S30AKAAA air conditioner condenser is rated at 14.3 SEER2, making it between 5-7% more efficient than standard 13.4 SEER2 units, saving you money in electric bills over the entire lifetime of your unit. In general, heat pumps will heat more efficiently than straight electric furnaces.

Efficiency Choices for Every Climate

Not all heat pumps are built the same. Depending on the climate of where you live, your best fit can depend dramatically on the efficiency of the heat pump at lower temperatures. The right fit saves you money by reducing energy bills. At 0°F, this heat pump operates at 37% efficiency, making it a good fit for warmer climates where moderate heating is sufficient.

Disclaimer: This condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-557-9206 if you have any questions.

All ACIQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.

---

Quiet Comfort

Leave fossil fuels behind with an ACiQ heat pump system. Every ACiQ heat pump condenser uses a scroll compressor to give exceptional cooling
performance and highly efficient, all-electric heat. WiFi-capable communicating condensers are also available.

---

High Efficiency

ACiQ heat pumps come in a range of efficiency options to fit your budget's needs and your local weather conditions. Save up to 63% on energy costs with a newer model.

---

Longer life, longer warranty

ACiQ heat pump condensers are 100% run-tested at the factory. Protective coatings on the fins and baked-on galvanized finishes mean long life even in harsh conditions. ACiQ’s extended warranty with online registration provides 10 year protection.

OVERVIEW

The Style Crest-Revolv MG1E-B077F1ABM1 is a good solution for many manufactured or mobile home gas furnace applications. With its easy installation procedures, low maintenance, and included LP conversion kit, the MG1E-B077F1ABM1 will save you money both up front and over time.

QUICK FACTS

• 77,000 BTU, 80% natural gas furnace
• Can generally heat a small to medium mobile home in ideal applications
• Compatible with R410A and R454B refrigerant
• Natural gas out of the box, but comes with an LP kit for field installation if needed
• Low maintenance requirements
• AC coil cabinet included with purchase (condenser and coil sold separately)
• Efficient ECM blower motor

77,000 BTU, 80% AFUE

With a system input of 77,000 BTU, The Style Crest-Revolv MG1E-B077F1ABM1 furnace can generally heat small to medium mobile homes in ideal applications. With a basic efficiency rating of 80% AFUE, this input equates to an output of 61,600 BTU, and 80% of the fuel going into the unit is contributed to heating your home and the remaining 20% of the fuel is lost out of the flue venting and is used up in normal furnace operations. If you are coming from our site’s sizing calculator, please note that it is a good idea to upsize any calculation to compensate for limited insulation and other factors that cause a mobile home to differ from traditional home sizing. If you have any questions, please contact us. Please note that this furnace is intended to only be used in mobile and manufactured homes and requires a straight flue pipe without any elbows.

Warranty

Revolv gas furnaces come with 2 year parts, and 10 year heat exchanger warranty when registered online through the manufacturer and with an installation that follows your state and local codes.

Installation and Maintenance

The Style Crest-Revolv MG1E-B077F1ABM1 furnace is designed to be easily installed for a faster process, lowering labor costs. While this furnace is natural gas out of the box, a propane conversion kit is included in this package to be field-installed if needed with no additional material cost, saving you money. With its sealed motor bearings, reliable burner controls, modern hot surface ignitor, and sealed combustion, this furnace has low maintenance requirements, providing the peace of mind that your unit will reliably heat your home even in the coldest winter months.
