In stock

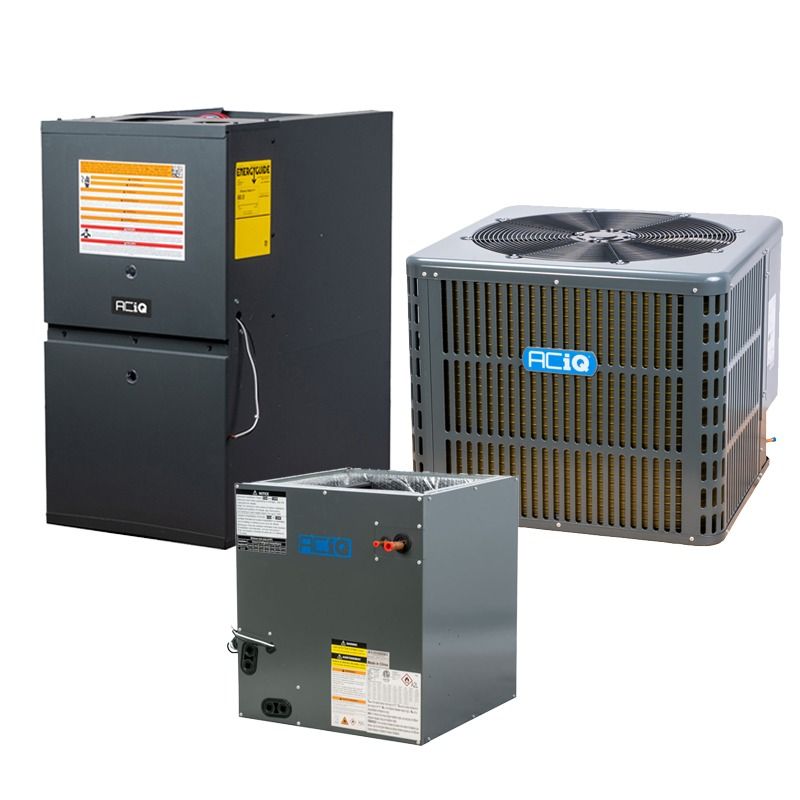

An ACiQ furnace and air conditioner system is the perfect HVAC system choice for any size of home. With an extensive selection of AHRI-rated system combinations available, you can depend on ACiQ to provide you with the right central furnace and air conditioning system for all your heating and cooling needs.
The AQ-GD9T800804BX ACiQ gas furnace features high-quality construction and efficient operation at a great value. The AQ-GD9T800804BX two-stage, 9-speed furnace utilizes ACiQ's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the ACiQ AQ-GD9T800804BX.
The AQ-GD9T800804BX ACiQ gas furnace is 40,000 BTU's. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 64,000 BTU's (80,000 X 80% AFUE) per hour. In ideal climate conditions, this 80,000 BTU furnace is usually used to heat a medium house.
The AQ-GD9T800804BX ACiQ gas furnace is 80% efficient, and the standard furnace efficiency on the market today. This means that 80% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 80% furnaces must be vented using metal flue venting, while anything higher than 90% efficient must be vented using plastic/PVC venting.
In California, many counties have a lower NOx emission requirement than the rest of the United States. The AQ-GD9T800804BX ACiQ gas furnace is California Low NOx compliant. With a built-in low emission filter, this ACiQ gas furnace produces less nitrogen oxides to be released into the atmosphere, lowering the overall amount of toxic greenhouse gases output of the average California home. Please note that this furnace cannot be installed in the following counties in California: Fresno, Joaquin, Kern, Kings, Los Angeles, Madera, Merced, Orange, Riverside, San Bernardino, San Stanislaus, and Tulare. In these counties you are required to purchase an Ultra-Low NOx furnace. If you have any questions, please contact us.
The AQ-GD9T800804BX ACiQ gas furnace is a two stage furnace that has two heating outputs on the burner: full output on colder winter days and a lower output for milder days that the furnace doesn't have to run quite as much. Two stage furnaces allow for a more even heat distribution, as the furnace will only kick on the higher stage if the indoor temperature is more than a few degrees away from the desired temperature. Since the lower stage will be used more often, the AQ-GD9T800804BX will run quieter than a single stage system. While the majority of the benefits of a two stage feature on a furnace are comfort based, the efficiency of the furnace is slightly higher due to it burning less fuel at its lower stage.
From the factory, the AQ-GD9T800804BX runs on natural gas. However all ACiQ gas furnaces can be converted to propane using the furnace's corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.
Instead of the last generation PSC blower motor, the AQ-GD9T800804BX utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.
With installation that follows your state and local codes and with online registration, all ACiQ furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.
The ACiQ brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.
The value of modern ACiQ furnaces doesn't end at efficiency. Today's ACiQ furnaces feature many different connection options to reduce installation. The AQ-GD9T800804BX model has a more universal design, which consists of its ability to be installed in both an downflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.
This ACiQ central air conditioner condenser is a dependable cooling-only option for small to medium homes. It is designed for use with compatible indoor equipment and gives homeowners a straightforward replacement or system-building option with quiet operation and durable outdoor construction.
With 2.5 tons of cooling capacity, this condenser is commonly used for homes approximately 1,300–1,600 sq. ft. in various climates. Actual sizing depends on your local climate, insulation, windows, ceiling height, air leakage, home layout, and a professional sizing review.
This condenser provides dependable cooling-only performance when paired with compatible indoor equipment. It is a practical choice for homeowners replacing an outdoor condenser or building a matched central air setup.
The top-discharge cabinet is designed for residential cooling applications and offers quiet operation, service-friendly access, and durable outdoor construction for long-term use.
This condenser includes a 10-Year Compressor Warranty and 7-Year Parts Warranty with online registration. Installation must follow state and local codes, and warranty coverage may be void if the unit is not installed by a qualified professional.
R32 Refrigerant Compatibility Notice
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-912-1827 if you have any questions.
The ACiQ AC-I-3036ACL-17 is a high-performance cased evaporator coil designed for maximum durability and installation flexibility. Optimized for systems ranging from 1.5 to 2 tons, this coil is the perfect indoor companion for both air conditioning and heat pump outdoor units.
ACiQ offers a 7 year parts limited warranty. Please note that in order for the warranty to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.
Ensure smooth refrigerant flow and HVAC system efficiency with this no-tear 30-foot insulated line set. Designed for seamless connection between an outdoor condensing unit and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal insulation for high-performance HVAC applications.
No-tear line sets are designed to eliminate one of the most common frustrations during HVAC installations—insulation that rips, tears, or breaks down over time. Built with enhanced durability and UV-resistant insulation, these line sets maintain their integrity during handling, installation, and long-term outdoor exposure. The result is a cleaner install, better protection, and fewer callbacks compared to standard line sets.
Traditional line sets often use insulation that can tear easily when pulled through walls, around corners, or across rough surfaces. No-tear line sets are engineered with a reinforced outer jacket that resists damage during installation, helping maintain insulation integrity from start to finish. This added durability not only improves installation efficiency but also reduces the need for repairs, tape, or replacement sections—saving time on the job and delivering a more professional final result.
Standard insulation can degrade when exposed to sunlight, leading to cracking, peeling, and reduced performance over time. No-tear line sets feature a UV-resistant outer layer designed to withstand prolonged outdoor exposure, helping preserve insulation quality and system efficiency. This makes them an ideal choice for installations where line sets are exposed along exterior walls or rooftops.
Ensure smooth refrigerant flow and HVAC system efficiency with this no-tear 30-foot insulated line set. Designed for seamless connection between an outdoor condensing unit and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal insulation for high-performance HVAC applications.
No-tear line sets are designed to eliminate one of the most common frustrations during HVAC installations-insulation that rips, tears, or breaks down over time. Built with enhanced durability and UV-resistant insulation, these line sets maintain their integrity during handling, installation, and long-term outdoor exposure. The result is a cleaner install, better protection, and fewer callbacks compared to standard line sets.
Traditional line sets often use insulation that can tear easily when pulled through walls, around corners, or across rough surfaces. No-tear line sets are engineered with a reinforced outer jacket that resists damage during installation, helping maintain insulation integrity from start to finish. This added durability not only improves installation efficiency but also reduces the need for repairs, tape, or replacement sections-saving time on the job and delivering a more professional final result.
Standard insulation can degrade when exposed to sunlight, leading to cracking, peeling, and reduced performance over time. No-tear line sets feature a UV-resistant outer layer designed to withstand prolonged outdoor exposure, helping preserve insulation quality and system efficiency. This makes them an ideal choice for installations where line sets are exposed along exterior walls or rooftops.
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.
Ensure smooth refrigerant flow and HVAC system efficiency with this no-tear 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal insulation for high-performance HVAC applications.
No-tear line sets are designed to eliminate one of the most common frustrations during HVAC installations—insulation that rips, tears, or breaks down over time. Built with enhanced durability and UV-resistant insulation, these line sets maintain their integrity during handling, installation, and long-term outdoor exposure. The result is a cleaner install, better protection, and fewer callbacks compared to standard line sets.
Traditional line sets often use insulation that can tear easily when pulled through walls, around corners, or across rough surfaces. No-tear line sets are engineered with a reinforced outer jacket that resists damage during installation, helping maintain insulation integrity from start to finish. This added durability not only improves installation efficiency but also reduces the need for repairs, tape, or replacement sections—saving time on the job and delivering a more professional final result.
Standard insulation can degrade when exposed to sunlight, leading to cracking, peeling, and reduced performance over time. No-tear line sets feature a UV-resistant outer layer designed to withstand prolonged outdoor exposure, helping preserve insulation quality and system efficiency. This makes them an ideal choice for installations where line sets are exposed along exterior walls or rooftops.
Ensure smooth refrigerant flow and HVAC system efficiency with this no-tear 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal insulation for high-performance HVAC applications.
No-tear line sets are designed to eliminate one of the most common frustrations during HVAC installations-insulation that rips, tears, or breaks down over time. Built with enhanced durability and UV-resistant insulation, these line sets maintain their integrity during handling, installation, and long-term outdoor exposure. The result is a cleaner install, better protection, and fewer callbacks compared to standard line sets.
Traditional line sets often use insulation that can tear easily when pulled through walls, around corners, or across rough surfaces. No-tear line sets are engineered with a reinforced outer jacket that resists damage during installation, helping maintain insulation integrity from start to finish. This added durability not only improves installation efficiency but also reduces the need for repairs, tape, or replacement sections-saving time on the job and delivering a more professional final result.
Standard insulation can degrade when exposed to sunlight, leading to cracking, peeling, and reduced performance over time. No-tear line sets feature a UV-resistant outer layer designed to withstand prolonged outdoor exposure, helping preserve insulation quality and system efficiency. This makes them an ideal choice for installations where line sets are exposed along exterior walls or rooftops.
Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.
ACiQ designs AC systems that are based on principles learned from nature: clean, energy-efficient, and quiet. ACiQ systems are built in a such a way that they are easily adapted to fit multiple variations a homeowner needs. ACiQ offers technology in mini-split and full split inverter system offerings that provide the smartest way to buy and save on your home’s comfort solution, so that it meets the needs of your family. ACiQ specializes in home comfort, regardless of your needs.
