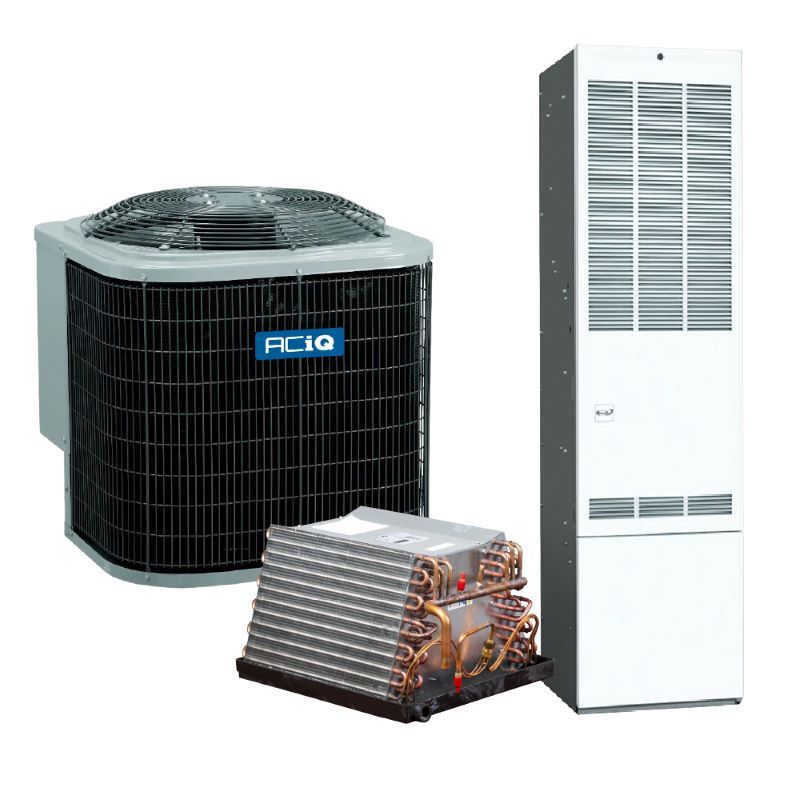

Our mobile home air conditioner and furnace system features an ACiQ air conditioner, 80% AFUE furnace, and mobile home coil with TXV. Plus you can add either a 30ft or 50ft copper line set.
ACiQ 5 Ton Uncased Downflow Mobile Home Coil with TXV | Copper
OVERVIEW
The ACiQ-5919UDXBCA coil is designed to be a perfect fit for many mobile and manufactured home HVAC split system applications. Designed with sweat fit/braze fittings and a sturdy, compact design, this downflow evaporator coil allows for a quick and easy installation process with compatible equipment.
QUICK FACTS
5 ton downflow evaporator coil
Designed for mobile and manufactured home use only
Compatible with both AC-only and heat pump condensers
Sturdy and compact design
Rifled copper tubing, enhanced aluminum fins
Left-hand refrigerant and plumbing connections
Heavy duty polypropylene drain pans
AHRI certifiable with all brands of A/C and heat pump systems
ETL listed for use with both R-22 and R-410A when proper metering device is used
Downflow plate kit included
5 TON
The ACiQ-5919UDXBCA evaporator coil is rated to be compatible with condensers with up to 5 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser.
Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290℉ +/-5℉. Specify metal drain pans for these applications.
Ensure optimal refrigerant flow and HVAC efficiency with this 50-foot insulated line set. Designed for a seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set provides durability, flexibility, and superior thermal insulation for reliable system performance.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 7/8" suction line (SL) for efficient refrigerant transfer. ✔ Pre-Insulated for Efficiency:3/8" thick insulation minimizes energy loss and condensation buildup. ✔ Versatile Application: Ideal for heat pumps and conventional split systems. ✔ Easy Installation:Flexible and durable copper tubing allows for smooth routing and secure connections. ✔ Extended 50-Foot Length: Perfect for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, designed for long-lasting performance and energy efficiency.
30 Feet of 3/8" x 7/8"
Ensure optimal refrigerant flow and HVAC system efficiency with this 30-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set provides durability, flexibility, and thermal protection for reliable performance.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 7/8" suction line (SL) ensure efficient refrigerant transfer. ✔ Pre-Insulated for Efficiency:3/8" thick insulation reduces energy loss and condensation buildup. ✔ Versatile Application: Compatible with heat pumps and conventional split systems. ✔ Easy Installation:Flexible and durable copper tubing allows for smooth routing and connection. ✔ Standard 30-Foot Length: Ideal for a variety of residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, designed for long-lasting performance and efficiency.
Style Crest-Revolv MG1E 80% 77,000 BTU Mobile Home Gas Furnace with Coil Cabinet - R454B Compatible
OVERVIEW
The Style Crest-Revolv MG1E-B077F1ABM1 is a good solution for many manufactured or mobile home gas furnace applications. With its easy installation procedures, low maintenance, and included LP conversion kit, the MG1E-B077F1ABM1 will save you money both up front and over time.
QUICK FACTS
77,000 BTU, 80% natural gas furnace
Can generally heat a small to medium mobile home in ideal applications
Compatible with R410A and R454B refrigerant
Natural gas out of the box, but comes with an LP kit for field installation if needed
Low maintenance requirements
AC coil cabinet included with purchase (condenser and coil sold separately)
Efficient ECM blower motor
77,000 BTU, 80% AFUE
With a system input of 77,000 BTU, The Style Crest-Revolv MG1E-B077F1ABM1 furnace can generally heat small to medium mobile homes in ideal applications. With a basic efficiency rating of 80% AFUE, this input equates to an output of 61,600 BTU, and 80% of the fuel going into the unit is contributed to heating your home and the remaining 20% of the fuel is lost out of the flue venting and is used up in normal furnace operations. If you are coming from our site’s sizing calculator, please note that it is a good idea to upsize any calculation to compensate for limited insulation and other factors that cause a mobile home to differ from traditional home sizing. If you have any questions, please contact us. Please note that this furnace is intended to only be used in mobile and manufactured homes and requires a straight flue pipe without any elbows.
Warranty
Revolv gas furnaces come with 2 year parts, and 10 year heat exchanger warranty when registered online through the manufacturer and with an installation that follows your state and local codes.
Installation and Maintenance
The Style Crest-Revolv MG1E-B077F1ABM1 furnace is designed to be easily installed for a faster process, lowering labor costs. While this furnace is natural gas out of the box, a propane conversion kit is included in this package to be field-installed if needed with no additional material cost, saving you money. With its sealed motor bearings, reliable burner controls, modern hot surface ignitor, and sealed combustion, this furnace has low maintenance requirements, providing the peace of mind that your unit will reliably heat your home even in the coldest winter months.
You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ 3 Ton 13.4 SEER2 Central Air Conditioner Condenser - R410A Single Stage
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ 5 Ton Uncased Downflow Mobile Home Coil with TXV | Copper
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
50 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
30 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Many buyers report straightforward installation, sometimes completed over a weekend, with systems operating reliably for over 2 years and even 7 years with only routine maintenance, and one homeowner saving over $6,000 compared to an $8,800 contractor quote. Performance is described as effective and economical, but repeated concerns include very loud operation, minor shipping or cosmetic damage, wiring not connected at the control board, tracking and return delays, and occasional fit issues with components like an A-coil.
