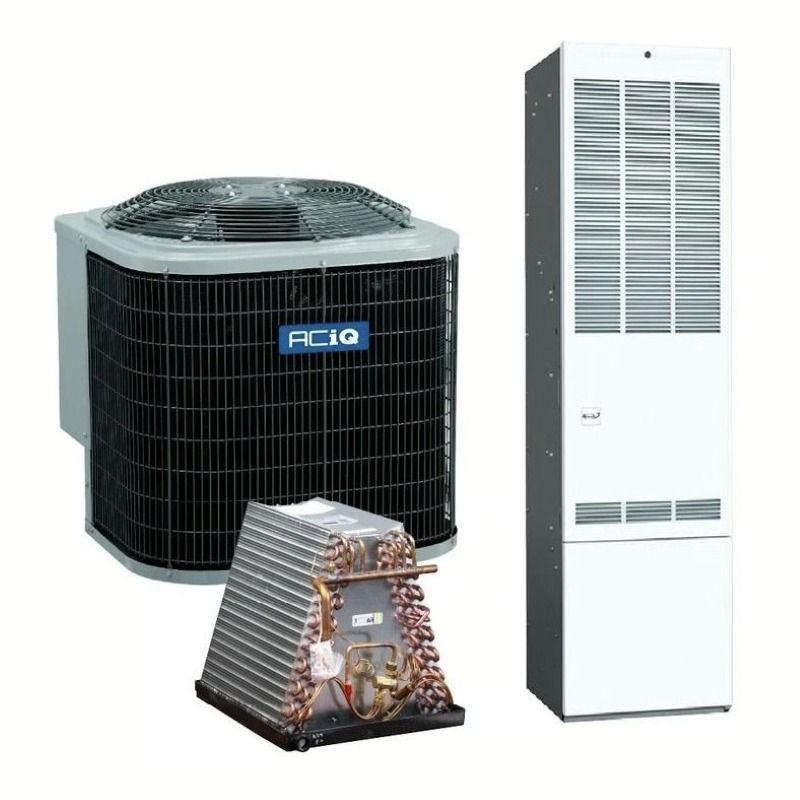

Our mobile home air conditioner and furnace system features an ACIQ air conditioner, 80% AFUE furnace, and mobile home coil. Plus you can add either a 30ft or 50ft copper line set.
ACiQ Standard Mitigation Refrigerant Detection System (RDS) Kit - R32 & R454B
ACiQ RDS Kit Features
Kit includes all components needed for RDS installation
Sensor wire length of 8 feet, and mitigation board power wire length 3 feet
Flexible installation location, ideal for installs on existing equipment
System designed to last the useful life of the evaporator coil
Optional relay for controlling additional components
One Smart Thermostat for ACiQ Communicating & Traditional HVAC Systems
The ACiQ TL04-1 Smart Thermostat gives you the flexibility to control your HVAC system in two different ways. Use it as an advanced communicating thermostat with compatible ACiQ equipment or set it up as a traditional 24V thermostat for most conventional heating and cooling systems. Built-in Wi-Fi, an easy-to-use touchscreen, and smart-device control through the ACiQ Home app make it simple to manage your comfort at home or away.
Key Benefits
Communicating & 24V Control - Use with compatible ACiQ communicating equipment or as a traditional 24V thermostat.
Ideal for ACiQ Inverter Systems - HA/HB communication lets compatible ACiQ equipment communicate directly with the thermostat.
ACiQ Home App Control - Adjust temperatures and manage your comfort from a compatible smartphone or tablet.
Broad HVAC Compatibility - Works with most traditional 24V heating, cooling, and heat pump systems.
Easy Touchscreen Control - A modern touchscreen makes everyday temperature and system adjustments simple.
Smarter Comfort. Sleek Control.
The ACiQ TL04-1 Smart Thermostat is engineered to bring precise, intelligent control to your home’s HVAC system. Compatible with both standard 24V wiring and HA & HB communication protocols, it delivers flexibility for new builds or system upgrades.
One Thermostat, Two Ways to Control Your HVAC System
What makes the TL04-1 different is its ability to work as either a communicating or traditional thermostat. Pair it with compatible ACiQ equipment using HA/HB communication for direct communication between the thermostat and HVAC system, or configure it for traditional 24V control with most conventional HVAC equipment. This flexibility makes the TL04-1 a smart choice whether you're building a new ACiQ system or upgrading the thermostat in an existing home.
Get More from Compatible ACiQ Inverter Equipment
When connected to compatible ACiQ equipment through HA/HB wiring, the TL04-1 becomes a communicating thermostat that allows the thermostat and HVAC equipment to share information directly. This makes it an ideal control option for compatible ACiQ inverter systems and helps the equipment take advantage of its advanced operating capabilities.
Control Your Comfort with the ACiQ Home App
Connect the TL04-1 to the ACiQ Home app for convenient control from a compatible smartphone or tablet. Adjust temperatures and manage comfort settings remotely, giving you easy access to your HVAC system whether you're at home or away. The TL04-1 is also compatible with the NetHome Plus app for smart-device control.
Also Works with Traditional 24V HVAC Systems
You don't need a communicating ACiQ system to use the TL04-1. It can also be configured as a traditional thermostat for most 24V HVAC systems, including compatible one- and two-stage heating and cooling equipment and heat pumps with auxiliary and emergency heat.
What's Included
ACiQ TL04-1 Smart Thermostat
M-Base
Trim Plate
Wire Labels
Screws & Anchors
Installation Guide
E Lite Equipment Pad 36" x 36" x 3"
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
High recycled plastic content
Subtle texture resists unit slide
Unaffected by UV or weather
Uniform ribbing transfers load evenly
Drillable for securing unit
Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
3/4" x 6' Electrical Whip – SKU: 84138
60A Non-Fused Disconnect – SKU: 83335
Surge Protector – SKU: ICM517
CPS Charging Adapter – SKU: 87-AD87
Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Ecobee Smart WiFi Thermostat with Alexa
The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.
With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.
Features
Not at your thermostat? No problem.
Adjust temperature and comfort settings easily from the ecobee mobile app on your Android and iOS devices, including Apple Watch.
Connects to your existing home network
Convenient Wi-Fi capabilities offer a secure and reliable connection.
Knows you have a life
Vacationing and forgot to let your ecobee know? Make a vacation event using the ecobee mobile app. If something’s wrong with your equipment, we can send you service alerts and reminders.
Control the volume
If it's getting a little loud for your taste, you can use the app to adjust the volume.
Built to last
ecobee thermostats are hardwired, which means your thermostat isn’t relying on a battery or your HVAC equipment to charge itself.
ACiQ 7-Day Programmable 2H/1C Thermostat
The ACiQ STN2320 7-Day Programmable 2H/1C Thermostat is a cost effective solution to temperature control! Designed with a bright blue backlight and large easy to read characters, ACiQ thermostats are easy to operate for all consumers.
Large, easy to ready clear LCD display with different backlight color options
Configurable with Electric or Gas Systems
Separate B & O terminals
Handles heating and cooling temperature swing adjustments separately, including 2nd stage adjustments
Toggleable 5 minute compressor delay protection
Temperature Range: 32°F-99°F (1°C-40°C)
Temperature Accuracy: ±1.8°F (±1°C)
ACiQ 5/1/1 Programmable 2H/1C Thermostat
The ACiQ 5/1/1 Programmable 2H/1C Thermostat is a cost effective solution to temperature control! Designed with a bright blue backlight and large easy to read characters, ACiQ thermostats are easy to operate for all consumers.
Large, easy to ready clear LCD display with different backlight color options
Configurable with Electric or Gas Systems
Separate B & O terminals
Handles heating and cooling temperature swing adjustments separately, including 2nd stage adjustments
Toggleable 5 minute compressor delay protection
Temperature Range: 32°F-99°F (1°C-40°C)
Temperature Accuracy: ±1.8°F (±1°C)
Standard 50 Feet of 3/8" x 3/4" - Black
Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer. ✔ Pre-Insulated for Efficiency:3/8" thick insulation minimizes energy loss and condensation buildup. ✔ Versatile Application: Compatible with heat pumps and conventional split systems. ✔ Easy Installation:Flexible and durable copper tubing allows for smooth routing and connection. ✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.
ACIQ 3 Ton Uncased Downflow Mobile Home Coil with TXV - R454B
OVERVIEW
The ACIQ-MH36BU3VWEC coil is designed to be a perfect fit for many mobile and manufactured home HVAC split system applications. Designed with sweat fit/braze fittings and a sturdy, compact design, this downflow evaporator coil allows for a quick and easy installation process with compatible equipment.
QUICK FACTS
3 ton downflow evaporator coil
R454B-refrigerant compatible
Designed for mobile and manufactured home use only
AHRI certifiable with all brands of air conditioners and heat pumps
For use with manufactured homes furnaces
Sturdy and compact design
Rifled aluminum tubing with enhanced aluminum fins
Left-hand refrigerant and plumbing connections
Heavy duty polypropylene drain pans
Downflow plate kit included
3 TON
The ACIQ-MH36BU3VWEC evaporator coil is rated to be compatible with condensers with up to 3 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser.
Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290℉ +/-5℉. Specify metal drain pans for these applications.
Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290°F +/-5°F. Specify metal drain pans for these applications.
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.
Style Crest-Revolv MG1E 80% 77,000 BTU Mobile Home Gas Furnace with Coil Cabinet - R454B Compatible
OVERVIEW
The Style Crest-Revolv MG1E-B077F1ABM1 is a good solution for many manufactured or mobile home gas furnace applications. With its easy installation procedures, low maintenance, and included LP conversion kit, the MG1E-B077F1ABM1 will save you money both up front and over time.
QUICK FACTS
77,000 BTU, 80% natural gas furnace
Can generally heat a small to medium mobile home in ideal applications
Compatible with R410A and R454B refrigerant
Natural gas out of the box, but comes with an LP kit for field installation if needed
Low maintenance requirements
AC coil cabinet included with purchase (condenser and coil sold separately)
Efficient ECM blower motor
77,000 BTU, 80% AFUE
With a system input of 77,000 BTU, The Style Crest-Revolv MG1E-B077F1ABM1 furnace can generally heat small to medium mobile homes in ideal applications. With a basic efficiency rating of 80% AFUE, this input equates to an output of 61,600 BTU, and 80% of the fuel going into the unit is contributed to heating your home and the remaining 20% of the fuel is lost out of the flue venting and is used up in normal furnace operations. If you are coming from our site’s sizing calculator, please note that it is a good idea to upsize any calculation to compensate for limited insulation and other factors that cause a mobile home to differ from traditional home sizing. If you have any questions, please contact us. Please note that this furnace is intended to only be used in mobile and manufactured homes and requires a straight flue pipe without any elbows.
Warranty
Revolv gas furnaces come with 2 year parts, and 10 year heat exchanger warranty when registered online through the manufacturer and with an installation that follows your state and local codes.
Installation and Maintenance
The Style Crest-Revolv MG1E-B077F1ABM1 furnace is designed to be easily installed for a faster process, lowering labor costs. While this furnace is natural gas out of the box, a propane conversion kit is included in this package to be field-installed if needed with no additional material cost, saving you money. With its sealed motor bearings, reliable burner controls, modern hot surface ignitor, and sealed combustion, this furnace has low maintenance requirements, providing the peace of mind that your unit will reliably heat your home even in the coldest winter months.
3 Ton 14.3 SEER2 ACIQ Mobile Home Air Conditioner Condenser - R454B
OVERVIEW
The ACIQ R5A5S36AKAWA-MH is a standard AC-only mobile home condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.
QUICK FACTS
Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
3 Ton 14.3 SEER2 ACIQ Mobile Home Air Conditioner Condenser
Can cool up to a medium size house in average conditions
Single stage compressor
Pre-charged with R454B refrigerant
Filter drier included to be field-installed
3 Tons
The ACIQ R5A5S36AKAWA-MH mobile home air conditioner condenser has an output of 3 tons, generally enough to cool up to a medium size house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.
14.3 SEER2
The ACIQ R5A5S36AKAWA-MH mobile home air conditioner condenser is rated at 14.3 SEER2, making it between 5-7% more efficient than standard 13.4 SEER2 units, saving you money in electric bills over the entire lifetime of your unit.
Warranty
ACIQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.
Durability
The cabinet of ACIQ units are extremely durable. On the R5A5S36AKAWA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.
Disclaimer: This condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-557-9206 if you have any questions.
All ACIQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.
Upgrade to a Mobile Home System!
Upgrading to an HVAC system could mean saving thousands of dollars over its lifetime. We offer Mobile Home specific systems so you can get exactly what you need, nothing more. At HVACDirect.com, we make it easy to find the system you need with up to $0 down financing and an additional 3% discount on orders over $2,000!
Quiet Comfort
ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.
High Efficiency
ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.
Longer life, longer warranty
ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.
You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.
This product and many products on our site may contain a chemical known to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACIQ 3 Ton Uncased Downflow Mobile Home Coil with TXV - R454B
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ Standard Mitigation Refrigerant Detection System (RDS) Kit - R32 & R454B
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
3 Ton 14.3 SEER2 ACIQ Mobile Home Air Conditioner Condenser - R454B
Feature
Spec
SKU
R5A5S36AKAWA-MH
Refrigerant Charge
15'
Weight
176
Manufacturer
ACiQ
Replaces
R4A5S36AKAWA-MH
UPC
634707308475
Equivalent
R5A5S36AKAWA, R5A5S36AKDWA
Cooling BTU
36000
Maximum CFM
3800
Decibel Level (dBA)
72
Motor RPM
825
Horsepower
1/10 HP
Refrigerant
R454B
SEER2
14.3
Condenser Stages
Single Stage
Compressor Type
Scroll
Liquid Valve Size
3/8"
Suction Valve Size
3/8" 7/8"
Electrical
208 / 230 V. 1 Phase 60 Hz
Max Breaker Size
30 Amps
Min. Breaker Size
17.6 Amps
Tonnage
3 Ton
Height
31 11/16"
Width
31 3/16"
Depth
31 3/16"
Warranty
10 Year Parts Limited Warranty with Online Registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
Feature
Spec
SKU
LS38343830
Weight
35
Manufacturer
Online Supply
UPC
na
Liquid Line
3/8"
Suction Line
3/4"
Suction Line Insulation Thickness
3/4"
Length
30 feet
Color
Black
50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
