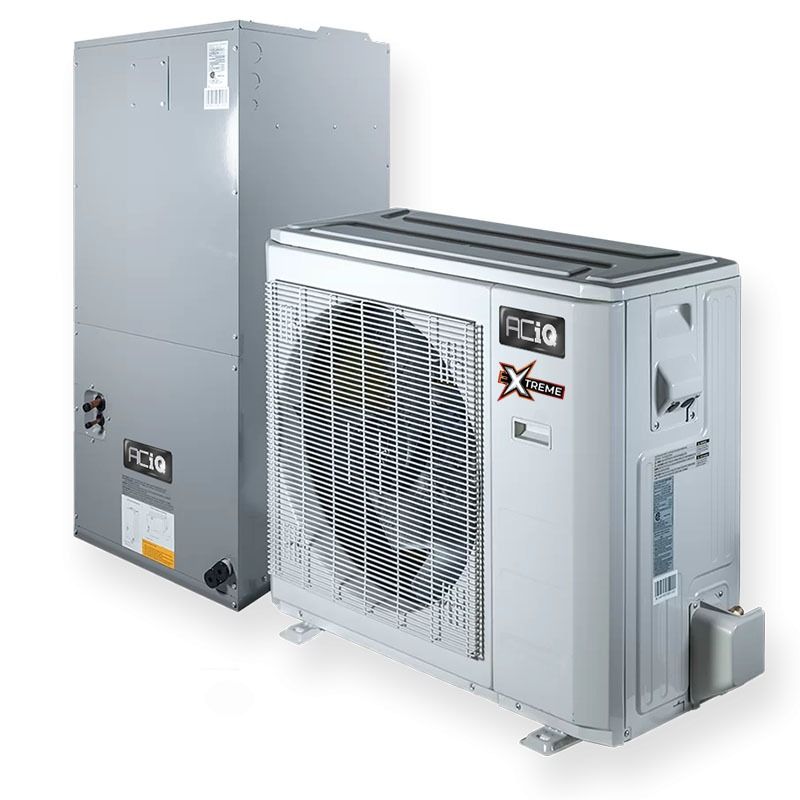

ACiQ 3 Ton 18 SEER Ducted Central Air Inverter Heat Pump Split System | Extreme Heat

By

ACiQ

Model

ACiQ-36-AHB / ACiQ-36-HPB

ID

84668

Rating:
100 % of 100
Availability: In Stock - Ready to Ship

Authorized ACiQ Dealer

AHRI Certified

AHRI Number:206315638

Suggested Retail $4,414.25
Special Price $3,150.00

Free Shipping

Required Fields *

Customize ACiQ 3 Ton 18 SEER Ducted Central Air Inverter Heat Pump Split System | Extreme Heat
3 Ton 18 SEER ACiQ Central Heat & Air Inverter Condenser | Extreme Heat   + $2,047.00
3 Ton ACiQ Central Air handler
3 Ton ACiQ Central Air handler   + $1,103.00
  • Buy 5 for $393.00 each and save 5%
  • Buy 10 for $372.00 each and save 10%
3 Ton 16.5 SEER ACiQ Stealth Central Heat Pump Split System - ACiQ-36-AH / ACiQ-36-HP

$3,150.00

Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

ACiQ's Next Gen Heat Pump systems give you the best of both worlds – a self-adjusting, mini-split-style inverter condenser matched to a communicating air handler that attaches to your existing ductwork.

How is it different from a traditional heat pump?

  • Traditional heat pumps rely on expensive heat strips below 30deg F
  • ACiQ Next Gen saves up to 75% in temps below 30deg F
  • Variable BTU Inverter ramps up and down to match demand
  • Smart system with soft startups to maximize efficiency
  • OK to size for heat – will not short cycle during cooling
  • Extreme Heat technology keeps you warm to -22 and beyond

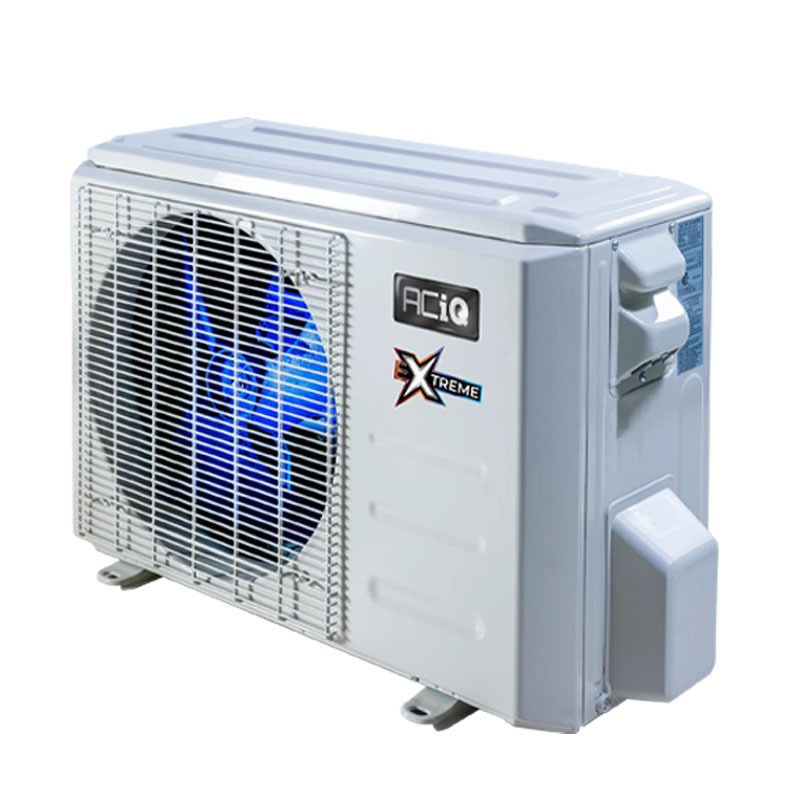

3 Ton 18 SEER ACiQ Central Heat & Air Inverter Condenser | Extreme Heat

OVERVIEW

Inverter Condenser - Inverter technology changes AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.

Learning system - This system is packed with sensors and controls air temperature inside and outside, system performance, duct pressure, refrigerant temperature. The first time you start your system it enters a learning mode keeping air moving across the sensors and storing information so future startups and run cycles will be at max efficiency.

Size for heat - The self-adjusting inverter design allows you to size your system based on heat demand. With standard heat pumps, sizing for heat can mean a muggy house during summer. The ACiQ Next Gen 3-ton heat pump system automatically adjusts to run like a 2 ton or a 1 ton to keep you cool and dry.

Extreme Heat Technology - Extreme Heat means extended temperature range heating all the way down to -22°F. Traditional heat pumps don't make significant heat below about 30°F outside temperature, below that, they rely on expensive backup electric heat. The ACiQ Next Gen with Extreme Heat uses the inverter to vary the refrigerant flow, allowing for maximum heat extraction during extreme cold temperatures. The backup electric heat supplements the heat pump, and only takes over below -22°. The heat pump gives 100% at 0°F, and still gives 80% at -22°F, saving you up to 75% on cold weather heating bills.

QUICK FACTS

  • 12,000 BTU to 36,000 BTU variable output based on demand
  • Inverter heat pump system for use with ductwork
  • Efficient cooling from 5°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 85°F outdoor temperatures
  • Durable Gold Fin condenser coil coating
  • Quiet operation at even the highest workloads

36,000 BTU, 16 SEER2

With an efficiency rating of 16 SEER2, the variable output ACiQ-36-HPB will keep you comfortable across a wide range of conditions. Use our handy size calculator Here to determine the demand for your home. For cooling, this system can operate anywhere from 12,000 BTU to 36,000 BTU without short cycling. For heating, this system is capable of 28,000 BTU at -22°F all the way up to 58,588 BTU at 50°F. This increased range means it fits more possible applications.


Extreme Heat Base Pan Heater Technology

Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.

ACIQ IntelliHeat Base Pan Heater TechnologyACIQ IntelliHeat Base Pan Heater Technology

ACIQ Quality ConstructionACIQ Quality Construction

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.


Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

ACIQ Highest Efficiency CompressorACIQ Highest Efficiency Compressor

ACIQ Longer life, longer warrantyACIQ Longer life, longer warranty

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

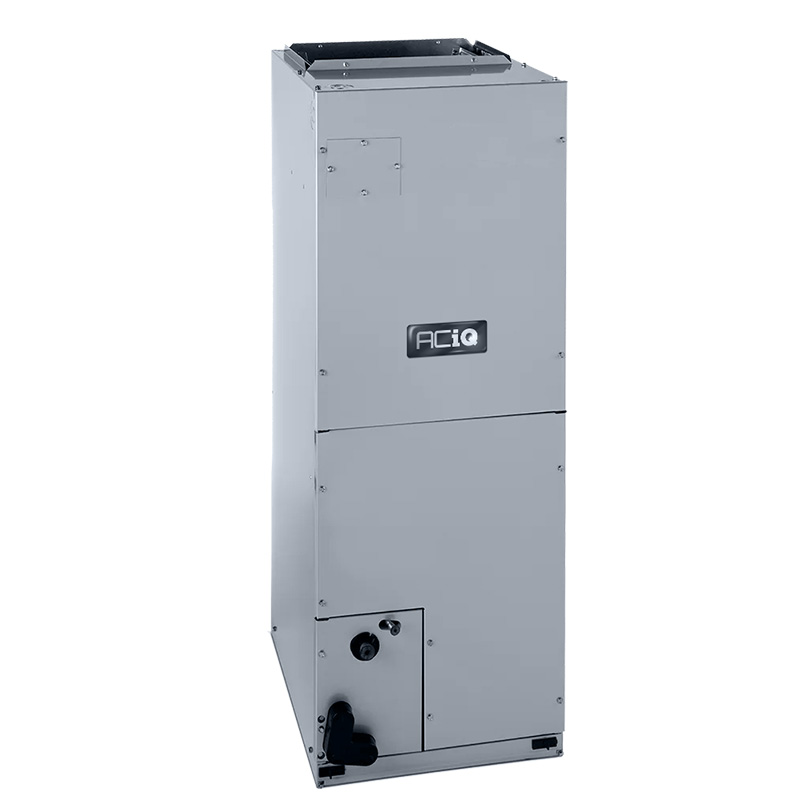

3 Ton ACiQ Central Air handler

Enhanced Comfort at Maximum Efficiency

The ACiQ-36-AHB air handler features a variable DC blower and communicating technology to maximize comfort and efficiency at the same time. The included smart thermostat communicates with the inverter condenser outside, and the variable air handler inside, allowing the system to self-adjust BTU output to maximize efficiency while providing ideal comfort. The air handler efficiently distributes heated and cooled air throughout your home by attaching to your existing ductwork.

  • 36,000 BTU, 3 ton central ducted air handler
  • Wired smart thermostat included
  • Or – use your preferred 24v thermostat
  • Variable DC blower
  • Upflow, dowflow, horizontal left or right
  • Manufactured Home and mobile home approved

Installation and Maintenance

Installation is very similar to installing any replacement air handler. Your technician will make electrical, refrigerant, thermostat and communication connections, plus, connect to your return and supply ductwork. The ACiQ Next Gen Air Handler is multi-positional (upflow, downflow or horizontal) and mobile-home approved. Any 24V thermostat with 2 stages of heating can control the system, although the supplied thermostat is recommended. You can add electric strip heat as a backup system for the coldest days of the year. The intelligent control board in the air handler displays fault codes in case part of the system requires maintenance.

Please note - in order to function as a heat pump, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle. To use straight electric heating, an electric heater coil is necessary and is also available at an additional cost.

30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set

Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.

50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set

Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Linesets are available in different lengths and diameters to fit most applications.

Pro1 T755 - 7 Day Programmable Thermostat - 3H/2C

The Pro1 700 family of thermostats offers the most commonly desired features at a great value. These models are easy to use and will provide years of reliable service.

  • 7 Day, 5/1/1 Programmable or Non-Programmable
  • Easy menu driven programming
  • Intuitive wake, leave, return, sleep programming icons
  • 4 sq. inch display
  • Blue back-light
  • Glow in the dark light button
  • Easy access battery compartment
  • Electric or Gas configurable
  • Separate B & O terminals
  • Separate heating and cooling swing (cycle rate) adjustments
  • Filter change indicator (select-able on or off)
  • Room temperature calibration adjustments
  • 5 minute compressor delay protection (select-able on or off)
  • Simple private label badge system
  • Easy wire color coded terminal blocks
  • Universal sub-base
  • Mounts on wall or junction box
  • Battery or 24V power
  • 5 year warranty
Ecobee Smart WiFi Thermostat with Alexa

The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.

With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.

Features

Not at your thermostat? No problem.

Adjust temperature and comfort settings easily from the ecobee mobile app on your Android and iOS devices, including Apple Watch.

Connects to your existing home network

Convenient Wi-Fi capabilities offer a secure and reliable connection.

Knows you have a life

Vacationing and forgot to let your ecobee know? Make a vacation event using the ecobee mobile app. If something’s wrong with your equipment, we can send you service alerts and reminders.

Control the volume

If it's getting a little loud for your taste, you can use the app to adjust the volume.

Built to last

ecobee thermostats are hardwired, which means your thermostat isn’t relying on a battery or your HVAC equipment to charge itself.

Ductless Mini Split Installation Kit for Condensers

This ductless mini-split installation kit for condensers includes a whip, surge protector, disconnect safety switch, telescoping wall sleeve, and charging adapter. This installation kit has all of the accessories that you will need to have your mini split condenser professionally installed.

Includes:

  • 1/2" x 6' electrical whip - SKU: 84136
  • 60A non-fused disconnect - SKU: 83315
  • Surge Protector - SKU: ICM517
  • CPS Charging Adapter - SKU: AD87
  • Wall Sleeve - SKU: NFP-75

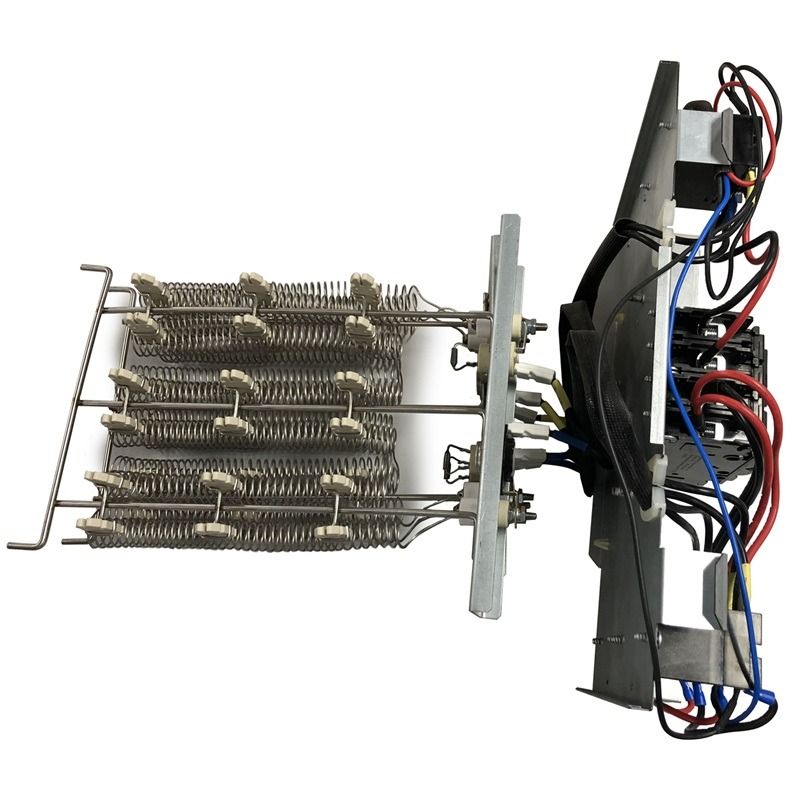

ACiQ 5 Kilowatt 16,200 BTU Heater Coil
The EAH-05B is a 5kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 16,200 BTU, this heater coil can generally cover a small house in ideal climates. Please note that this heater coil requires one 30 amp breaker to function. Compatible Air Handlers ACiQ-24-AH ACiQ-36-AH ACiQ-48-AH
ACiQ 8 kilowatt 26,000 BTU Heater Coil
The EAH-08B is a 8kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 26,000 BTU, this heater coil can generally cover an average house in ideal climates. Please note that this heater coil requires one 40 amp breaker to function. Compatible Air Handlers ACiQ-24-AH ACiQ-36-AH
ACiQ 10 Kilowatt 34,100 BTU Heater Coil

The EAH-10B is a 10kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 34,100 BTU, this heater coil can generally cover an average house in ideal climates. Please note that this heater coil requires one 60 amp breaker to function.

Compatible Air Handlers
  • ACiQ-24-AH
  • ACiQ-36-AH
  • ACiQ-48-AH

ACiQ 15 Kilowatt 51,150 BTU Heater Coil
The EAH-15B is a 15kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 51,150 BTU, this heater coil can generally cover an average house in ideal climates. Please note that this heater coil requires one 60 amp and one 30 amp breaker to function. Compatible Air Handlers ACiQ-36-AH ACiQ-48-AH
Wall Mount Bracket for Condensers 30"

This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.

Features:

  • Steel: 10 GA
  • Powder-coated grey Finish
  • Load rating: 600 lbs per pair
  • Holes will accommodate anchors for installation
  • Warranty: 1 year
  • ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)

Product Specifications

More Information
3 Ton 18 SEER ACiQ Central Heat & Air Inverter Condenser | Extreme Heat
SKU ACiQ-36-HPB
Refrigerant Charge 25'
Weight (in lbs) 166.000000
AHRI Certificate Number 208106636
Brand/Manufacturer ACiQ
HSPF 10.4
HSPF2 9.5
Cooling BTU 36000 BTU
Heating BTU 40000 BTU
Maximum CFM 1082.35
Decibel Level (dBA) 64
Electric Heat Heat Pump
Energy Star Yes
Refrigerant R410A
SEER1 (Efficiency) 18
SEER2 (Efficiency) 16
EER 10.5
Compressor Type Rotary
Liquid Line 3/8"
Suction Line 3/4"
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 50 Amps
Min. Breaker Size 30 Amps
Tonnage 3 Ton
BTU/Tonnage 36,000 BTU/3 Ton
Mini-Split Type Multi-Positional
Min/Max Outdoor Temp for Heating -22~75
Min/Max Outdoor Temp for Cooling 5~122
Zone Compatibility Single Zone
Ambient Temperature Range -22~122
Height 52.48"
Width 37.48"
Depth 16.34"
Warranty 12 year compressor, 7 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
3 Ton ACiQ Central Air handler
SKU ACiQ-36-AHB
Weight (in lbs) 155.640000
AHRI Certificate Number 208106636
Brand/Manufacturer ACiQ
HSPF 11
Cooling BTU 36000 BTU
Heating BTU 36000 BTU
Maximum CFM 1082.35
Decibel Level (dBA) 45
Electric Heat Heat Pump
Electric Backup Heat Capabilities (Optional) 5 Kilowatts, 10 Kilowatts, 15 Kilowatts
Refrigerant R410A
SEER1 (Efficiency) 18-20
EER 12.5
Liquid Line 3/8"
Suction Line 3/4"
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 15
Min. Breaker Size 4.5
System Tonnage 3 Ton
BTU/Tonnage 36,000 BTU/3 Ton
Mini-Split Type Multi-Positional
Min/Max Outdoor Temp for Heating 5~122
Min/Max Outdoor Temp for Cooling 62~90
Zone Compatibility Single Zone
Height 49"
Width 21"
Depth 21"
Warranty 12 year compressor, 7 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
SKU LS38343830
Weight (in lbs) 35.000000
Brand/Manufacturer Online Supply
Liquid Line 3/8"
Suction Line 3/4"
Suction Line Insulation Thickness 3/4"
Length 30 feet
50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
SKU LS38343850
Weight (in lbs) 22.000000
Brand/Manufacturer Online Supply
Liquid Line 3/8"
Suction Line 3/4"
Suction Line Insulation Thickness 3/4"
Length 50 feet
Safety Information PROPOSITION 65 WARNING
Pro1 T755 - 7 Day Programmable Thermostat - 3H/2C
SKU T755
Weight (in lbs) 1.000000
Brand/Manufacturer Pro1 Technologies
Resources You will need Adobe® Acrobat® Reader to view PDF documents
Safety Information PROPOSITION 65 WARNING
Ecobee Smart WiFi Thermostat with Alexa
SKU EB-STATE6P-01
Weight (in lbs) 0.500000
Brand/Manufacturer ecobee
Energy Star Yes
Warranty 3 years
Resources
Safety Information PROPOSITION 65 WARNING
Ductless Mini Split Installation Kit for Condensers
SKU MSK001
Weight (in lbs) 15.000000
Brand/Manufacturer Online Supply
SEER2 (Efficiency) 22.3
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
ACiQ 5 Kilowatt 16,200 BTU Heater Coil
SKU EAH-05B
Weight (in lbs) 8.000000
Brand/Manufacturer ACiQ
Heating BTU 16,200
Electric Heat 5 Kilowatts
Electrical 208 / 230 / 240 Volts / 1 Phase
Phase Single Phase
Warranty 12 year compressor, 7 year parts with online registration
Safety Information PROPOSITION 65 WARNING
ACiQ 8 kilowatt 26,000 BTU Heater Coil
SKU EAH-08B
Weight (in lbs) 8.000000
Brand/Manufacturer ACiQ
Heating BTU 26,000
Electric Heat 8 Kilowatts
Electrical 208 / 230 / 240 Volts / 1 Phase
Phase Single Phase
Warranty 12 year compressor, 7 year parts with online registration
Safety Information PROPOSITION 65 WARNING
ACiQ 10 Kilowatt 34,100 BTU Heater Coil
SKU EAH-10B
Weight (in lbs) 8.000000
Brand/Manufacturer ACiQ
Heating BTU 34,100
Electric Heat 10 Kilowatts
Electrical 208 / 230 / 240 Volts / 1 Phase
Phase Single Phase
Warranty 12 year compressor, 7 year parts with online registration
Safety Information PROPOSITION 65 WARNING
ACiQ 15 Kilowatt 51,150 BTU Heater Coil
SKU EAH-15B
Weight (in lbs) 10.000000
Brand/Manufacturer ACiQ
Heating BTU 51,150
Electric Heat 15 Kilowatts
Electrical 208 / 230 / 240 Volts / 1 Phase
Phase Single Phase
Warranty 12 year compressor, 7 year parts with online registration
Safety Information PROPOSITION 65 WARNING
Wall Mount Bracket for Condensers 30"
SKU ACB-30
Weight (in lbs) 9.200000
Brand/Manufacturer Online Supply
Length 30"
Height 16"
Width 2"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING

Reviews 34

Write Your Own Review
You're reviewing:ACiQ 3 Ton 18 SEER Ducted Central Air Inverter Heat Pump Split System | Extreme Heat
Your Rating

Questions and Answers

Customer Questions
Who makes ACiQ?
ACiQ is made by one of the largest HVAC manufacturers in the world. With 150,000 employees in over 195 countries, their products improve the lives of millions of people around the globe. Their manufacturing is state of the art, with robotic assembly and computer assisted quality control. ACiQ has an extremely low rate of warranty return. With the features, performance and price it's the best value you can get on a mini split.
Is ACiQ better than Mitsubishi?
Mitsubishi makes great equipment, certainly. They were first to sell mini splits in the US, and they have a solid reputation. Yet ACiQ has higher SEER ratings, longer warranty, and extreme weather performance all the way down to -22! You can spend more on a mini split, but you can't get better value.
Who owns ACiQ?
1HVAC Energy is part of a family of companies with 80 years in the industry and a long reputation of putting customers first. They own ACiQ as well as a number of other quality brands.
Who will service it if something goes wrong?
You get lifetime phone support with every ACiQ mini split. Many problems can be handled by our experts without having to call in a serviceperson. If you need a serviceperson, ACiQ shares a manufacturer with Carrier mini splits. This means that highly trained technicians across the country are very familiar with these units.
Does the ACiQ air handler require brazed or flared line set connections?
The air handler will require a brazed connection while the outside condenser requires a flared connection. If you have any further questions, please call us and we will be happy to assist you.
How long would shipping and handling take?
Shipping time varies widely due to availability but when we do have it in stock and available you can expect this unit to ship within 2-4 business days and arrive shortly after that.   If you have any further questions please feel free to give us a call! Thanks
Does the ACiQ come pre charged with 410a?
Yes, this unit does come precharged with refrigerant however you will still need to purchase line sets and have a contractor vacuum the system before releasing the refrigerant.
For items ID 84668 and 84669, what would be the best thermostat?
Thank you for your question. For both of these units, any thermostat with single heat and single cool settings will work. However, if you plan on using heat strips, you will need any thermostat with two heat and single cool settings. For more assistance, please give us a call.
If the ACiQ heat pump works down to -22 degrees Fahrenheit why would you have optional heater coils?
Heat Pump technology is making rapid advances in recent years. But any heat pump system is still subject to the basic physical facts - the colder it gets outside, the longer it has to run to collect heat. You can run this model efficiently in far colder weather than a traditional style heat pump, but the efficiency and heat capability reduces with the outside temperature. The BTUs start to decrease below 17 degrees, and by the time outside temps reach -22 it is operating at just above 50% capacity. Below that, the heat pump turns off. Resistance heat provides electric heat no matter the outdoor temperature, and is sometimes referred to as 'emergency' or 'aux' heat. The climate in your area may mean that you don't need one, but at the price, it is good to have the second stage backup. If you have any further questions please feel free to give us a call! Thanks.
Does power for ACIQ next gen indoor unit come from the outdoor unit like Mitsubishi
The ACIQ next gen indoor air handler requires an electrical supply of 208/230v separate from the condenser. If you have any further questions please feel free to give us a call! Thanks.
For the 36k BTU unit, is the max refrigerant pipe length is 213 ft and 98.4 ft?
Thank you for your question. Yes, the refrigerant pipe data specified in the submittal specifies a max height difference of 98’, a refrigerant pre-charge of 25’ and a max pipe length 213'. As long as the refrigerant pipe parameters are followed, there are no performance issues. The submittal can be found under product specifications on the product page. If needed, your licensed installer can adjust the refrigerant levels. For more assistance, please give us a call.
Will both models of the Nest Thermostat work with this system?
Thank you for your question. Yes, the Nest thermostat will work with any commercial 24v thermostat. When connecting this thermostat, please follow the guidelines in the QuickStart thermostat wiring guide, which is located under resources in the product specifications section of the product page. Be sure to change the O/B setting to energize for heat. By default the heat pump setting in the Nest energizes on cooling. For more assistance, please give us a call.
Why does this 3 ton unit require a minimum 41 Amp breaker? My existing heat pump runs on a 30 Amp breaker and only draws 17 Amps (full load amps). Do I need to upgrade my circuit breaker?
It does require the larger breaker for two reasons. The first is the included basepan heater. This resistance element prevents coil freezing during the coldest temperatures and ensures a long service life. The second reason is the Hyper Heat extended heating performance. When conditions call for heat in extremely low outdoor temperature, the Hyper Heat mode keeps the condenser running at full power for long periods of time. To maintain this high-performance mode over time, you need the correct amp draw. Bear in mind that it does not always mean that it uses more power than your old model. Except in the rare conditions stated above, this heat pump is using inverter technology to ramp down and only use the minimum power needed to meet demand. This means that most of the time, it is using a fraction of the current older single stage or 2 stage heat pumps would use. This also applies to the same savings for cooling mode as well. If you have any further questions, please call us and we...
Is the air handler multi-positional?
Hello, yes, this air handler is mult-positional per the specifications section. If you have any further questions please feel free to give us a call! Thank you.
Did you find what you were looking for?

Related Posts

See What Our Customers are Saying
