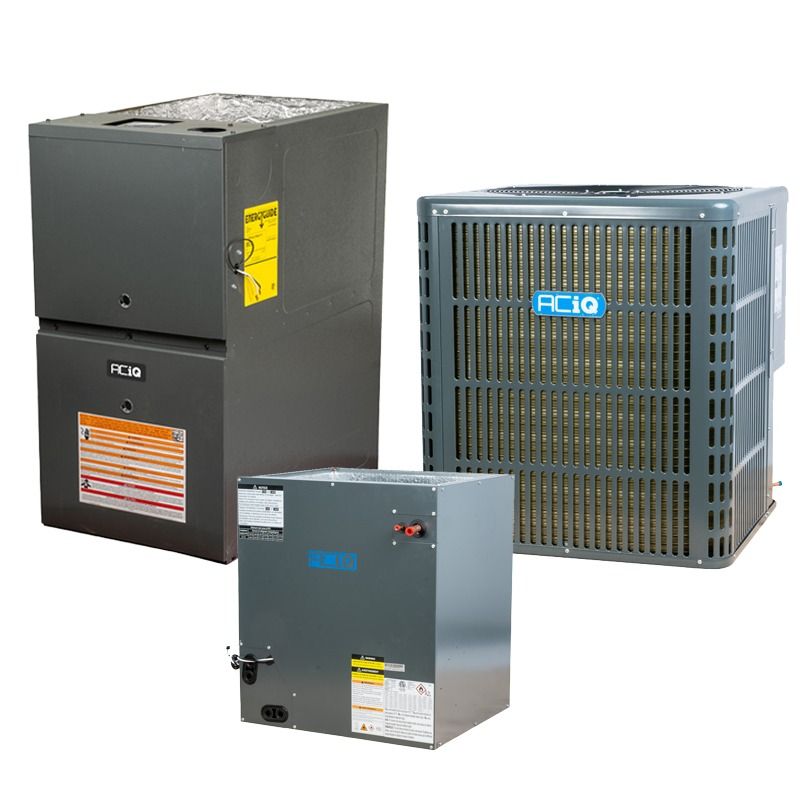

ACiQ 4 Ton 14 SEER2 80% AFUE 100,000 BTU Furnace & AC System - R32 Upflow/Horizontal
Required Fields *
By
ACiQ
In stock
Model
AC-I-48AC14 / AC-I-4860ACL-21 / AQ-GR9T801005CN
ID
225601
Was $4,736.00
Your Low Price $3,940.00
Free Shipping
Affordable Central HVAC Solutions for Any Home
An ACiQ furnace and air conditioner system is the perfect HVAC system choice for any size of home. With an extensive selection of AHRI-rated system combinations available, you can depend on ACiQ to provide you with the right central furnace and air conditioning system for all your heating and cooling needs.
FEATURES
- 4 ton 14.3 SEER2 air conditioning condenser with 80% 100,000 BTU furnace
- Pre-charged with R32 refrigerant
- Can be installed in upflow and horizontal orientations
- R32 refrigerant leak mitigation kit included
- Warranties (with online registration):
- Air Conditioner: 12 years compressor and 7 years parts
- Evaporator Coil: 7 years parts
- Furnace: Lifetime heat exchanger, 10 years parts, and 10 years no hassle unit replacement

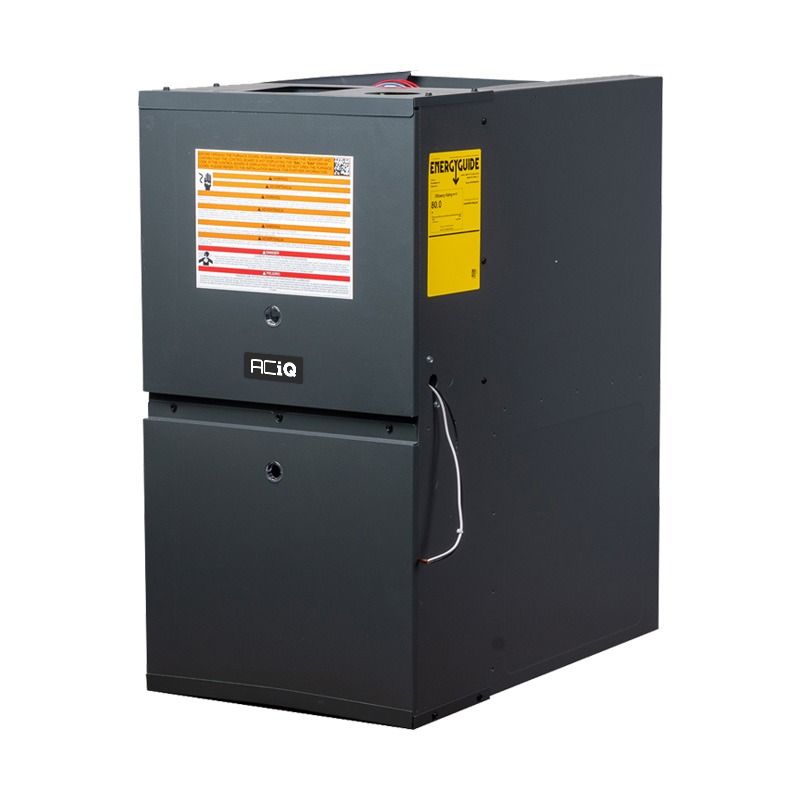

100,000 BTU 80% AFUE Two Stage Gas Furnace - 21" Width - Upflow/Horizontal
OVERVIEW
The AQ-GR9T801005CN ACiQ gas furnace features high-quality construction and efficient operation at a great value. The AQ-GR9T801005CN two-stage, 9-speed furnace utilizes ACiQ's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the ACiQ AQ-GR9T801005CN.
QUICK FACTS
- This furnace is ideal to heat a medium to large house (depending on climate)
- 100,000 BTU 80% efficient natural gas furnace
- Requires metal flue venting
- Can be used in the upflow or horizontal orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
100,000 BTU
The AQ-GR9T801005CN ACiQ gas furnace is 100,000 BTU's. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 80,000 BTU's (100,000 X 80% AFUE) per hour. In ideal climate conditions, this 100,000 BTU furnace is usually used to heat a medium to large house.
80% Efficiency Rating
The AQ-GR9T801005CN ACiQ gas furnace is 80% efficient, and the standard furnace efficiency on the market today. This means that 80% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 80% furnaces must be vented using metal flue venting, while anything higher than 90% efficient must be vented using plastic/PVC venting.
Please note that this furnace does not comply with California Low NOx or Ultra-Low NOx regulations. For all Low NOx furnaces, click here. For all Ultra-Low NOx furnaces, click here. If you have any questions, please contact us.
Two Stage Furnace
The AQ-GR9T801005CN ACiQ gas furnace is a two stage furnace that has two heating outputs on the burner: full output on colder winter days and a lower output for milder days that the furnace doesn't have to run quite as much. Two stage furnaces allow for a more even heat distribution, as the furnace will only kick on the higher stage if the indoor temperature is more than a few degrees away from the desired temperature. Since the lower stage will be used more often, the AQ-GR9T801005CN will run quieter than a single stage system. While the majority of the benefits of a two stage feature on a furnace are comfort based, the efficiency of the furnace is slightly higher due to it burning less fuel at its lower stage.
Natural Gas or LP Furnace
From the factory, the AQ-GR9T801005CN runs on natural gas. However all ACiQ gas furnaces can be converted to propane using the furnace's corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.
9-Speed ECM Blower Motor
Instead of the last generation PSC blower motor, the AQ-GR9T801005CN utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.
Warranty
With installation that follows your state and local codes and with online registration, all ACiQ furnaces come with a 10-year unit replacement, 10-year parts, and lifetime heat exchanger warranty through the manufacturer.
Durable Hot Surface Igniter
The hot surface igniter on modern ACiQ furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.
Self-Diagnostic Control Board
The ACiQ brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.
Heavy Gauge Steel Cabinet
The heavy-gauge steel cabinet on new ACiQ furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.
Ease of Installation
The value of modern ACiQ furnaces doesn't end at efficiency. Today's ACiQ furnaces feature many different connection options to reduce installation. The AQ-GR9T801005CN model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.

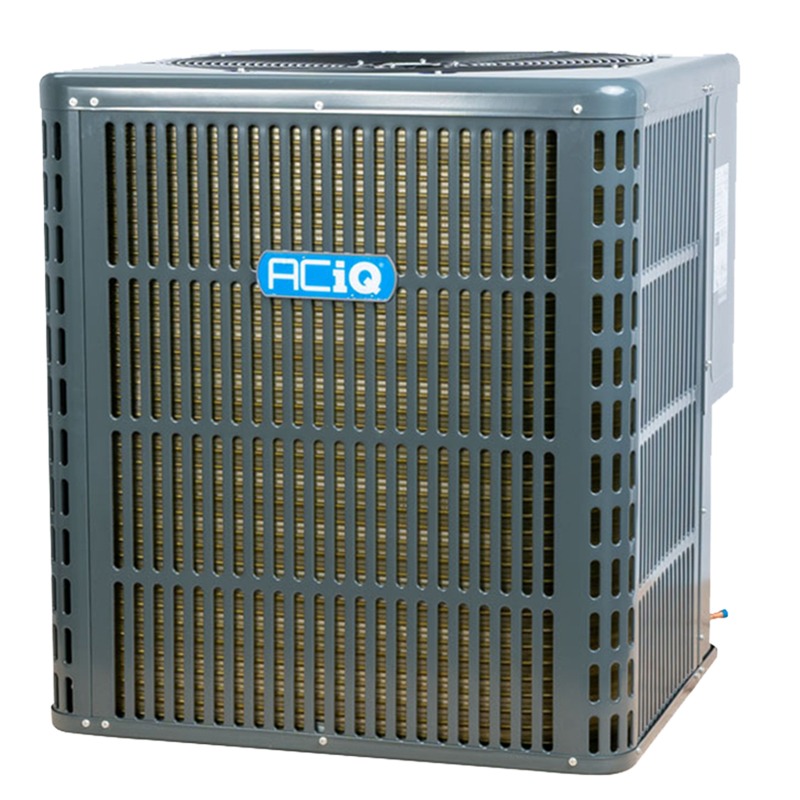

ACiQ 4 Ton 13.8 SEER2 Central Air Conditioner Condenser - R32
Reliable Home Cooling Comfort
The ACiQ AC-I-48AC14 is a 4-ton air conditioner condenser designed to deliver consistent comfort throughout the year. With its advanced technology and SEER2 rating, it provides powerful yet economical cooling, making it an excellent choice for homeowners seeking reliability and performance.
Features
- 4 ton, 48,000 BTU Cooling capacity
- Can cool large homes in various climates
- Pre-charged with R32 refrigerant
- Quiet outdoor sound rating
- Corrosion-resistant design help withstand outdoor exposure
- TXV-controlled A‑coil support better humidity control and smoother airflow, enhancing overall comfort
3 Tons
The ACiQ AC-I-48AC14 is a 4 ton (48,000 BTU) central air conditioner condenser that uses R32 technology to deliver 13.8 SEER2 cooling performance while reducing energy consumption. This top-discharge, cooling-only outdoor unit is designed for quiet, reliable residential comfort. Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work.
Warranty
ACiQ offers a 12 year compressor and a 7 year parts limited warranty. Please note that in order for the warranty to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-551-2469 if you have any questions.

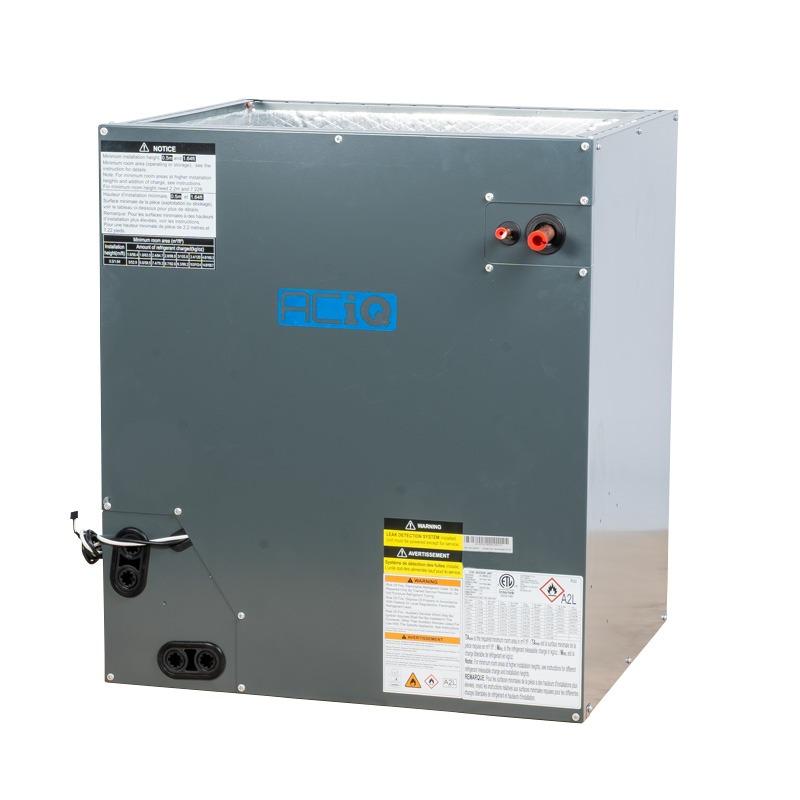

ACiQ 3.5 to 5 Ton 21" Width Multi-Positional Evaporator Coil - Cased - R32
The ACiQ AC-I-4860ACL-21 is a high-performance cased evaporator coil designed for maximum durability and installation flexibility. Optimized for systems ranging from 3.5 to 5 tons, this coil is the perfect indoor companion for both air conditioning and heat pump outdoor units.
Key Features
- Multi-Position Design: Engineered for upflow, downflow, and horizontal applications, ensuring it fits your specific ductwork layout.
- Corrosion Resistance: Features an all-aluminum construction that significantly reduces the risk of formicary corrosion compared to traditional copper.
- Pre-Installed TXV: Includes a factory-installed Thermal Expansion Valve (TXV) for precise refrigerant metering and improved system efficiency.
- 21" Cabinet Width: A standard width that aligns perfectly with common furnace sizes for a clean, professional-looking install.
- AHRI Certified: Tested to meet industry standards for performance and reliability when paired with compatible ACiQ equipment.
- Compatible with R32: Comes with a leak mitigation control kit for handling R32 refrigerant.
Warranty
ACiQ offers a 7 year parts limited warranty. Please note that in order for the warranty to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.
Customers Say
Buyers report quiet operation and improved efficiency, including a 96% two-stage 60,000 or 80,000 BTU models replacing furnaces as old as 25 years, with one 80,000 BTU unit heating a 1,300 sq ft home in low 20°F weather and another owner estimating bills could drop to 40–50% of prior costs. Installation is often described as straightforward—even first-time DIY installs taking 6 to 22 hours—but some noted loose screws, minor shipping damage, wiring cleanup, sensor error codes (EE1), and setup steps such as adjusting A2L or R32 settings.
AI Generated from the text of customer reviews
Top reviews
- Nice...So far so good running nice...
Posted on
- Working so farThe ID fan pressure sensor was not working on the first day, giving an EE1 error, but it cleared by itself on the next day.
Posted on
- New FurnaceGreat unit! Showed up on time and in great condition. Packaging was excellent and very secure. All pieces were included. Got the plenum kit which came with a lot of metal screws too. Unit hooked up and is working great! I was without heat so having these guys to talk with and sort out details was key to my purchase. Contacting them during shipping to make sure everything was on time was easy and no hassle. Unit was well priced and I feel I got a great deal over all and isn't that what it's all about?
If I ever upgrade and add A/C I'll be buying from here only. Once you treat me right you keep my business until you don't. Only fair.Posted on
- Great furnaceThis furnace is replacing a Goodman I installed in 2002. Everything went smoothly but I wished it would be easier to read the wiring markers. I pretty much had to lay on the floor to see them because they're marked on the bottom not the top of the connections.
Posted on
- 30 year old Furnace replacementFirst time installing a Goodman, I have replaced quite a few of the older models. Everything hooked up fine only issue was shutting off the R32 sensor , didn't realize i needed to do that until it was to late. Took a few attempts to reset the codes but after a quick video on YouTube from their links it was fixed. Over all I'm very happy with it and so is the customer. It's nice when the install takes less that 6 hours start to finish.
Posted on
- Easy to Work WithI purchased two furnaces that were delivered promptly. I am very pleased.
Posted on
- Smooth RunningUnit runs smoothly as you'd expect for a new furnace. It replaced a 70,000 BTU from the late 80's and hasn't had any problems so far with low 20 degree weather in a 1,300 SF northern mid-west home.
My only hits on the quality would be there were several screws loose on the unit randomly all over, so we looked at it closely in case of the feared "Friday or Monday build". Perhaps this happens in shipping, or some fasteners like the gas hookup are left loose for ease of connecting gas first.
The cabinet had some damage I'd assume came during shipping, so it required some field adjustments to get the upper door on straight and hooking up the plenum. Pricing compared with about every other competitor, but the unit was available in stock and the reliability and customer service of HVACDirect won out with us.Posted on
- replacement insallthis is a furnace replacement. our heating installers use this brand all the time. though they were 4k for furnace and install, i figured I would give it a shot myself. it showed up packaged like a tank, so it was well protected, though the delivery company failed to call me prior to showing up, instead they left out in the driveway. unit isn't that heavy, shorter than old one. was pretty easy to install with gas, vents, and wires.
BE SURE to read the tag near the wire terminals about A2L. the furnace ran full fan only. you have to go into setting and tell it no, then it will work as it should. my nest thermostat allows for 2 stage heating which is absolutely amazing. house heats up way quicker, and it runs way less.
I myself being very handy at fixing things, if can do handy things, buy from here as prices are great, and fast shipping, and most things seem in stock a lot.Posted on
Customer Questions
Why Choose ACiQ?
ACiQ designs AC systems that are based on principles learned from nature: clean, energy-efficient, and quiet. ACiQ systems are built in a such a way that they are easily adapted to fit multiple variations a homeowner needs. ACiQ offers technology in mini-split and full split inverter system offerings that provide the smartest way to buy and save on your home’s comfort solution, so that it meets the needs of your family. ACiQ specializes in home comfort, regardless of your needs.
