LG Single Zone Mini Split Systems

Items 1-24 of 61

Set Descending Direction
  1. LG Dual Zone Mini Split System - Design Your Own
    LG Single Zone Mini Split System - Design Your Own
    SAVE $256.00
    LG Single Zone Mini Split System - Design Your Own
    Model: LG Single Zone
    Was $855.00
    Special Price $599.00
    Add to Compare
Page
per page

What is an LG single zone mini split system?

Browse Products By Our Top Brands

Canarm FansCanarm Fans
Canarm FansCanarm Fans
Canarm FansCanarm Fans
Canarm FansCanarm Fans
Canarm FansCanarm Fans

LG single zone mini split systems are ductless HVAC systems designed to heat and cool one individual room or designated area using a single outdoor condenser connected to one indoor air-handling unit. These systems typically serve an average space size of 400 to 2,000 square feet, depending on the BTU output selected.

These systems work by using inverter‑driven compressors that modulate output to match the current heating or cooling demand of each space they are placed in, delivering efficient, consistent temperature control. The indoor and outdoor components work together to move heat in or out of a space, usually allowing for both cooling and heating modes.



What spaces are best for LG single zone mini split systems?

LG single zone mini split systems perform best in well-insulated spaces ranging from 150 to 1,200 square feet, with ceiling heights between 8 and 10 feet, moderate sun exposure, and minimal air leakage. Here are some of the ideal places for these systems:

  • Bedrooms: Bedrooms benefit from quiet operation, as low as 19 dBA, and precise temperature control, making LG systems ideal for comfort during sleep. LG’s Dual Inverter Compressor also supports quieter bedroom operation. Plus, LG ThinQ Smart Controls allow homeowners to easily adjust the bedroom temperature from bed using their phone, Google Assistant, and Amazon Alexa.

  • Home Offices: Home offices require consistent cooling or heating throughout the day when in use. LG mini splits offer precise temperature adjustments to accommodate electronics and productivity needs and the flexibility to turn off when the room is not in use. LG ThinQ also has built-in Wi-Fi, which lets homeowners control temperatures remotely.

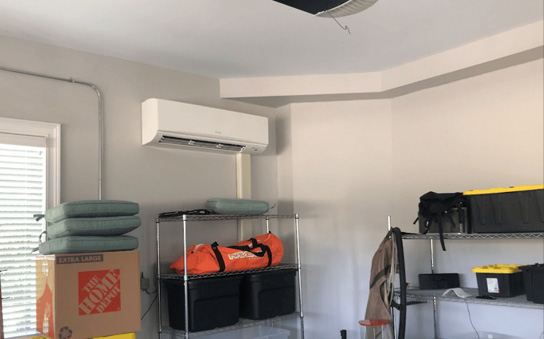

  • Garages and Workshops: These areas often lack ductwork, making LG single zone mini splits a strong solution. These systems can help maintain stable temperatures to make these extra spaces usable and comfortable all year.

  • Additions and Sunrooms: New home additions or sunrooms frequently need independent climate control and lack ductwork. These single zone systems eliminate the need to extend existing ductwork, which can be difficult or expensive.

  • Studio Apartments or Small Living Spaces: Open layouts, such as studio apartments or small condos, benefit from even air distribution from a single zone mini split. LG’s inverter technology also helps maintain consistent comfort in these spaces without hot or cold spots. Many LG lines offer stylish designs, including ARTCOOL which has a mirror finish, ARTCOOL Gallery which displays artwork or photos, and wall mount air handlers that come in slim, minimalist designs to match the style of any home.

Environmental factors such as poor insulation, high ceilings above 12 feet, excessive direct sunlight, or frequent door openings can reduce the overall performance and efficiency of these systems, so proper placement and home efficiency improvements are important before installation.

What BTU sizes are available for LG single zone mini split systems?

LG single zone mini split systems are available in a variety of capacities up to 36,000 BTU across several product families, including the cold-climate friendly LGRED and sleek ARTCOOL series.

  • 9,000 BTU (Up to 400 sq. ft.): This size is ideal for compact rooms where precise temperature control is needed. These systems provide efficient cooling and heating without overheating or overcooling the space.

  • 12,000 BTU (400 to 600 sq. ft.): A common choice for standard residential rooms. These systems balance energy efficiency with sufficient output for moderate-sized areas.

  • 18,000 BTU (600 to 1,000 sq. ft.): This capacity works well in larger open rooms or connected spaces. They ensure consistent airflow and temperature distribution throughout the area.

  • 24,000 BTU (1,000 to 1,400 sq. ft.): Ideal for expansive single zone applications. These systems deliver higher output to handle greater heating and cooling demands effectively.

  • 36,000 BTU (1,500 to 2,000 sq. ft.): This size is strong enough for large open-concept living areas, oversized family rooms, or small apartments with multiple connected spaces.

Proper sizing is key because an undersized LG mini split may run constantly and struggle to keep up with the heating or cooling load, while an oversized system can short-cycle and reduce efficiency and humidity control. Along with square footage, consider environmental factors in these spaces, such as excessive sun exposure, poor insulation, or high ceilings, that can also impact performance.

 How much do LG single zone mini split systems cost?

LG single zone mini split systems cost between $2,000 and $6,000, depending on unit size, installation complexity, and efficiency rating.

  • Equipment Cost: $900 to $3,500+, with smaller BTU units sitting on the lower end of this range, while higher-capacity or premium LG models with advanced features, such as LGRED cold-climate heating, ARTCOOL designer indoor units, and Auto Clean self-drying technology, cost more. Systems with higher SEER2 ratings or smart technology can also increase equipment pricing.

  • Installation and Labor Cost: $1,200 to $4,000, depending on factors such as line set length, wall penetration, and mounting complexity. Professional installation is required and ensures warranty protection.

  • Operation and Maintenance Cost: $100 to $400 per year, since these systems are generally energy-efficient, keeping utility costs relatively low. Routine maintenance such as filter cleaning and annual servicing helps maintain long-term efficiency.

Additional costs for critical accessories, such as line covers, mounting brackets, condensate pumps, and electrical upgrades, can add an extra $200 to $1,000 to the total project. If electrical work is required, you will need to hire a licensed electrician to complete it.

Can I install an LG single zone mini split system myself?

No, you cannot install these systems yourself because LG does not make DIY mini splits. You must hire a professional.

  • DIY Installation: LG does not manufacture DIY‑ready mini split systems, and their units typically require specialized tools, vacuuming, and refrigerant handling. Attempting DIY installation may void warranties and lead to performance issues.

  • Professional Installation: Licensed HVAC professionals are recommended for LG installations to ensure proper refrigerant charging and system commissioning. Choosing an LG Pro Contractor or LG Excellence/Elite Dealer to install your mini split ensures you receive an exclusive 12-year extended limited warranty on parts and compressors, professional load calculations, and the peace of mind that your high-efficiency system is correctly sized and optimized for peak performance.

Most jurisdictions require electrical or mechanical permits for installing LG mini split systems, so homeowners should verify local permitting requirements before installation. Dedicated electrical circuits and proper refrigerant handling are also required for these systems.

What indoor unit styles are available for LG single zone mini splits?

LG single zone mini split systems typically require a 208/230V power supply, a dedicated electrical circuit, and a 15-amp to 30-amp breaker, depending on their BTU capacity. Here are the general electrical specifications most homeowners can expect.

  • Voltage: Smaller units, like 9,000 to 12,000 BTU, often operate on 115 volts, while larger systems require 208/230 volts. Higher voltage systems are more efficient for larger spaces and longer operation cycles. These systems will also need a single-phase, 60 Hz circuit with a disconnect switch installed near the outdoor condenser unit.

  • Amperage and Breaker Size: A 9,000 BTU unit may require a 15- to 20-amp breaker, while 24,000 BTU systems can need up to 30 or 40 amps. Proper breaker sizing ensures safe operation and prevents electrical overload.

  • Wiring: Most installations use copper wire that is sized according to the system's electrical requirements, run length, and local code requirements. While 10 AWG wire is common, longer wire runs may require larger conductors to prevent voltage drop, so final wire sizing should always be determined by a licensed electrician.

  • Dedicated Circuit Requirement: LG mini split systems typically require a dedicated circuit for safe and reliable performance. This prevents interference with other appliances and ensures consistent power delivery.

Every LG single zone mini split system has different electrical requirements, including Minimum Circuit Ampacity (MCA) and Maximum Overcurrent Protection (MOP), listed on the unit’s nameplate. Always check and follow the details on the unit’s specifications card and ensure all electrical work is handled by a licensed professional.

Recent Information Articles

ACiQ smart toilet displayed in a luxury bathroom with HVACDirect branding and promotional text
Why You Need an ACiQ Smart Toilet
ACiQ smart toilets combine modern design with advanced hygiene and comfort features to transform everyday bathroom routines. In this guide, we explore how smart toilets work, what premium features to look for, and why ACiQ models stand out for homeowners seeking luxury performance at an accessible...
Read more
February 4, 2026
2025 Wood Burning Fireplaces Buying Guide: Types, Installation, and Best Brands for Your Home
Considering a wood burning fireplace? This quick guide compares radiant front, circulating, and EPA-approved high-efficiency models—how they heat, what they cost, and when each is the best choice. Learn key installation basics (clearances, chimney/venting, permits), sizing tips, and smart...
Read more
September 24, 2025
HVACDirect.com banner promoting central zoned mini split systems as the best replacement for old HVAC, highlighting whole-home heating and cooling with an extra zone
Upgrade Your Old Central AC: Why a Central Zoned Mini Split Is the Perfect Replacement
Upgrading from an old central AC system? A central zoned mini split is the smart replacement that combines the familiar comfort of ducted air with the flexibility of ductless zones. With one powerful outdoor unit, you can heat and cool your main living areas plus add independent comfort to garages,...
Read more
September 23, 2025
Panasonic BalancedHome™, Intelli-Balance®, and WhisperComfort® ERV models compared side by side
Top 3 Panasonic Energy Recovery Ventilator (ERV) Series of 2025
Looking for the best ERV for your home in 2025? Panasonic offers three top-rated series—BalancedHome™, Intelli-Balance®, and WhisperComfort®—each designed to improve indoor air quality while reducing energy costs. In this guide, we review features, applications, and real homeowner feedback so you...
Read more
September 16, 2025

Call Now and Get a Free Quote Today! 1-800-397-1392

FAQs about LG single zone mini split systems

LG single zone mini split systems are highly energy efficient, often featuring SEER ratings ranging from 18 to over 25. LG's Dual Inverter Compressor uses a variable-speed twin-rotary motor to deliver highly efficient, ultra-quiet, and fast cooling. This technology allows them to adjust output dynamically, reducing energy consumption and lowering monthly utility costs.

LG single zone mini split systems are manufactured by LG Electronics, a global leader in HVAC and appliance technology based in South Korea. The company is known for producing advanced, energy-efficient heating and cooling solutions for residential and commercial use.

Yes, LG manufactures a wide range of single zone mini split systems designed for residential and light commercial applications. These systems are available in multiple BTU sizes and indoor unit styles to suit different room types.

LG single zone mini split systems typically include a 10-year limited warranty on compressors and parts when registered and installed by a licensed professional. Choosing an LG Pro Contractor or LG Excellence/Elite Dealer to install your mini split ensures you receive an exclusive 12-year extended limited warranty on parts and compressors. Warranty terms may vary by model, but proper installation is usually required to maintain full coverage.

Yes, LG single zone mini splits are heat pump systems that provide both heating and cooling from a single unit. Select LGRED models are engineered for extreme cold, maintaining strong heating output even in very low outdoor temperatures. This makes them a reliable choice for year‑round comfort in challenging climates.

LG single zone mini split systems generally last 15 to 20 years with proper maintenance and professional installation. Regular filter cleaning and annual servicing can help maximize system lifespan and performance. Plus, LG’s Gold Fin corrosion protection helps outdoor units last longer.

LG single zone mini split systems are designed for quiet operation, with indoor sound levels typically ranging from 19 to 40 dB depending on the model. This makes them ideal for bedrooms, offices, and other noise-sensitive environments.

Yes, LG single zone mini splits have built-in dehumidification functions that remove excess moisture while cooling. This helps improve indoor comfort and air quality, especially in humid climates. Select LG models have Plasmaster Air Filtration, which includes multi-stage filtration and helps reduce airborne particles and odors.

LG recommends cleaning or replacing the air filters every 2 to 4 weeks, depending on usage and indoor air quality. A professional maintenance check should also be performed at least once per year to ensure optimal performance. Many LG units include Auto Clean and coil drying after cooling mode, which help reduce moisture, mold, and odors inside the indoor unit.

An LG single zone mini split system is designed to heat and cool one room or a single open-concept area. For multiple rooms, a multi zone mini split system would be required instead.
