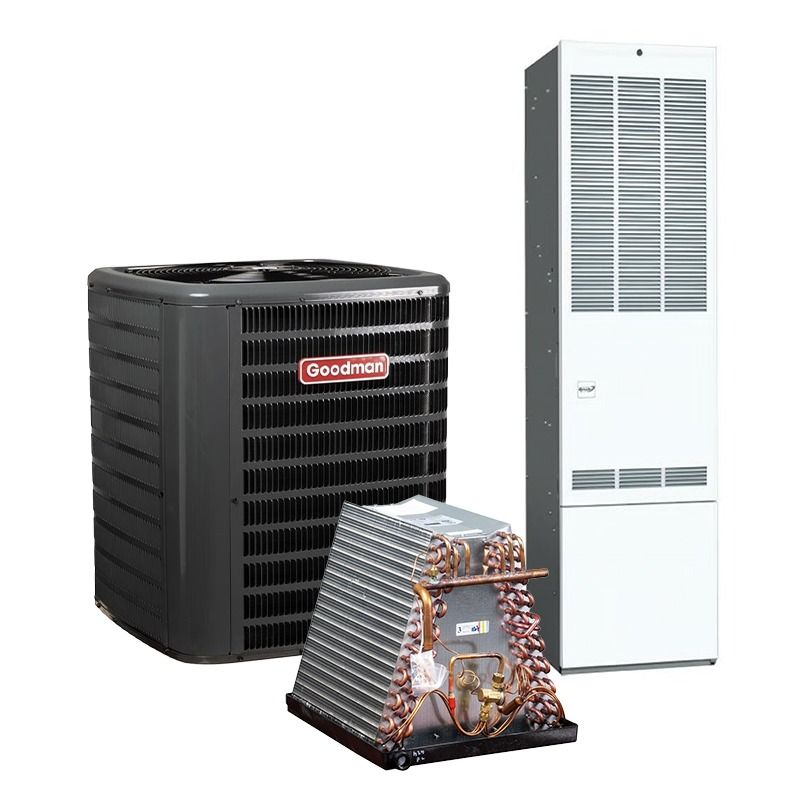

Our mobile home air conditioner and furnace system features a Goodman air conditioner, furnace, and mobile home coil. Plus you can add either a 30ft or 50ft copper line set.
ACiQ Standard Mitigation Refrigerant Detection System (RDS) Kit - R32 & R454B
ACiQ RDS Kit Features
Kit includes all components needed for RDS installation
Sensor wire length of 8 feet, and mitigation board power wire length 3 feet
Flexible installation location, ideal for installs on existing equipment
System designed to last the useful life of the evaporator coil
Optional relay for controlling additional components
ACIQ 4 Ton Uncased Downflow Mobile Home Coil with TXV | Copper - R32
OVERVIEW
The ACIQ-MH48BU4VYEC coil is designed to be a perfect fit for many mobile and manufactured home HVAC split system applications. Designed with sweat fit/braze fittings and a sturdy, compact design, this downflow evaporator coil allows for a quick and easy installation process with compatible equipment.
QUICK FACTS
4 ton downflow evaporator coil
Designed for mobile and manufactured home use only
Compatible with both AC-only and heat pump condensers
Sturdy and compact design
Rifled copper tubing, enhanced aluminum fins
Left-hand refrigerant and plumbing connections
Heavy duty polypropylene drain pans
AHRI certifiable with all brands of A/C and heat pump systems
ETL listed for use with both R32 refrigerant
Downflow plate kit included
4 TON
The ACIQ-MH48BU4VYEC evaporator coil is rated to be compatible with condensers with up to 4 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser.
Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290℉ +/-5℉. Specify metal drain pans for these applications.
50 Feet of 3/8" x 7/8"
Ensure optimal refrigerant flow and HVAC efficiency with this 50-foot insulated line set. Designed for a seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set provides durability, flexibility, and superior thermal insulation for reliable system performance.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 7/8" suction line (SL) for efficient refrigerant transfer. ✔ Pre-Insulated for Efficiency:3/8" thick insulation minimizes energy loss and condensation buildup. ✔ Versatile Application: Ideal for heat pumps and conventional split systems. ✔ Easy Installation:Flexible and durable copper tubing allows for smooth routing and secure connections. ✔ Extended 50-Foot Length: Perfect for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, designed for long-lasting performance and energy efficiency.
30 Feet of 3/8" x 7/8"
Ensure optimal refrigerant flow and HVAC system efficiency with this 30-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set provides durability, flexibility, and thermal protection for reliable performance.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 7/8" suction line (SL) ensure efficient refrigerant transfer. ✔ Pre-Insulated for Efficiency:3/8" thick insulation reduces energy loss and condensation buildup. ✔ Versatile Application: Compatible with heat pumps and conventional split systems. ✔ Easy Installation:Flexible and durable copper tubing allows for smooth routing and connection. ✔ Standard 30-Foot Length: Ideal for a variety of residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, designed for long-lasting performance and efficiency.
Goodman 3.5 Ton 14.3 SEER2 Mobile Home Air Conditioner Condenser - R32 Single Stage
Reliable Standard-Efficiency Cooling for Medium-Sized Mobile Homes
Keep your home comfortable through warm weather with a Goodman central air conditioner condenser built for dependable split-system cooling. This outdoor condenser is a practical choice for homeowners replacing an existing AC component or completing a compatible cooling setup with a matching indoor coil or air handler. It balances reliable performance, durable outdoor construction, and installation-friendly service access for medium-sized mobile homes.
Key Benefits
Sized for Medium-Sized Mobile Homes – 3.5 ton cooling capacity is generally suitable for Mobile Homes approximately 1,500–1,900 sq. ft., depending on climate, insulation, windows, ceiling height, air leakage, home layout, and a professional sizing review.
14.3 SEER2 Efficiency – 14.3 SEER2 performance provides dependable cooling at a standard efficiency level.
Cooling-Only Performance – Designed for central air conditioning applications when paired with a compatible indoor evaporator coil or air handler.
Low Outdoor Sound – Designed with sound-dampening features to support quieter outdoor operation.
Factory-Charged for Installation – Comes factory charged for up to 15' of line set to support a cleaner installation process.
Factory-Installed Filter Drier – Protects the refrigeration system by reducing moisture and contaminants.
Durable Outdoor Construction – Heavy-gauge galvanized steel cabinet with a baked-on powder-paint finish is built for long-term outdoor durability.
Cooling Capacity for Medium-Sized Mobile Homes
With 3.5 tons of cooling capacity, this condenser is commonly used for Mobile Homes approximately 1,500–1,900 sq. ft. in various climates. It is a cooling-only outdoor unit and must be paired with a compatible indoor evaporator coil or air handler to operate.
Actual sizing depends on your local climate, insulation, windows, ceiling height, air leakage, home layout, and a professional sizing review.
Reliable 14.3 SEER2 Efficiency
A 14.3 SEER2 efficiency rating provides dependable standard-efficiency cooling when paired with compatible indoor equipment.
Built for Reliable Outdoor Performance
Built with a galvanized-steel cabinet, baked-on painted finish, and installation-friendly service access to support dependable outdoor performance. The cabinet includes heavy-gauge galvanized steel construction with a baked-on painted finish, while easy-access gauge ports, service valves, and top/side access panels support a smoother service experience for qualified HVAC professionals.
Goodman Central AC System: How Does it Work?
Designed to deliver reliable heating and cooling performance, this system helps keep your home comfortable through changing outdoor conditions.
Durable construction and thoughtful system design support dependable operation, while efficiency-focused features help manage comfort throughout the year.
Whether replacing an older system or completing a new installation, this product offers a practical solution for whole-home comfort.
Warranty
This condenser includes a 10-Year Limited Parts Warranty with online registration. Installation must comply with state and local codes, and warranty coverage may be void if the unit is not installed by a qualified professional.
What’s Included
Goodman Central Air Conditioner Condenser – Outdoor cooling unit for a compatible split-system installation.
Factory-Installed Filter Drier – Protects the refrigeration system by reducing moisture and contaminants.
Recommended Accessories
Line Set – Connects the outdoor condenser to compatible indoor equipment for refrigerant flow; select the visible line set option that matches the installation.
Condenser Installation Kit – Provides key installation materials for a cleaner condenser setup.
Requirements & Considerations
Compatible Indoor Equipment Required – This cooling-only condenser must be paired with a compatible indoor evaporator coil or air handler.
Electrical Requirements – Requires a 208 / 230 V. 1 Phase 60 Hz electrical supply.
Line Set Selection – Use the line set option and connection sizing shown on the live product page or confirmed by Goodman installation guidance.
Professional Installation Recommended – Proper installation, system matching, and refrigerant handling are important for safe operation and warranty coverage.
R32 Refrigerant Compatibility Notice
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-912-1827 if you have any questions.
Style Crest-Revolv MG1E 80% 70,000 BTU Mobile Home Gas Furnace with Coil Cabinet - R454B Compatible
OVERVIEW
The Style Crest-Revolv MG1E-B070F1ABM1 is a good solution for many manufactured or mobile home gas furnace applications. With its easy installation procedures, low maintenance, and included LP conversion kit, the MG1E-B070F1ABM1 will save you money both up front and over time.
QUICK FACTS
70,000 BTU, 80% natural gas furnace
Can generally heat a small to medium mobile home in ideal applications
Compatible with R410A and R454B refrigerant
Natural gas out of the box, but comes with an LP kit for field installation if needed
Low maintenance requirements
AC coil cabinet included with purchase (condenser and coil sold separately)
Efficient ECM blower motor
70,000 BTU, 80% AFUE
With a system input of 70,000 BTU, The Style Crest-Revolv MG1E-B070F1ABM1 furnace can generally heat small to medium mobile homes in ideal applications. With a basic efficiency rating of 80% AFUE, this input equates to an output of 56,000 BTU, and 80% of the fuel going into the unit is contributed to heating your home and the remaining 20% of the fuel is lost out of the flue venting and is used up in normal furnace operations. If you are coming from our site’s sizing calculator, please note that it is a good idea to upsize any calculation to compensate for limited insulation and other factors that cause a mobile home to differ from traditional home sizing. If you have any questions, please contact us. Please note that this furnace is intended to only be used in mobile and manufactured homes and requires a straight flue pipe without any elbows.
Warranty
Revolv gas furnaces come with 2 year parts, and 10 year heat exchanger warranty when registered online through the manufacturer and with an installation that follows your state and local codes.
Installation and Maintenance
The Style Crest-Revolv MG1E-B070F1ABM1 furnace is designed to be easily installed for a faster process, lowering labor costs. While this furnace is natural gas out of the box, a propane conversion kit is included in this package to be field-installed if needed with no additional material cost, saving you money. With its sealed motor bearings, reliable burner controls, modern hot surface ignitor, and sealed combustion, this furnace has low maintenance requirements, providing the peace of mind that your unit will reliably heat your home even in the coldest winter months.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ Standard Mitigation Refrigerant Detection System (RDS) Kit - R32 & R454B
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Style Crest-Revolv MG1E 80% 70,000 BTU Mobile Home Gas Furnace with Coil Cabinet - R454B Compatible
You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Goodman 3.5 Ton 14.3 SEER2 Mobile Home Air Conditioner Condenser - R32 Single Stage
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
50 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
30 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
