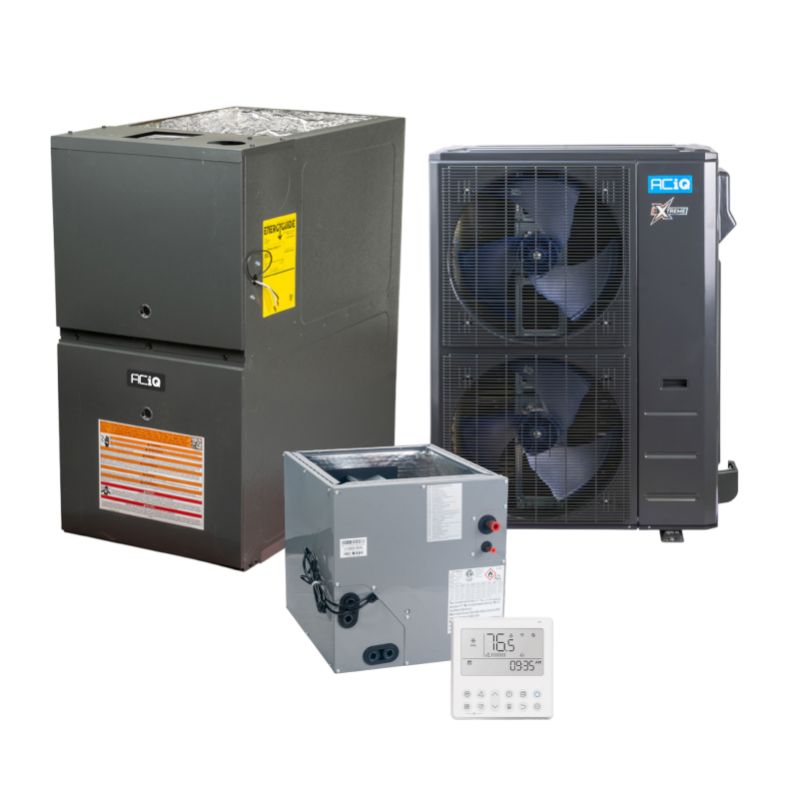

ACiQ Extreme Series 5 Ton 16 SEER2 80% AFUE 100,000 BTU Low NOx Furnace & Heat Pump System - R454B Inverter Upflow / Horizontal

Required Fields *

By

ACiQ

In stock

Model

ACIQ-60-HPD / ACIQ-48-ACL-B / AQ-GR9T801005CX

ID

222889

Was $7,895.00
Your Low Price $5,589.99
Customer reviews
Rating:
4.9 out of 5

ONLY 4 LEFT!
Free Shipping
Customize ACiQ Extreme Series 5 Ton 16 SEER2 80% AFUE 100,000 BTU Low NOx Furnace & Heat Pump System - R454B Inverter Upflow / Horizontal
100,000 BTU 80% AFUE Two Stage Low NOx Gas Furnace | 21" Width | Upflow/Horizontal
100,000 BTU 80% AFUE Two Stage Low NOx Gas Furnace | 21" Width | Upflow/Horizontal   + $1,352.00
ACIQ 5 Ton 16 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series - R454B
ACIQ 5 Ton 16 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series - R454B   + $3,487.99
ACIQ 4 Ton 21" Width Multi-Positional Evaporator Cased Coil - R454B
ACIQ 4 Ton 21" Width Multi-Positional Evaporator Cased Coil - R454B   + $750.00
Santa Fe Ultra70 Dehumidifier UL3684 - Whole House
No-Tear 30 Feet of 3/8" x 3/4" - White
Hybrid 5 Ton 16 SEER2 80% AFUE 100000 BTU Low NOx Furnace and High Efficiency Heat Pump System | Extreme Series - R454B - Upflow / Horizontal - ACIQ-60-HPD / ACIQ-48-ACL-B / AQ-GR9T801005CX

$5,589.99

Requires: Metal Flue Vent Piping

With tons of extra features and a great price, an ACIQ furnace and high efficiency heat pump system is the perfect choice for all of your heating and cooling needs for any time of year. All ACIQ models come with a 10 year parts warranty.

100,000 BTU 80% AFUE Two Stage Low NOx Gas Furnace | 21" Width | Upflow/Horizontal

OVERVIEW

The AQ-GR9T801005CX ACiQ low NOx gas furnace features high-quality construction and efficient operation at a great value. The AQ-GR9T801005CX two-stage, 9-speed furnace utilizes ACiQ's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the ACiQ AQ-GR9T801005CX.

QUICK FACTS

  • This furnace is ideal to heat a medium to large house (depending on climate)
  • 100,000 BTU 80% efficient natural gas furnace
  • Requires metal flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to an LP furnace with a conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

100,000 BTU

The AQ-GR9T801005CX ACiQ gas furnace is 100,000 BTU's. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 80,000 BTU's (100,000 X 80% AFUE) per hour. In ideal climate conditions, this 100,000 BTU furnace is usually used to heat a medium to large house.

80% Efficiency Rating

The AQ-GR9T801005CX ACiQ gas furnace is 80% efficient, and the standard furnace efficiency on the market today. This means that 80% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 80% furnaces must be vented using metal flue venting, while anything higher than 90% efficient must be vented using plastic/PVC venting.

In California, many counties have a lower NOx emission requirement than the rest of the United States. The AQ-GR9T801005CX ACiQ gas furnace is California Low NOx compliant. With a built-in low emission filter, this ACiQ gas furnace produces less nitrogen oxides to be released into the atmosphere, lowering the overall amount of toxic greenhouse gases output of the average California home.

Please note that this furnace cannot be installed in the following counties in California: Fresno, Joaquin, Kern, Kings, Los Angeles, Madera, Merced, Orange, Riverside, San Bernardino, San Stanislaus, and Tulare. In these counties you are required to purchase an Ultra-Low NOx furnace. If you have any questions, please contact us.

Two Stage Furnace

The AQ-GR9T801005CX ACiQ gas furnace is a two stage furnace that has two heating outputs on the burner: full output on colder winter days and a lower output for milder days that the furnace doesn't have to run quite as much. Two stage furnaces allow for a more even heat distribution, as the furnace will only kick on the higher stage if the indoor temperature is more than a few degrees away from the desired temperature. Since the lower stage will be used more often, the AQ-GR9T801005CX will run quieter than a single stage system. While the majority of the benefits of a two stage feature on a furnace are comfort based, the efficiency of the furnace is slightly higher due to it burning less fuel at its lower stage.

Natural Gas or LP Furnace

From the factory, the AQ-GR9T801005CX runs on natural gas. However all ACiQ gas furnaces can be converted to propane using the furnace's corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.

9-Speed ECM Blower Motor

Instead of the last generation PSC blower motor, the AQ-GR9T801005CX utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.

Warranty

With installation that follows your state and local codes and with online registration, all ACiQ furnaces come with a 10-year unit replacement, 10-year parts, and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

The hot surface igniter on modern ACiQ furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.

Self-Diagnostic Control Board

The ACiQ brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.

Heavy Gauge Steel Cabinet

The heavy-gauge steel cabinet on new ACiQ furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.

Ease of Installation

The value of modern ACiQ furnaces doesn't end at efficiency. Today's ACiQ furnaces feature many different connection options to reduce installation. The AQ-GR9T801005CX model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.

ACIQ 5 Ton 16 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series - R454B

OVERVIEW

Inverter - The ACIQ-60-HPD 5 ton Extreme series central inverter heat pump utilizes inverter technology to convert AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.

Learning Condenser - Equipped with advanced sensors, this condenser monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall performance. During the initial startup, it enters a learning mode that optimizes future operations for maximum efficiency by collecting and storing data.

Adaptive Sizing - With its self-adjusting inverter design, the ACIQ-60-HPD can be sized based on your heating needs. Standard heat pumps may cause discomfort during summer when sized for heat, but this unit automatically adjusts to function like a smaller unit, ensuring ideal cooling performance without excess humidity.

Extreme Heat Technology - "Extreme Heat" means extended temperature range heating all the way down to -22°F. Traditional heat pumps cannot produce significant heat below about 30°F outside temperature. Below that threshold, they rely on expensive backup electric heat. The ACIQ-60-HPD uses the inverter to vary the refrigerant flow, allowing for maximum heat extraction during extreme cold temperatures. The backup electric heat supplements the heat pump, and only takes over below -22°F. The heat pump gives 100% at 0°F, and still gives 80% at -22°F, saving you up to 75% on cold weather heating bills.

QUICK FACTS

  • Variable BTU output based on demand: 12,000-54,000 BTU for cooling, 12,000-56,000 for heating
  • R454B refrigerant
  • Inverter heat pump system for ducted applications
  • Efficient cooling from -22°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 75°F outdoor temperatures
  • Durable gold fin condenser coil coating for longevity
  • Quiet operation, even under high workloads

5 Ton, 16 SEER2

Boasting an efficiency rating of 16 SEER2, the ACIQ-60-HPD provides versatile comfort across a range of climates by providing reliable comfort with a variable output that eliminates short cycling for lasting efficiency. Use our sizing calculator (found HERE) to determine the demand for your home.


Extreme Heat Base Pan Heater Technology

Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.

ACIQ IntelliHeat Base Pan Heater TechnologyACIQ IntelliHeat Base Pan Heater Technology

ACiQ Quality Construction

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.


Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

ACiQ Highest Efficiency

ACiQ Longer Warranty

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.


Heats down to −22°F and cools up to 115°F

Enjoy your ACiQ heat pump system year round with unprecidented heating and cooling performance. Not only that, it is extremely efficient saving you money year round!


Self Cleaning Condenser

ACiQ condensers stay clean and efficient with self-cleaning technology built right in. At the end of each cycle, the fan reverses direction and blows air out the back of the unit — helping remove leaves, dirt, and debris before buildup can begin.

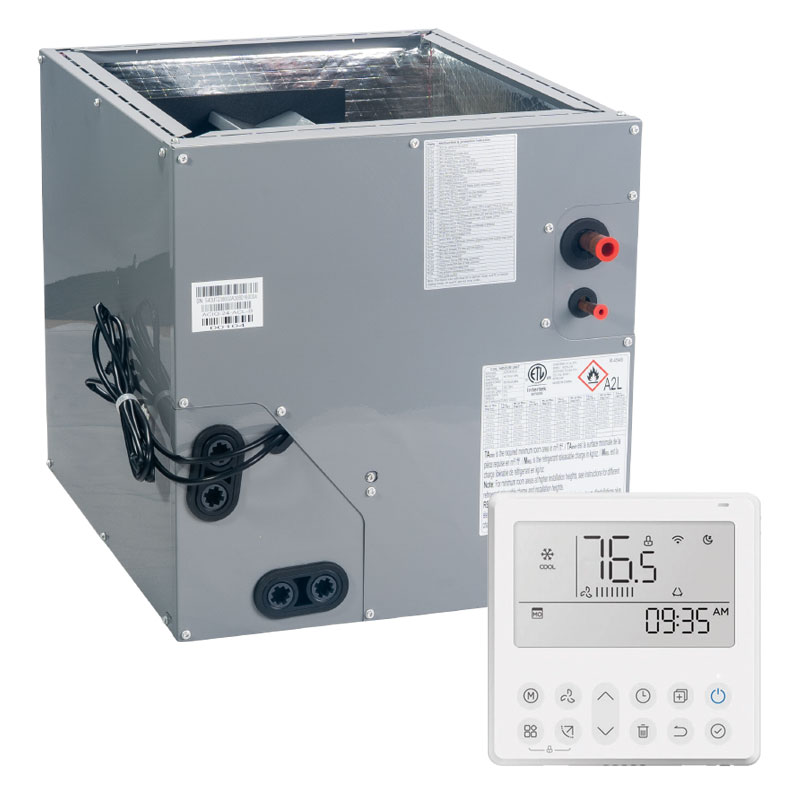

ACIQ 4 Ton 21" Width Multi-Positional Evaporator Cased Coil - R454B

OVERVIEW

ACIQ takes pride in its ability to provide a high-quality system, including all system components.The ACIQ-48-ACL-B multi-positional A-coil stands out as a superior choice for various applications, ensuring optimal unit efficiency through its factory-integrated TXV kit, maximizing energy optimization. With its outstanding performance features and versatile orientation options, this coil becomes the ultimate solution for achieving unmatched comfort in your home.

QUICK FACTS

  • 4 ton multi-positional evaporator coil
  • Works in almost any upflow, downflow, or horizontal system setup
  • Compatible with both AC-only and heat pump condensers
  • Factory-installed TXV kit for enhanced energy optimization
  • Sturdy and compact design

4 Tons

The ACIQ-48-ACL-B is rated for up to 4 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.

Santa Fe Ultra70 Dehumidifier UL3684 - Whole House

OVERVIEW

The Santa Fe Ultra-Aire 70H Crawl Space Dehumidifier (Model UL3684 / UL7552 listing reference: Ultra-Aire 70H) is a compact, low-profile dehumidification system designed for crawl spaces, basements, and other low-clearance residential environments where humidity control is required. It helps reduce excess moisture that can contribute to mold growth, wood rot, structural damage, and musty odors.

Designed specifically for tight installation spaces, the Ultra-Aire 70H features a horizontal configuration that allows it to be installed in areas where vertical units may not fit. With a moisture removal capacity of up to 70 pints per day, it is suitable for small to medium residential spaces requiring continuous dehumidification.

The unit is designed for residential applications and provides flexible installation options, allowing it to operate as a standalone system or be integrated with ductwork for ducted air distribution.

Key Features:

  • Up to 70 Pints Per Day Moisture Removal – Designed for crawl space and basement humidity control
  • Low-Profile Horizontal Design – Ideal for installation in tight, low-clearance spaces
  • Standalone or Ducted Operation – Supports flexible installation configurations
  • Continuous Drain Capability – Designed for gravity drainage applications
  • Residential Continuous Operation – Suitable for ongoing dehumidification use
  • Helps Maintain Indoor Humidity Levels – Supports control of excess moisture in enclosed spaces

Customized Installation and Operation

The Ultra-Aire 70H is designed for flexible residential installation in crawl spaces and basements. It can operate as a standalone unit using a standard electrical connection and continuous drainage setup.

The unit can also be connected to ductwork for applications that require distributed airflow within the conditioned space.

  • Horizontal Low-Profile Design – Fits easily in crawl spaces and low-clearance areas
  • Standalone Installation – Can operate independently with gravity drain setup
  • Ducted Compatibility – Supports integration with ductwork systems
  • Continuous Drain – Allows for continuous moisture removal without manual emptying

Warranty Information

Santa Fe (Therma-Stor) warrants the Ultra-Aire 70H Dehumidifier to be free from defects in materials and workmanship. The unit includes a 5-year limited warranty, with extended coverage on select components. Warranty coverage may vary based on installation, application, and registration requirements. Refer to the manufacturer’s documentation for complete warranty details.


Premium Materials & Construction

The Ultra-Aire 70H is built with durable components designed for long-term use in residential crawl space and basement environments. Its low-profile horizontal design allows for installation in confined areas while maintaining reliable performance.

Engineered for continuous operation, the unit helps maintain consistent humidity levels in enclosed spaces. It is designed for residential dehumidification applications requiring dependable moisture control.

The Ultra-Aire 70H operates on standard 115V power and removes up to 70 pints of moisture per day. It is intended for crawl space and basement humidity control applications.


Why Choose the Santa Fe Ultra-Aire 70H Crawl Space Dehumidifier?

Reliable Moisture Control
  • Removes up to 70 pints of moisture per day for effective humidity management.
  • Helps prevent mold growth, wood rot, and moisture-related structural issues.
Low-Profile Design
  • Designed for installation in tight crawl spaces and low-clearance areas.
  • Ideal where vertical dehumidifiers cannot be installed.
Flexible Installation
  • Can be installed as a standalone unit or connected to ductwork.
  • Supports different residential installation requirements.
Improved Indoor Air Quality
  • Helps reduce excess humidity that contributes to musty odors and mold growth.
  • Supports overall indoor air quality in enclosed residential spaces.
Simple Operation
  • Designed for continuous operation with minimal maintenance requirements.
  • Continuous drainage eliminates the need for manual water removal.
No-Tear 30 Feet of 3/8" x 3/4" - White

Ensure smooth refrigerant flow and HVAC system efficiency with this no-tear 30-foot insulated line set. Designed for seamless connection between an outdoor condensing unit and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal insulation for high-performance HVAC applications.

Features:

  • 3/8" liquid line (LL) and 3/4" suction line (SL) for optimal refrigerant transfer.
  • Extra thick 1/2" insulation to prevent tears during installation and from age.
  • 30' long line set - Standard line set length for your typical HVAC installation.
  • Flexible and durable copper tubing allows for smooth routing and secure connections.

Durable, No-Tear Line Sets Built for Tough Installations

No-tear line sets are designed to eliminate one of the most common frustrations during HVAC installations-insulation that rips, tears, or breaks down over time. Built with enhanced durability and UV-resistant insulation, these line sets maintain their integrity during handling, installation, and long-term outdoor exposure. The result is a cleaner install, better protection, and fewer callbacks compared to standard line sets.

Key Benefits

  • No-Tear Insulation Construction - Resists ripping and damage during installation
  • Enhanced Durability - Holds up to jobsite handling and long-term use
  • UV-Resistant Jacket - Protects against sun exposure and outdoor degradation
  • Cleaner Installation Finish - Maintains a professional look without patching or tape
  • Long-Term Insulation Performance - Helps prevent breakdown over time
  • Contractor-Friendly Design - Easier to work with compared to standard line sets

Built to Withstand Real Jobsite Conditions

Traditional line sets often use insulation that can tear easily when pulled through walls, around corners, or across rough surfaces. No-tear line sets are engineered with a reinforced outer jacket that resists damage during installation, helping maintain insulation integrity from start to finish. This added durability not only improves installation efficiency but also reduces the need for repairs, tape, or replacement sections-saving time on the job and delivering a more professional final result.

UV Protection for Long-Term Outdoor Performance

Standard insulation can degrade when exposed to sunlight, leading to cracking, peeling, and reduced performance over time. No-tear line sets feature a UV-resistant outer layer designed to withstand prolonged outdoor exposure, helping preserve insulation quality and system efficiency. This makes them an ideal choice for installations where line sets are exposed along exterior walls or rooftops.

30 Feet of 3/8" x 3/4"

Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.

No-Tear 50 Feet of 3/8" x 3/4" - White

Ensure smooth refrigerant flow and HVAC system efficiency with this no-tear 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal insulation for high-performance HVAC applications.

Features:

  • 3/8" liquid line (LL) and 3/4" suction line (SL) for optimal refrigerant transfer.
  • Extra thick 1/2" insulation to prevent tears during installation and from age.
  • 50' long line set - Ideal for HVAC setups requiring a longer line set run.
  • Flexible and durable copper tubing allows for smooth routing and secure connections.

Durable, No-Tear Line Sets Built for Tough Installations

No-tear line sets are designed to eliminate one of the most common frustrations during HVAC installations-insulation that rips, tears, or breaks down over time. Built with enhanced durability and UV-resistant insulation, these line sets maintain their integrity during handling, installation, and long-term outdoor exposure. The result is a cleaner install, better protection, and fewer callbacks compared to standard line sets.

Key Benefits

  • No-Tear Insulation Construction - Resists ripping and damage during installation
  • Enhanced Durability - Holds up to jobsite handling and long-term use
  • UV-Resistant Jacket - Protects against sun exposure and outdoor degradation
  • Cleaner Installation Finish - Maintains a professional look without patching or tape
  • Long-Term Insulation Performance - Helps prevent breakdown over time
  • Contractor-Friendly Design - Easier to work with compared to standard line sets

Built to Withstand Real Jobsite Conditions

Traditional line sets often use insulation that can tear easily when pulled through walls, around corners, or across rough surfaces. No-tear line sets are engineered with a reinforced outer jacket that resists damage during installation, helping maintain insulation integrity from start to finish. This added durability not only improves installation efficiency but also reduces the need for repairs, tape, or replacement sections-saving time on the job and delivering a more professional final result.

UV Protection for Long-Term Outdoor Performance

Standard insulation can degrade when exposed to sunlight, leading to cracking, peeling, and reduced performance over time. No-tear line sets feature a UV-resistant outer layer designed to withstand prolonged outdoor exposure, helping preserve insulation quality and system efficiency. This makes them an ideal choice for installations where line sets are exposed along exterior walls or rooftops.

50 Feet of 3/8" x 3/4"

Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.

Key Features:

Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
Versatile Application: Compatible with heat pumps and conventional split systems.
Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.

Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.

More Information
100,000 BTU 80% AFUE Two Stage Low NOx Gas Furnace | 21" Width | Upflow/Horizontal
FeatureSpec
SKUAQ-GR9T801005CX
Weight (in lbs)124.000000
AHRI Certificate Number215358034
Airflow DirectionUpflow/Horizontal
Exhaust Flue RequirementMetal
Brand/ManufacturerPrivate Brand
Product FeaturesLow NOx, New Refrigerant Compliant
Furnace Efficiency / AFUE 80%
Heating BTU100,000
Blower Motor9 Speed - ECM
Maximum CFM2000
ConfigurationUpflow/Horizontal
Electrical115v 1 Phase 60 Hz
Max Breaker Size25 Amps
Min. Breaker Size14.3 Amps
Low NOxLow NOx
Burner StagesTwo
Fuel TypePropane, Natural Gas
Height33 3/8"
Width21"
Depth28"
WarrantyLifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING
ACIQ 5 Ton 16 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series - R454B
FeatureSpec
SKUACIQ-60-HPD
Refrigerant Charge183.42 oz.
Weight (in lbs)275.130000
Brand/ManufacturerACiQ
ReplacesACiQ-60-HPB
Product FeaturesHigh Efficiency / Inverter, Hyper Heat, Two Stage Condenser, Variable Speed Condenser
Cooling BTU55,000 BTU
Heating BTU56,000 BTU
Maximum CFM2648.6
Decibel Level (dBA)65
Electric HeatHeat Pump
RefrigerantR454B
HSPF29.0
SEER2 (Efficiency)16
Condenser StagesVariable Speed
Compressor TypeRotary
Liquid Valve Size3/8"
Suction Valve Size3/4"
Electrical208/230V, 1 Phase, 60 Hz
PhaseSingle Phase
Max Breaker Size40 Amps
Min. Breaker Size40 Amps
Tonnage5 Ton
Min/Max Outdoor Temp for Heating-22°F - 75°F
Min/Max Outdoor Temp for Cooling-22°F - 122°F
Zone CompatibilitySingle Zone
Ambient Temperature Range-22°F - 122°F
Height52.48"
Width37.48"
Depth16.34"
Warranty12 Years Compressor and 7 Years Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACIQ 4 Ton 21" Width Multi-Positional Evaporator Cased Coil - R454B
FeatureSpec
SKUACIQ-48-ACL-B
Weight (in lbs)115.000000
Brand/ManufacturerACiQ
ConfigurationMulti-Positional
RefrigerantR454B
Liquid Line3/8"
Suction Line3/4"
Tonnage4 Ton
StyleA-Coil
CertificationUL Listed
Height27 3/4"
Width21 5/8"
Depth21 1/2"
Warranty10 Years Parts Warranty with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Santa Fe Ultra70 Dehumidifier UL3684 - Whole House
FeatureSpec
SKUUL3684
Weight (in lbs)55.000000
Brand/ManufacturerSanta Fe
Included ItemsLeveling feet (4), MERV 13 filter (9” x 11” x 1”), 8” round duct collars (2)
Additional InformationResidential Use: Whole House
Additional InformationManufacturer-Suggested Room Size: 1800 sq. ft
Additional InformationCertifications: CSA, UL
Maximum CFM150 CFM
Decibel Level (dBA)55.3 dB
Square Foot1,500-1,999
Energy StarNo
RefrigerantR454B
Capacity70 pints
Electrical115 volt | 1 Phase | 60 Hz
PhaseSingle Phase
Wattage580 W
Max Breaker Size5.1 Amps
Height12"
Width12"
Depth28"
Pint Capacity70
UsageDucted, Restaurants, Whole House
Additional InfoDrain Hose Diameter: 0.75"
Warranty5-year limited warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
FeatureSpec
SKULS38343830
Weight (in lbs)35.000000
Brand/ManufacturerOnline Supply
Liquid Line3/8"
Suction Line3/4"
Suction Line Insulation Thickness3/4"
Length30 feet
30 Feet of 3/8" LL x 3/4" SL x 1/2" No-Tear Insulated Line Set - Black
FeatureSpec
SKUNTLS38343830
Weight (in lbs)35.000000
Brand/ManufacturerOnline Supply
Liquid Line3/8"
Suction Line3/4"
Suction Line Insulation Thickness1/2"
Length30 feet
Safety InformationPROPOSITION 65 WARNING
30 Feet of 3/8" LL x 3/4" SL x 1/2" No-Tear Insulated Line Set - White
FeatureSpec
SKUNTLS38343830-W
Weight (in lbs)35.000000
Brand/ManufacturerOnline Supply
Liquid Line3/8"
Suction Line3/4"
Suction Line Insulation Thickness1/2"
Length30 feet
Safety InformationPROPOSITION 65 WARNING
50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
FeatureSpec
SKULS38343850
Weight (in lbs)22.000000
Brand/ManufacturerOnline Supply
Liquid Line3/8"
Suction Line3/4"
Suction Line Insulation Thickness3/4"
Length50 feet
Safety InformationPROPOSITION 65 WARNING
50 Feet of 3/8" LL x 3/4" SL x 1/2" No-Tear Insulated Line Set - Black
FeatureSpec
SKUNTLS38343850
Weight (in lbs)22.000000
Brand/ManufacturerOnline Supply
Liquid Line3/8"
Suction Line3/4"
Suction Line Insulation Thickness1/2"
Length50 feet
Safety InformationPROPOSITION 65 WARNING
50 Feet of 3/8" LL x 3/4" SL x 1/2" No-Tear Insulated Line Set - White
FeatureSpec
SKUNTLS38343850-W
Weight (in lbs)22.000000
Brand/ManufacturerOnline Supply
Liquid Line3/8"
Suction Line3/4"
Suction Line Insulation Thickness1/2"
Length50 feet
Safety InformationPROPOSITION 65 WARNING

Customers Say

Across reviews, buyers report straightforward installations—even for first-time DIYers—with examples including a full install completed in under 6 hours, a solo 22-hour project with sheet metal work, and a 5-inch height difference from older units, while several note quieter operation and lower energy bills compared to 20–25 year old furnaces. Some units arrived with loose screws, minor cabinet damage, a dislodged fan, wiring strain, or initial sensor/error code issues (EE1, R32/A2L settings), but most were resolved during setup and systems ran reliably afterward.

AI Generated from the text of customer reviews

Top reviews
  1. Nice...
    Quality
    100%
    Service
    100%
    Price
    100%
    So far so good running nice...

    Review by

    Posted on

  2. Working so far
    Quality
    80%
    Service
    60%
    Price
    100%
    The ID fan pressure sensor was not working on the first day, giving an EE1 error, but it cleared by itself on the next day.

    Review by

    Posted on

  3. New Furnace
    Quality
    100%
    Service
    100%
    Price
    100%
    Great unit! Showed up on time and in great condition. Packaging was excellent and very secure. All pieces were included. Got the plenum kit which came with a lot of metal screws too. Unit hooked up and is working great! I was without heat so having these guys to talk with and sort out details was key to my purchase. Contacting them during shipping to make sure everything was on time was easy and no hassle. Unit was well priced and I feel I got a great deal over all and isn't that what it's all about?
    If I ever upgrade and add A/C I'll be buying from here only. Once you treat me right you keep my business until you don't. Only fair.

    Review by

    Posted on

  4. Great furnace
    Quality
    100%
    Service
    80%
    Price
    80%
    This furnace is replacing a Goodman I installed in 2002. Everything went smoothly but I wished it would be easier to read the wiring markers. I pretty much had to lay on the floor to see them because they're marked on the bottom not the top of the connections.

    Review by

    Posted on

  5. 30 year old Furnace replacement
    Quality
    80%
    Service
    100%
    Price
    80%
    First time installing a Goodman, I have replaced quite a few of the older models. Everything hooked up fine only issue was shutting off the R32 sensor , didn't realize i needed to do that until it was to late. Took a few attempts to reset the codes but after a quick video on YouTube from their links it was fixed. Over all I'm very happy with it and so is the customer. It's nice when the install takes less that 6 hours start to finish.

    Review by

    Posted on

  6. So far we are very Happy!
    Quality
    100%
    Service
    100%
    Price
    100%
    I am SO glad we went with @HVACDirect instead of that local AC company that wanted $24K for a Daikin system (same one that was $15K in 2022?!

    Review by

    Posted on

  7. Easy to Work With
    Quality
    100%
    Service
    100%
    Price
    100%
    I purchased two furnaces that were delivered promptly. I am very pleased.

    Review by

    Posted on

  8. Smooth Running
    Quality
    80%
    Service
    80%
    Price
    100%
    Unit runs smoothly as you'd expect for a new furnace. It replaced a 70,000 BTU from the late 80's and hasn't had any problems so far with low 20 degree weather in a 1,300 SF northern mid-west home.
    My only hits on the quality would be there were several screws loose on the unit randomly all over, so we looked at it closely in case of the feared "Friday or Monday build". Perhaps this happens in shipping, or some fasteners like the gas hookup are left loose for ease of connecting gas first.
    The cabinet had some damage I'd assume came during shipping, so it required some field adjustments to get the upper door on straight and hooking up the plenum. Pricing compared with about every other competitor, but the unit was available in stock and the reliability and customer service of HVACDirect won out with us.

    Review by

    Posted on

See more reviews
Customer Questions
No Questions
Did you find what you were looking for?
Why Choose ACiQ?
Why Choose ACiQ?

ACiQ designs AC systems that are based on principles learned from nature: clean, energy-efficient, and quiet. ACiQ systems are built in a such a way that they are easily adapted to fit multiple variations a homeowner needs. ACiQ offers technology in mini-split and full split inverter system offerings that provide the smartest way to buy and save on your home’s comfort solution, so that it meets the needs of your family. ACiQ specializes in home comfort, regardless of your needs.

blockboard tech
