Today's Hours 8am - 11pm estLG 60,000 BTU Multi F Max 20.5 SEER2 5 Zone Wall Mounted Mini Split Heat Pump System - R32 | 230V - 7 + 7 + 9 + 24 + 24
Required Fields *
By
LG
In stock
Model
KUMXB601A / 2-KNMAB071A / KNUAB091A / 2-KNMAB241A
ID
234443
Was $11,032.00
Your Low Price $8,824.00

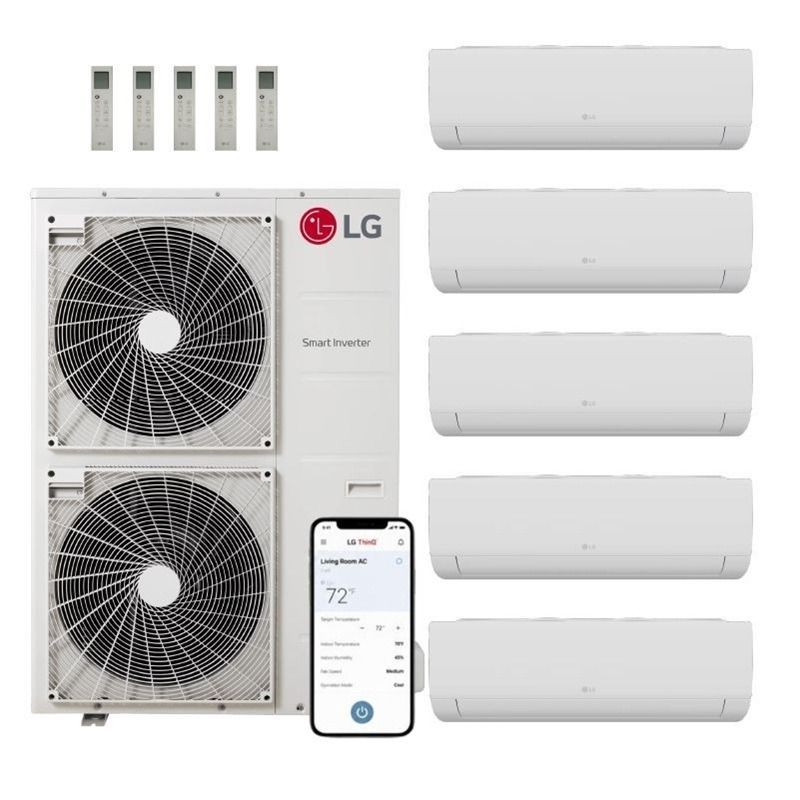

60,000 BTU LG Multi F Max 20.5 SEER2 5 Zone Wall Mounted Mini Split Heat Pump System - R32 | 230V - 7 + 7 + 9 + 24 + 24
Engineered for mansion-sized properties covering up to 3,700 sq ft, this ultimate LG Multi F Max system delivers independent climate control across five zones with dual massive 24K units. Perfect for luxury estates featuring two oversized living/entertainment areas plus bedrooms and office space, it provides unmatched 20.5 SEER2 efficiency using advanced R32 refrigerant.
Key Features
- Covers up to 3,700 sq ft across five zones
- 20.5 SEER2 elite efficiency rating
- Built in Wi-fi Compatibility
- Dual 24K zones power massive great rooms and commercial spaces
- Advanced inverter ensures quiet, high-capacity performance
Feature Highlights
Efficiency (20.5 SEER2)
Exceptional 20.5 SEER2 efficiency powers dual 24K zones plus three smaller units simultaneously without performance degradation, thanks to LG's precision inverter compressor technology. R32 refrigerant maximizes heat transfer efficiency across this high-demand configuration. Luxury comfort at optimized energy consumption levels.
Quiet Operation
All wall-mounted indoor units deliver whisper-quiet 19-46 dB operation, suitable for bedrooms, theaters, and executive offices alike. The outdoor condenser's advanced sound insulation and variable-speed modulation eliminates disruptive noise cycles completely. Silent operation across massive coverage areas.
Right-Sized Power
Maximum capacity configuration with dual 7K units (150-350 sq ft bedrooms), 9K unit (350-450 sq ft office/nursery), and two massive 24K units (1,100-1,500 sq ft each for great rooms, ballrooms, or commercial spaces). This 60K BTU system perfectly matches luxury home layouts with enormous living areas. Ultimate zone flexibility for estate properties.
What's Included
- Outdoor condenser — 60,000 BTU total capacity, 20.5 SEER2
- Five wall-mounted indoor air handlers — 7K + 7K + 9K + 24K + 24K BTU
- Wireless remote controls for each indoor unit
- Installation manual and mounting hardware
Recommended Accessories
- Refrigerant line sets (1/4"-3/8" small units; 1/4"-5/8" for 24K units)
- Heavy-duty condenser wall bracket or reinforced vibration pad
- Drain hoses, heavy-duty pipe insulation, line cover systems
Warranty
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
60k BTU Multi Zone Condenser
60,000 BTU LG Multi Zone Mini Split Heat Pump Condenser - R32 | 230V
This outdoor mini split condenser provides efficient heating and cooling performance for single-zone applications. When paired with a compatible indoor air handler, it supports comfort for spaces up to 2100-2600sq ft.
Key Features
- High-efficiency inverter-driven performance
- 60,000 BTU capacity for single-zone systems
- Compact outdoor design for flexible placement
- Engineered for quiet outdoor operation
- Pairs with compatible Carrier Infinity air handlers
Warranty
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
7k BTU High Efficiency Wall Mount
LG 7,000 BTU Single Zone Wall Mount High Efficiency Mini Split Air Handler - R32 | 230V
This wall-mount mini split air handler is designed to deliver quiet, efficient airflow for bedrooms, offices, and small living spaces. It supports comfort for rooms up to 200-300 sq ft when paired with a compatible outdoor condenser.
Key Features
- Ultra-quiet indoor operation with sound levels down to 26-35 dB, ideal for noise-sensitive areas like bedrooms and home offices
- 7,000 BTU cooling for dependable year-round comfort in a single zone indoor space
- Wall-mounted Multi F indoor unit using R32 refrigerant for high efficiency performance in a slim, modern cabinet
- Jet Cool and Jet Heat modes for rapid temperature pull-down or warm-up when you need fast comfort
- Compact, lightweight indoor chassis with 1/4" liquid and 3/8" gas line connections to simplify installation and routing
Warranty
When installed and registered according to LG requirements, LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
9k BTU High Efficiency Wall Mount
The 9,000 BTU LG High Efficiency Single Zone Wall Mount Mini Split Air Handler is designed to condition rooms up to approximately 350 square feet with quiet, energy-efficient performance. Its compact, high-efficiency design makes it ideal for bedrooms, offices, and small living areas where powerful yet space-conscious comfort is needed.
Key Features
- 9,000 BTU Capacity: Provides reliable cooling and heating output for single-zone applications in smaller rooms.
- High-Efficiency Operation: Engineered for improved efficiency using R32 refrigerant, helping reduce energy use while maintaining strong comfort performance.
- Quiet Performance: Designed for low-noise operation, making it suitable for sound-sensitive spaces such as bedrooms and home offices.
- Jet Temperature Control: Delivers faster cooling or heating to help the room reach the desired temperature more quickly.
- 4-Way Air Swing: Helps distribute conditioned air more evenly across the room for improved comfort balance.
- Self-Cleaning Indoor Coil: The self-cleaning coil design helps reduce moisture and debris buildup, supporting cleaner airflow and easier maintenance.
- 3M Micro Dust Filter: Captures fine dust and airborne particles to help improve indoor air quality.
- Sleep Mode and 24-Hour Timer: Supports sleep mode and 24-hour on/off timing for simpler daily operation and better comfort control.
- Built-In Wi-Fi Ready: Compatible with Wi-Fi-enabled controls for remote monitoring and adjustments when paired with a supported system configuration.
- R32 Leak Detection Sensor: Includes an R32-specific leak-detection sensor to help support safer refrigerant monitoring on properly wired installations.
Compatibility
This indoor air handler is compatible with LG single-zone outdoor systems designed for R32 refrigerant and matching high-efficiency indoor-outdoor pairings. It must be installed with a compatible outdoor unit to operate properly.
24k BTU High Efficiency Wall Mount
LG 24,000 BTU Single Zone Wall Mount High Efficiency Mini Split Air Handler - R32 | 230V
This wall-mount mini split air handler delivers quiet, efficient comfort for larger bedrooms, offices, and living areas up to 850–1,100 sq ft with 24,000 BTU cooling when paired with a compatible outdoor condenser.
Key Features
- Quiet indoor operation from 34 dB, perfect for noise-sensitive areas like bedrooms and home offices
- 24,000 BTU cooling capacity for reliable year-round comfort in a single zone indoor space
- Sleek wall-mounted Multi F unit with R32 refrigerant for high-efficiency performance in a slim cabinet
- Jet Cool and Jet Heat modes for rapid temperature changes when you need fast comfort
- Compact chassis with 3/8" liquid and 5/8" gas lines to streamline installation and routing
Warranty
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
15 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
30" Wall Mount Bracket
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
LG Y Pipe and Branch Boxes for 5 Zone Mini Split
This mini split installation starter kit has everything your installer will need to install a 5 zone mini split system.
Installation Kit for Condensers
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
25 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Equipment Pad
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
30 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 35 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
35 feet - 1/4" and 3/8" Line Set
This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.
Features:
- Insulated
- Flared Line Ends
- Heavy Duty Refrigerant Lines
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
50 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
