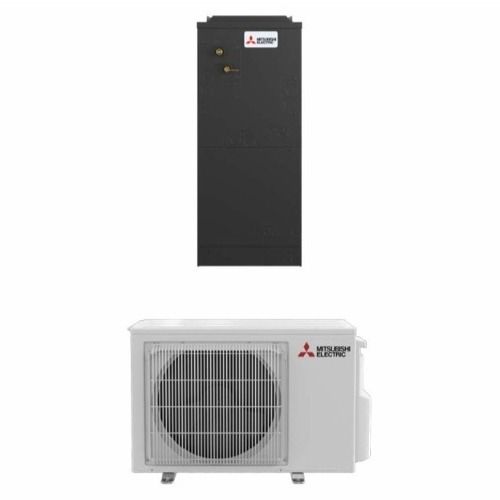

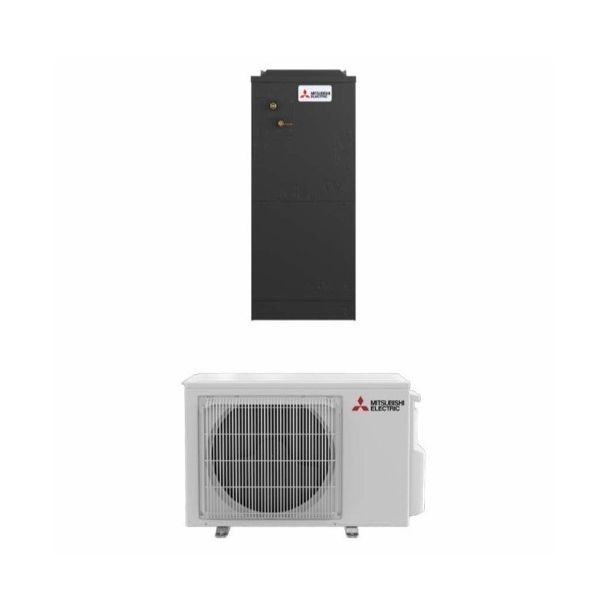

Mitsubishi 1 Ton 18 SEER Ducted Central Air Inverter Heat Pump Split System | R454B

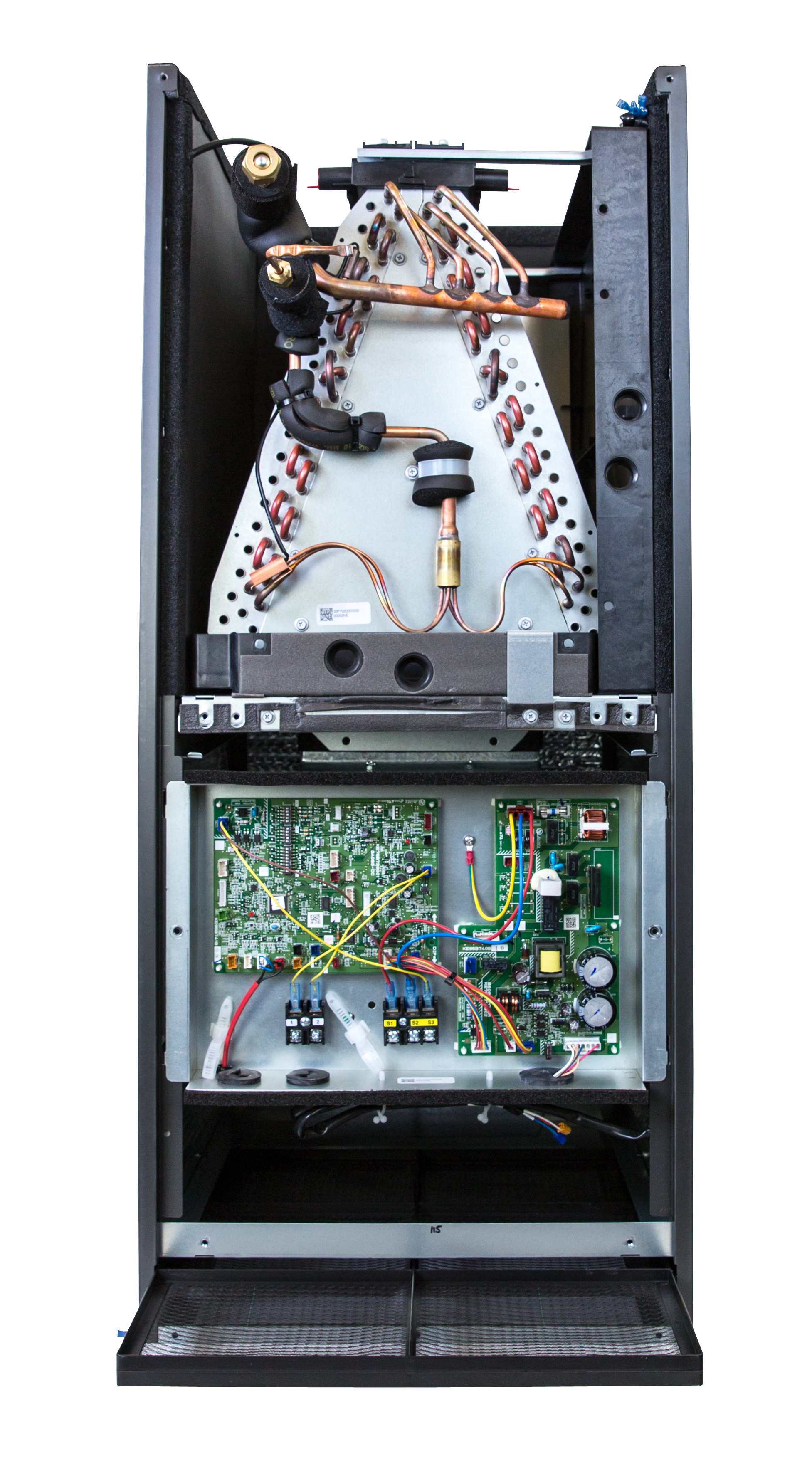

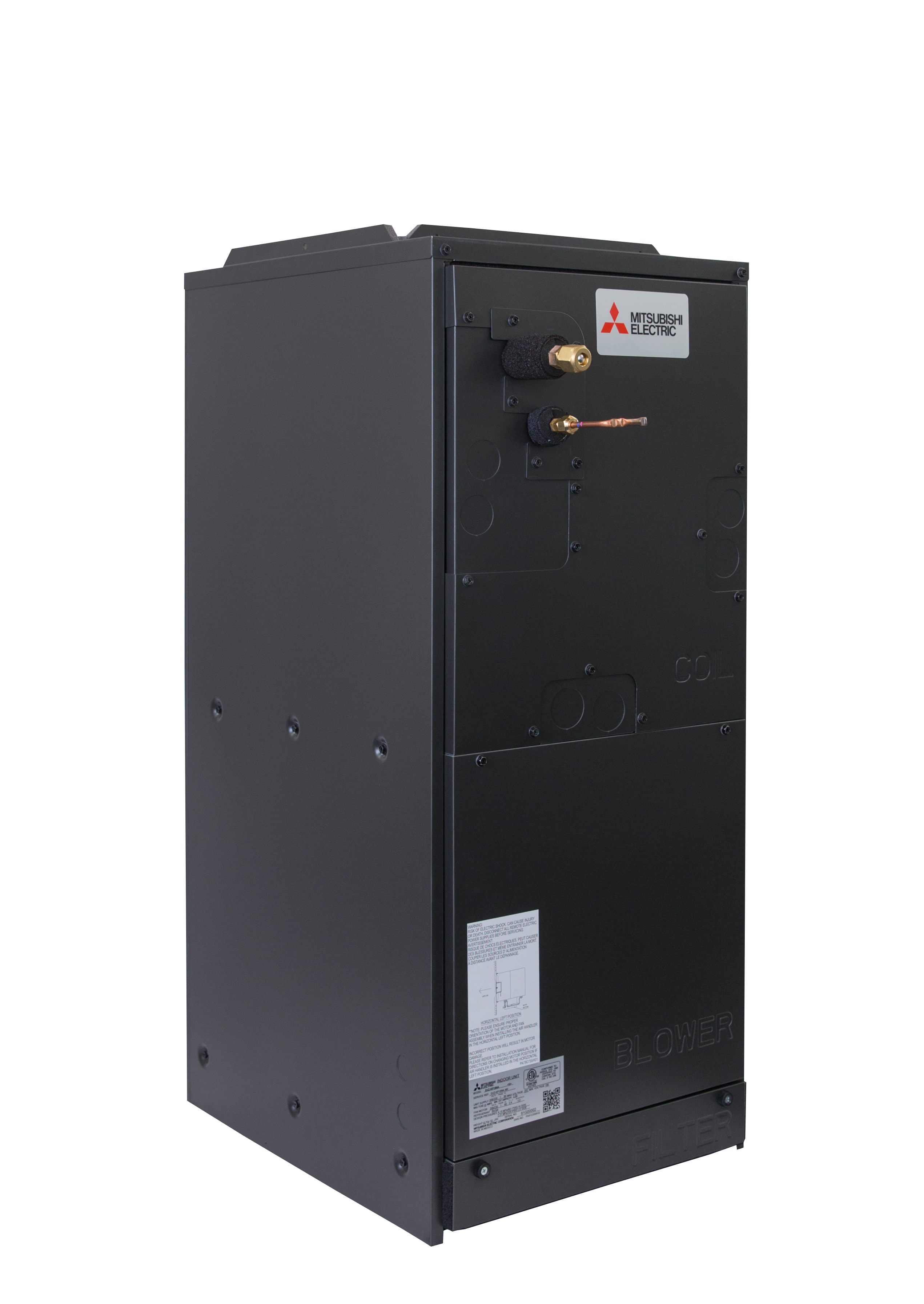

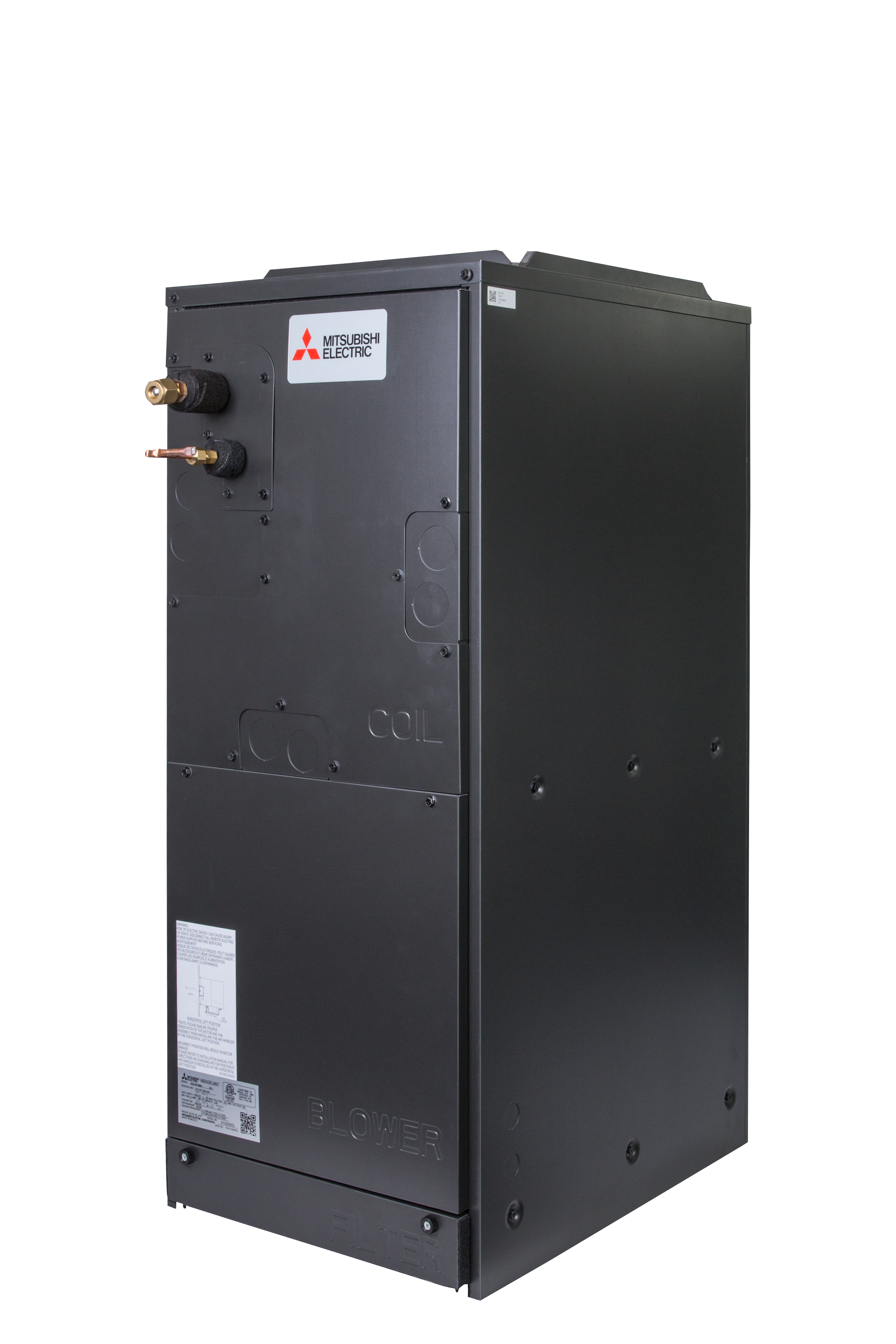

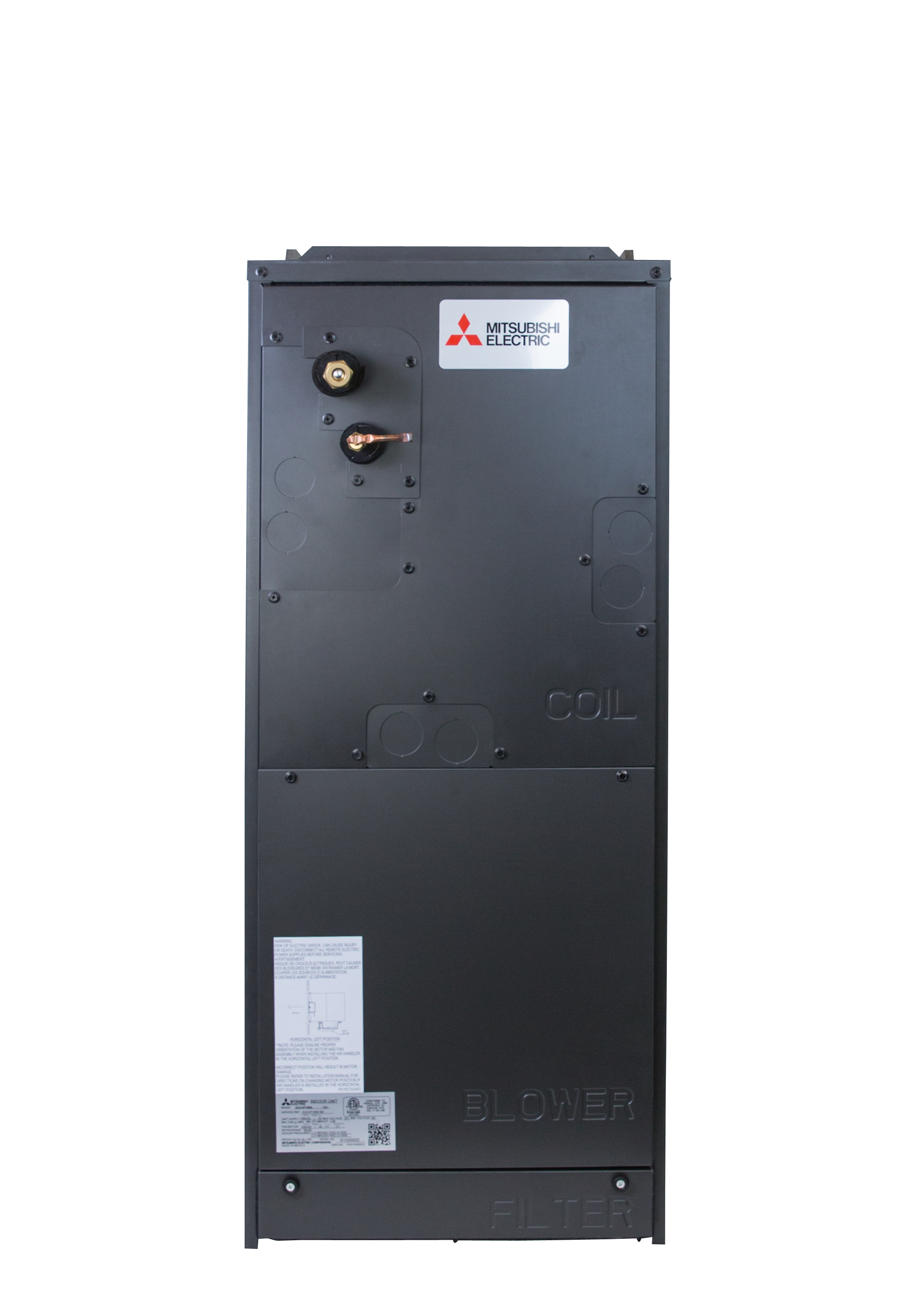

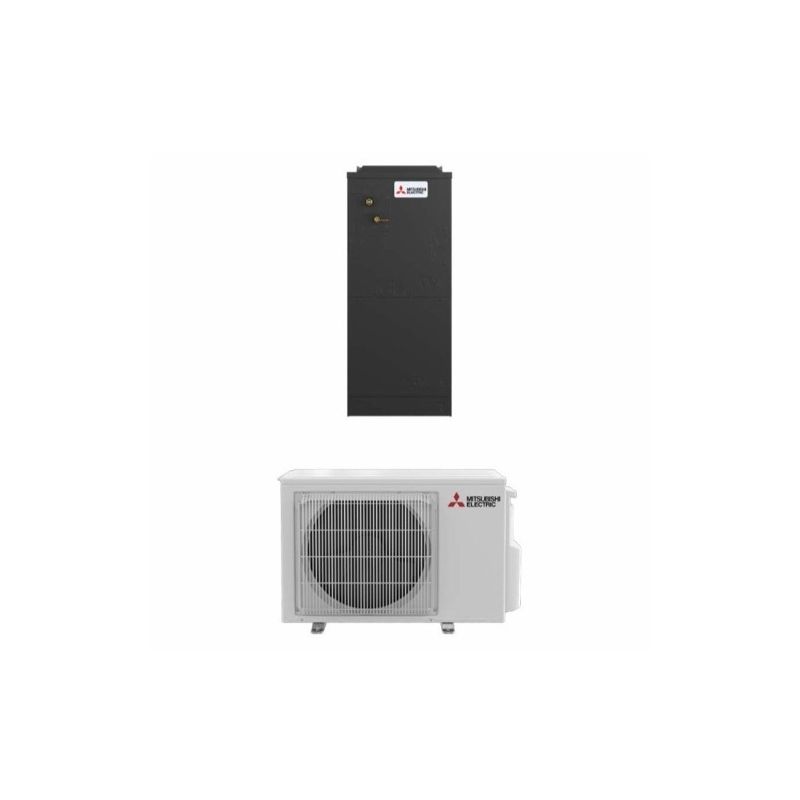

Mitsubishi SVZ Series 1 Ton Air Handler | R454B

The Mitsubishi SVZ Series 1 Ton Air Handler, combined with the SUZ outdoor unit, is a high-efficiency, ducted heating and cooling solution tailored for residential and light commercial applications. Designed with Mitsubishi Electric's cutting-edge inverter technology and compatible with the next-generation R454B refrigerant, this system offers both superior comfort and a reduced environmental impact.

Key Features

• Energy-Efficient Inverter Technology: Provides precise temperature control, reducing energy usage and operating costs.
• R454B Refrigerant: Features a lower global warming potential (GWP) than older refrigerants, supporting environmentally conscious HVAC design.
• Quiet Operation: Delivers whisper-quiet performance, making it suitable for bedrooms, offices, and other quiet spaces.
• Compact and Versatile Design: Offers flexibility for vertical or horizontal installations in tight or concealed spaces.
• High Static Pressure Capability: Supports longer duct runs and complex ductwork layouts without compromising performance.
• Multi-Speed Fan: Allows airflow customization to match comfort preferences and room conditions.

Technical Specifications

• Indoor Unit Model: SVZ-KP12NA
• Outdoor Unit Model: SUZ-KA12NA2
• Cooling/Heating Capacity: 12,000 BTU/h (1 Ton)
• Refrigerant: R454B
• Power Supply: 208/230V, 1 Phase, 60 Hz
• Fan Speeds: Multiple selectable speeds for enhanced comfort
• Sound Pressure Levels: As low as 27 dB(A), depending on mode and configuration

Benefits

• Comfort All Year: Delivers reliable cooling and heating with inverter-driven precision.
• Environmentally Friendly: Designed to comply with evolving environmental standards using low-GWP refrigerant.
• Flexible Installation: Suitable for a variety of residential and light commercial spaces with horizontal or vertical orientation.
• Low Noise Levels: Quiet operation makes it ideal for use in occupied or sound-sensitive environments.

The Mitsubishi SVZ Series 1 Ton Air Handler with R454B refrigerant is a modern, efficient, and compact ducted HVAC solution. Whether for a retrofit or new construction, this system ensures dependable year-round performance with minimal environmental impact and maximum user comfort.

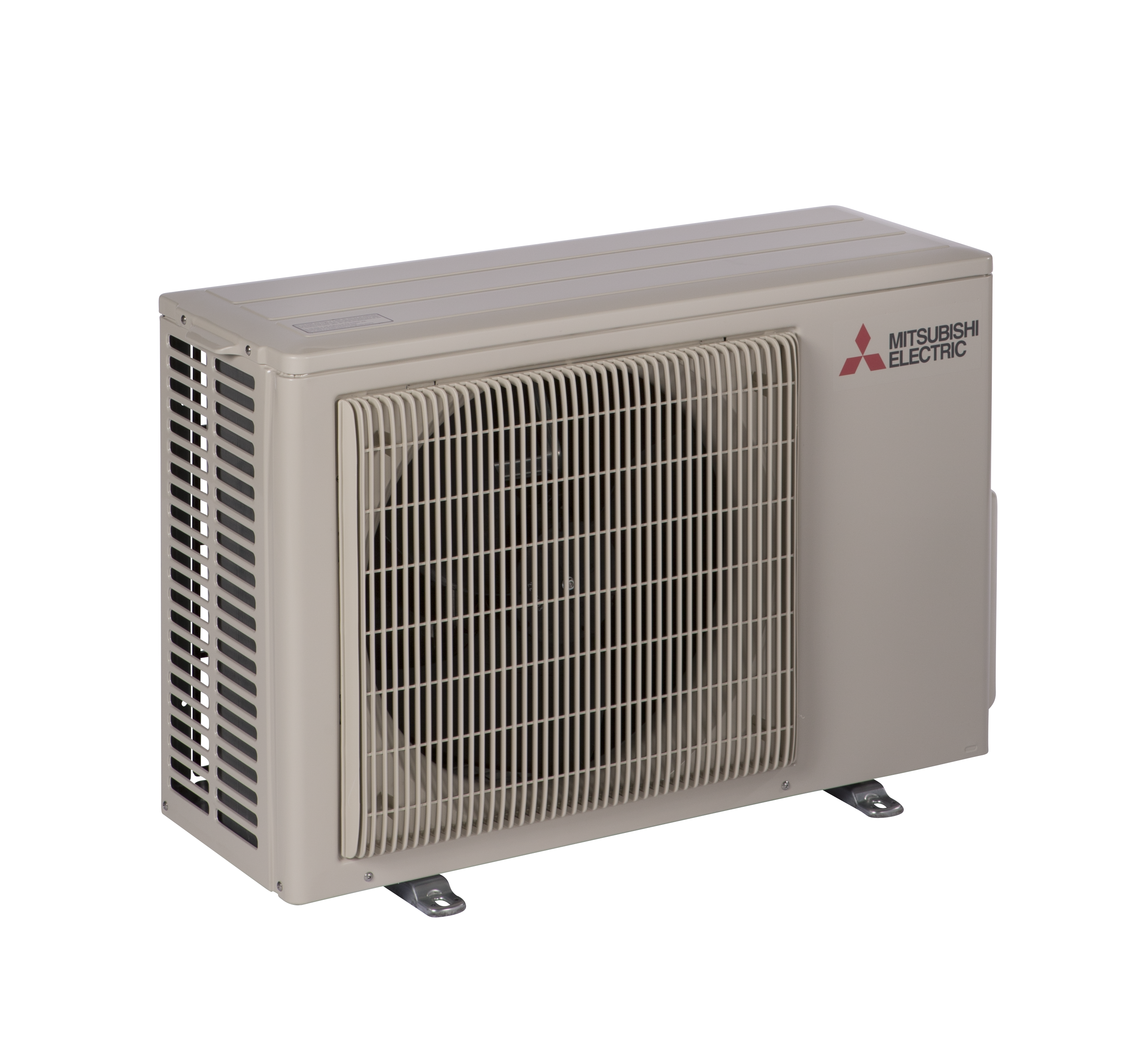

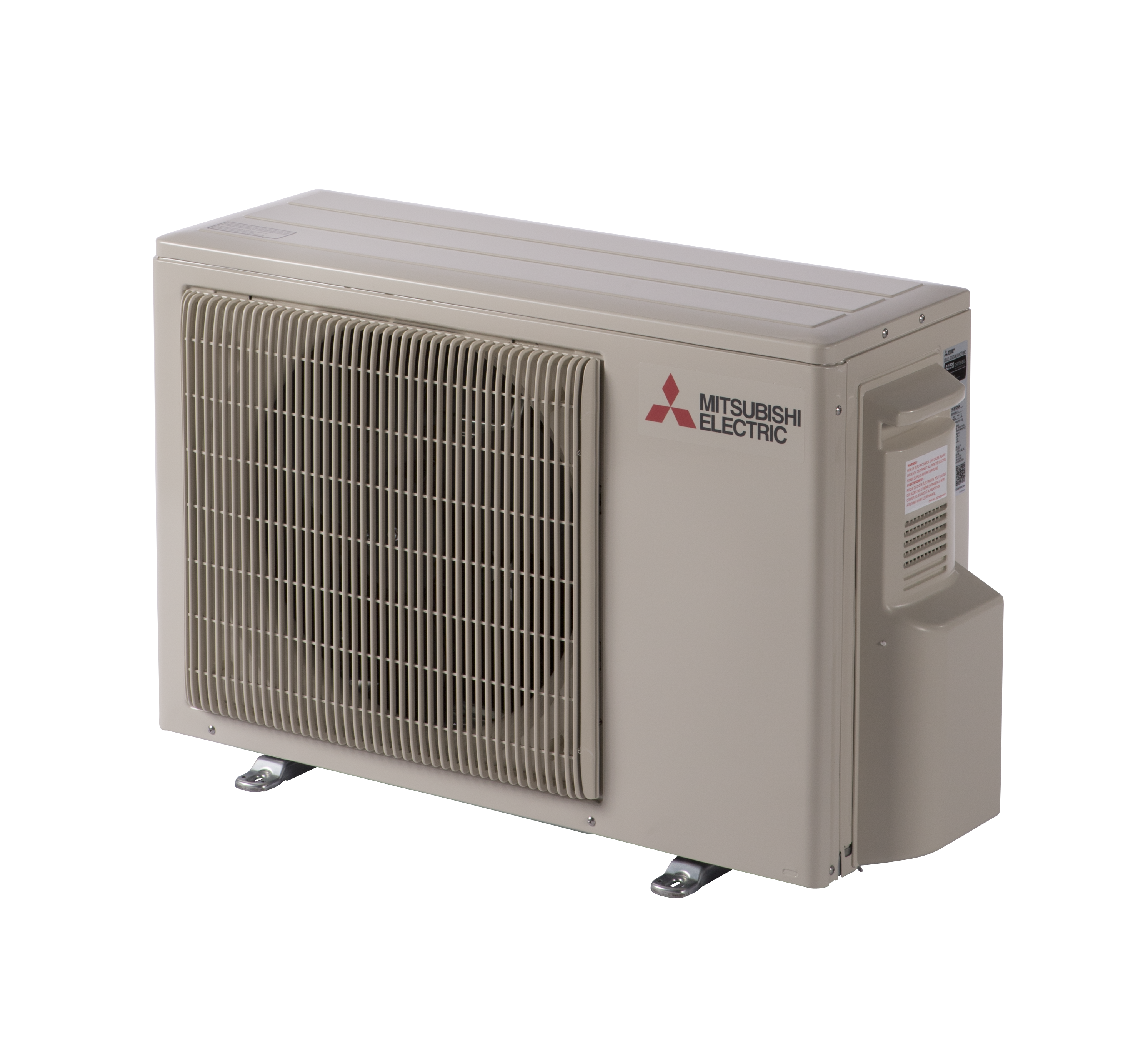

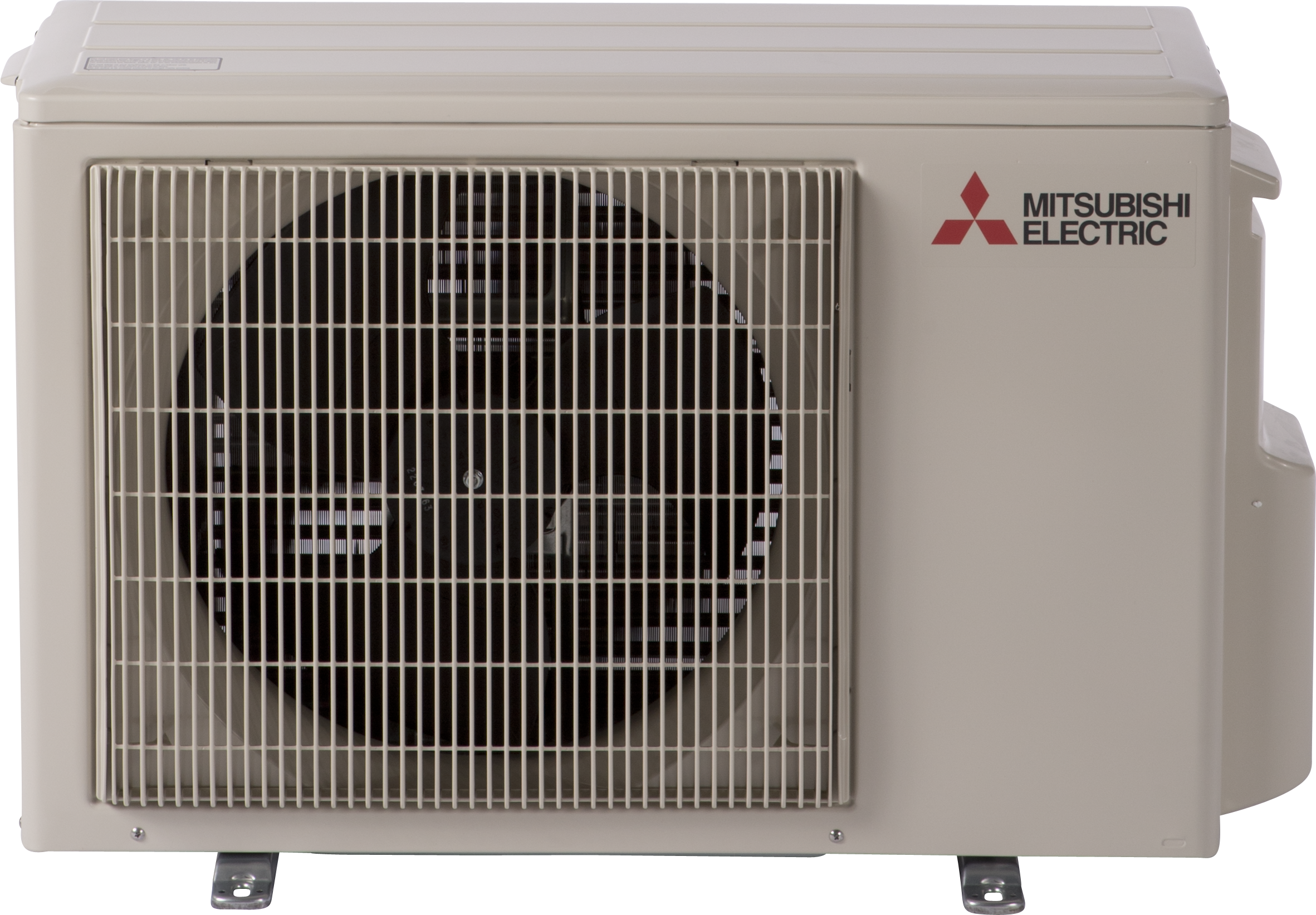

SUZ-AA12NL - 12,000 BTU/H Heat Pump Outdoor Unit

The SUZ-AA12NL is a highly efficient 12,000 BTU outdoor heat pump unit designed to provide both heating and cooling for residential and commercial spaces. It features advanced technology and robust performance for a variety of environmental conditions, ensuring comfort year-round.

Outdoor Unit Features (SUZ-AA12NL):

• Blue Fin Coating: Anti-corrosion treatment applied to the aluminum fins of the heat exchanger, preventing damage from salt, sulfur, and other airborne contaminants.
• High-Performance Grooved Piping: Optimizes heat exchange efficiency for better energy performance and more reliable operation.
• Hot-Start Technology: Ensures that the fan only operates once the heat exchanger is sufficiently warm, preventing cold air bursts during startup.
• INVERTER-Driven Compressor: Offers precise capacity control to maintain a stable temperature while reducing energy consumption.
• Joint Lap DC Motor: An advanced motor design providing high efficiency and long-term reliability.
• Pulse Amplitude Modulation Technology: Optimizes the compressor's energy efficiency by adjusting power supply, leading to lower energy use.
• Quiet Operation: Designed for quiet operation, both the outdoor unit and the indoor units are significantly quieter than traditional systems.
• Single-Zone Setup: Connects one outdoor unit to one indoor unit for simplified and efficient operation in a single zone.

Specifications:

• Cooling Capacity: Rated at 12,000 BTU/h, with a minimum capacity of 2,500 BTU/h.
• Heating Capacity: 15,000 BTU/h at 47°F, with a reduced capacity at lower temperatures (e.g., 9,700 BTU/h at 17°F).
• SEER2 Rating: 19.6, delivering superior energy efficiency for long-term savings.
• Power Input: Rated at 950 W for cooling and 1,240 W for heating.
• Sound Levels: As low as 49 dB(A) in cooling mode and 51 dB(A) in heating mode, ensuring minimal noise disruption.
• Unit Dimensions: 31-1/2 x 11-1/4 x 21-5/8 inches with a weight of 93 lbs.
• Refrigerant: Uses R410A refrigerant for efficient heat transfer and environmental friendliness.

The SUZ-AA12NL is a compact and powerful heat pump outdoor unit that ensures year-round comfort and reliable performance for both cooling and heating needs.

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends
