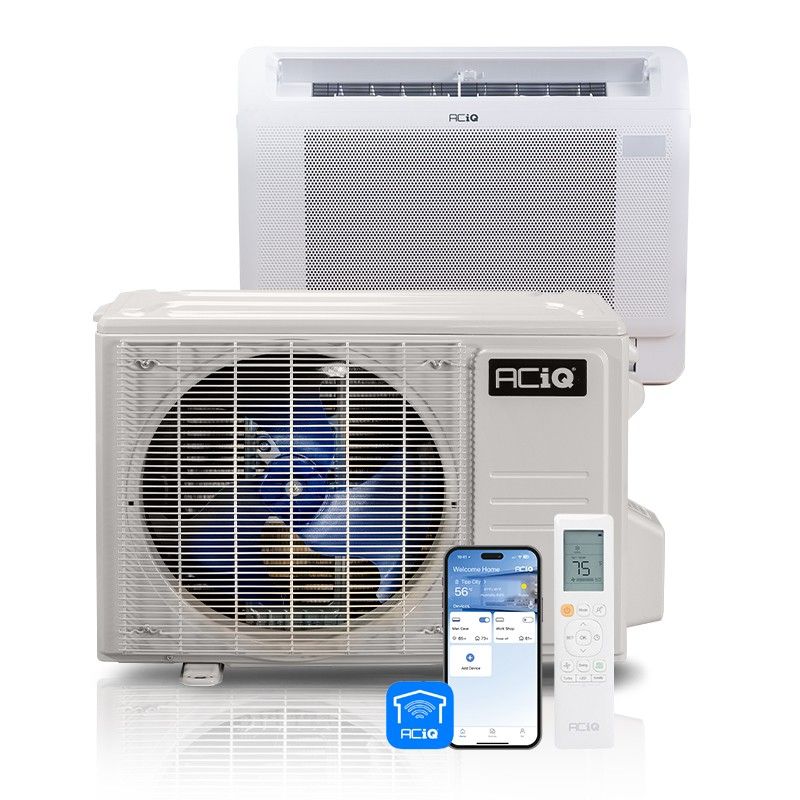

12,000 BTU ACiQ Standard 24.6 SEER2 Single Zone Floor Mount Mini Split Heat Pump System - R454B | 230V

OVERVIEW

The ACIQ Single Zone series ACIQ-12ZS-HP230C heat pump condenser features inverter technology allowing for superior, adaptive performance. Whether you are in cooling or heat mode, the ACIQ-12Z-HP230 uses as little power as possible without sacrificing comfort. That's why we say that ACIQ brings intelligence to your heating and cooling needs. NEW REFRIGERANT: R454B Model.

QUICK FACTS

• Intelligent comfort at an affordable cost
• Ideal for up to a small room (depending on climate)
• 12,000 BTU, 23.1 SEER2 wall mounted mini split
• Efficient cooling from -13 F to 122 F outdoor temperatures
• Efficient heating from -13 F to 75 F outdoor temperatures
• Gold Fin full-protection coating
• Quiet operation at even the highest workloads

12,000 BTU, 23.1 SEER2

At a rated capacity of 12,000 BTU, the output of the ACIQ-12ZS-HP230C when paired with a matching air handler can easily cover a small to medium room in ideal climates. Thanks to the unit's high-efficiency rotary compressor and an inverter-integrated motor, the ACIQ-12ZS-HP230C has an efficiency of 23.1 SEER2. With such a high system SEER2 rating, the system can heat and cool almost any space suitable for its output much more efficiently than most standard central split systems.

Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.

ACIQ Floor Mounted air handlers are ideal for sun porches and attic rooms where space to mount a standard high wall unit is not available. Sometimes called a heat console type air handler, these units surface mount low on the wall, near or on the floor. The shape is wider, taller and slightly shallower than the high wall unit. These are ideal for sun porches where the only wall space is below windows, or attic remodels with knee-walls, where vertical high walls may not be available.

Optimized for Heat

Like a high wall mount, these units take in return air at the top edge and deliver it at the bottom. This is ideal for heating. By delivering warm air at floor level, stratification due to heat rise is eliminated. When you put the unit into cooling mode, the airflow direction is reversed for better air mixing in the room.

FEATURES

• 12,000 BTU of Heating or Cooling
• Dry and Fan modes also available
• Good for a small room in most climates
• Remote control thermostat included

Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.

Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

What’s Included:

• 3/4" x 6' Electrical Whip – SKU: 84138
• 60A Non-Fused Disconnect – SKU: 83335
• Surge Protector – SKU: ICM517
• CPS Charging Adapter – SKU: 87-AD87
• Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

• Reliable Support: Abundance of ridges for stable ground support.
• Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
• Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
• Simple Appearance: Gray color with size labels.
• Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

• Weather Resistance: Made from tough PVC for long-lasting performance.
• Secure Setup: The track securely holds bolts in place.
• Bolts Included: Each set comes with two bolts.
• Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 35-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 35-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.

The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.

What's Included

• 35 ft. insulated refrigerant line set
• 35 ft. 14/4 mini-split control wire
• 1/4" liquid line with flared ends
• 3/8" suction line with flared ends

Features

• 1/2" thick insulation for improved efficiency
• Heavy-duty refrigerant line construction
• Stranded copper wire for reliable conductivity
• Flexible and durable installation materials
• Compatible with most mini-split systems
• Ideal for HVAC installations and replacements

This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.

• 17” Arm Length
• Weight capacity of 220 lbs per arm
• Bolts and anti-vibration washers included

No Return Policy

All sales of this product are final and are non-refundable.
