Inverter Condenser - Inverter technology converts AC power to DC, allowing the compressor inside your condenser to adjust its speed. This feature enables the system to self-regulate BTU output based on demand, ensuring efficient cooling.
Learning System - This system is equipped with sensors that monitor air temperature inside and outside, system performance, duct pressure, and refrigerant temperature. The first time you start your system, it enters a learning mode, optimizing air movement across the sensors and storing information to ensure future startups and run cycles operate at maximum efficiency.
Optimized Cooling - The self-adjusting inverter design allows your system to automatically adjust its cooling capacity. The ACiQ High Efficiency 4-ton AC system can adjust to run like a 3-ton, 2-ton, or 1.5-ton unit, making it an ideal seasonal device for hot climates where additional air conditioning is needed for homes already heated by boilers, fireplaces, or other sources of heat. This system should be paired with the ACIQ-48-ACL for optimum performance
With an efficiency rating of 15.5 SEER2, the variable output ACiQ-48-AC will keep you comfortable across a wide range of conditions. Use our handy size calculator Here to determine the demand for your home. For cooling, this system can operate anywhere from 12,000 BTU to 48,000 BTU without short cycling.

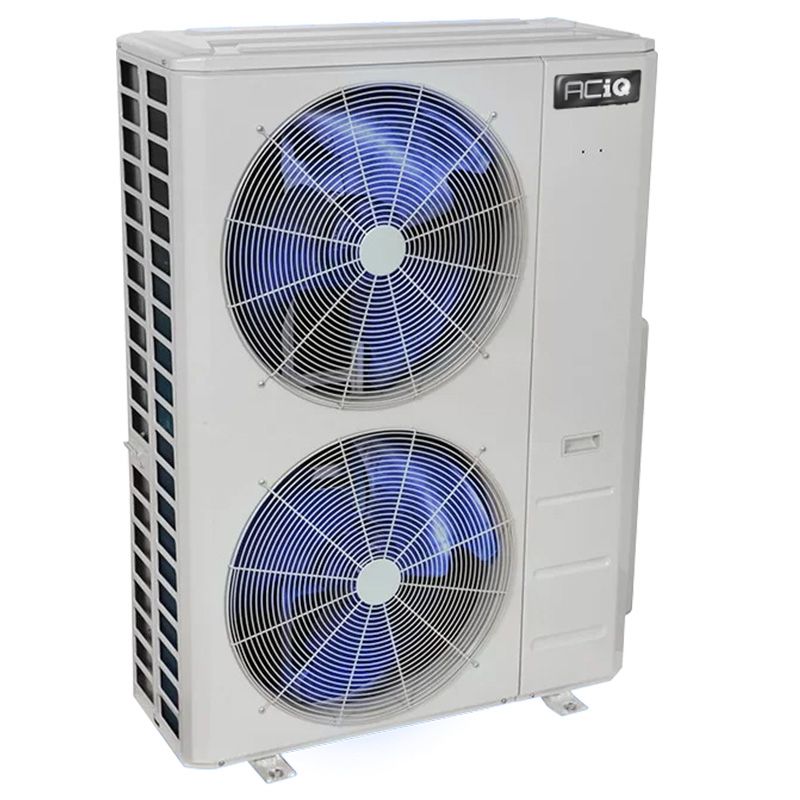

4 Ton 15.5 SEER ACiQ High Efficiency Air Conditioner Condenser | Inverter​ | |
---|---|
SKU | ACIQ-48-AC |
Refrigerant Charge | 25' |
Weight (in lbs) | 112.800000 |
Brand/Manufacturer | ACiQ |
Product Features | Inverter |
HSPF | 10 |
HSPF2 | 9.4 |
Cooling BTU | 48,000 BTU |
Maximum CFM | 4500 |
Decibel Level (dBA) | 65 |
Electric Heat | Heat Pump |
Energy Star | No |
Refrigerant | R410A |
SEER1 (Efficiency) | 17 |
SEER2 (Efficiency) | 15.8 |
EER | 9.3 |
Compressor Type | Rotary |
Liquid Line | 3/8" |
Suction Line | 7/8" |
Electrical | 208/230V 1 Phase 60 Hz |
Max Breaker Size | 50 Amps |
Min. Breaker Size | 34 Amps |
Tonnage | 4 Ton |
BTU/Tonnage | 48,000 BTU/4 Ton |
Mini Split Type | Multi-Positional |
Min/Max Outdoor Temp for Heating | 5~75 |
Min/Max Outdoor Temp for Cooling | 5~122 |
Zone Compatibility | Single Zone |
Operating Mode | Cooling |
Height | 52.48" |
Width | 37.48" |
Depth | 16.34" |
Warranty | 12 year compressor, 7 year parts with online registration |
