Today's Hours 8am - 11pm estDaikin 5 Zone Mini Splits
Daikin Five Zone Mini Split - Daikin is a global leader and is dedicated to building innovative, energy intelligent heating and cooling systems serving residential, commercial, and industrial applications. Their systems are designed to provide years of comfort for your home while helping you to achieve high energy efficiency standards.
Â
-
Daikin 5 Zone Mini Split System - Design Your Own R32Model: Daikin Five Zone R32Was $5,948.00Special Price $4,758.40 -

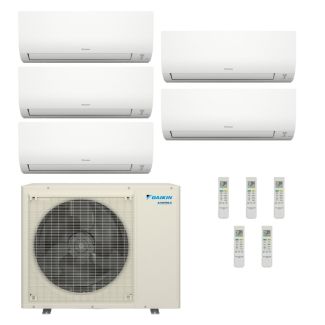

Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+7+7+7+12Model: 5MXM48AVJU9 / 4-CTXV07AVJU9 / FTXV12AVJU9Was $10,058.00Special Price $7,498.40 - Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+7+7+9+9Model: 5MXM48AVJU9 / 3-CTXV07AVJU9 / 2-FTXV09AVJU9Was $10,071.20Special Price $7,507.20
- Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+7+7+9+12Model: 5MXM48AVJU9 / 3-CTXV07AVJU9 / FTXV09AVJU9 / FTXV12AVJU9Was $10,145.60Special Price $7,556.80
- Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+7+9+9+9Model: 5MXM48AVJU9 / 2-CTXV07AVJU9 / 3-FTXV09AVJU9Was $10,158.80Special Price $7,565.60
- Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+7+7+7+15Model: 5MXM48AVJU9 / 4-CTXV07AVJU9 / FTXV15AVJU9Was $10,160.00Special Price $7,566.40
- Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+7+7+12+12Model: 5MXM48AVJU9 / 3-CTXV07AVJU9 / 2-FTXV12AVJU9Was $10,220.00Special Price $7,606.40
- Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+7+9+9+12Model: 5MXM48AVJU9 / 2-CTXV07AVJU9 / 2-FTXV09AVJU9 / FTXV12AVJU9Was $10,233.20Special Price $7,615.20
- Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+9+9+9+9Model: 5MXM48AVJU9 / CTXV07AVJU9 / 4-FTXV09AVJU9Was $10,246.40Special Price $7,624.00
- Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+7+7+9+15Model: 5MXM48AVJU9 / 3-CTXV07AVJU9 / FTXV09AVJU9 / FTXV15AVJU9Was $10,247.60Special Price $7,624.80
- Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+7+9+12+12Model: 5MXM48AVJU9 / 2-CTXV07AVJU9 / FTXV09AVJU9 / 2-FTXV12AVJU9Was $10,307.60Special Price $7,664.80
- Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+9+9+9+12Model: 5MXM48AVJU9 / CTXV07AVJU9 / 3-FTXV09AVJU9 / FTXV12AVJU9Was $10,320.80Special Price $7,673.60
- Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+7+7+12+15Model: 5MXM48AVJU9 / 3-CTXV07AVJU9 / FTXV12AVJU9 / FTXV15AVJU9Was $10,322.00Special Price $7,674.40
- Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 9+9+9+9+9Model: 5MXM48AVJU9 / 5-FTXV09AVJU9Was $10,334.00Special Price $7,682.40
- Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+7+9+9+15Model: 5MXM48AVJU9 / 2-CTXV07AVJU9 / 2-FTXV09AVJU9 / FTXV15AVJU9Was $10,335.20Special Price $7,683.20
- Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+7+7+9+18Model: 5MXM48AVJU9 / 3-CTXV07AVJU9 / FTXV09AVJU9 / FTXV18AVJU9Was $10,354.40Special Price $7,696.00
- Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+7+12+12+12Model: 5MXM48AVJU9 / 2-CTXV07AVJU9 / 3-FTXV12AVJU9Was $10,382.00Special Price $7,714.40
- Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+9+9+12+12Model: 5MXM48AVJU9 / CTXV07AVJU9 / 2-FTXV09AVJU9 / 2-FTXV12AVJU9Was $10,395.20Special Price $7,723.20
- Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 9+9+9+9+12Model: 5MXM48AVJU9 / 4-FTXV09AVJU9 / FTXV12AVJU9Was $10,408.40Special Price $7,732.00
- Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+7+9+12+15Model: 5MXM48AVJU9 / 2-CTXV07AVJU9 / FTXV09AVJU9 / FTXV12AV / FTXV15AVWas $10,409.60Special Price $7,732.80
- Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+7+7+7+24Model: 5MXM48AVJU9 / 4-CTXV07AVJU9 / FTXV24AVJU9Was $10,418.00Special Price $7,738.40
- Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+9+9+9+15Model: 5MXM48AVJU9 / CTXV07AVJU9 / 3-FTXV09AVJU9 / FTXV15AVJU9Was $10,422.80Special Price $7,741.60
- Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+7+7+15+15Model: 5MXM48AVJU9 / 3-CTXV07AVJU9 / 2-FTXV15AVJU9Was $10,424.00Special Price $7,742.40
- Daikin 48,000 BTU MXM 20 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+7+9+9+18Model: 5MXM48AVJU9 / 2-CTXV07AVJU9 / 2-FTXV09AVJU9 / FTXV18AVJU9Was $10,442.00Special Price $7,754.40
What is a Daikin 5 zone mini split system?
Browse Products By Our Top Brands

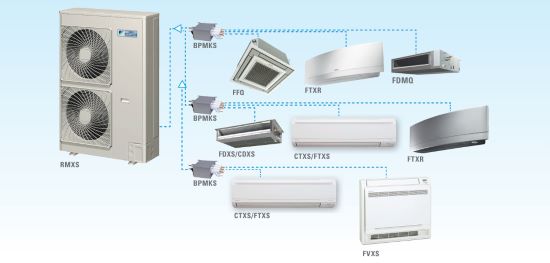

The majority of Daikin 5 zone mini split systems are ductless heat pump systems that use one outdoor unit to power up to five indoor air handlers or heads. These systems work by circulating pressurized R32 refrigerant through copper lines that connect the outdoor condenser directly to individual indoor air handlers. In cooling mode, the internal blower draws warm air from the room across an evaporator coil where refrigerant absorbs the heat and transfers it outside. During heating operation, this process reverses to extract ambient warmth from the outdoor air and distribute it indoors.Â
Many Daikin residential systems feature Swing Compressor Technology, which provides less refrigerant leakage, lower vibration, quieter operation, and improved long-term reliability. Daikin systems are best known for their heat pump capabilities, but the brand also offers cooling-only units. These are typically a better fit for customers in milder climates where supplemental heating is not a major concern. Daikin quintuple zone systems also have a variety of core Daikin technologies, including Aurora (Hyper-Heat) for powerful heating, Onecta Smart Controls for mobile temperature control, Daikin Streamer Technology for air purification, and Cold Climate for system protection against extremely torrid and frigid temperatures.Â
What spaces are best for Daikin 5 zone mini split systems?
Daikin’s quintuple zone mini splits are 48,000 BTU configurations that are best suited for buildings with rooms that total in range from 2,000 to 2,700 square feet. They perform best in well-insulated spaces with standard 8- to 10-foot ceilings and minimal airflow obstructions, such as the following:
-
Multiple Bedrooms: Ideal for individual temperature control in separate sleeping spaces, especially for families of four or more members.
-
Open Living Areas: Perfect for large family rooms or combined kitchen and dining zones that act as transition spaces into bedrooms and utility areas.
-
Home Offices and Room Additions: Keeps rooms comfortable without heating or cooling the entire house and ideal for spaces that are difficult to connect to existing central HVAC ductwork.
-
Workshops & Studios: Great for outbuildings or multi-use areas that require targeted climate control during regular use.
-
Basements & Attics: A common sense application for Daikin quintuple units concerning supplemental heating and cooling to finished and renovated spaces.
Performance drops in extreme temperatures, poor airflow, or when debris blocks the outdoor unit. Heavy snow, coastal salt spray, and dense debris restrict heat transfer and increase energy consumption. Adequate airflow clearance and protection from snow, salt, and debris help preserve SEER2 and HSPF2 performance.
What BTU sizes are available for Daikin 5 zone mini split systems?
HVACDirect.com currently and solely lists 48,000 BTU Daikin 5-zone configurations, which can serve 2,000 to 2,700 square-foot spaces. Other common configurations include:Â
-
6,000 BTU (up to 250 sq. ft.): for small offices or closets
-
9,000 BTU (250 to 400 sq. ft.): for standard bedrooms
-
12,000 BTU (400 to 650 sq. ft.): for master suites
-
15,000 BTU (650 to 850 sq. ft.): for family rooms
-
18,000 BTU (850 to 1,000 sq. ft.): for large living areas
-
24,000 BTU (1,000 to 1,500 sq. ft.): for expansive open-concept floors
These varied capacity options allow for load matching across the five zones to ensure optimal comfort and efficiency. Installing an oversized or undersized unit compromises the variable-speed inverter system and leads to premature mechanical component failure over time, as well as causing severe temperature imbalances and elevated humidity levels across your designated zones.Â
How much do Daikin 5 zone mini split systems cost?
These systems typically cost $12,000 to $18,000 when accounting for equipment, professional labor, and necessary installation components. While wholesale equipment prices are predictable, total project costs fluctuate based on zone configuration, regional labor rates, and capacity needs.
-
Equipment Cost: A complete Daikin 5 zone system typically ranges from about $6,000 to just under $10,000 depending on the specific model of the outdoor condenser and the combined BTU ratings of the five selected indoor air handlers.
-
Installation and Labor Cost: Professional installation for a 5 zone configuration generally costs between $3,000 and $6,000+, though pricing for labor varies based on region, accessibility, electrical work, and line set length.Â
-
Operation and Maintenance Cost: Monthly operational costs for an efficient Daikin multi zone heat pump system typically range from $50 to $120 depending on local energy rates and climate, while professional semi-annual maintenance visits generally cost between $100 and $300 per service.Â
Permit costs, when required, typically range from $150 to $500+ depending on local city or county requirements. Additional accessories like lineset covers, mounting brackets, equipment pads, disconnect boxes, and condensate pumps add $200 to $1,000+ to the total project cost. A single line set can cost around $200, so that will increase with the number of air handlers that are installed, plus all other equipment accessories that might be necessary. With permits and accessory necessities, a minimum of an additional $350 to $1,150+ is not out of possibility.
Can I install a Daikin 5 zone mini split system myself?
No, Daikin mini split systems require professional installation, since Daikin does not offer DIY models. Daikin designs its systems for professional installation to ensure proper refrigerant handling and electrical connections. Completing a successful setup requires a certified HVAC pro with specialized tools.Â
-
DIY Installation: Daikin DIY 5 zone systems do not exist, therefore a standard Daikin system is not suitable for DIY installation which can violate local codes and void the warranty. It is critical to note that Daikin standard warranty guidelines explicitly state that the 10- to 12-year parts protection is completely void unless the equipment is installed and commissioned by a licensed professional HVAC contractor.
-
Professional Installation: Having a licensed HVAC technician is required to ensure the quintuple zone mini split is correctly sized, properly evacuated to remove moisture from the refrigerant lines, and wired in accordance with local building codes. A professional installation provides the only path to a valid warranty claim and ensures that your high-voltage electrical circuits and safety disconnects meet the rigorous standards necessary for safe, reliable heat pump operation. Daikin has a tiered certification program called Daikin Comfort Pro (for residential installations) and Daikin VRV / Design Pro (for commercial and advanced ductless systems). Certified contractors receive ongoing factory training, priority technical support, and the ability to offer extended manufacturer warranties.
Professional installations almost always require local building, mechanical, and electrical permits to ensure code compliance and warranty protection. The complexity of a 5 zone configuration requires professional oversight to ensure all zones are correctly balanced and that the system is permitted according to your local municipal requirements.
What indoor unit styles are available for Daikin 5 zone mini splits?
Wall mount handlers are the only indoor unit heads available for Daikin 5 zone mini split systems at HVACDirect.com. They are engineered for efficient space utilization and quiet air distribution. The wall mount style features a sleek, low-profile design that mounts directly to the wall to provide heating and cooling without requiring ductwork. These Daikin units are excellent options to provide air delivery from above where there might be minimal floor space.
What power requirements do Daikin 5 zone mini split systems need?
Many Daikin 5 zone mini split systems use a 208/230V single-phase power supply, but always verify the nameplate for exact specifications. These multi zone outdoor condensers supply the connected indoor units, so the entire system must be connected to a dedicated high-voltage circuit. This setup supports safe operation under peak load conditions, but its electrical requirement varies by model.
-
Voltage Requirements: Every Daikin 5 zone outdoor unit requires a 208/230V power connection, as these systems are not compatible with standard 110V to 120V residential circuits.
-
Breaker Size: You must install a dedicated double-pole circuit breaker, typically rated for 30A to 40A as specified by the individual unit nameplate, to prevent electrical malfunction during high-demand operation.
-
Wire Gauge: These systems require a 10 AWG or 8 AWG copper wire gauge to safely carry the required amperage from your electrical panel to the outdoor disconnect box, with the exact thickness determined by the total circuit length and local electrical code.
-
Communication Wiring: While the outdoor unit handles high-voltage power, the indoor units receive power directly from the outdoor condenser via a 14 AWG 4-conductor stranded communication cable that also transmits control signals.
Always verify the Minimum Circuit Ampacity (MCA) and Maximum Overcurrent Protection (MOP) values located on your specific outdoor unit nameplate before finalizing your electrical installation. A licensed electrician should also size the breaker and wire based on the MCA and MOP on the nameplate to ensure full safety compliance and warranty protection.
Why You Need an ACiQ Smart Toilet
ACiQ smart toilets combine modern design with advanced hygiene and comfort features to transform everyday bathroom routines. In this guide, we explore how smart toilets work, what premium features to look for, and why ACiQ models stand out for homeowners seeking luxury performance at an accessible...
Read more February 4, 2026
2025 Wood Burning Fireplaces Buying Guide: Types, Installation, and Best Brands for Your Home
Considering a wood burning fireplace? This quick guide compares radiant front, circulating, and EPA-approved high-efficiency models—how they heat, what they cost, and when each is the best choice. Learn key installation basics (clearances, chimney/venting, permits), sizing tips, and smart...
Read more September 24, 2025
Upgrade Your Old Central AC: Why a Central Zoned Mini Split Is the Perfect Replacement
Upgrading from an old central AC system? A central zoned mini split is the smart replacement that combines the familiar comfort of ducted air with the flexibility of ductless zones. With one powerful outdoor unit, you can heat and cool your main living areas plus add independent comfort to garages,...
Read more September 23, 2025
Top 3 Panasonic Energy Recovery Ventilator (ERV) Series of 2025
Looking for the best ERV for your home in 2025? Panasonic offers three top-rated series—BalancedHome™, Intelli-Balance®, and WhisperComfort®—each designed to improve indoor air quality while reducing energy costs. In this guide, we review features, applications, and real homeowner feedback so you...
Read more September 16, 2025
FAQs about Daikin 5 zone mini split systems
Daikin 5 zone mini split systems offer up to 20 SEER2 and 10 HSPF2, making them highly energy efficient and capable of reducing long-term utility costs. By utilizing advanced inverter-driven variable speed technology, these systems precisely control refrigerant flow to satisfy each zone’s programmable temperature on command, reducing energy waste compared with traditional start-stop HVAC systems.
Daikin mini split systems are designed and manufactured by Daikin Industries, Ltd., a multinational heating and cooling corporation headquartered in Osaka, Japan. Founded in 1924, Daikin has grown to become the world's largest HVAC manufacturer, engineering its own specialized inverter compressors and advanced climate technologies across global facilities. For the North American residential and commercial markets, production and engineering are largely driven by its major subsidiary, Daikin Comfort Technologies, out of the massive Daikin Texas Technology Park located in Waller, Texas.
No, Daikin does not manufacture DIY 5 zone mini split systems; professional installation is required. Unlike specialized DIY brands that utilize pre-charged, quick-connect line sets, Daikin systems require field piping, vacuum evacuation, and professional testing to ensure safe operation and maintain the manufacturer's limited warranty.
Daikin quintuple zone systems are backed by a 10-year compressor warranty and a 7-year parts warranty with online registration. If the system is not registered, coverage defaults to a 5-year limited parts warranty, making timely registration essential to securing the full term of protection. Warranty coverage varies by model and registration, so be sure to verify the exact terms for the specific Daikin 5 zone system.
Yes, Daikin 5 zone mini split heat pump systems are designed to provide both powerful heating and cooling throughout the year. Select Daikin Aurora 5 zone mini split systems are even specifically engineered for low-temperature operation, maintaining reliable heating performance down to -13°F on select models.
Daikin quintuple zone mini split systems have an average life expectancy of approximately 20 years, provided they receive regular professional maintenance and care. Adhering to manufacturer guidelines—such as monthly filter cleaning and annual professional tune-ups—is essential to maximizing this service life and maintaining optimal efficiency throughout the system's operation.
Daikin 5 zone mini split systems are engineered for ultra-quiet operation, with indoor units producing sound levels as low as 24 decibels (dBA) and outdoor condensers operating between 52 and 55 dBA. These systems may feature a Quiet Operation mode, depending on the model type, that can reduce the outdoor unit's noise level by an additional three decibels during times when minimized sound is required.
Yes, the majority of Daikin multi zone indoor units include a Dry mode for moisture removal. While this mode effectively extracts moisture during standard operation, it does not offer precise humidity control like dedicated dehumidifier systems.
For best results, it is recommended to clean or replace your Daikin indoor unit air filters every 4 to 6 weeks and schedule a professional tune-up once a year.

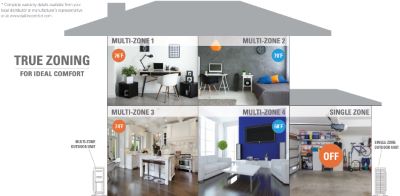

A Daikin 5 zone mini split system is designed to heat and cool up to five separate rooms simultaneously, providing individualized climate control for each, depending on room configuration, insulation, and home layout.
