With tons of extra features and a great price, an ACiQ furnace and air conditioning system is the perfect choice for all of your heating and cooling needs for any time of year. All ACiQ models come with a 10 year parts warranty.
ACiQ 2.5 Ton 13.4 SEER2 Central Air Conditioner Condenser - R454B Single Stage
OVERVIEW
The ACiQ R5A4S30AKANA is a standard AC-only condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.
QUICK FACTS
2 ton, 13.4 SEER2 AC-only condenser
Can cool a small to medium-sized house in average conditions
Single stage compressor
Filter drier included to be field-installed
2.5 Tons
The ACiQ R5A4S30AKANA air conditioner condenser has an output of 2.5 tons, generally enough to cool a small to medium-sized house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.
13.4 SEER2
The ACiQ R5A4S30AKANA air conditioner condenser is rated at 13.4 SEER2, making it between 5-7% more efficient than standard 13 SEER1 units, saving you money in electric bills over the entire lifetime of your unit.
This unit (and all 13.4 SEER2 units) cannot be shipped or installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and VirginiaFor more information about state efficiency requirements, please click here.
Warranty
ACiQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.
Durability
The cabinet of ACiQ units are extremely durable. On the R5A4S30AKANA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.
Quiet Comfort
ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.
High Efficiency
ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.
Longer life, longer warranty
ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.

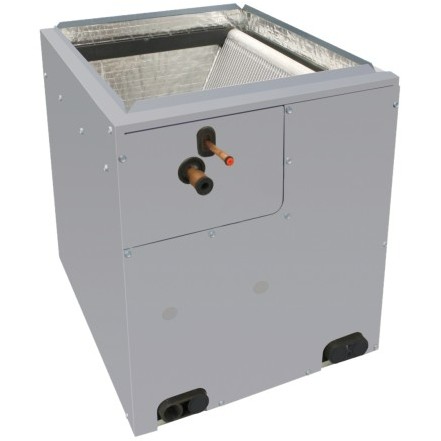

ACiQ takes pride in its ability to provide a high-quality system, including all system components. Leaving no exception, the EVD5X30M17A vertical coil is a superior option for any air conditioning application while maintaining the entire unit's efficiency with a factory-integrated TXV kit for enhanced energy optimization.
QUICK FACTS
2.5 ton vertical coil
Works in both upflow and downflow applications
Fully insulated, cased V-coil design for efficient heat transfer in a compact size
Factory-installed TXV kit for enhanced energy optimization
Corrosion-resistant drain pan designed with a Polybutylene Terephthalate (PBT) material for unsurpassed strength
2.5 Tons
The ACiQ EVD5X30M17A is rated for up to 2.5 tons of cooling. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.
Warranty
ACiQ offers a 10 year parts warranty on their coils when they are installed following your state and local codes, as well as the system is paired with a certified system matchup. Please note that in order to obtain the entire length of this warranty, the entire unit must be registered through the manufacturer.

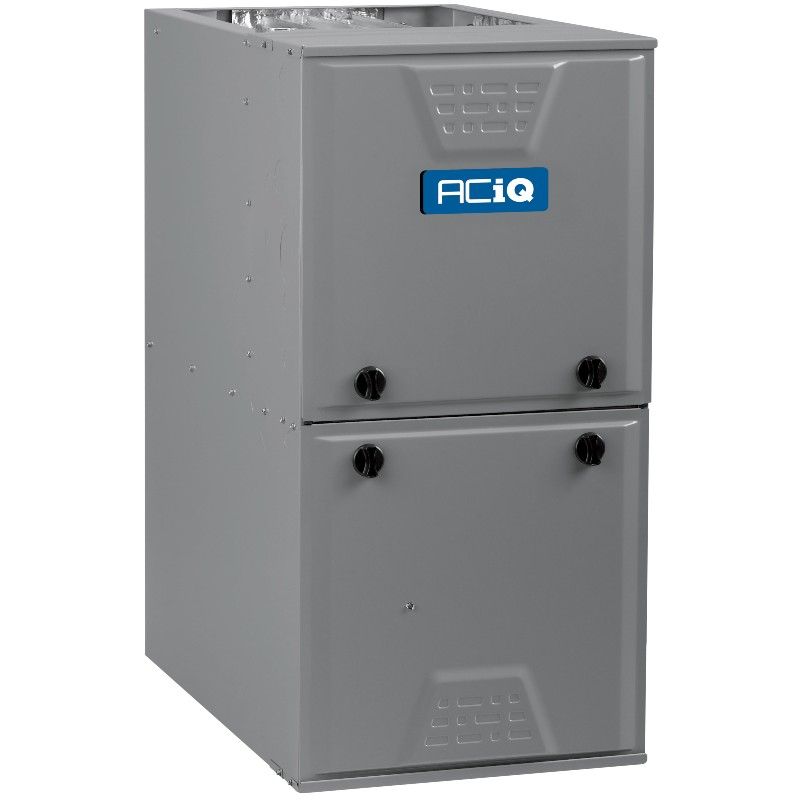

ACiQ 96% 40,000 BTU Single Stage Gas Furnace - 14" Width - Multi-Positional
OVERVIEW
Designed to be a high-efficiency furnace, the ACiQ N96MSN0401410A is a money saving unit to provide heating throughout even the coldest months of the year. With its multi-positional design, this unit is a good all-around choice for nearly any application.
QUICK FACTS
40,000 BTU, 96% AFUE natural gas furnace
Generally suitable for up to a small house in ideal applications
Multi-positional design can be installed in the upflow, downflow, or horizontal orientations
Single stage burner with a multi-speed blower
Field-convertible to propane with an optional LP kit
On board self-diagnostics
Energy Star certified
40,000 BTU, 96% AFUE
The ACiQ N96MSN0401410A has an input of 40,000 BTU. With an efficiency of 96%, this means that the furnace has an output of 38,400 BTU. The 96% AFUE also means that for the gas going into the furnace, 96% of it is used to heat your home while only 4% is lost out of the flue piping and lost to normal furnace operations. All furnaces at this efficiency (90% and above) requires plastic/PVC flue venting, and if metal flue venting is required for your installation, an 80% efficient furnace would be needed instead. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost.Please note that this furnace is not Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.
Quiet Comfort
Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.
High Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.
Longer life, longer warranty
Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ 96% 40,000 BTU Single Stage Gas Furnace - 14" Width - Multi-Positional
SKU
N96MSN0401410A
Weight
120.000000
AHRI Certificate Number
213148785
Manufacturer
ACiQ
Equivalent
Carrier Equivalent: 59SC5B040E14--10
Tempstar Equivalent: TN95ESN0401410A
Bryant Equivalent: 915SB30040E14
Product Features
New Refrigerant Compliant
Furnace Efficiency / AFUE
96%
Heating BTU
40,000
Blower Motor
ECM
Maximum CFM
950
Configuration
Upflow/Downflow/Horizontal
Energy Star
Yes
Burner Stages
Single
Fuel Type
Propane, Natural Gas
Height
35"
Width
14"
Depth
29 1/2"
Warranty
20 Year Heat Exchanger / 10 Year Parts with Online Registration
You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.
