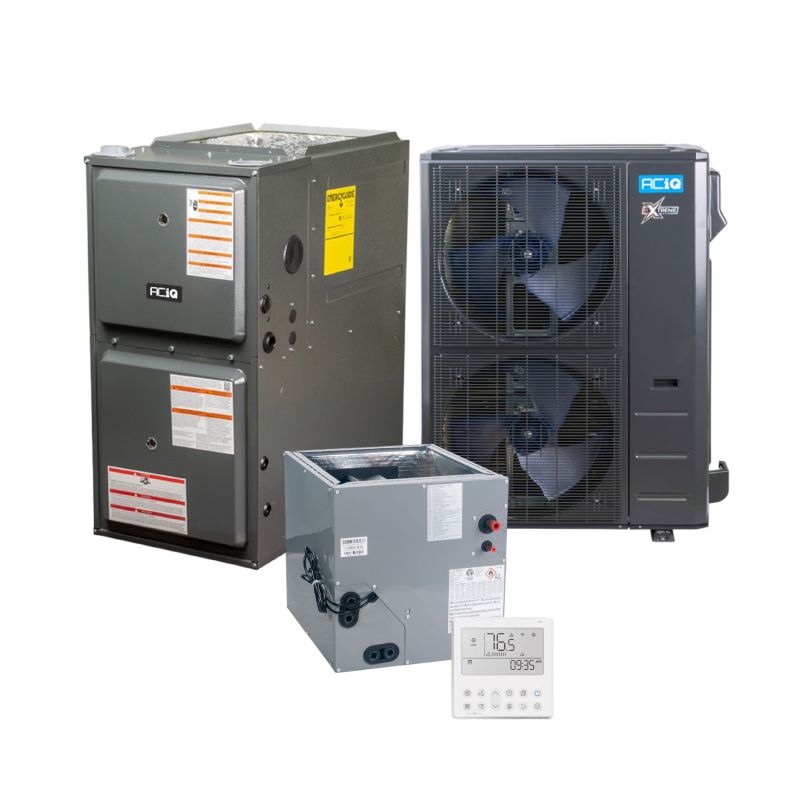

With tons of extra features and a great price, an ACIQ furnace and High Efficiency Heat Pump system is the perfect choice for all of your heating and cooling needs for any time of year. All ACIQ models come with a 10 year parts warranty.
120,000 BTU 96% AFUE Two Stage Gas Furnace | 24.5" Width | Upflow/Horizontal
OVERVIEW
As a high-efficiency system, the AQ-GR9T961205DN ACiQ gas furnace features many money saving features. The two-stage, 9-speed furnace uses a superior heat exchanger for better heat transfers to your home. Considered one of the best efficiencies on the market, the AQ-GR9T961205DN is a good way to go if you want to lower your gas bill.
QUICK FACTS
This furnace is ideal to heat a larger house (depending on climate)
120,000 BTU 96% AFUE natural gas furnace
Requires plastic/PVC flue venting
Complies with Clean Air Act New Refrigerant Requirements
Can be used in the upflow or horizontal orientation
Can be converted to an LP furnace with an optional conversion kit (sold separately)
Innovative design for electrical efficiency, safety, and lower sound output
120,000 BTU
Heating up to a larger house in normal conditions, the AQ-GR9T961205DN ACiQ gas furnace has an input of 120,000 BTU's and an output of 115,200 BTU's. The output in this case is determined by taking the input times the efficiency rating.
96% AFUE
The AQ-GR9T961205DN ACiQ gas furnace is a 96% efficient furnace, making it a condensing setup. This efficiency means that only 4% of the fuel going into the furnace is used up in furnace operations, while 96% of the fuel is used to heat your home. As a condensing furnace, this furnace will need to be vented with plastic or PVC flue venting. If you need to use metal flue venting, you would need an 80% efficient furnace.
Two Stage 9-Speed Furnace
With a two stage burner, the AQ-GR9T961205DN provides two heating outputs: one at a 60% heating output and one at a 100% output. The furnace also has a 9 speed ECM motor instead of the last-generation inefficient PSC motor. Both of these built-in upgrades allow for your furnace to adjust the heating output and airflow more precisely to better suit your home's comfort needs and provide a slightly higher efficiency.
Warranty
With installation that follows your state and local codes and with online registration, all ACiQ furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.
Durability and Reliability
The exterior casing on the AQ-GR9T961205DN is heavy-gauge steel that is insulated for enhanced protection and to lower air leakage and sound output from normal furnace operation. The hot surface ignitor is more efficient than earlier models and standing pilot lights thanks to its revolutionary new technology. Both of these end up saving you money on installation, maintenance, and bills.
One to LPM-34
The cost-saving benefits of the ACiQ brand doesn't stop at efficiency. The AQ-GR9T961205DN ACiQ furnace can be upflow or horizontal, increasing the number of ways that your installer can install the system. The low-voltage terminals that are color-coded, the installation is faster and easier over standard non-colored systems. Straight from the factory, the AQ-GR9T961205DN comes with natural gas valves. However, increasing its versatility in installation, ACiQ offers an LP conversion kit (found here at an additional cost) if you need it to be propane instead of natural gas. Not only does the ACiQ brand save you money on installation costs, but also with maintenance and warranty work. In the event of a rare warranty issue, the on board self-diagnostic control board alerts you and your serviceman what is wrong with the unit for most basic issues for a faster solution.
Please note that this furnace requires a drain kit if installed horizontally. Upflow configurations do not require the kit.
ACIQ 5 Ton 16 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series - R454B
OVERVIEW
Inverter - The ACIQ-60-HPD 5 ton Extreme series central inverter heat pump utilizes inverter technology to convert AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.
Learning Condenser - Equipped with advanced sensors, this condenser monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall performance. During the initial startup, it enters a learning mode that optimizes future operations for maximum efficiency by collecting and storing data.
Adaptive Sizing - With its self-adjusting inverter design, the ACIQ-60-HPD can be sized based on your heating needs. Standard heat pumps may cause discomfort during summer when sized for heat, but this unit automatically adjusts to function like a smaller unit, ensuring ideal cooling performance without excess humidity.
Extreme Heat Technology - "Extreme Heat" means extended temperature range heating all the way down to -22°F. Traditional heat pumps cannot produce significant heat below about 30°F outside temperature. Below that threshold, they rely on expensive backup electric heat. The ACIQ-60-HPD uses the inverter to vary the refrigerant flow, allowing for maximum heat extraction during extreme cold temperatures. The backup electric heat supplements the heat pump, and only takes over below -22°F. The heat pump gives 100% at 0°F, and still gives 80% at -22°F, saving you up to 75% on cold weather heating bills.
QUICK FACTS
Variable BTU output based on demand: 12,000-54,000 BTU for cooling, 12,000-56,000 for heating
R454B refrigerant
Inverter heat pump system for ducted applications
Efficient cooling from -22°F to 122°F outdoor temperatures
Efficient heating from -22°F to 75°F outdoor temperatures
Durable gold fin condenser coil coating for longevity
Quiet operation, even under high workloads
5 Ton, 16 SEER2
Boasting an efficiency rating of 16 SEER2, the ACIQ-60-HPD provides versatile comfort across a range of climates by providing reliable comfort with a variable output that eliminates short cycling for lasting efficiency. Use our sizing calculator (found HERE) to determine the demand for your home.
Extreme Heat Base Pan Heater Technology
Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
Heats down to −22°F and cools up to 115°F
Enjoy your ACiQ heat pump system year round with unprecidented heating and cooling performance. Not only that, it is extremely efficient saving you money year round!
Self Cleaning Condenser
ACiQ condensers stay clean and efficient with self-cleaning technology built right in. At the end of each cycle, the fan reverses direction and blows air out the back of the unit — helping remove leaves, dirt, and debris before buildup can begin.
ACIQ takes pride in its ability to provide a high-quality system, including all system components. The ACIQ-60-ACL-B multi-positional A-coil stands out as a superior choice for various applications, ensuring optimal unit efficiency through its factory-integrated TXV kit, maximizing energy optimization. With its outstanding performance features and versatile orientation options, this coil becomes the ultimate solution for achieving unmatched comfort in your home.
QUICK FACTS
5 ton multi-positional evaporator coil
Works in almost any upflow, downflow, or horizontal system setup
Compatible with both AC-only and heat pump condensers
Factory-installed TXV kit for enhanced energy optimization
Sturdy and compact design
5 Tons
The ACIQ-60-ACL-B is rated for up to 5 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.
Santa Fe Ultra70 Dehumidifier UL3684 - Whole House
OVERVIEW
The Santa Fe Ultra-Aire 70H Crawl Space Dehumidifier (Model UL3684 / UL7552 listing reference: Ultra-Aire 70H) is a compact, low-profile dehumidification system designed for crawl spaces, basements, and other low-clearance residential environments where humidity control is required. It helps reduce excess moisture that can contribute to mold growth, wood rot, structural damage, and musty odors.
Designed specifically for tight installation spaces, the Ultra-Aire 70H features a horizontal configuration that allows it to be installed in areas where vertical units may not fit. With a moisture removal capacity of up to 70 pints per day, it is suitable for small to medium residential spaces requiring continuous dehumidification.
The unit is designed for residential applications and provides flexible installation options, allowing it to operate as a standalone system or be integrated with ductwork for ducted air distribution.
Key Features:
Up to 70 Pints Per Day Moisture Removal – Designed for crawl space and basement humidity control
Low-Profile Horizontal Design – Ideal for installation in tight, low-clearance spaces
Standalone or Ducted Operation – Supports flexible installation configurations
Continuous Drain Capability – Designed for gravity drainage applications
Residential Continuous Operation – Suitable for ongoing dehumidification use
Helps Maintain Indoor Humidity Levels – Supports control of excess moisture in enclosed spaces
Customized Installation and Operation
The Ultra-Aire 70H is designed for flexible residential installation in crawl spaces and basements. It can operate as a standalone unit using a standard electrical connection and continuous drainage setup.
The unit can also be connected to ductwork for applications that require distributed airflow within the conditioned space.
Horizontal Low-Profile Design – Fits easily in crawl spaces and low-clearance areas
Standalone Installation – Can operate independently with gravity drain setup
Ducted Compatibility – Supports integration with ductwork systems
Continuous Drain – Allows for continuous moisture removal without manual emptying
Warranty Information
Santa Fe (Therma-Stor) warrants the Ultra-Aire 70H Dehumidifier to be free from defects in materials and workmanship. The unit includes a 5-year limited warranty, with extended coverage on select components. Warranty coverage may vary based on installation, application, and registration requirements. Refer to the manufacturer’s documentation for complete warranty details.
Premium Materials & Construction
The Ultra-Aire 70H is built with durable components designed for long-term use in residential crawl space and basement environments. Its low-profile horizontal design allows for installation in confined areas while maintaining reliable performance.
Engineered for continuous operation, the unit helps maintain consistent humidity levels in enclosed spaces. It is designed for residential dehumidification applications requiring dependable moisture control.
The Ultra-Aire 70H operates on standard 115V power and removes up to 70 pints of moisture per day. It is intended for crawl space and basement humidity control applications.
Why Choose the Santa Fe Ultra-Aire 70H Crawl Space Dehumidifier?
Reliable Moisture Control
Removes up to 70 pints of moisture per day for effective humidity management.
Helps prevent mold growth, wood rot, and moisture-related structural issues.
Low-Profile Design
Designed for installation in tight crawl spaces and low-clearance areas.
Ideal where vertical dehumidifiers cannot be installed.
Flexible Installation
Can be installed as a standalone unit or connected to ductwork.
Supports different residential installation requirements.
Improved Indoor Air Quality
Helps reduce excess humidity that contributes to musty odors and mold growth.
Supports overall indoor air quality in enclosed residential spaces.
Simple Operation
Designed for continuous operation with minimal maintenance requirements.
Continuous drainage eliminates the need for manual water removal.
No-Tear 30 Feet of 3/8" x 3/4" - White
Ensure smooth refrigerant flow and HVAC system efficiency with this no-tear 30-foot insulated line set. Designed for seamless connection between an outdoor condensing unit and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal insulation for high-performance HVAC applications.
Features:
3/8" liquid line (LL) and 3/4" suction line (SL) for optimal refrigerant transfer.
Extra thick 1/2" insulation to prevent tears during installation and from age.
30' long line set - Standard line set length for your typical HVAC installation.
Flexible and durable copper tubing allows for smooth routing and secure connections.
Durable, No-Tear Line Sets Built for Tough Installations
No-tear line sets are designed to eliminate one of the most common frustrations during HVAC installations-insulation that rips, tears, or breaks down over time. Built with enhanced durability and UV-resistant insulation, these line sets maintain their integrity during handling, installation, and long-term outdoor exposure. The result is a cleaner install, better protection, and fewer callbacks compared to standard line sets.
Key Benefits
No-Tear Insulation Construction - Resists ripping and damage during installation
Enhanced Durability - Holds up to jobsite handling and long-term use
UV-Resistant Jacket - Protects against sun exposure and outdoor degradation
Cleaner Installation Finish - Maintains a professional look without patching or tape
Long-Term Insulation Performance - Helps prevent breakdown over time
Contractor-Friendly Design - Easier to work with compared to standard line sets
Built to Withstand Real Jobsite Conditions
Traditional line sets often use insulation that can tear easily when pulled through walls, around corners, or across rough surfaces. No-tear line sets are engineered with a reinforced outer jacket that resists damage during installation, helping maintain insulation integrity from start to finish. This added durability not only improves installation efficiency but also reduces the need for repairs, tape, or replacement sections-saving time on the job and delivering a more professional final result.
UV Protection for Long-Term Outdoor Performance
Standard insulation can degrade when exposed to sunlight, leading to cracking, peeling, and reduced performance over time. No-tear line sets feature a UV-resistant outer layer designed to withstand prolonged outdoor exposure, helping preserve insulation quality and system efficiency. This makes them an ideal choice for installations where line sets are exposed along exterior walls or rooftops.
30 Feet of 3/8" x 3/4"
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.
No-Tear 50 Feet of 3/8" x 3/4" - White
Ensure smooth refrigerant flow and HVAC system efficiency with this no-tear 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal insulation for high-performance HVAC applications.
Features:
3/8" liquid line (LL) and 3/4" suction line (SL) for optimal refrigerant transfer.
Extra thick 1/2" insulation to prevent tears during installation and from age.
50' long line set - Ideal for HVAC setups requiring a longer line set run.
Flexible and durable copper tubing allows for smooth routing and secure connections.
Durable, No-Tear Line Sets Built for Tough Installations
No-tear line sets are designed to eliminate one of the most common frustrations during HVAC installations-insulation that rips, tears, or breaks down over time. Built with enhanced durability and UV-resistant insulation, these line sets maintain their integrity during handling, installation, and long-term outdoor exposure. The result is a cleaner install, better protection, and fewer callbacks compared to standard line sets.
Key Benefits
No-Tear Insulation Construction - Resists ripping and damage during installation
Enhanced Durability - Holds up to jobsite handling and long-term use
UV-Resistant Jacket - Protects against sun exposure and outdoor degradation
Cleaner Installation Finish - Maintains a professional look without patching or tape
Long-Term Insulation Performance - Helps prevent breakdown over time
Contractor-Friendly Design - Easier to work with compared to standard line sets
Built to Withstand Real Jobsite Conditions
Traditional line sets often use insulation that can tear easily when pulled through walls, around corners, or across rough surfaces. No-tear line sets are engineered with a reinforced outer jacket that resists damage during installation, helping maintain insulation integrity from start to finish. This added durability not only improves installation efficiency but also reduces the need for repairs, tape, or replacement sections-saving time on the job and delivering a more professional final result.
UV Protection for Long-Term Outdoor Performance
Standard insulation can degrade when exposed to sunlight, leading to cracking, peeling, and reduced performance over time. No-tear line sets feature a UV-resistant outer layer designed to withstand prolonged outdoor exposure, helping preserve insulation quality and system efficiency. This makes them an ideal choice for installations where line sets are exposed along exterior walls or rooftops.
50 Feet of 3/8" x 3/4"
Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer. ✔ Pre-Insulated for Efficiency:3/8" thick insulation minimizes energy loss and condensation buildup. ✔ Versatile Application: Compatible with heat pumps and conventional split systems. ✔ Easy Installation:Flexible and durable copper tubing allows for smooth routing and connection. ✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.
You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACIQ 5 Ton 16 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series - R454B
Feature
Spec
SKU
ACIQ-60-HPD
Refrigerant Charge
183.42 oz.
Weight (in lbs)
275.130000
Brand/Manufacturer
ACiQ
Replaces
ACiQ-60-HPB
Product Features
High Efficiency / Inverter, Hyper Heat, Two Stage Condenser, Variable Speed Condenser
Cooling BTU
55,000 BTU
Heating BTU
56,000 BTU
Maximum CFM
2648.6
Decibel Level (dBA)
65
Electric Heat
Heat Pump
Refrigerant
R454B
HSPF2
9.0
SEER2 (Efficiency)
16
Condenser Stages
Variable Speed
Compressor Type
Rotary
Liquid Valve Size
3/8"
Suction Valve Size
3/4"
Electrical
208/230V, 1 Phase, 60 Hz
Phase
Single Phase
Max Breaker Size
40 Amps
Min. Breaker Size
40 Amps
Tonnage
5 Ton
Min/Max Outdoor Temp for Heating
-22°F - 75°F
Min/Max Outdoor Temp for Cooling
-22°F - 122°F
Zone Compatibility
Single Zone
Ambient Temperature Range
-22°F - 122°F
Height
52.48"
Width
37.48"
Depth
16.34"
Warranty
12 Years Compressor and 7 Years Parts with Online Registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Santa Fe Ultra70 Dehumidifier UL3684 - Whole House
Feature
Spec
SKU
UL3684
Weight (in lbs)
55.000000
Brand/Manufacturer
Santa Fe
Included Items
Leveling feet (4), MERV 13 filter (9” x 11” x 1”), 8” round duct collars (2)
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
Feature
Spec
SKU
LS38343830
Weight (in lbs)
35.000000
Brand/Manufacturer
Online Supply
Liquid Line
3/8"
Suction Line
3/4"
Suction Line Insulation Thickness
3/4"
Length
30 feet
30 Feet of 3/8" LL x 3/4" SL x 1/2" No-Tear Insulated Line Set - Black
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
30 Feet of 3/8" LL x 3/4" SL x 1/2" No-Tear Insulated Line Set - White
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
50 Feet of 3/8" LL x 3/4" SL x 1/2" No-Tear Insulated Line Set - Black
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
50 Feet of 3/8" LL x 3/4" SL x 1/2" No-Tear Insulated Line Set - White
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Across many installations, buyers report quiet operation, smoother and more even heat, and lower energy bills after replacing older units ranging from 20 to 25+ years old, including 55K, 60–66% efficient 100,000 BTU models and 70,000 BTU systems, with upgrades to 60K or 80K BTU 96% two-stage furnaces showing noticeable performance gains. Installation is frequently described as straightforward for DIYers, though some encountered loose screws, minor shipping damage, wiring marker visibility issues, sensor error codes (EE1, R32), or needed adjustments to gas lines, plenums, and internal wiring.
AI Generated from the text of customer reviews
Top reviews
Nice...
Quality
100%
Service
100%
Price
100%
So far so good running nice...
Review byNate
Posted on
Working so far
Quality
80%
Service
60%
Price
100%
The ID fan pressure sensor was not working on the first day, giving an EE1 error, but it cleared by itself on the next day.
Review byDon
Posted on
New Furnace
Quality
100%
Service
100%
Price
100%
Great unit! Showed up on time and in great condition. Packaging was excellent and very secure. All pieces were included. Got the plenum kit which came with a lot of metal screws too. Unit hooked up and is working great! I was without heat so having these guys to talk with and sort out details was key to my purchase. Contacting them during shipping to make sure everything was on time was easy and no hassle. Unit was well priced and I feel I got a great deal over all and isn't that what it's all about?
If I ever upgrade and add A/C I'll be buying from here only. Once you treat me right you keep my business until you don't. Only fair.
Review byMajen66
Posted on
Great furnace
Quality
100%
Service
80%
Price
80%
This furnace is replacing a Goodman I installed in 2002. Everything went smoothly but I wished it would be easier to read the wiring markers. I pretty much had to lay on the floor to see them because they're marked on the bottom not the top of the connections.
Review byEd
Posted on
30 year old Furnace replacement
Quality
80%
Service
100%
Price
80%
First time installing a Goodman, I have replaced quite a few of the older models. Everything hooked up fine only issue was shutting off the R32 sensor , didn't realize i needed to do that until it was to late. Took a few attempts to reset the codes but after a quick video on YouTube from their links it was fixed. Over all I'm very happy with it and so is the customer. It's nice when the install takes less that 6 hours start to finish.
Review byJ.J.
Posted on
So far we are very Happy!
Quality
100%
Service
100%
Price
100%
I am SO glad we went with @HVACDirect instead of that local AC company that wanted $24K for a Daikin system (same one that was $15K in 2022?!
Review byKate
Posted on
Easy to Work With
Quality
100%
Service
100%
Price
100%
I purchased two furnaces that were delivered promptly. I am very pleased.
Review byLarkspur DIY
Posted on
Smooth Running
Quality
80%
Service
80%
Price
100%
Unit runs smoothly as you'd expect for a new furnace. It replaced a 70,000 BTU from the late 80's and hasn't had any problems so far with low 20 degree weather in a 1,300 SF northern mid-west home.
My only hits on the quality would be there were several screws loose on the unit randomly all over, so we looked at it closely in case of the feared "Friday or Monday build". Perhaps this happens in shipping, or some fasteners like the gas hookup are left loose for ease of connecting gas first.
The cabinet had some damage I'd assume came during shipping, so it required some field adjustments to get the upper door on straight and hooking up the plenum. Pricing compared with about every other competitor, but the unit was available in stock and the reliability and customer service of HVACDirect won out with us.
AI Generated from the text of customer reviews
