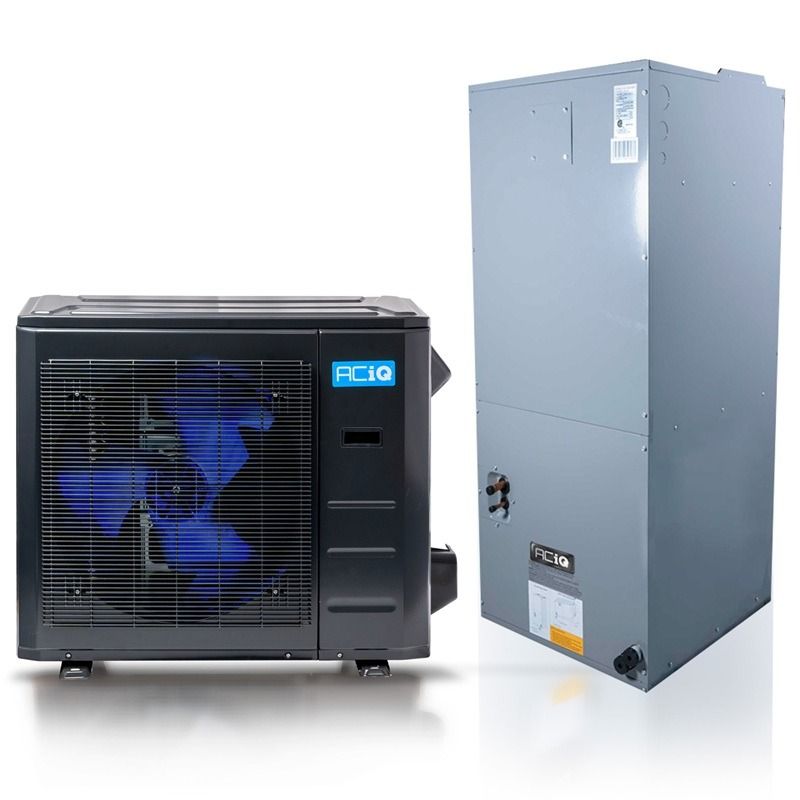

ACiQ 2.5 Ton 17 SEER2 High Efficiency Central Heat Pump System | Inverter - R454B

SAVE $1,046.00
ACiQ 2.5 Ton 17 SEER2 High Efficiency Central Heat Pump System | Inverter - R454B

Required Fields *

By

ACiQ

In stock

Model

ACiQ-30-EHPD / ACiQ-30-AHD

ID

197567

Rating:
98% of 100
In Stock - 500 Ready to Ship
Was $5,229.00
Your Low Price $4,183.00

Free Shipping
Product Features
  • Complete all-electric heating and cooling system
  • Can be installed in upflow, downflow, or horizontal applications
  • Pre-charged with R454B refrigerant
  • Well-suited for small to medium-sized homes in various climates
  • High efficiency inverter technology reduces energy bills
  • Exceptionally smooth and quiet operation
Customize ACiQ 2.5 Ton 17 SEER2 High Efficiency Central Heat Pump System | Inverter - R454B
ACiQ 2.5 Ton 17 SEER2 High Efficiency Central Heat Pump | Inverter - R454B
ACiQ 2.5 Ton 17 SEER2 High Efficiency Central Heat Pump | Inverter - R454B   + $2,915.00
ACiQ 2.5 Ton Central Ducted Air Handler - R454B
ACiQ 2.5 Ton Central Ducted Air Handler - R454B   + $1,268.00
30 Feet of 3/8" x 3/4"
ACiQ 5 Kilowatt 16,200 BTU Heater Coil
ACiQ TL04-1 Smart Thermostat – 24V & HA/HB Compatible
Installation Kit for Condensers
Wall Mount Bracket for Condensers 30"
ACiQ 2.5 Ton 17 SEER2 High Efficiency Central Heat Pump System | Inverter - R454B - ACiQ-30-EHPD / ACiQ-30-AHD

$4,183.00

OVERVIEW

ACiQ's High-Efficiency 2.5 Ton Heat Pump System, featuring the ACIQ-30-EHPD inverter condenser and ACIQ-30-AHD air handler, offers the perfect balance of smart inverter technology and seamless integration with your existing ductwork.

How is it different from a traditional heat pump?

  • Variable BTU Inverter: Automatically adjusts output to match demand.
  • Smart system with soft startups: Maximizes efficiency and reduces energy waste.
  • Sized for heating: Allows you to size for heat without worrying about short cycling in cooling mode.
  • Rated for efficient heating: Operates down to 5°F outdoor temperatures.

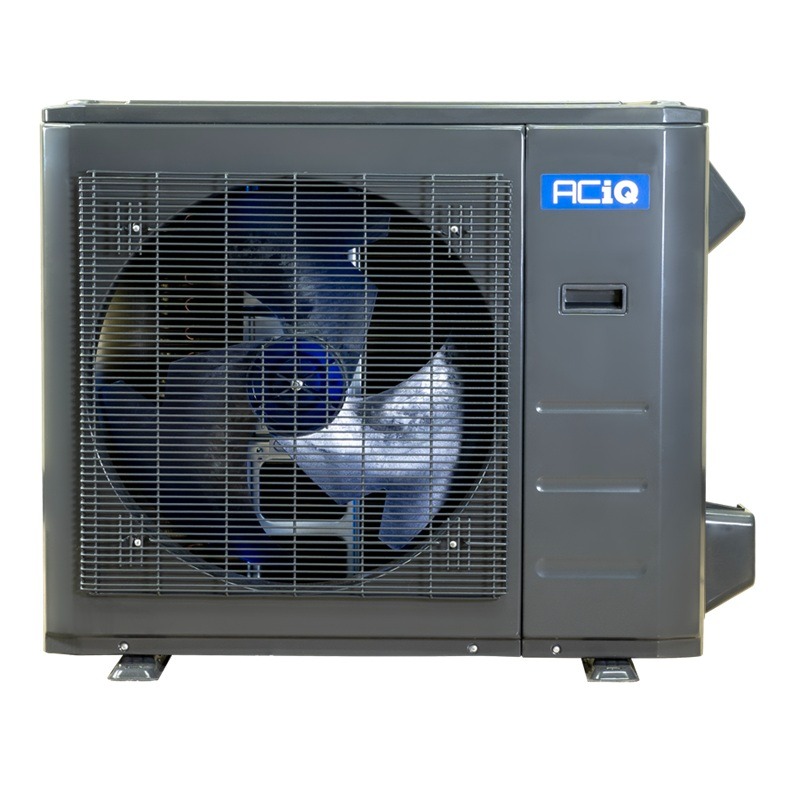

ACiQ 2.5 Ton 17 SEER2 High Efficiency Central Heat Pump | Inverter - R454B

OVERVIEW

Inverter - The ACiQ-30-EHPD 2.5 ton central inverter heat pump utilizes inverter technology to convert AC power to DC, allowing the compressor to adjust its speed. This enables the condenser to modify its BTU output based on the current demand, providing efficient and adaptable performance throughout varying weather conditions.

Learning Condenser - Equipped with advanced sensors, this condenser monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall performance. During the initial startup, it enters a learning mode, optimizing future operations for maximum efficiency by collecting and storing data.

Adaptive Sizing - With its self-adjusting inverter design, the ACiQ-30-EHPD can be sized based on your heating needs. Standard heat pumps may cause discomfort during summer when sized for heat, but this unit automatically adjusts to function like a smaller unit, ensuring ideal cooling performance without excess humidity.

QUICK FACTS

  • Variable output based on demand: 12,000-30,000 BTU for cooling, 12,000-31,000 BTU for heating
  • R454B refrigerant
  • Inverter heat pump system for ducted applications
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Reliable heating from -13°F to 75°F outdoor temperatures
  • Durable gold fin condenser coil coating for longevity
  • Quiet operation, even under high workloads

2.5 Ton, 17 SEER2

Boasting an efficiency rating of 17 SEER2, the ACiQ-30-EHPD provides versatile comfort across a range of climates by providing reliable comfort with a variable output that eliminates short cycling for lasting efficiency. Use our sizing calculator (found HERE) to determine the demand for your home.


ACiQ Quality Construction

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.


Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

ACiQ Highest Efficiency

ACiQ Longer Warranty

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

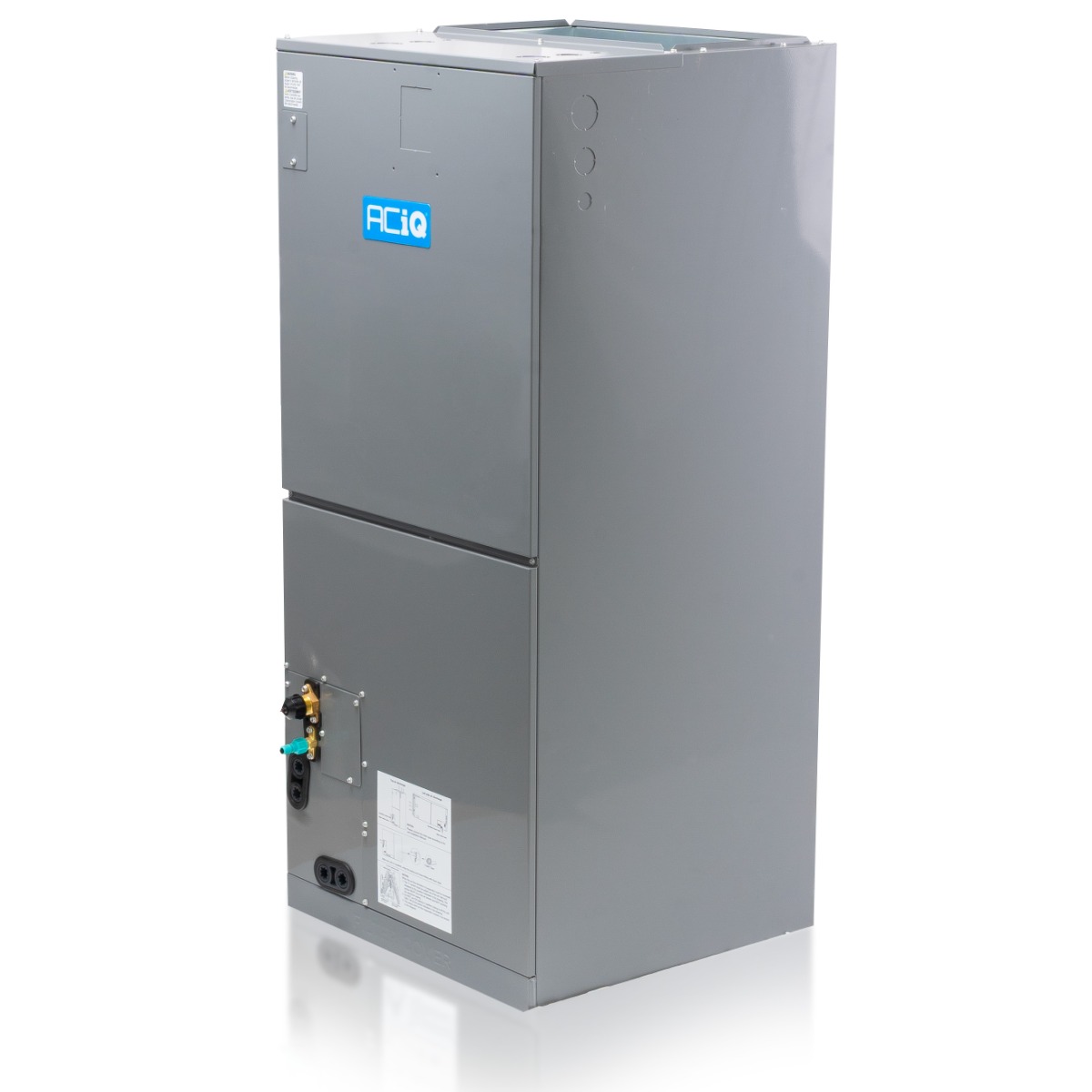

ACiQ 2.5 Ton Central Ducted Air Handler - R454B

Enhanced Comfort at Maximum Efficiency

The ACIQ-30-AHD air handler features a variable speed DC blower and communicating technology to maximize comfort and efficiency at the same time. Your thermostat communicates with the inverter condenser outside and the variable speed air handler inside, allowing the system to self-adjust BTU output to maximize efficiency while providing ideal comfort. The air handler efficiently distributes heated and cooled air throughout your home by seamlessly attaching to your existing ductwork.

  • 30,000 BTU, 2.5 ton central ducted air handler
  • Compatible with any 24v thermostat
  • Variable speed DC blower

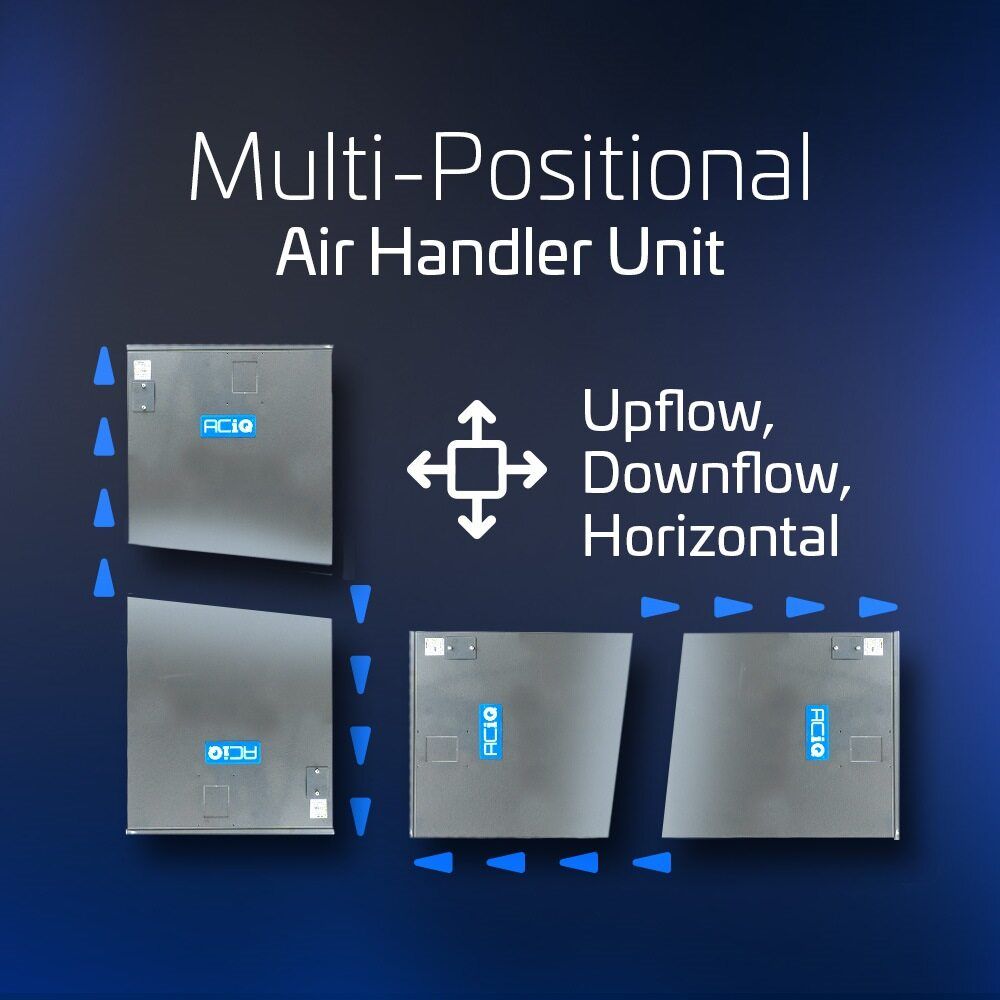

  • Multi-positional - Can be installed in upflow, downflow, or horizontal left/right orientations
  • Compatible with R454B refrigerant

Installation and Maintenance

Installation is very similar to installing any replacement air handler. Your technician will make electrical, refrigerant, thermostat, and communication connections. Plus, they will connect the air handler to your return and supply ductwork. The ACiQ central ducted air handler is multi-positional (upflow, downflow or horizontal), making it a very versatile air handler. Any 24v thermostat with 2 stages of heating can control the system. Supplemental electric heat kits are available as a backup heat source for the coldest days of the year. If any maintenance is required, the intelligent control board in the air handler displays fault codes in case any part of the system experiences issues.

Please note - in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle. To use straight electric heating, an electric heat kit is necessary and is also available at an additional cost.

30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set

Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.

50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set

Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.

Key Features:

Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
Versatile Application: Compatible with heat pumps and conventional split systems.
Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.

Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.

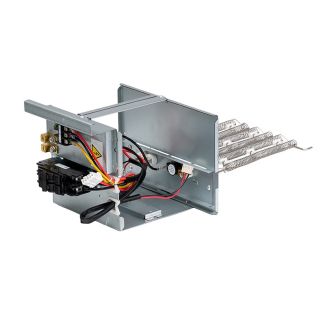

ACiQ 5 Kilowatt 16,200 BTU Heater Coil

The EAH-05B is a 5kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 16,200 BTU, this heater coil can generally cover a small house in ideal climates.

Please note that this heater coil requires one 30 amp breaker to function.

Compatible Air Handlers

  • ACiQ-18-AHD
  • ACiQ-24-AHD
  • ACiQ-30-AHD
  • ACiQ-36-AHD
ACiQ 8 kilowatt 26,000 BTU Heater Coil

The EAH-08C(UL) is a 8kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 16,200 BTU, this heater coil can generally cover a small house in ideal climates.

Please note that this heater coil requires one 30 amp breaker to function.

Compatible Air Handlers

  • ACiQ-18-AHD
  • ACiQ-24-AHD
  • ACiQ-30-AHD
  • ACiQ-36-AHD
ACIQ 10 Kilowatt 34,100 BTU Heater Coil

The EAH-10C(UL) is a 10kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 16,200 BTU, this heater coil can generally cover a small house in ideal climates.

Please note that this heater coil requires one 30 amp breaker to function.

Compatible Air Handlers

  • ACiQ-18-AHD
  • ACiQ-24-AHD
  • ACiQ-30-AHD
  • ACiQ-36-AHD
  • ACiQ-42-AHD
  • ACiQ-48-AHD
  • ACiQ-60-AHD
ACiQ 15 Kilowatt 51,150 BTU Heater Coil

The EAH-15C(UL) is a 15kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 16,200 BTU, this heater coil can generally cover a small house in ideal climates.

Please note that this heater coil requires one 30 amp breaker to function.

Compatible Air Handlers

  • ACiQ-24-AHD
  • ACiQ-30-AHD
  • ACiQ-36-AHD
  • ACiQ-42-AHD
  • ACiQ-48-AHD
  • ACiQ-60-AHD
ACiQ TL04-1 Smart Thermostat – 24V & HA/HB Compatible

Smarter Comfort. Sleek Control.

The ACiQ TL04-1 Smart Thermostat is engineered to bring precise, intelligent control to your home’s HVAC system. Compatible with both standard 24V wiring and HA & HB communication protocols, it delivers flexibility for new builds or system upgrades.



QUICK FACTS

  • Dual Compatibility: Supports 24V systems and HA/HB non-polarity communication systems
  •
  • Control Options: Works with single and two-stage heating, cooling, and heat pump systems with auxiliary/emergency heat
  • Modern Touchscreen: Auto-wake screen with responsive touch interface
  • Clean Installation: Includes M-base, trim plate, wire labels, screws, and anchors
  • Smart Safety: Built-in installation tips, safety reminders, and FCC/IC compliance
  • Perfect for homeowners looking to upgrade their comfort with modern, intelligent technology
Ecobee Smart WiFi Thermostat with Alexa

The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.

With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.

Features

Not at your thermostat? No problem.

Adjust temperature and comfort settings easily from the ecobee mobile app on your Android and iOS devices, including Apple Watch.

Connects to your existing home network

Convenient Wi-Fi capabilities offer a secure and reliable connection.

Knows you have a life

Vacationing and forgot to let your ecobee know? Make a vacation event using the ecobee mobile app. If something’s wrong with your equipment, we can send you service alerts and reminders.

Control the volume

If it's getting a little loud for your taste, you can use the app to adjust the volume.

Built to last

ecobee thermostats are hardwired, which means your thermostat isn’t relying on a battery or your HVAC equipment to charge itself.

ACiQ Single-Stage Dual Powered Non-Programmable Thermostat

The ACiQ STN701 Single-Stage Dual Powered Non-Programmable Thermostat is a cost effective solution to temperature control! Designed with a bright blue backlight and large easy to read characters, ACiQ thermostats are easy to operate for all consumers.

  • 1 Heat / 1 Cool Non-Programmable Thermostat
  • Operable with AAA batteries or 24v power
  • Large, easy to ready clear LCD display with different backlight color options
  • Configurable with Electric or Gas Systems
  • Separate B & O terminals
  • Handles heating and cooling temperature swing adjustments separately
  • Toggleable 5 minute compressor delay protection
  • Temperature Range: 32°F-99°F (1°C-40°C)
  • Temperature Accuracy: ±1.8°F (±1°C)
ACiQ 7-Day Programmable Thermostat with WiFi

The STN855W is a versatile WiFi thermostat offering 7-day, 5/1/1 programmable, or non-programmable options. It features a temperature range of 32°F-99°F (1°C-40°C) and precise control from 44°F-90°F (7°C-32°C) with an accuracy of ±1°C. Powered by 24V, it comes in a compact design with dimensions of 120 x 98 x 28 mm, making it ideal for efficient and customizable temperature management.

  • 7-Day or 5/1/1 programmable scheduling
  • 2 Heat / 2 Cool Conventional or 3 Heat / 2 Cool Heat Pump thermostat
  • Temperature range: 32°F-99°F (1°C-40°C)
  • Control temperature range: 44°F-90°F (7°C-32°C)
  • Accurate temperature measurement: ±1°C (at 20°C)
  • Easy menu-driven programming
  • White, blue, or green backlight settings
  • Configurable with electric or gas setups
  • Keypad lockout
  • Heating and cooling setpoint limits
  • Filter change indicator (can be toggled on/off)
  • Works with Alexa
  • 24v power
  • Compact design (120 x 98 x 28 mm)
Installation Kit for Condensers - Accessory Set

Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

Key Features:

All-in-One Kit: Includes key accessories for a professional-grade installation.
Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
HVAC Professional Recommended: Ideal for new installations and system replacements.

What’s Included:

  • 1/2" x 6' Electrical Whip – SKU: 84136
  • 60A Non-Fused Disconnect – SKU: 83335
  • Surge Protector – SKU: ICM517
  • CPS Charging Adapter – SKU: 87-AD87
  • Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

Wall Mount Bracket for Condensers 30"

This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).

Features:

  • Steel: 10 GA
  • Powder-coated grey Finish
  • Load rating: 600 lbs per pair
  • Holes will accommodate anchors for installation
  • Warranty: 1 year
  • ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)

No Return Policy

All sales of this product are final and are non-refundable.

E Lite Equipment Pad and Risers Kit 18" x 38" x 3"

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

  • Reliable Support: Abundance of ridges for stable ground support.
  • Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
  • Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
  • Simple Appearance: Gray color with size labels.
  • Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

  • Weather Resistance: Made from tough PVC for long-lasting performance.
  • Secure Setup: The track securely holds bolts in place.
  • Bolts Included: Each set comes with two bolts.
  • Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

More Information
ACiQ 2.5 Ton 17 SEER2 High Efficiency Central Heat Pump | Inverter - R454B
SKUACIQ-30-EHPD
Refrigerant Charge25'
Weight152.340000
ManufacturerACiQ
ReplacesACIQ-30-EHPB
Product FeaturesInverter, Two Stage Condenser, Variable Speed Condenser
HSPF28.5
Cooling BTU30,000 BTU
Heating BTU31,000 BTU
Maximum CFM989
Decibel Level (dBA)60
Electric HeatHeat Pump
RefrigerantR454B
SEER217
Condenser StagesVariable Speed
Compressor TypeRotary
Liquid Valve Size3/8"
Suction Valve Size3/4"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size25 Amps
Min. Breaker Size23 Amps
Tonnage2.5 Ton
BTU/Tonnage30,000 BTU/2.5 Ton
Min/Max Outdoor Temp for Heating-13°F - 75°F
Min/Max Outdoor Temp for Cooling-13°F - 122°F
Ambient Temperature Range-13°F - 122°F
Height31.9"
Width37.2"
Depth16.1"
Warranty12 Years Compressor and 7 Years Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ 2.5 Ton Central Ducted Air Handler - R454B
SKUACiQ-30-AHD
Weight129.000000
ManufacturerACiQ
Cooling BTU30,000 BTU
Maximum CFM989
Decibel Level (dBA)Up to 46 Decibels
Electric Backup Heat Capabilities (Optional)5 Kilowatts, 10 Kilowatts, 15 Kilowatts
ConfigurationMulti-Positional
RefrigerantR454B
Liquid Line3/8"
Suction Line3/4"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size15 Amps
Min. Breaker Size8.0 / 6.0 Amps
Tonnage2.5 Ton
BTU/Tonnage30,000 BTU/2.5 Ton
Mini Split TypeMulti-Positional
Zone CompatibilitySingle Zone
ConnectionFlared
Height52.6"
Width21"
Depth21"
Warranty12 Years Compressor and 7 Years Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
SKULS38343830
Weight35.000000
ManufacturerOnline Supply
Liquid Line3/8"
Suction Line3/4"
Suction Line Insulation Thickness3/4"
Length30 feet
50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
SKULS38343850
Weight22.000000
ManufacturerOnline Supply
Liquid Line3/8"
Suction Line3/4"
Suction Line Insulation Thickness3/4"
Length50 feet
Safety InformationPROPOSITION 65 WARNING
ACiQ 5 Kilowatt 16,200 BTU Heater Coil
SKUEAH-05C(UL)
Weight8.000000
ManufacturerACiQ
Heating BTU16,200
Electric Heat5 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
Electric Phase FilterSingle Phase
Warranty12 year compressor, 7 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ 8 kilowatt 26,000 BTU Heater Coil
SKUEAH-08C(UL)
Weight8.000000
ManufacturerACiQ
Heating BTU26,000
Electric Heat8 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
Electric Phase FilterSingle Phase
Warranty12 year compressor, 7 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACIQ 10 Kilowatt 34,100 BTU Heater Coil
SKUEAH-10C(UL)
Weight8.000000
ManufacturerACiQ
Heating BTU34,100
Electric Heat10 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
Electric Phase FilterSingle Phase
Warranty12 year compressor, 7 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ 15 Kilowatt 51,150 BTU Heater Coil
SKUEAH-15C(UL)
Weight10.000000
ManufacturerACiQ
Heating BTU51,150
Electric Heat15 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
Electric Phase FilterSingle Phase
Warranty12 year compressor, 7 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ TL04-1 Smart Thermostat – 24V & HA/HB Compatible
SKUTL04-1
Weight0.700000
ManufacturerACiQ
Product FeaturesHeat Pump Capable, Programmable, WiFi, 1 Heat, 2 Heat, 3 Heat, 1 Cool, 2 Cool
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Ecobee Smart WiFi Thermostat with Alexa
SKUEB-STATE6P-01
Weight0.500000
Manufacturerecobee
Product FeaturesProgrammable, WiFi, Heat Pump Capable, 3 Heat, 2 Cool
Energy StarYes
Warranty3 years
Resources
Safety InformationPROPOSITION 65 WARNING
ACiQ Single-Stage Dual Powered Non-Programmable Thermostat
SKUSTN701
Weight1.000000
ManufacturerACiQ
Product FeaturesHeat Pump Capable, 1 Heat, 1 Cool, Non Programmable
ResourcesBraeburn Brochure
Braeburn User Guide
Safety InformationPROPOSITION 65 WARNING
ACiQ 7-Day Programmable Thermostat with WiFi
SKUSTN855W
Weight1.000000
ManufacturerACiQ
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
SKUMSK001
Weight15.000000
ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Condensers 30"
SKUACB-30
Weight9.200000
ManufacturerOnline Supply
Length30"
Height16"
Width2"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
SKU87762 / EL1838-3
Weight25.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
You're reviewing:ACiQ 2.5 Ton 17 SEER2 High Efficiency Central Heat Pump System | Inverter - R454B
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
