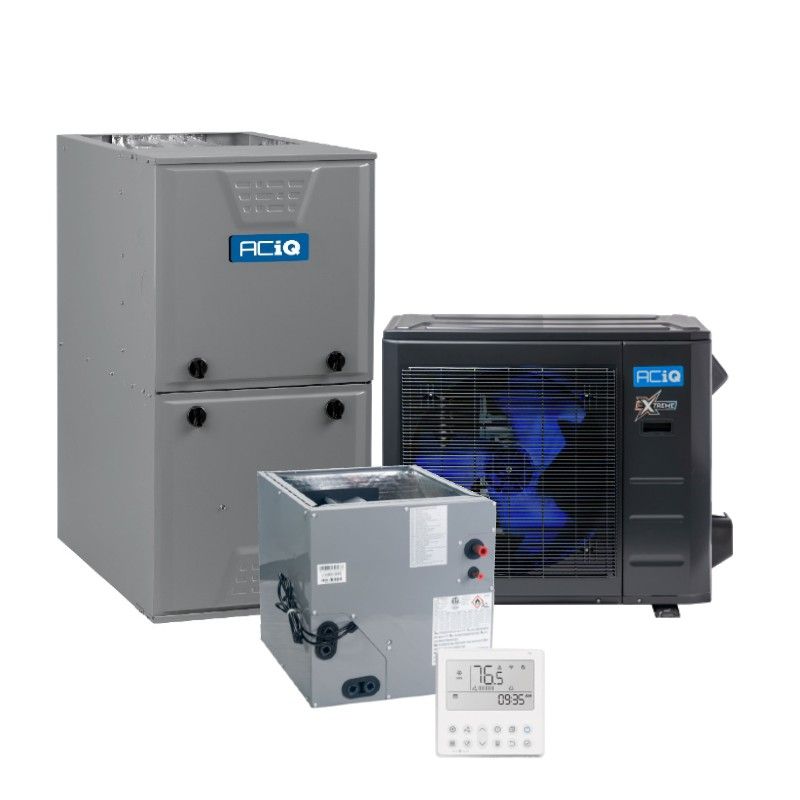

With tons of extra features and a great price, an ACIQ furnace and High Efficiency Heat Pump system is the perfect choice for all of your heating and cooling needs for any time of year. All ACIQ models come with a 10 year parts warranty.
ACiQ 96% 60,000 BTU Two Stage Gas Furnace - 17.5" Width - Multi-Positional
OVERVIEW
With its variable speed blower motor and two stage burner, the ACiQ G96VTN0601714A can provide a consistently superior comfort to almost any application. Considered one of the best furnaces offered by ACiQ, the G96VTN0601714A is a great choice to keep you comfortable while saving you money in energy bills year-round.
QUICK FACTS
60,000 BTU, 96% AFUE natural gas furnace
Generally suitable for up to a small to medium house in ideal applications
Variable speed blower with a two stage burner
Multi-positional design - can be installed in the upflow, downflow, or horizontal orientations
Field-convertible to propane with an optional LP kit
On board self-diagnostics
60,000 BTU, 96% AFUE
The ACiQ G96VTN0601714A has an input of 60,000 BTU. With an efficiency of 96%, this means that the furnace has an output of 57,600 BTU, meaning that it is generally suitable for small to medium house in ideal climates. The 96% AFUE also means that for the gas going into the furnace, 96% of it is used to heat your home while the remaining 4% is lost out the flue piping and lost to normal furnace operations. All 96% furnaces require plastic/PVC flue venting, and if you need it to be metal flue venting to match your current setup, you would need to get an 80% efficient furnace. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost.
Warranty
ACiQ offers 10 year parts warranty and lifetime (20 year) heat exchanger limited warranty. Please note that in order for these warranties to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.
Installation and Durability
With its ability to be installed in any configuration - upflow, downflow, or horizontal - the ACiQ G96VTN0601714A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not designed to be suitable for a mobile home on its own.
Superior Comfort
All ACiQ-brand equipment is manufactured, one of the leaders of superior comfort in the industry. The ACiQ G96VTN0601714A definitely lives up to the name thanks in part to its variable speed blower motor and its two stage burner. Both of these prominent features provide the most precise temperature and airflow output possible, making you as comfortable as possible in your home year-round.
Quiet Comfort
Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.
High Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.
Longer life, longer warranty
Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.
ACIQ 2.5 Ton 16.8 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series - R454B
OVERVIEW
Inverter - The ACIQ-30-HPD 2.5 ton Extreme series central inverter heat pump utilizes inverter technology to convert AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.
Learning Condenser - Equipped with advanced sensors, this condenser monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall performance. During the initial startup, it enters a learning mode that optimizes future operations for maximum efficiency by collecting and storing data.
Adaptive Sizing - With its self-adjusting inverter design, the ACIQ-30-HPD can be sized based on your heating needs. Standard heat pumps may cause discomfort during summer when sized for heat, but this unit automatically adjusts to function like a smaller unit, ensuring ideal cooling performance without excess humidity.
Extreme Heat Technology - "Extreme Heat" means extended temperature range heating all the way down to -22°F. Traditional heat pumps cannot produce significant heat below about 30°F outside temperature. Below that threshold, they rely on expensive backup electric heat. The ACIQ-30-HPD uses the inverter to vary the refrigerant flow, allowing for maximum heat extraction during extreme cold temperatures. The backup electric heat supplements the heat pump, and only takes over below -22°F. The heat pump gives 100% at 0°F, and still gives 80% at -22°F, saving you up to 75% on cold weather heating bills.
QUICK FACTS
Variable BTU output based on demand: 12,000-30,000 BTU for cooling, 12,000-34,000 for heating
R454B refrigerant
Inverter heat pump system for ducted applications
Efficient cooling from -22°F to 122°F outdoor temperatures
Efficient heating from -22°F to 75°F outdoor temperatures
Durable gold fin condenser coil coating for longevity
Quiet operation, even under high workloads
2.5 Ton, 16.8 SEER2
Boasting an efficiency rating of 16.8 SEER2, the ACIQ-30-HPD provides versatile comfort across a range of climates by providing reliable comfort with a variable output that eliminates short cycling for lasting efficiency. Use our sizing calculator (found HERE) to determine the demand for your home.
Extreme Heat Base Pan Heater Technology
Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
Heats down to −22°F and cools up to 115°F
Enjoy your ACiQ heat pump system year round with unprecidented heating and cooling performance. Not only that, it is extremely efficient saving you money year round!
Self Cleaning Condenser
ACiQ condensers stay clean and efficient with self-cleaning technology built right in. At the end of each cycle, the fan reverses direction and blows air out the back of the unit — helping remove leaves, dirt, and debris before buildup can begin.

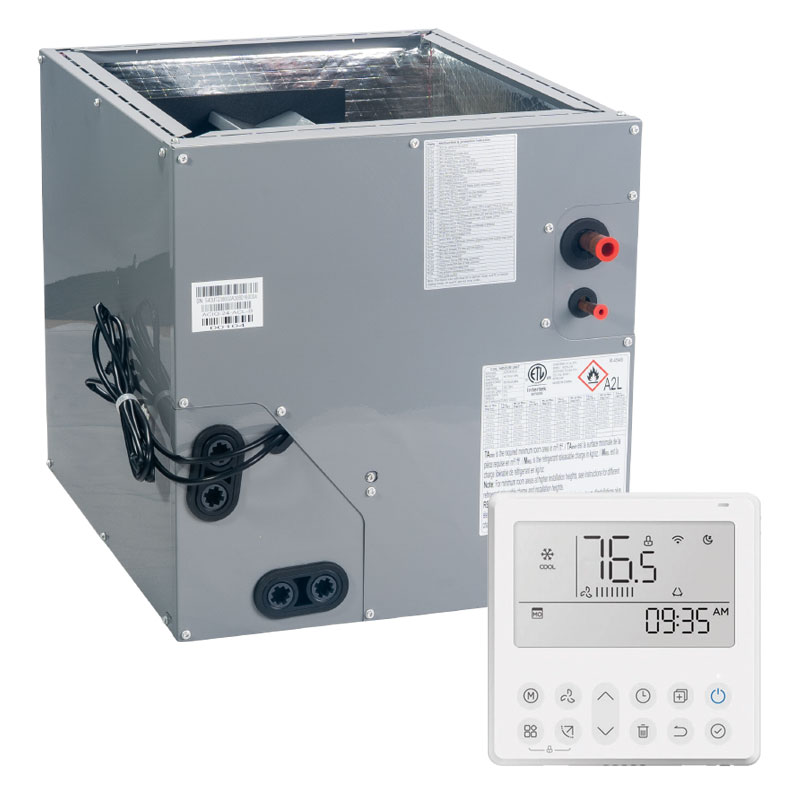

ACIQ takes pride in its ability to provide a high-quality system, including all system components.The ACIQ-36-ACL-17-B multi-positional A-coil stands out as a superior choice for various applications, ensuring optimal unit efficiency through its factory-integrated TXV kit, maximizing energy optimization. With its outstanding performance features and versatile orientation options, this coil becomes the ultimate solution for achieving unmatched comfort in your home.
QUICK FACTS
3 ton multi-positional evaporator coil
Works in almost any upflow, downflow, or horizontal system setup
Compatible with both AC-only and heat pump condensers
Factory-installed TXV kit for enhanced energy optimization
Sturdy and compact design
3 Tons
The ACIQ-36-ACL-17-B is rated for up to 3 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.
Santa Fe Ultra70 Dehumidifier UL3684 - Whole House
The Santa Fe Ultra70 is a high-efficiency, ventilating dehumidifier designed to control excess humidity throughout your entire home. Capable of integrating directly with your HVAC system, this unit removes up to 70 pints of moisture per day and is ideal for spaces up to 1,800 square feet.
High Efficiency
The Ultra70 is the perfect dehumidifier for residential use, including low-clearance crawl spaces, basements, and whole-house applications. Drawing just 4.1 amps, this unit offers powerful moisture control with low energy consumption. It utilizes a MERV-13 filter—one of the most efficient in its class—and uses R454B refrigerant for a more environmentally responsible performance.
Versatile Applications
Compact Design: Weighs just 55 lbs and measures only 12” wide, making it easy to place in tight spaces.
Flexible Installation: Can be used as a free-standing unit or ducted into your home's HVAC system.
Plug-in Ready: Includes a 9-foot power cord and plug-in wiring style for easy setup.
Industry Usage: Perfect for homes, apartments, and condominiums.
Operating Temperature Range: Effective in environments from 49°F to 95°F.
Bonus Features
Auto Restart: Automatically resumes operation after a power outage.
Advanced Control Panel: Includes a built-in dehumidistat for precise manual humidity control.
Automatic Defrost: Prevents frost buildup in colder environments for uninterrupted performance.
Whats included
Leveling feet (4)
Filter - 9”x11”x1” MERV 13 (1)
8” Round Duct Collars (2)
Warranty
Santa Fe offers an industry-leading warranty to ensure long-term performance and peace of mind:
5-Year Warranty: Covers operational failures.
6-Year Warranty: Covers faulty components.
In the event of a malfunction, Santa Fe will repair or replace the unit. Please refer to the Owner’s Manual for full warranty details and terms.
You will need Adobe® Acrobat® Reader to view PDF documents.
Electrical
120 V. 1 Phase 60 Hz
Energy Star
Yes
Heating BTU
60,000
Blower Motor
Variable Speed
Brand/Manufacturer
ACiQ
Burner Stages
Two
Equivalent
Carrier Equivalent: 59TP6B060V17--14
Tempstar Equivalent: F96VTN0601714A
Bryant Equivalent: 926TB42060V17
Configuration
Upflow/Downflow/Horizontal
Exhaust Flue Requirement
Plastic / PVC
Product Features
New Refrigerant Compliant
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACIQ 2.5 Ton 16.8 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series - R454B
Feature
Spec
SKU
ACIQ-30-HPD
Maximum CFM
3001.8
Depth
16.14"
HSPF2
10.0
SEER2 (Efficiency)
16.8
Width
37.24"
Height
31.89"
Weight (in lbs)
174.600000
Decibel Level (dBA)
60.5
Replaces
ACIQ-30-HPB
Warranty
12 Years Compressor and 7 Years Parts with Online Registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
